Matplotlib hist 为不同的柱添加不同的颜色

Matplotlib hist 为不同的柱添加不同的颜色

Matplotlib中,ax.histcolor参数默认为所有的bins添加同样的颜色。那么,如何给不同的bin添加不一样的颜色呢?

Code

fig, ax = plt.subplots(figsize=(12, 6), tight_layout=True)

cm = plt.cm.get_cmap('Greens')

n, bins, patches = ax.hist(x*100, 500, density=True, cumulative=-1, color='green', histtype='bar')

ax.set_xlim(0, 20)

for c, p in zip(n, patches):
    plt.setp(p, 'facecolor', cm(1-c))

plt.show()

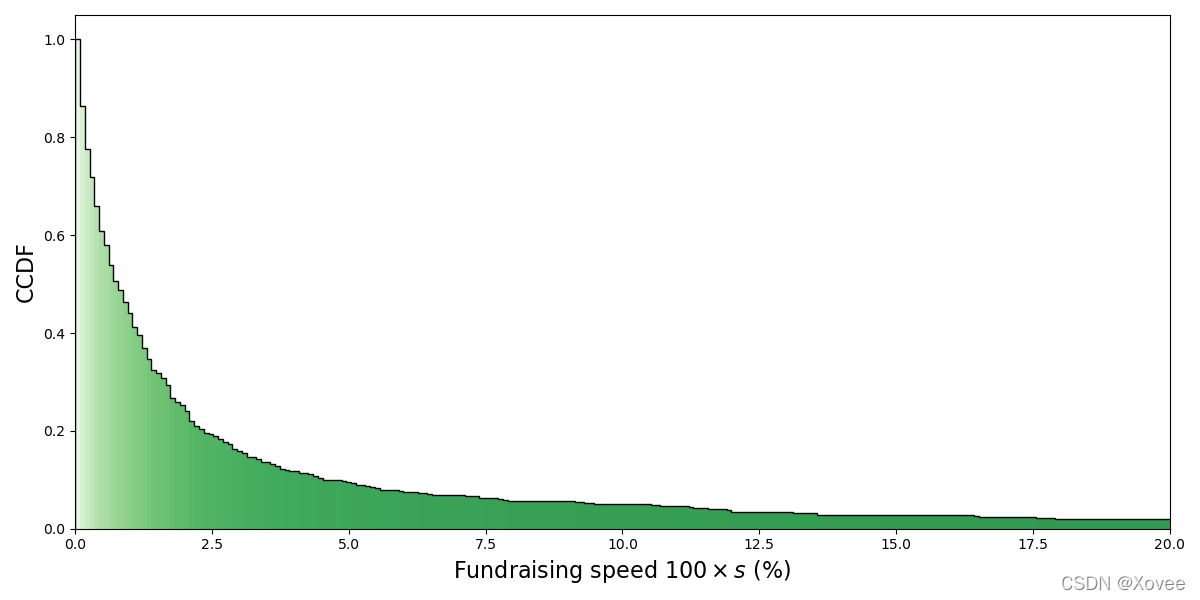

Result

在这里插入图片描述

Reference

  1. Bas Swinckels. (Jan 3, 2022). Plot histogram with colors taken from colormap. Retrieved from https://stackoverflow.com/questions/23061657/plot-histogram-with-colors-taken-from-colormap
