Android百度地图（一）如何集成到项目中

Android百度地图（一）如何集成到项目中

申请密钥，到百度API控制台的页面，

http://lbsyun.baidu.com/index.php?title=androidsdk/guide/key

获取SHA1 码

http://blog.csdn.net/xyzz609/article/details/51918936

示例代码下载,全选就行

http://lbsyun.baidu.com/sdk/download?selected=mapsdk_basicmap,mapsdk_searchfunction,mapsdk_lbscloudsearch,mapsdk_calculationtool,mapsdk_radar

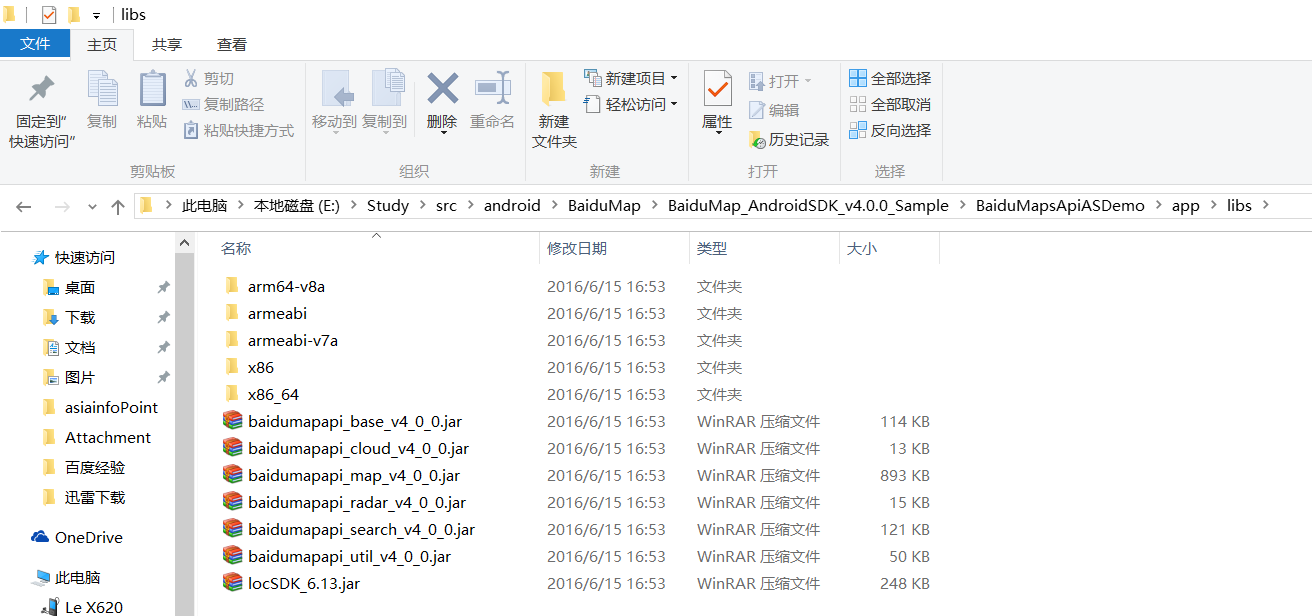

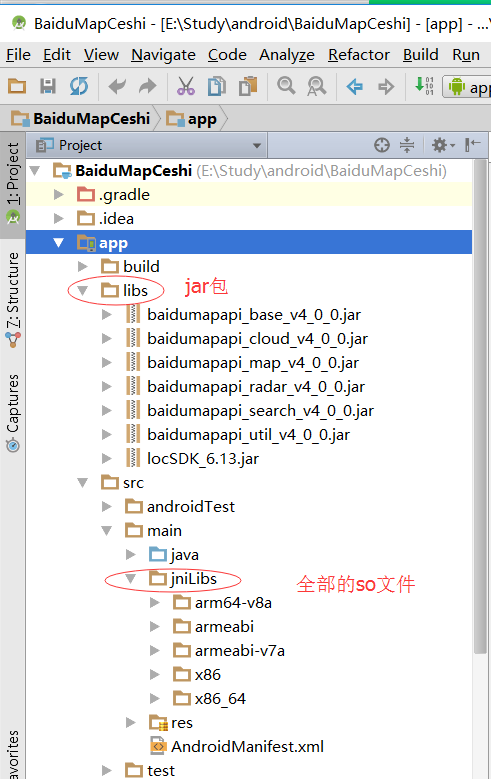

将jar包和so文件导入项目中

这些文件哪有？你下载后解压的demo

好了，装备好了，开始代码吧

布局文件：activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical" >
    <com.baidu.mapapi.map.MapView
        android:id="@+id/id_bmapView"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:clickable="true" />
</LinearLayout>

展示视图控制文件：MainActivity

package com.yang.baidumapceshi;

import android.app.Activity;
import android.os.Bundle;
import android.view.Window;

import com.baidu.mapapi.SDKInitializer;
import com.baidu.mapapi.map.MapView;

public class MainActivity extends Activity
{
    private MapView mMapView = null;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);

        requestWindowFeature(Window.FEATURE_NO_TITLE);
        // 在使用SDK各组件之前初始化context信息，传入ApplicationContext
        // 注意该方法要再setContentView方法之前实现
        SDKInitializer.initialize(getApplicationContext());
        setContentView(R.layout.activity_main);
        // 获取地图控件引用
        mMapView = (MapView) findViewById(R.id.id_bmapView);
    }

    @Override
    protected void onDestroy()
    {
        super.onDestroy();
        // 在activity执行onDestroy时执行mMapView.onDestroy()，实现地图生命周期管理
        mMapView.onDestroy();
        mMapView = null;
    }

    @Override
    protected void onResume()
    {
        super.onResume();
        // 在activity执行onResume时执行mMapView. onResume ()，实现地图生命周期管理
        mMapView.onResume();
    }

    @Override
    protected void onPause()
    {
        super.onPause();
        // 在activity执行onPause时执行mMapView. onPause ()，实现地图生命周期管理
        mMapView.onPause();
    }

}

权限啊密匙啊–AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.yang.baidumapceshi">

    <uses-permission android:name="android.permission.GET_ACCOUNTS" />
    <uses-permission android:name="android.permission.USE_CREDENTIALS" />
    <uses-permission android:name="android.permission.MANAGE_ACCOUNTS" />
    <uses-permission android:name="android.permission.AUTHENTICATE_ACCOUNTS" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="com.android.launcher.permission.READ_SETTINGS" />
    <uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.BROADCAST_STICKY" />
    <uses-permission android:name="android.permission.WRITE_SETTINGS" />
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />
    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">

        <meta-data
            android:name="com.baidu.lbsapi.API_KEY"
            android:value="HOuUcEQSKXNv5gMLSK2ZSy0hK5dhMh59" />

        <activity
            android:name=".MainActivity"
            android:label="@string/app_name"
            android:theme="@style/AppTheme.NoActionBar">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

最后注意：build.gradle,导入的jar部署到环境了吗

apply plugin: 'com.android.application'

android {
    compileSdkVersion 23
    buildToolsVersion "23.0.3"

    defaultConfig {
        applicationId "com.yang.baidumapceshi"
        minSdkVersion 15
        targetSdkVersion 23
        versionCode 1
        versionName "1.0"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    testCompile 'junit:junit:4.12'
    compile 'com.android.support:appcompat-v7:23.4.0'
    compile 'com.android.support:design:23.4.0'
    compile files('libs/baidumapapi_base_v4_0_0.jar')
    compile files('libs/baidumapapi_cloud_v4_0_0.jar')
    compile files('libs/baidumapapi_map_v4_0_0.jar')
    compile files('libs/baidumapapi_radar_v4_0_0.jar')
    compile files('libs/baidumapapi_search_v4_0_0.jar')
    compile files('libs/baidumapapi_util_v4_0_0.jar')
    compile files('libs/locSDK_6.13.jar')
}

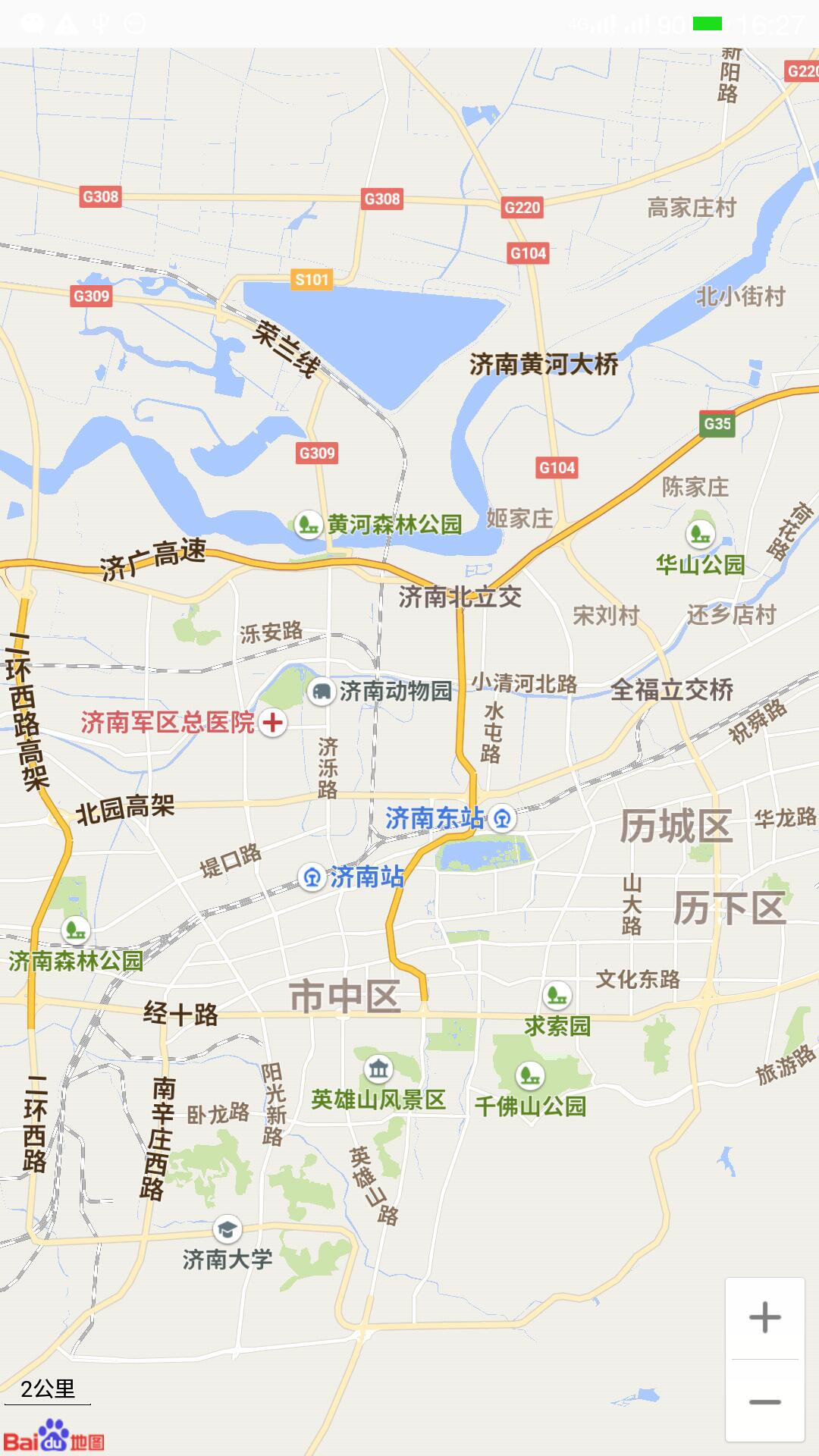

行了 你可以运行测试了，不过建议用真机进行测试，我的虚拟机一直报错，我研究了一下午，还是不行，最后上真机才行的。

参考大神

http://blog.csdn.net/lmj623565791/article/details/37729091
