springboot前后端分离集成CAS单点登录(统一认证)

最近公司接了一个项目，甲方需要集成到金智系统登录,他们的数据在那边，然后需要使用cas来完成，网上了解了一下 大概就是通过cas系统来拦截请求验票，重定向到指定url登录以后再调回来处理请求接口

大致流程如下

1. 在Maven项目中引入CAS（Central Authentication Service）客户端核心库。CAS是一个开源的企业级单点登录解决方案，用于实现Web应用程序的集中认证和授权。

        <dependency>
            <groupId>org.jasig.cas.client</groupId>
            <artifactId>cas-client-core</artifactId>
            <version>3.5.0</version>
        </dependency>

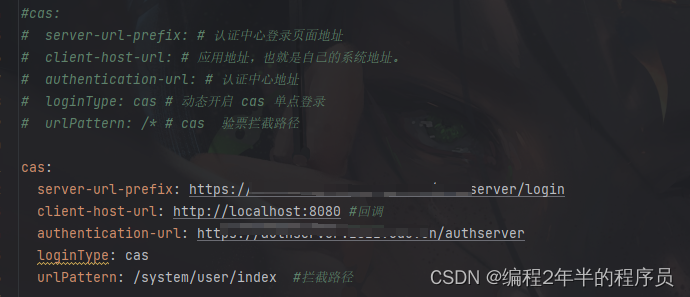

2.yml配置cas

3.cas配置类

@Configuration
@Slf4j
@ConditionalOnProperty(value = "cas.loginType", havingValue = "cas")
public class CasFilterConfig {

    /**
     * 需要走cas拦截的地址（/* 所有地址都拦截）
     */
    @Value("${cas.urlPattern:/*}")
    private String filterUrl;

    /**
     * 默认的cas地址，防止通过 配置信息获取不到
     */
    @Value("${cas.server-url-prefix}")
    private String casServerUrl;

    /**
     * 应用访问地址（这个地址需要在cas服务端进行配置）
     */
    @Value("${cas.authentication-url}")
    private String authenticationUrl;

    /**
     * 应用访问地址（这个地址需要在cas服务端进行配置）
     */
    @Value("${cas.client-host-url}")
    private String appServerUrl;

    @Bean
    public ServletListenerRegistrationBean servletListenerRegistrationBean() {
        log.info(" \n cas 单点登录配置 \n appServerUrl = " + appServerUrl + "\n casServerUrl = " + casServerUrl);
        log.info(" servletListenerRegistrationBean ");
        ServletListenerRegistrationBean listenerRegistrationBean = new ServletListenerRegistrationBean();
        listenerRegistrationBean.setListener(new SingleSignOutHttpSessionListener());
        listenerRegistrationBean.setOrder(Ordered.HIGHEST_PRECEDENCE);
        return listenerRegistrationBean;
    }

    /**
     * 单点登录退出
     *
     * @return
     */
    @Bean
    public FilterRegistrationBean singleSignOutFilter() {
        log.info(" servletListenerRegistrationBean ");
        FilterRegistrationBean registrationBean = new FilterRegistrationBean();
        registrationBean.setFilter(new SingleSignOutFilter());
        registrationBean.addUrlPatterns(filterUrl);
        registrationBean.addInitParameter("casServerUrlPrefix", casServerUrl);
        registrationBean.setName("CAS Single Sign Out Filter");
        registrationBean.setOrder(1);
        return registrationBean;
    }

    /**
     * 单点登录认证
     *
     * @return
     */
    @Bean
    public FilterRegistrationBean AuthenticationFilter() {
        log.info(" AuthenticationFilter ");
        FilterRegistrationBean registrationBean = new FilterRegistrationBean();
        registrationBean.setFilter(new AuthenticationFilter());
        registrationBean.addUrlPatterns(filterUrl);
        registrationBean.setName("CAS Filter");
        registrationBean.addInitParameter("casServerLoginUrl", casServerUrl);
        registrationBean.addInitParameter("serverName", appServerUrl);
        registrationBean.setOrder(1);
        return registrationBean;
    }

    /**
     * 单点登录校验
     *
     * @return
     */
    @Bean
    public FilterRegistrationBean Cas30ProxyReceivingTicketValidationFilter() {
        log.info(" Cas30ProxyReceivingTicketValidationFilter ");
        FilterRegistrationBean registrationBean = new FilterRegistrationBean();
        registrationBean.setFilter(new Cas30ProxyReceivingTicketValidationFilter());
        registrationBean.addUrlPatterns(filterUrl);
        registrationBean.setName("CAS Validation Filter");
        registrationBean.addInitParameter("casServerUrlPrefix", authenticationUrl);
        registrationBean.addInitParameter("serverName", appServerUrl);
        registrationBean.setOrder(1);
        return registrationBean;
    }

    /**
     * 单点登录请求包装
     *
     * @return
     */
    @Bean
    public FilterRegistrationBean httpServletRequestWrapperFilter() {
        log.info(" httpServletRequestWrapperFilter ");
        FilterRegistrationBean registrationBean = new FilterRegistrationBean();
        registrationBean.setFilter(new HttpServletRequestWrapperFilter());
        registrationBean.addUrlPatterns(filterUrl);
        registrationBean.setName("CAS HttpServletRequest Wrapper Filter");
        registrationBean.setOrder(1);
        return registrationBean;
    }

}

4.对接cas统一认证后接受的用户信息对象

/**
 * @Author:
 * @Date:
 * @Description: 使用cas对接封装的cas返回的用户信息的对象
 */
public class CasUtil {

    private static final Logger LOGGER = LoggerFactory.getLogger(CasUtil.class);
    /**
     * cas client 默认的session key
     */
    public final static String CAS = "_const_cas_assertion_";

    /**
     * 封装CasUserInfo
     *
     * @param request
     * @return
     */
    public static CasUserInfo getCasUserInfoFromCas(HttpServletRequest request) {
        Object object = request.getSession().getAttribute(CAS);
        if (null == object) {
            return null;
        }
        Assertion assertion = (Assertion) object;
        return buildCasUserInfoByCas(assertion);
    }

    /**
     * 构建CasUserInfo
     *
     * @param assertion
     * @return
     */
    private static CasUserInfo buildCasUserInfoByCas(Assertion assertion) {
        if (null == assertion) {
            LOGGER.error(" Cas没有获取到用户 ");
            return null;
        }
        CasUserInfo casUserInfo = new CasUserInfo();
        String userName = assertion.getPrincipal().getName();
        LOGGER.info(" cas对接登录用户= " + userName);
        casUserInfo.setUserAccount(userName);
        //获取属性值
        Map<String, Object> attributes = assertion.getPrincipal().getAttributes();
        Object name = attributes.get("cn");
        casUserInfo.setUserName(name == null ? userName : name.toString());
        casUserInfo.setAttributes(attributes);
        return casUserInfo;
    }

5.用户信息实体

/**
 * @Author:
 * @Date:
 * @Description: 返回的用户信息
 */
@Setter
@Getter
public class CasUserInfo {

    /** 用户名 */
    private String userName;
    /** 用户 */
    private String userAccount;
    /** 用户信息 */
    private Map<String, Object> attributes;

}

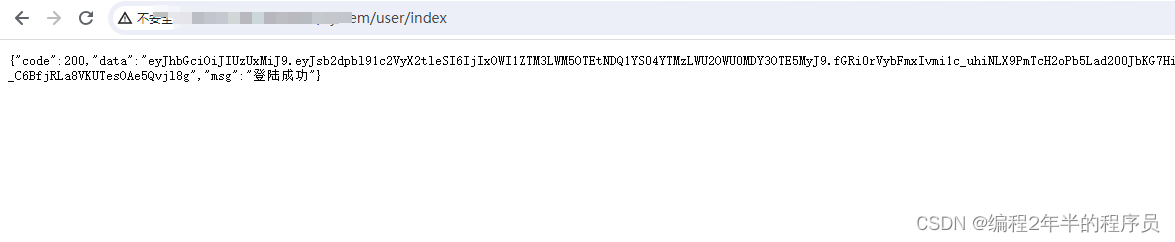

6.验证统一认证登录后跳回来的处理


    /**
     * 统一认证成功后跳转
     *
     * @return
     */
    @GetMapping(value = "/index")
    public ResponseVo<String> index(HttpServletRequest request) {
        CasUserInfo userInfo = CasUtil.getCasUserInfoFromCas(request);
        log.info("userInfo = " + JSONObject.toJSON(userInfo));

    }

统一认证登录成功以后，回来再根据用户信息校验用户，生成对应token

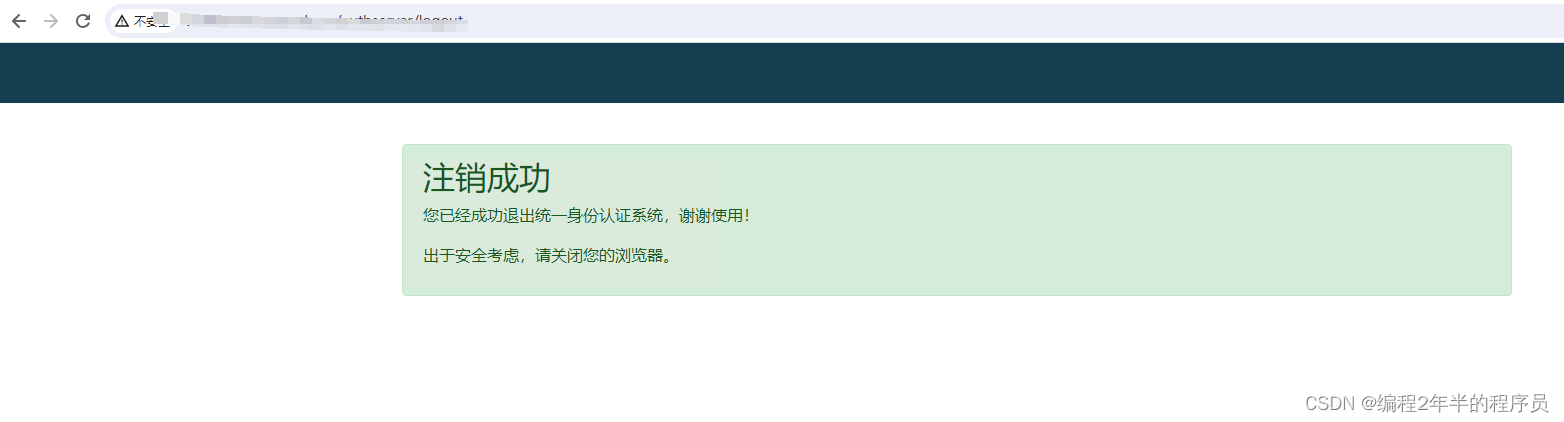

7.退出

  /**
     * 统一退出接口
     *
     * @return
     */
    @GetMapping(value = "/logout")
    public RedirectView logout(HttpServletRequest request) {
        // 清理缓存

        //        return "redirect:https://********/logout"; cas的退出
        return new RedirectView("https://************/logout");
    }

最后跳转回来的时候因为url里面带了;被拦截报错
The request was rejected because the URL contained a potentially malicious String ";"
最后在网上搜了一下相关错误
解决办法 在yml配置server加了以下配置

  servlet:
    session:
      tracking-modes: cookie
