IDEA中使用MyBatis Generator快速开发

版权声明:本文为博主原创文章,未经博主允许不得转载。 https://blog.csdn.net/y694721975/article/details/53769383

1.新建Maven项目

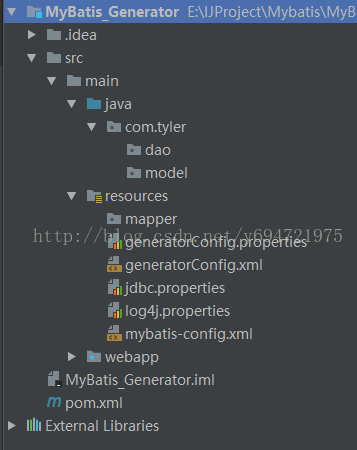

 2.创建目录


3.通过pom.xml 导入jar包
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.tyler.mybatis</groupId>
  <artifactId>MyBatis_G1</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>MyBatis_G1 Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.2.8</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.38</version>
    </dependency>
    <!--查看日志的jar包-->
    <!-- https://mvnrepository.com/artifact/log4j/log4j -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>1.2.17</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>1.7.21</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-log4j12 -->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>1.7.21</version>
    </dependency>
    <dependency>
      <groupId>org.testng</groupId>
      <artifactId>testng</artifactId>
      <version>RELEASE</version>
    </dependency>
  </dependencies>
  <build>
    <finalName>MyBatis</finalName>
    <plugins>
      <plugin>
        <groupId>org.mybatis.generator</groupId>
        <artifactId>mybatis-generator-maven-plugin</artifactId>
        <version>1.3.2</version>
        <configuration>
          <verbose>true</verbose>
          <overwrite>true</overwrite>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>
4.generatorConfig.xml(自动生成类的核心文件)
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <!--导入属性配置-->
    <properties resource="generatorConfig.properties"/>

    <!--指定特定数据库的jdbc驱动jar包的位置-->
    <classPathEntry location="${jdbc.driverLocation}"/>

    <context id="default" targetRuntime="MyBatis3">

        <!-- optional,旨在创建class时,对注释进行控制 -->
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!--jdbc的数据库连接 -->
        <jdbcConnection
                driverClass="${jdbc.driverClass}"
                connectionURL="${jdbc.connectionURL}"
                userId="${jdbc.userId}"
                password="${jdbc.password}">
        </jdbcConnection>

        <!-- 非必需,类型处理器,在数据库类型和java类型之间的转换控制-->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- Model模型生成器,用来生成含有主键key的类,记录类 以及查询Example类
            targetPackage    指定生成的model生成所在的包名
            targetProject    指定在该项目下所在的路径
        -->
        <javaModelGenerator targetPackage="com.tyler.model"
                            targetProject="src/main/java">

            <!-- 是否允许子包,即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加 构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否对类CHAR类型的列的数据进行trim操作 -->
            <property name="trimStrings" value="true"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法,只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!--Mapper映射文件生成所在的目录 为每一个数据库的表生成对应的SqlMap文件 -->
        <sqlMapGenerator targetPackage="mapper"
                        targetProject="src/main/resources">
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 客户端代码,生成易于使用的针对Model对象和XML配置文件 的代码
                type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象
                type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象
                type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口
        -->
        <javaClientGenerator targetPackage="com.tyler.dao"
                            targetProject="src/main/java" type="XMLMAPPER">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!--数据库中表生成类的信息-->
        <table tableName="user" domainObjectName="User"
              enableCountByExample="false" enableUpdateByExample="false"
              enableDeleteByExample="false" enableSelectByExample="false"
              selectByExampleQueryId="false">
        </table>
    </context>
</generatorConfiguration>
generatorConfig.properties(以上配置文件所使用的变量写到这里面,便于管理)
jdbc.driverLocation=E:\\mysqljar\\mysql-connector-java-5.1.5-bin.jar
jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.connectionURL=jdbc:mysql://localhost:3306/mybatis
jdbc.userId=root
jdbc.password=root
5.生成文件
如果生成不成功,请使用VPN后再尝试(我没挂VPN,下载不成功)

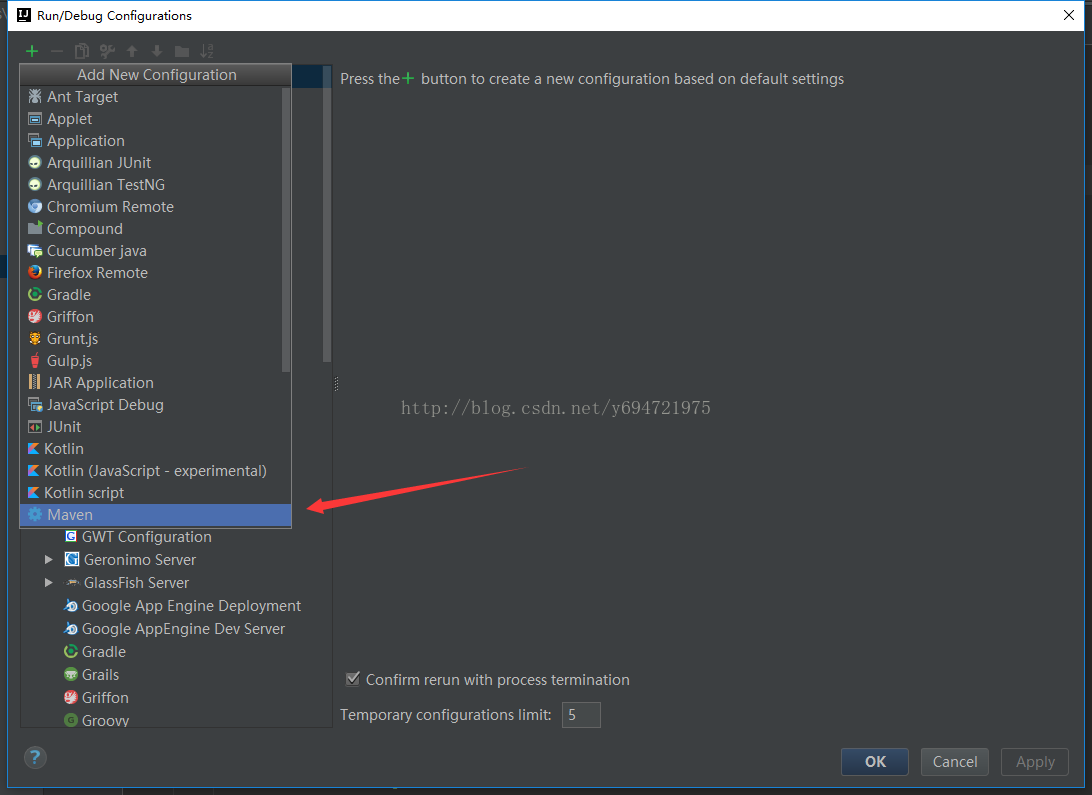

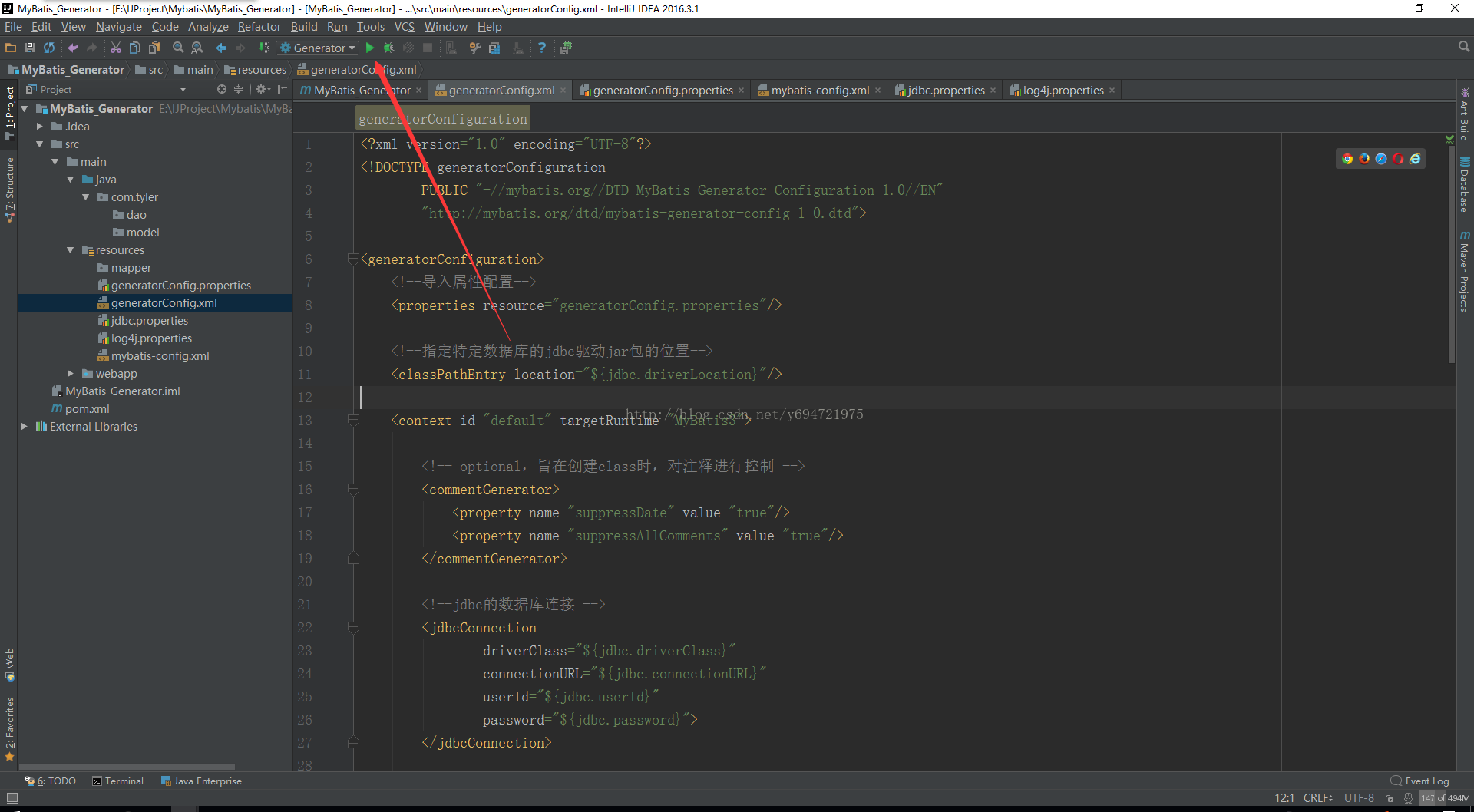

方法1(方便,但是不能看错误信息)

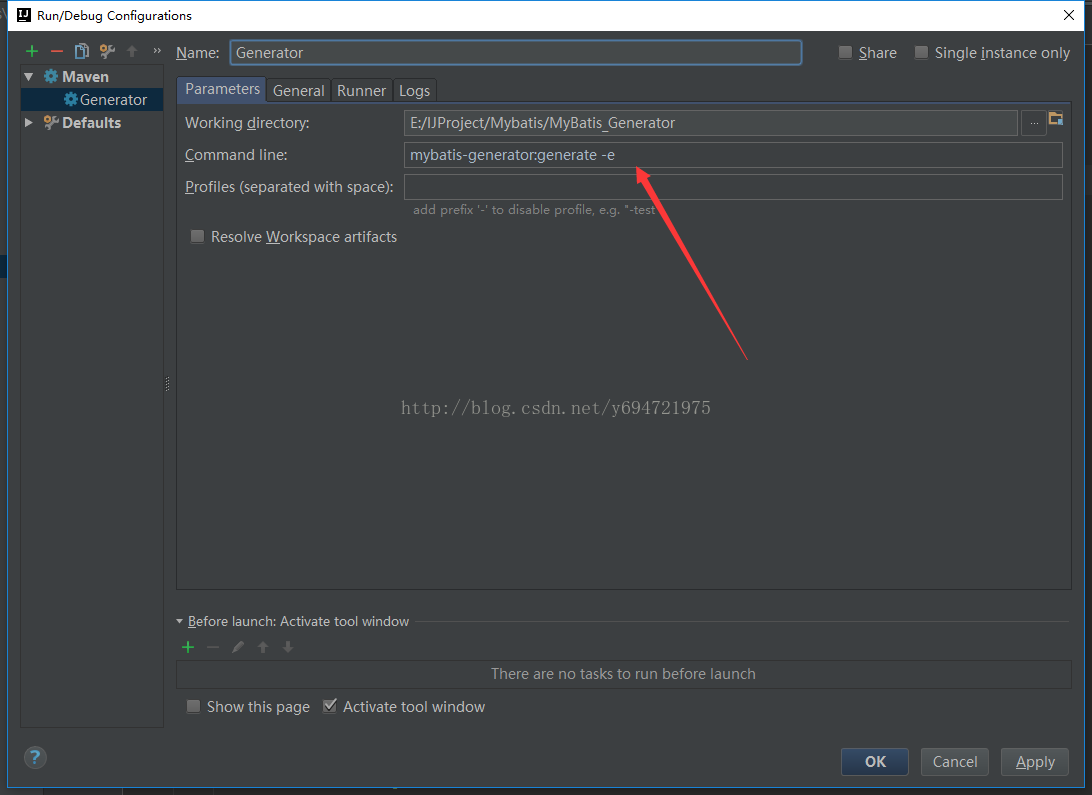

方法2(-e 能看到错误信息)

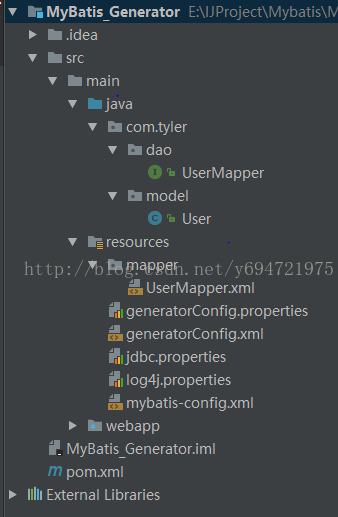

6.生成成功后的目录


7.以下步骤就是正常的测试过程(要是知道怎么做可以不看)
mybatis核心配置文件:mybatis-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="jdbc.properties"/>
    <settings>
        <setting name="cacheEnabled" value="true"/>
        <setting name="defaultStatementTimeout" value="3000"/>
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <setting name="useGeneratedKeys" value="true"/>
    </settings>
  <environments default="development">
      <environment id="development">
          <transactionManager type="JDBC"/>
          <dataSource type="POOLED">
              <property name="driver" value="${driver}"/>
              <property name="url" value="${url}"/>
              <property name="username" value="${username}"/>
              <property name="password" value="${password}"/>
          </dataSource>
      </environment>
  </environments>
    <mappers>
        <mapper resource="mapper/UserMapper.xml"/>
    </mappers>
</configuration>
核心配置文件的属性文件:jdbc.properties
driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/mybatis
username=root
password=root
日志文件:log4j.properties
#---- global logging configuration
#---- level: FATAL,ERROR,WARN,INFO,DEBUG
#---- appender: console, file, mail
### set log levels ###
log4j.rootLogger=DEBUG,console
### 输出到控制台 ###
log4j.appender.console=org.apache.log4j.ConsoleAppender
log4j.appender.console.Target=System.out
log4j.appender.console.layout=org.apache.log4j.PatternLayout
log4j.appender.console.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n
### 输出到日志文件 ###
log4j.appender.file=org.apache.log4j.DailyRollingFileAppender
log4j.appender.file.File=${uplat.root}/WEB-INF/logs/platform.log
log4j.appender.file.DatePattern=_yyyyMMdd'.log'
#log4j.appender.file.Append = true
#log4j.appender.file.Threshold = INFO
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%-d{yyyy-MM-dd HH\:mm\:ss}  [ %t\:%r ] - [ %p ]  %m%n
### 打印SQL ###
#log4j.logger.com.ibatis=DEBUG
#log4j.logger.com.ibatis.common.jdbc.SimpleDataSource=DEBUG
#log4j.logger.com.ibatis.common.jdbc.ScriptRunner=DEBUG
#log4j.logger.com.ibatis.sqlmap.engine.impl.SqlMapClientDelegate=DEBUG
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG
#log4j.logger.java.sql.ResultSet=DEBUG
测试类:
1.获取SqlSession :SqlSessionFactory.java
package com.tyler.test;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.IOException;
import java.io.InputStream;

/**
* Created by tyler on 2016/12/20.
*/
public class SqlSessionFactoryUtil {
    private static SqlSessionFactory sqlSessionFactory;
    private static final Class CLASS_LOCK = SqlSessionFactoryUtil.class;
    private SqlSessionFactoryUtil(){}
    private static SqlSessionFactory initSqlSessionFactory(){
        String resource = "mybatis-config.xml";
        InputStream inputStream = null;
        try {
            inputStream = Resources.getResourceAsStream(resource);
        } catch (IOException e) {
            e.printStackTrace();
        }
        synchronized (CLASS_LOCK){
            if(sqlSessionFactory==null){
                sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
            }
        }
            return sqlSessionFactory;
    }
    public static SqlSession openSessionFactory(){
        if(sqlSessionFactory==null){
            initSqlSessionFactory();
        }
        return sqlSessionFactory.openSession();
    }
}
2.测试: MyBatisTest.java
package com.tyler.test;

import com.tyler.dao.UserMapper;
import com.tyler.model.User;
import org.apache.ibatis.session.SqlSession;
import org.junit.Test;

/**
* Created by tyler on 2016/12/20.
*/
public class MyBatisTest {
    private static SqlSession sqlSession;
    @Test
    public void query(){
        try {
            sqlSession = SqlSessionFactoryUtil.openSessionFactory();
            UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
            User user = userMapper.selectByPrimaryKey(1);
            sqlSession.commit();
            //重写User类的toString()
            System.out.println(user.toString());
        } catch (Exception e) {
            e.printStackTrace();
            sqlSession.rollback();
        } finally {
            if(sqlSession!=null){
                sqlSession.close();
            }
        }
    }
}
最终的目录
