android:visibility的三种属性值的含义及GIF效果展示

visibility属性值介绍

从attrs.xml中可以看到visibility的三种可以设置的值为：visible、invisible、gone

<attr name="visibility">
    <!-- Visible on screen; the default value. -->
    <enum name="visible" value="0" />
    <!-- Not displayed, but taken into account during layout (space is left for it). -->
    <enum name="invisible" value="1" />
    <!-- Completely hidden, as if the view had not been added. -->
    <enum name="gone" value="2" />
</attr>

属性	描述
visible	Visible on screen; the default value 可见的，且是默认值
invisible	Not displayed, but taken into account during layout (space is left for it) 不可见，但在布局过程中仍然占着位置
gone	Completely hidden, as if the view had not been added 隐藏的，不可见，不占用空间

效果测试：

代码逻辑

Activity：

public class MainActivity extends AppCompatActivity {
    ImageView first_iv;
    ImageView second_iv;
    ImageView third_iv;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        first_iv = findViewById(R.id.first_iv);
        second_iv = findViewById(R.id.second_iv);
        third_iv = findViewById(R.id.third_iv);

        findViewById(R.id.set_visible_bt).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                first_iv.setVisibility(View.VISIBLE);
            }
        });
        findViewById(R.id.set_gone_bt).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                second_iv.setVisibility(View.GONE);
            }
        });
        findViewById(R.id.set_invisible_bt).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                third_iv.setVisibility(View.INVISIBLE);
            }
        });
        findViewById(R.id.reset_bt).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                first_iv.setVisibility(View.VISIBLE);
                second_iv.setVisibility(View.VISIBLE);
                third_iv.setVisibility(View.VISIBLE);
            }
        });
    }
}

xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <Button
            android:id="@+id/set_visible_bt"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="第1个visible"
            android:textAllCaps="false"/>
        <Button
            android:id="@+id/set_gone_bt"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="第2个gone"
            android:textAllCaps="false"/>
        <Button
            android:id="@+id/set_invisible_bt"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="第3个invisible"
            android:textAllCaps="false"/>
        <Button
            android:id="@+id/reset_bt"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="全部复原"/>
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="220dp"
        android:background="#EBD6D6"
        android:gravity="center">
        <ImageView
            android:id="@+id/first_iv"
            android:layout_width="1dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:scaleType="centerCrop"
            android:layout_margin="10dp"
            android:visibility="visible"
            android:src="@mipmap/panda1"/>
        <ImageView
            android:id="@+id/second_iv"
            android:layout_width="1dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:layout_margin="10dp"
            android:scaleType="centerCrop"
            android:visibility="visible"
            android:src="@mipmap/panda2"
            />
        <ImageView
            android:id="@+id/third_iv"
            android:layout_width="1dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:scaleType="centerCrop"
            android:layout_margin="10dp"
            android:visibility="visible"
            android:src="@mipmap/panda3"/>
        <ImageView
            android:layout_width="1dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:scaleType="centerCrop"
            android:layout_margin="10dp"
            android:visibility="visible"
            android:src="@mipmap/panda4"/>
    </LinearLayout>

</LinearLayout>

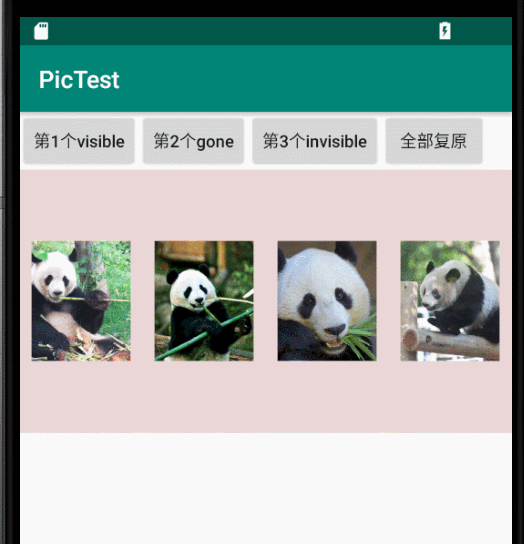

测试效果

注：
    从GIF中可以看出，当点击invisible的时候，图片不可见了，但依然占着位置空间！
    当点击gone的时候，第二个图片不可见了，位置也被其他图片平分了！

仅供参考、多多指教！
