使用Dymola的Python接口

为Python添加dymola库

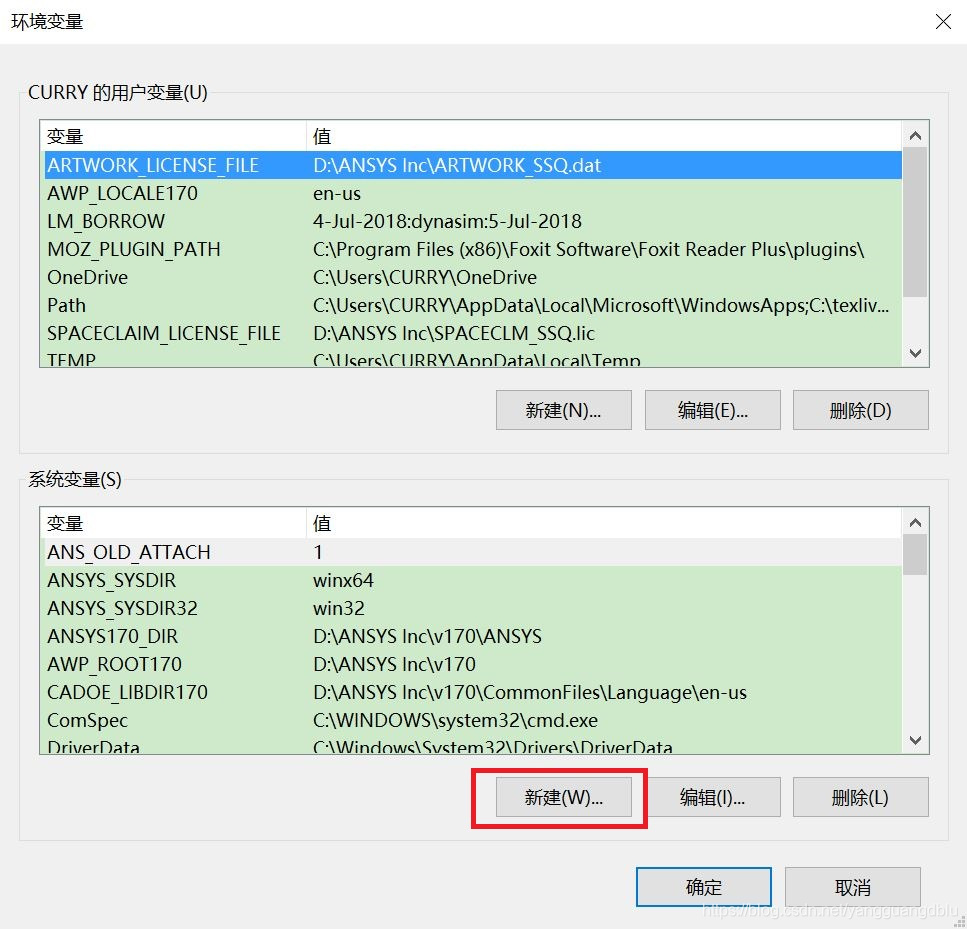

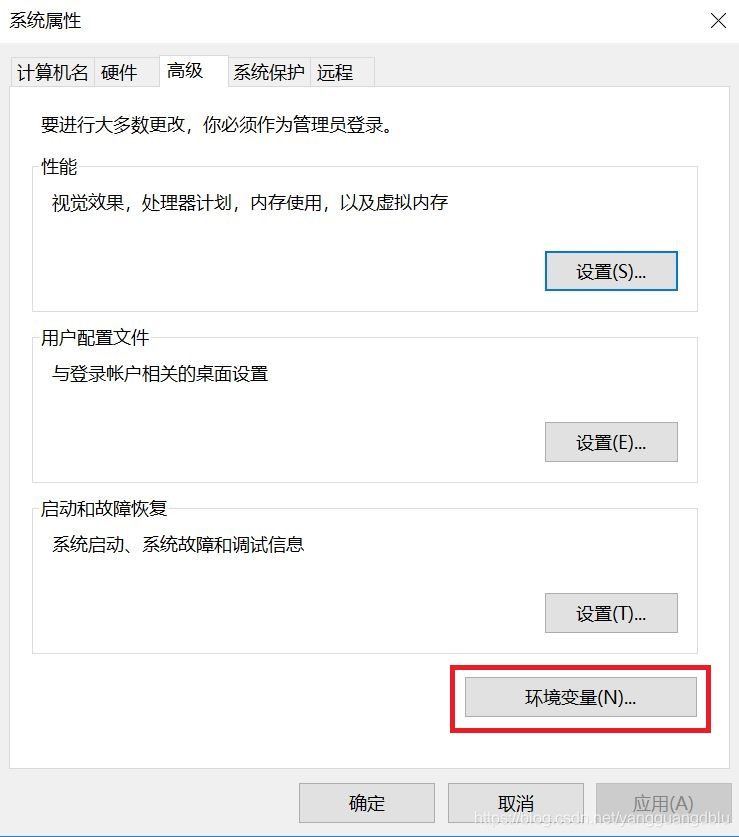

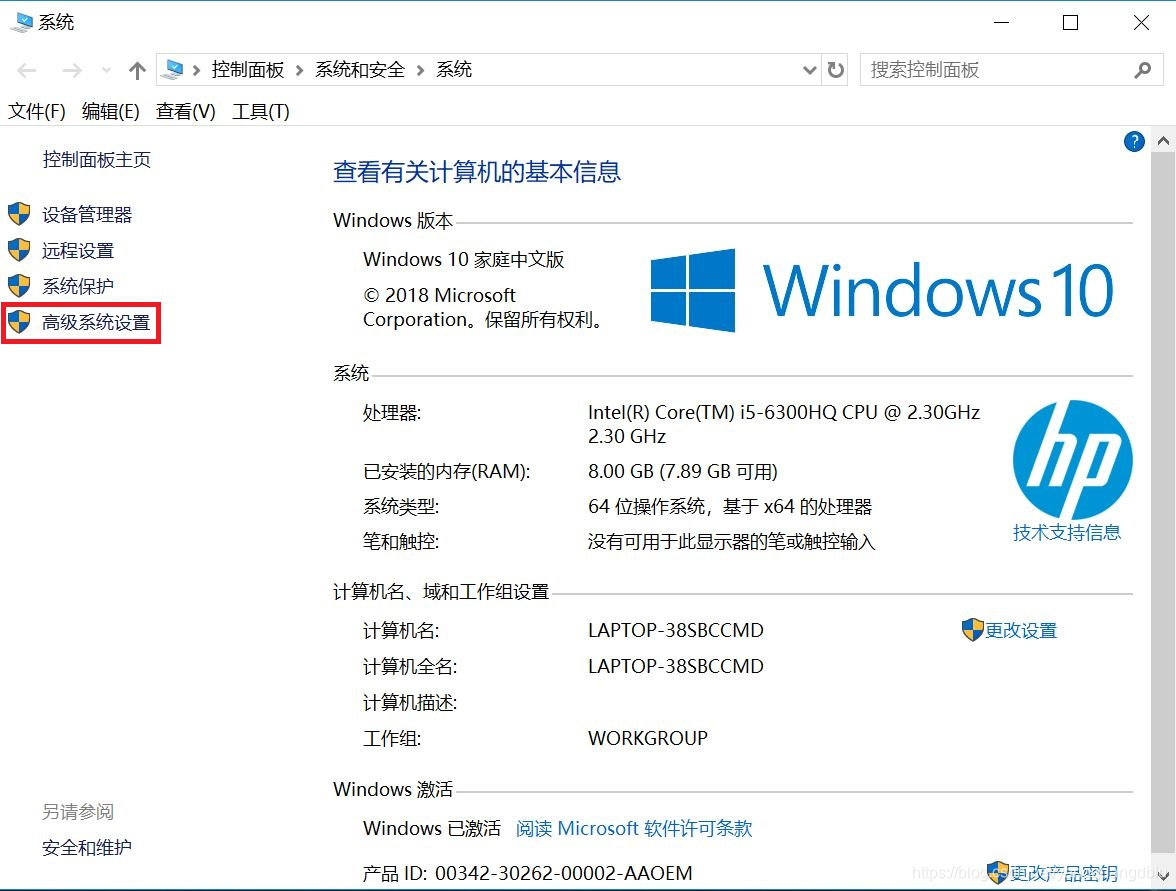

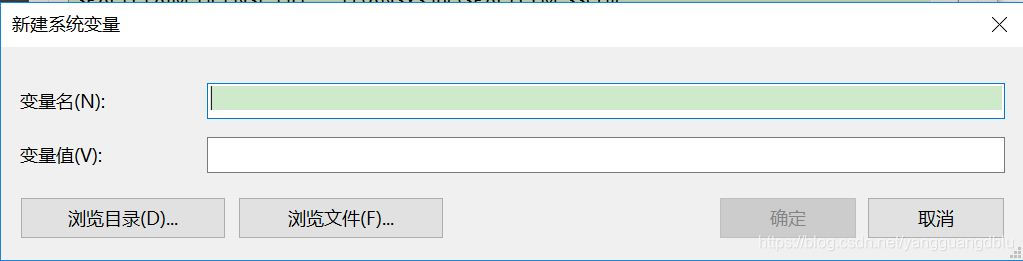

Dymola中集成了Python接口，在 <你的安装路径>\Modelica\Library\python_interface下，有一个Python库文件dymola.egg，很遗憾不能通过pip安装，只能手动添加环境变量，推荐使用最常用的窗口形式添加，具体见下列步骤

在Python中直接调用Dymola引擎进行计算

import os
# Import dymola package
from dymola.dymola_interface import DymolaInterface

# Start the interface
dymola = DymolaInterface()

# Location of your local library clone, my library name is DES
dir_DES ="D:/Distributed Energy Systems"

# Location where to store the results
dir_result ="D:/Distributed Energy Systems/DES_result"

# Open Library
dymola.openModel(path=os.path.join(dir_DES, 'DES.mo'))

# Translate any model you'd like to simulate
dymola.translateModel('DES.CCHPPlants.PlantTemplates.EngineSystemTemplates.EngineTwoAC_mixedTank')

# Simulate the model
output = dymola.simulateExtendedModel(
    problem='DES.CCHPPlants.PlantTemplates.EngineSystemTemplates.EngineTwoAC_mixedTank',
    startTime=0.0,
    stopTime=10000,
    outputInterval=500,
    method="Dassl",
    tolerance=0.0001,
    resultFile=os.path.join(dir_result, 'demo_results'),
    finalNames=['ICE-MIXEDTANK' ],
)

dymola.close()

软件版本 Python3.5，Dymola2019
