可能引起内存泄漏的time.After()方法
接触golang已经有半年的时间了, 这段时间在写一个MQTT的gateway, 架构很简单用golang实现MQTT协议, 用kafka作为消息中间件服务.
今天要记录的是在使用过程中遇到的一个坑:
场景: 用测试用例往gateway中发数据, 500个线程, 每个线程发20k条, 不间断, 所以发了10M条数据, 每条的内容是18-20个字节不等的MQTT消息. 省去调试的过程, 10M条消息在测试端都接收到了, 消息峰值大概是10k条/s(qos=0) 但是打开任务管理器(我用的windows开发环境)发现server服务的占用内存始终在1G+下不来.
于是准备用pprof作内存分析, pprof的使用, 移步 pprof使用描述
隐式引入pprof
_ "net/http/pprof"
在主进程中加入监听
go func() {
http.ListenAndServe("0.0.0.0:9090", nil)
}()
然后重新跑一遍测试用例. 结束之后, server的内存在1G+.
命令行调用
go tool pprof http=localhost:9090/debug/pprof/heap
在命令中输入web, 可以打开图形界面观察
Fetching profile over HTTP from http://localhost:9090/debug/pprof/heap
Saved profile in C:\Users\Elvis\pprof\pprof.alloc_objects.alloc_space.inuse_objects.inuse_space.005.pb.gz
Type: inuse_space
Time: Aug 21, 2019 at 10:10am (CST)
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) web

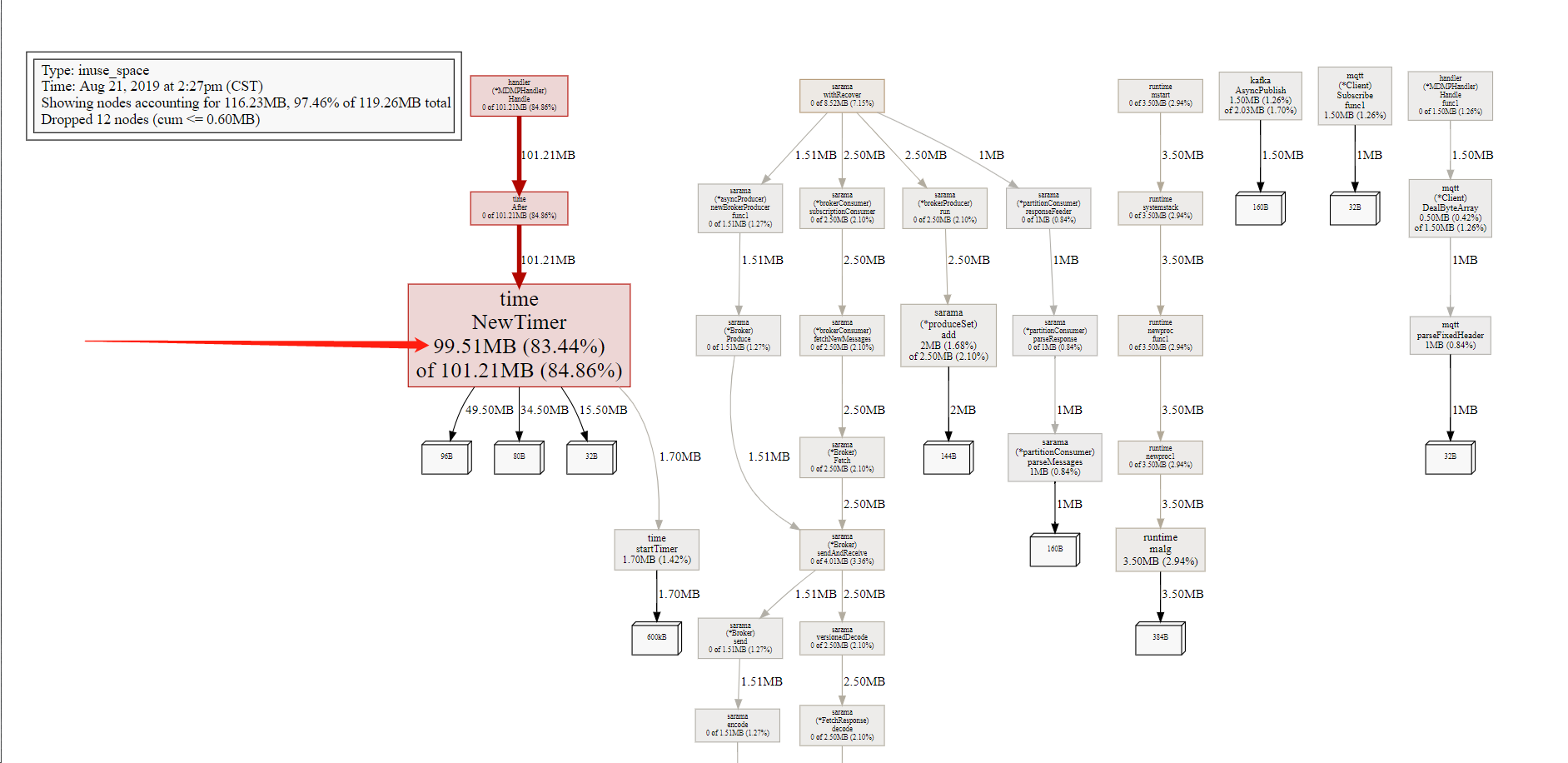

从图片中可以看到, time.NewTimer 占用了83.44%的堆内存, 并且随着时间的推移, 这部分占用的内存并没有得到释放.
在箭头上方的提示中找到这段代码的位置是在mdmp_handler中, time.After()中的调用.
找到出错处的源码:
if connMsg.FixedHeader.PackageType == constant.MQTT_MSG_TYPE_CONNECT && h.dealConnect(connMsg, client) {
x := make(chan bool)
for {
//监听超时, 异步读取数据
go func() {
n, err = reader.Read(buff)
logger.Debug("received bytes of ", n, " ", err)
if n > 0 {
client.DealByteArray(buff[:n])
x <- true
return
}
if err != nil {
if err == io.EOF {
logger.Info("connection closed by client")
} else {
client.Will(connMsg)
logger.Error(err.Error())
}
client.Closing <- true
return
}
}()
select {
case <-x: //正常收取消息
continue
case <-time.After(time.Duration(3*connMsg.VariableHeader.KeepAliveTimer/2) * time.Second): //超时
logger.Warn("connection time out")
client.Will(connMsg)
h.activeConn.Delete(client)
client.Close()
return
case <-client.Closing: //客户端关闭
h.activeConn.Delete(client)
client.Close()
return
}
}
}
为了确保是time.After()导致的内存占用, 注释掉了
// case <-time.After(time.Duration(3*connMsg.VariableHeader.KeepAliveTimer/2) * time.Second): //超时
// logger.Warn("connection time out")
// client.Will(connMsg)
// h.activeConn.Delete(client)
// client.Close()
// return
再测, 10M条数据过后, server的内存占用稳定在60M上下, 在测试的过程中也一直稳定在这个数值内
居然就是这里!
同时, 我猜测是golang在for循环结束之前资源没有自动gc, 于是编写了测试用例, 将timer放在gorouting中(gorouting结束了肯定要GC吧), 进行测试:
package timer
import (
"fmt"
"sync"
"testing"
"time"
)
func TestName(t *testing.T) {
wg := sync.WaitGroup{}
ch := make(chan bool)
//timeout := make(chan bool)
for i := 0; i < 10000000; i++ {
wg.Add(1)
go func() {
ch <- true
}()
select {
case <-ch:
//fmt.Println(i, " finished")
case <-time.After(10 * time.Second):
fmt.Println(i, " timed out")
}
wg.Done()
}
wg.Wait()
fmt.Println("all finished")
time.Sleep(1000 * time.Second)
}
结果是打印了 "all finished"之后, 内存持续占用2G以上!
以上, time.After()不释放内存和for循环无关.
再观察一下time.After()的源码
// After waits for the duration to elapse and then sends the current time
// on the returned channel.
// It is equivalent to NewTimer(d).C.
// The underlying Timer is not recovered by the garbage collector
// until the timer fires. If efficiency is a concern, use NewTimer
// instead and call Timer.Stop if the timer is no longer needed.
func After(d Duration) <-chan Time {
return NewTimer(d).C
}
The underlying Timer is not recovered by the garbage collector until the timer fires. If efficiency is a concern, use NewTimer instead and call Timer.Stop if the timer is no longer needed.
垃圾收集器无法恢复基础Timer, 直到计时器开火。 如果要考虑效率,请使用NewTimer, 相反,如果不再需要定时器,则调用Timer.Stop。
GC不会自动回收time.After()的timer, 需要调用, time.Timer.Stop()释放掉内存
