spring security 起步一：框架搭建

最新推荐文章于 2023-05-08 16:54:44 发布

小鱼儿Eason

最新推荐文章于 2023-05-08 16:54:44 发布

阅读量5.7k

点赞数 5

本文链接：https://blog.csdn.net/yin380697242/article/details/51771631

版权

spring security 专栏收录该内容

6 篇文章 1 订阅

订阅专栏

创建maven项目

对于maven项目的创建，大家可以参考以下文章，这里不再赘述。《maven 实战》笔记

pom.xml添加如下依赖:

<properties>
	<spring.version>4.1.0.RELEASE</spring.version>
</properties>

<dependencies>
	<dependency>
		<groupId>junit</groupId>
		<artifactId>junit</artifactId>
		<version>4.1</version>
		<scope>test</scope>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-core</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-web</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-webmvc</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-context-support</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-test</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-jdbc</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<dependency>
		<groupId>org.springframework.security</groupId>
		<artifactId>spring-security-web</artifactId>
		<version>4.1.0.RELEASE</version>
	</dependency>

	<dependency>
		<groupId>org.springframework.security</groupId>
		<artifactId>spring-security-config</artifactId>
		<version>4.1.0.RELEASE</version>
	</dependency>

	<dependency>
		<groupId>javax.servlet</groupId>
		<artifactId>javax.servlet-api</artifactId>
		<version>3.1-b02</version>
		<type>jar</type>
		<scope>provided</scope>
	</dependency>

	<dependency>
		<groupId>javax.servlet</groupId>
		<artifactId>jstl</artifactId>
		<version>1.2</version>
		<scope>runtime</scope>
	</dependency>
</dependencies>

项目配置文件

spring 配置文件 applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:c="http://www.springframework.org/schema/c" xmlns:cache="http://www.springframework.org/schema/cache"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:jdbc="http://www.springframework.org/schema/jdbc" xmlns:jee="http://www.springframework.org/schema/jee"
	xmlns:lang="http://www.springframework.org/schema/lang" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:p="http://www.springframework.org/schema/p" xmlns:task="http://www.springframework.org/schema/task"
	xmlns:tx="http://www.springframework.org/schema/tx" xmlns:util="http://www.springframework.org/schema/util"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc.xsd
http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd
http://www.springframework.org/schema/lang http://www.springframework.org/schema/lang/spring-lang.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd">


</beans>

spring mvc 配置文件 springmvc-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:c="http://www.springframework.org/schema/c" xmlns:cache="http://www.springframework.org/schema/cache"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:jdbc="http://www.springframework.org/schema/jdbc" xmlns:jee="http://www.springframework.org/schema/jee"
	xmlns:lang="http://www.springframework.org/schema/lang" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:p="http://www.springframework.org/schema/p" xmlns:task="http://www.springframework.org/schema/task"
	xmlns:tx="http://www.springframework.org/schema/tx" xmlns:util="http://www.springframework.org/schema/util"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc.xsd
http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd
http://www.springframework.org/schema/lang http://www.springframework.org/schema/lang/spring-lang.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd">

	<!-- 注解驱动 -->
	<mvc:annotation-driven />
	<!-- 使Spring支持自动检测组件,自动扫描controller -->
	<context:component-scan base-package="com.yin.myproject.security.controller" />
	<!-- 定义视图解析器 -->
	<bean id="viewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/views/" />
		<property name="suffix" value=".jsp"></property>
	</bean>
</beans>

spring security配置文件 spring-security.xml

<?xml version="1.0" encoding="UTF-8"?>
<bean:beans xmlns="http://www.springframework.org/schema/security"
	xmlns:bean="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/security
        http://www.springframework.org/schema/security/spring-security.xsd">

	<http auto-config="true">
		<intercept-url pattern="/*" access="hasRole('ROLE_USER')" />
	</http>
	<authentication-manager alias="authenticationManager">
		<authentication-provider>
			<user-service>
				<user authorities="ROLE_USER" name="guest" password="guest" />
			</user-service>
		</authentication-provider>
	</authentication-manager>

</bean:beans>

web.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

	<!-- spring配置文件位置 -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>

	<!-- spring核心监听器 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- springMVC分发处理器 -->
	<servlet>
		<servlet-name>spring</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:springmvc-servlet.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>spring</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<!-- spring security -->
	<filter>
        <filter-name>springSecurityFilterChain</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy
        </filter-class>
    </filter>

    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:spring-security.xml</param-value>
	</context-param>

	<!-- 配置默认过滤器 作用是像类似于css,jpg,js等的文件不被springMVC核心过滤器拦截 -->
	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.css</url-pattern>
	</servlet-mapping>

	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.html</url-pattern>
	</servlet-mapping>

	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.gif</url-pattern>
	</servlet-mapping>

	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.jpg</url-pattern>
	</servlet-mapping>

	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.js</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.png</url-pattern>
	</servlet-mapping>
	<servlet-mapping>
		<servlet-name>default</servlet-name>
		<url-pattern>*.json</url-pattern>
	</servlet-mapping>
	<!-- 配置默认过滤器 作用是像类似于css,jpg,js等的文件不被springMVC核心处理器拦截 -->

	<!-- 编码过滤器，解决中文乱码 -->
	<filter>
		<filter-name>SpringEncoding</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>utf-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>SpringEncoding</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- session超时定义,单位为分钟 -->
	<session-config>
		<session-timeout>30</session-timeout>
	</session-config>

	<!-- 出错页面定义 -->
	<error-page>
		<exception-type>java.lang.Throwable</exception-type>
		<location>/common/500.jsp</location>
	</error-page>
	<error-page>
		<error-code>500</error-code>
		<location>/common/500.jsp</location>
	</error-page>
	<error-page>
		<error-code>404</error-code>
		<location>/common/404.jsp</location>
	</error-page>
	<error-page>
		<error-code>403</error-code>
		<location>/common/403.jsp</location>
	</error-page>

	<!-- welcome page -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>
</web-app>

测试

启动项目,输入项目访问地址,会出现如下登录页面

我们随便输入错误的用户名和密码，会出现如下页面

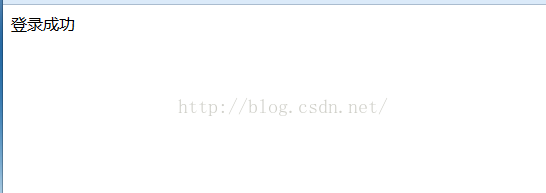

当我们输入正确的用户名和密码时，会出现如下页面

结束语

至此为止，spring security+spring mvc +spring的框架就搭建完成,源码地址：https://github.com/SmallBadFish/spring_security_demo/archive/0.0.1-framework.zip。但是你肯定有许多疑问：明明没有登录页，为什么会出现访问登录？用户名密码是在哪里验证的？spring security的整体流程是怎么实现的？等等。。。。其实我也不懂，慢慢学习吧
