State类型
Keyed State
字面意思,这是一个作用在keyedStream上的state。
所以,首先要对Stream进行 keyBy()

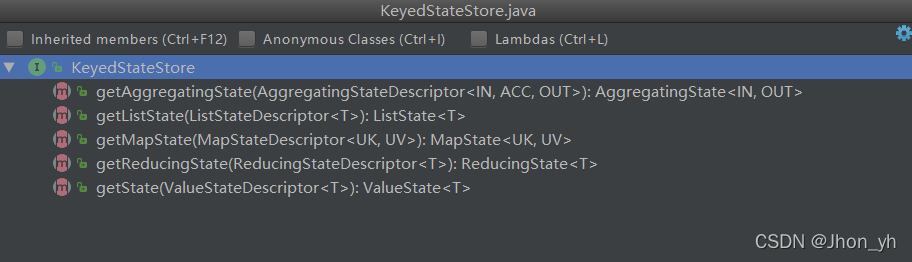

通过下图, 我们可以知道,keydState 包含以下五种。
1. ValueState<T>
2. ListState<T>
3. ReducingState<T>
4. AggregatingState<IN, OUT>
5. MapState<UK, UV>
ValueState
保存一个可以更新和检索的值(如上所述,每个值都对应到当前的输入数据的 key,因此算子接收到的每个 key 都可能对应一个值)。 这个值可以通过 update(T) 进行更新,通过 T value() 进行检索。
ListState
保存一个元素的列表。可以往这个列表中追加数据,并在当前的列表上进行检索。可以通过 add(T) 或者 addAll(List<T>) 进行添加元素,通过 Iterable<T> get() 获得整个列表。还可以通过 update(List<T>) 覆盖当前的列表。
ReducingState
保存一个单值,表示添加到状态的所有值的聚合。接口与 ListState 类似,但使用 add(T) 增加元素,会使用提供的 ReduceFunction 进行聚合。
AggregatingState<IN, OUT>
保留一个单值,表示添加到状态的所有值的聚合。和 ReducingState 相反的是, 聚合类型可能与 添加到状态的元素的类型不同。 接口与 ListState 类似,但使用 add(IN) 添加的元素会用指定的 AggregateFunction 进行聚合。
MapState<UK, UV>
维护了一个映射列表。 你可以添加键值对到状态中,也可以获得反映当前所有映射的迭代器。使用 put(UK,UV) 或者 putAll(Map<UK,UV>) 添加映射。 使用 get(UK) 检索特定 key。 使用 entries(),keys() 和 values() 分别检索映射、键和值的可迭代视图。你还可以通过 isEmpty() 来判断是否包含任何键值对。
Demo
public class CountWindowAverage extends RichFlatMapFunction<Tuple2<Long, Long>, Tuple2<Long, Long>> {
/**
* The ValueState handle. The first field is the count, the second field a running sum.
*/
private transient ValueState<Tuple2<Long, Long>> sum;
@Override
public void flatMap(Tuple2<Long, Long> input, Collector<Tuple2<Long, Long>> out) throws Exception {
// access the state value
Tuple2<Long, Long> currentSum = sum.value();
// update the count
currentSum.f0 += 1;
// add the second field of the input value
currentSum.f1 += input.f1;
// update the state
sum.update(currentSum);
// if the count reaches 2, emit the average and clear the state
if (currentSum.f0 >= 2) {
out.collect(new Tuple2<>(input.f0, currentSum.f1 / currentSum.f0));
sum.clear();
}
}
@Override
public void open(Configuration config) {
ValueStateDescriptor<Tuple2<Long, Long>> descriptor =
new ValueStateDescriptor<>(
"average", // the state name
TypeInformation.of(new TypeHint<Tuple2<Long, Long>>() {}), // type information
Tuple2.of(0L, 0L)); // default value of the state, if nothing was set
sum = getRuntimeContext().getState(descriptor);
}
}
// this can be used in a streaming program like this (assuming we have a StreamExecutionEnvironment env)
env.fromElements(Tuple2.of(1L, 3L), Tuple2.of(1L, 5L), Tuple2.of(1L, 7L), Tuple2.of(1L, 4L), Tuple2.of(1L, 2L))
.keyBy(value -> value.f0)
.flatMap(new CountWindowAverage())
.print();
// the printed output will be (1,4) and (1,5)
Operator State
Broadcast State
Broadcast State is a special type of Operator State
. It was introduced to support use cases where records of one stream need to be broadcasted to all downstream tasks, where they are used to maintain the same state among all subtasks. This state can then be accessed while processing records of a second stream. As an example where broadcast state can emerge as a natural fit, one can imagine a low-throughput stream containing a set of rules which we want to evaluate against all elements coming from another stream. Having the above type of use cases in mind, broadcast state differs from the rest of operator states in that:
public BroadcastStream<T> broadcast(
final MapStateDescriptor<?, ?>... broadcastStateDescriptors) {
Preconditions.checkNotNull(broadcastStateDescriptors);
final DataStream<T> broadcastStream = setConnectionType(new BroadcastPartitioner<>());
return new BroadcastStream<>(environment, broadcastStream, broadcastStateDescriptors);
}
public MapStateDescriptor(String name, Class<UK> keyClass, Class<UV> valueClass) {
super(name, new MapTypeInfo<>(keyClass, valueClass), null);
}
public MapStateDescriptor(
String name, TypeInformation<UK> keyTypeInfo, TypeInformation<UV> valueTypeInfo) {
super(name, new MapTypeInfo<>(keyTypeInfo, valueTypeInfo), null);
}
final DataStreamSource<String> dimSource = env.fromSource(mySqlSource, WatermarkStrategy.noWatermarks(), "mysql_source");
//广播 mysql dim
final BroadcastStream<String> dimBc = dimSource.broadcast(new MapStateDescriptor<String, String>("dim_broadcast", BasicTypeInfo.STRING_TYPE_INFO, BasicTypeInfo.STRING_TYPE_INFO));
