一、稀疏 sparsearray数组
1.实际的需求

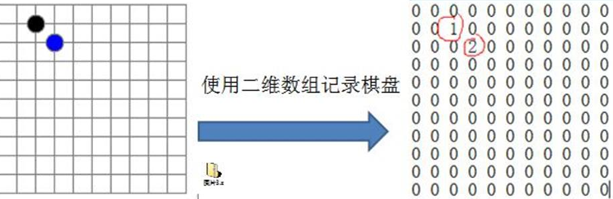

编写的五子棋程序中,有存盘退出和续上盘的功能:
因为该二维数组的很多值是默认值 0,因此记录了很多没有意义的数据.->稀疏数组。
2.基本介绍
稀疏数组的处理方法是:
1)记录数组一共有几行几列,有多少个不同的值
2)把具有不同值的元素的行列及值记录在一个小规模的数组中,从而缩小程序的规模
3.应用实例
4.代码实现
package com.atguigu.sparsearray;
public class SparseArray {
public static void main(String[] args) {
//创建一个原始的二维数组 11 * 11
// 0:表示没有棋子, 1表示黑子 2表蓝子
int chessArr1[][] = new int[11][11];
chessArr1[1][2] = 1;
chessArr1[2][3] = 2;
chessArr1[4][5] = 2;
//输出原始的二维数组
System.out.println("原始的二维数组~~");
for (int[] row : chessArr1) {
for (int data : row) {
System.out.printf("%d\t", data);
}
System.out.println();
}
//将二维数组转稀疏数组的思
// 1.先遍历二维数组得到非 0数据的个数
int sum = 0;
for (int i = 0; i < 11; i++) {
for (int j = 0; j < 11; j++) {
if (chessArr1[i][j] != 0) {
sum++;
}
}
}
// 2.创建对应的稀疏数组
int sparseArr[][] = new int[sum + 1][3];
//给稀疏数组赋值
sparseArr[0][0] = 11;
sparseArr[0][1] = 11;
sparseArr[0][2] = sum;
//遍历二维数组,将非 0的值存放到 sparseArr中
int count = 0; //count用于记录是第几个非 0数据
for (int i = 0; i < 11; i++) {
for (int j = 0; j < 11; j++) {
if (chessArr1[i][j] != 0) {
count++;
sparseArr[count][0] = i;
sparseArr[count][1] = j;
sparseArr[count][2] = chessArr1[i][j];
}
}
}
//输出稀疏数组的形式
System.out.println();
System.out.println("得到稀疏数组为~~~~");
for (int i = 0; i < sparseArr.length; i++) {
System.out.printf("%d\t%d\t%d\t\n", sparseArr[i][0], sparseArr[i][1], sparseArr[i][2]);
}
System.out.println();
//将稀疏数组 --》恢复成原始的二维数组
/*
* 1.先读取稀疏数组的第一行,根据第一行的数据,创建原始的二维数组,比如上面的 chessArr2 = int
[11][11]
更多 Java –大数据 –前端 –python人工智能 -区块链资料下载,可访问百度:尚硅谷官网
第 12页
2.在读取稀疏数组后几行的数据,并赋给原始的二维数组即可.
*/
//1.先读取稀疏数组的第一行,根据第一行的数据,创建原始的二维数组
int chessArr2[][] = new int[sparseArr[0][0]][sparseArr[0][1]];
//2.在读取稀疏数组后几行的数据(从第二行开始),并赋给原始的二维数组即可
for(int i = 1; i < sparseArr.length; i++) {
chessArr2[sparseArr[i][0]][sparseArr[i][1]] = sparseArr[i][2];
}
//输出恢复后的二维数组
System.out.println();
System.out.println("恢复后的二维数组");
for (int[] row : chessArr2) {
for (int data : row) {
System.out.printf("%d\t", data);
}
System.out.println();
}
}
}
二、队列
1.队列的一个使用场景

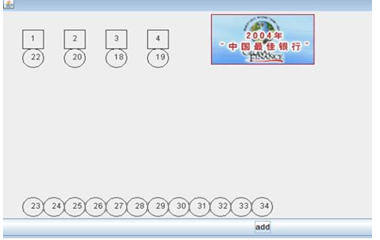

银行排队的案例
2.队列介绍
1)队列是一个有序列表,可以用数组或是链表来实现。
2)遵循先入先出的原则。即:先存入队列的数据,要先取出。后存入的要后取出
3.数组模拟队列思路

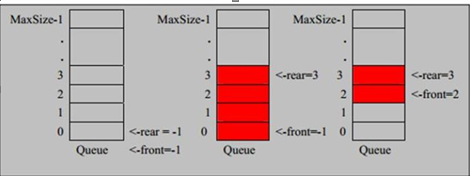

队列本身是有序列表,若使用数组的结构来存储队列的数据,则队列数组的声明如下图,其中 maxSize是该队列的最大容量。因为队列的输出、输入是分别从前后端来处理,因此需要两个变量 front及 rear分别记录队列前后端的下标,front会随着数据输出而改变,而 rear则是随着数据输入而改变,如图所示:
当我们将数据存入队列时称为”addQueue”,addQueue的处理需要有两个步骤:思路分析
1)将尾指针往后移:rear+1 ,当 front == rear【空】
2)若尾指针 rear小于队列的最大下标 maxSize-1,则将数据存入 rear所指的数组元素中,否则无法存入数据。
rear == maxSize - 1[队列满]
4.代码实现
package com.atguigu.queue;
import java.util.Scanner;
public class ArrayQueueDemo {
public static void main(String[] args) {
//测试一把
//创建一个队列
ArrayQueue queue = new ArrayQueue(3);
char key = ' '; //接收用户输入
Scanner scanner = new Scanner(System.in);//
boolean loop = true;
//输出一个菜单
while(loop) {
System.out.println("s(show):显示队列");
System.out.println("e(exit):退出程序");
System.out.println("a(add):添加数据到队列");
System.out.println("g(get):从队列取出数据");
System.out.println("h(head):查看队列头的数据");
key = scanner.next().charAt(0);//接收一个字符
switch (key) {
case 's':
queue.showQueue();
break;
case 'a':
System.out.println("输出一个数");
int value = scanner.nextInt();
尚硅谷 Java数据结构和算法
queue.addQueue(value);
break;
case 'g': //取出数据
try {
int res = queue.getQueue();
System.out.printf("取出的数据是%d\n", res);
} catch (Exception e) {
// TODO: handle exception
System.out.println(e.getMessage());
}
break;
case 'h': //查看队列头的数据
try {
int res = queue.headQueue();
System.out.printf("队列头的数据是%d\n", res);
} catch (Exception e) {
// TODO: handle exception
System.out.println(e.getMessage());
}
break;
case 'e': //退出
scanner.close();
loop = false;
break;
default:
break;
}
}
System.out.println("程序退出~~");
}
}
//使用数组模拟队列-编写一个 ArrayQueue类
class ArrayQueue {
private int maxSize; //表示数组的最大容量
private int front; //队列头
private int rear; //队列尾
private int[] arr; //该数据用于存放数据,模拟队列
//创建队列的构造器
public ArrayQueue(int arrMaxSize) {
maxSize = arrMaxSize;
arr = new int[maxSize];
front = -1; //指向队列头部,分析出 front是指向队列头的前一个位置.
rear = -1; //指向队列尾,指向队列尾的数据(即就是队列最后一个数据)
}
//判断队列是否满
public boolean isFull() {
return rear == maxSize - 1;
public boolean isEmpty() {
return rear == front;
}
//添加数据到队列
public void addQueue(int n) {
//判断队列是否满
if (isFull()) {
System.out.println("队列满,不能加入数据~");
return;
}
rear++; //让 rear后移
arr[rear] = n;
}
//获取队列的数据,出队列
public int getQueue() {
//判断队列是否空
if (isEmpty()) {
//通过抛出异常
throw new RuntimeException("队列空,不能取数据");
}
front++; // front后移
return arr[front];
}
//显示队列的所有数据
public void showQueue() {
//遍历
if (isEmpty()) {
System.out.println("队列空的,没有数据~~");
return;
}
for (int i = 0; i < arr.length; i++) {
System.out.printf("arr[%d]=%d\n", i, arr[i]);
}
}
//显示队列的头数据,注意不是取出数据
public int headQueue() {
//判断
if (isEmpty()) {
throw new RuntimeException("队列空的,没有数据~~");
}
return arr[front + 1];
}
}
问题分析并优化:
1)目前数组使用一次就不能用,没有达到复用的效果
2)将这个数组使用算法,改进成一个环形的队列取模:%
5.数组模拟环形队列
对前面的数组模拟队列的优化,充分利用数组.因此将数组看做是一个环形的。(通过取模的方式来实现即可)
分析说明:
1)尾索引的下一个为头索引时表示队列满,即将队列容量空出一个作为约定,这个在做判断队列满的
时候需要注意 (rear + 1) % maxSize == front满]
2) rear == front [空]

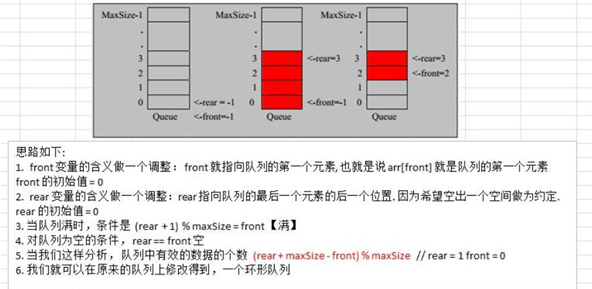

3)分析示意图:
6.代码实现
package com.atguigu.queue;
import java.util.Scanner;
public class CircleArrayQueueDemo {
public static void main(String[] args) {
//测试一把
System.out.println("测试数组模拟环形队列的案例~~~");
//创建一个环形队列
CircleArray queue = new CircleArray(4); //说明设置 4,其队列的有效数据最大是 3
char key = ' '; //接收用户输入
Scanner scanner = new Scanner(System.in);//
boolean loop = true;
//输出一个菜单
while (loop) {
System.out.println("s(show):显示队列");
System.out.println("e(exit):退出程序");
System.out.println("a(add):添加数据到队列");
System.out.println("g(get):从队列取出数据");
System.out.println("h(head):查看队列头的数据");
key = scanner.next().charAt(0);//接收一个字符
switch (key) {
case 's':
queue.showQueue();
break;
case 'a':
System.out.println("输出一个数");
int value = scanner.nextInt();
queue.addQueue(value);
break;
case 'g': //取出数据
try {
int res = queue.getQueue();
System.out.printf("取出的数据是%d\n", res);
} catch (Exception e) {
// TODO: handle exception
System.out.println(e.getMessage());
}
break;
case 'h': //查看队列头的数据
try {
int res = queue.headQueue();
System.out.printf("队列头的数据是%d\n", res);
} catch (Exception e) {
// TODO: handle exception
System.out.println(e.getMessage());
}
break;
case 'e': //退出
scanner.close();
loop = false;
break;
default:
break;
}
}
System.out.println("程序退出~~");
}
}
class CircleArray {
private int maxSize; //表示数组的最大容量
//front变量的含义做一个调整: front就指向队列的第一个元素,也就是说 arr[front]就是队列的第一个元素
//front的初始值 = 0
private int front;
//rear变量的含义做一个调整:rear指向队列的最后一个元素的后一个位置.因为希望空出一个空间做为约定.
//rear的初始值 = 0
private int rear; //队列尾
private int[] arr; //该数据用于存放数据,模拟队列
public CircleArray(int arrMaxSize) {
maxSize = arrMaxSize;
arr = new int[maxSize];
}
//判断队列是否满
public boolean isFull() {
return (rear + 1) % maxSize == front;
}
//判断队列是否为空
public boolean isEmpty() {
return rear == front;
}
//添加数据到队列
public void addQueue(int n) {
//判断队列是否满
if (isFull()) {
System.out.println("队列满,不能加入数据~");
return;
}
//直接将数据加入
arr[rear] = n;
//将 rear后移,这里必须考虑取模
rear = (rear + 1) % maxSize;
}
//获取队列的数据,出队列
public int getQueue() {
//判断队列是否空
if (isEmpty()) {
//通过抛出异常
throw new RuntimeException("队列空,不能取数据");
}
//这里需要分析出 front是指向队列的第一个元素
// 1.先把 front对应的值保留到一个临时变量
// 2.将 front后移,考虑取模
// 3.将临时保存的变量返回
int value = arr[front];
front = (front + 1) % maxSize;
return value;
}
//显示队列的所有数据
public void showQueue() {
//遍历
if (isEmpty()) {
System.out.println("队列空的,没有数据~~");
return;
}
//思路:从 front开始遍历,遍历多少个元素
//动脑筋
for (int i = front; i < front + size() ; i++) {
System.out.printf("arr[%d]=%d\n", i % maxSize, arr[i % maxSize]);
}
}
//求出当前队列有效数据的个数
public int size() {
// rear = 2
// front = 1
// maxSize = 3
return (rear + maxSize - front) % maxSize;
}
//显示队列的头数据,注意不是取出数据
public int headQueue() {
//判断
if (isEmpty()) {
throw new RuntimeException("队列空的,没有数据~~");
}
return arr[front];
}
}
