哈夫曼树的构造和显示 （Haffman编码）----C语言

【问题描述】

    写出构造一棵哈夫曼树，并根据哈夫曼树求哈夫曼编码的算法。

【实验要求】

    用户给定若干个整数作为待编码字符的权值，程序建立哈夫曼树并输出各字符的哈夫曼编码。

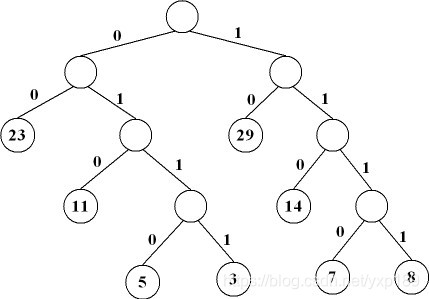

【例】设权w={5， 29， 7， 8， 14， 23， 3，11}, n=8, 2n-1=15, 可构造出哈夫曼树如下图。其存储结构ht[]的初始状态如表1所示，终结状态如表2所示，所得各字符的哈夫曼编码如表3所示。



例题，Haffman编码示例：

（注：哈夫曼树编码不唯一；下面给出的编码和图中所示编码，二者等效）

##Haffman Code##
>>NUM = 5       Code: 0001
>>NUM = 29      Code: 10
>>NUM = 7       Code: 1110
>>NUM = 8       Code: 1111
>>NUM = 14      Code: 110
>>NUM = 23      Code: 01
>>NUM = 3       Code: 0000
>>NUM = 11      Code: 001

README

Author:YXP
e-mail:yxp189@protonmail.com
如有问题，请我联系~
转载请标明出处~

权值 w={5， 29， 7， 8， 14， 23， 3，11} （对应 element[8] ={...}）
数目 n=8 （对应 len = 8）
源代码，以上述数据为例。

源代码

mian.c文件

#include <stdio.h>
#include <stdlib.h>

/*
author:YXP
e-mail:yxp189@protonmail.com
如有问题，欢迎和我联系~
转载请标明出处~
*/

#define USED 1
#define UNUSED 0
#define CHILDNUM 2

struct Node {
	int weight;
	int *child;/*存储孩子的位置*/
	int parent;/*存储父亲的位置*/
	int state;/*used = 1; Unsed = 0*/
	int level;/*当前点所在的层数*/
	int code;/*编码*/
};

struct Node** ini_Node_arr (int len,int* element);				/*初始化Haffman编码数数组*/
struct Node** Build_Haffman_tree (int* element,int len);		/*构建Haffman编码树*/
int Find_2min_position (int* store, struct Node** Arr,int len);	/*在Arr中，找到最小和次小的权值的位置*/
int Create_newNode (struct Node** Arr,int* store,int All_len);	/*创建新的Haffman编码树 节点*/
int Decode (struct Node** Arr,int len);							/*解码 Haffman树*/
int Print_Code (struct Node** Arr,int len);						/*打印待编码树的编码*/

int main(int argc, char *argv[]) {

	int len = 8;	/*待编码数 的个数*/
	int element[8] = {5,29,7,8,14,23,3,11};/*待编码数*/

	struct Node** Arr = Build_Haffman_tree (element,len);

	int i, All_len = (int)((len*(len+1)/2)+1);

//	for (i=0;i<All_len;i++){ //显示Haffman树创建过程
//		if (Arr[i] != NULL){
//			printf("%d-",Arr[i]->weight);
//		}
//	}

	printf ("##Haffman Code##");
	Decode (Arr,len);
	Print_Code (Arr,len);

	return 0;
}


struct Node** ini_Node_arr (int len,int* element)	/*初始化Haffman编码数数组*/
{
	int All_len = (int)((len*(len+1)/2)+1);
	struct Node** Arr = (struct Node**)malloc((All_len)*sizeof(struct Node*));
	int i;
	for (i = 0;i<len;i++){
		Arr[i] = (struct Node*)malloc(sizeof(struct Node));
		Arr[i]->child = NULL;
		Arr[i]->parent = -1;
		Arr[i]->level = 0;
		Arr[i]->state = 0;
		Arr[i]->weight = element[i];
		Arr[i]->code = 0;
	}
	for (i = len;i<All_len;i++){
		Arr[i] = NULL;
	}
	return Arr;
}


struct Node** Build_Haffman_tree (int* element,int len)/*构建Haffman编码树*/
{
	int store [2];
	store [0] = 0;store [1] = 0;

	struct Node** Arr = ini_Node_arr (len,element);

	int All_len = (int)((len*(len+1)/2)+1);

	while (1){
		store [0] = -1;store [1] = -1;
		Find_2min_position (store, Arr,All_len);
		if (store[1] == -1){
			goto END;
		}
		Create_newNode (Arr,store,All_len);
	}

	END:;
	return Arr;
}


int Find_2min_position (int* store, struct Node** Arr,int len)	/*在Arr中，找到最小和次小的权值的位置*/
{
	int min_p1 = -1, min_p2 = -1;
	int i;
	for (i=0;i<len;i++){
		if (Arr[i] != NULL){
			if (Arr[i]->state == UNUSED){
				if (min_p1 == -1){
					min_p1 = i;
				}else{
					if (Arr[i]->weight < Arr[min_p1]->weight){
					min_p2 = min_p1;
					min_p1 = i;
					}else{
						if (min_p2 == -1){
							min_p2 = i;
						}else{
							if (Arr[i]->weight < Arr[min_p2]->weight){
								min_p2 = i;
							}
						}
					}
				}
			}
		}
	}
	store[0] = min_p1;
	store[1] = min_p2;

	return 0;
}

int Create_newNode (struct Node** Arr,int* store,int All_len)	/*创建新的Haffman编码树 节点*/
{
	int child1 = store[0], child2 = store[1];
	int i = 0;

	while (Arr[i] != NULL){
		i++;
	}

	Arr[i] = (struct Node*)malloc(sizeof(struct Node));

	Arr[i]->child = (int*)malloc(CHILDNUM*sizeof(int));
	Arr[i]->child[0] = child1;
	Arr[i]->child[1] = child2;

	Arr[child1]->state = USED;
	Arr[child1]->code = 0;/*左边*/
	Arr[child1]->parent = i;

	Arr[child2]->state = USED;
	Arr[child2]->code = 1;/*右边*/
	Arr[child2]->parent = i;

	Arr[i]->weight = Arr[child1]->weight + Arr[child2]->weight;
	Arr[i]->level ++;
	Arr[i]->state = 0;

	return 0;
}


int Decode (struct Node** Arr,int len)/*解码 Haffman树*/
{
	int temp_parent = -1,Total_parent = 0;
	while (Arr[Total_parent] != NULL){
		Total_parent++;
	}

	int i;
	for (i=0;i<len;i++){
		temp_parent = Arr[i]->parent;
		while(temp_parent != (Total_parent-1)){
			Arr[i]->code = (Arr[i]->code)*2+Arr[temp_parent]->code;
			Arr[i]->level ++;
			temp_parent = Arr[temp_parent]->parent;
		}
	}

	return 0;
}


int Print_Code (struct Node** Arr,int len)	/*打印待编码树的编码*/
{
	int i;
	int temp,code;
	for (i=0;i<len;i++){
		printf("\n>>NUM = %d\t",Arr[i]->weight);
		temp = Arr[i]->level;
		code = Arr[i]->code;
		printf("Code: ");
		while (temp >= 0){
			printf ("%d",code%2);
			code = code/2;
			temp--;
		}
	}
	return 0;
}

运行结果

##Haffman Code##
>>NUM = 5       Code: 0001
>>NUM = 29      Code: 10
>>NUM = 7       Code: 1110
>>NUM = 8       Code: 1111
>>NUM = 14      Code: 110
>>NUM = 23      Code: 01
>>NUM = 3       Code: 0000
>>NUM = 11      Code: 001
--------------------------------
