通过extundelete实现CentOS6 ext4文件系统误删除文件的恢复

1.介质下载

路径：

链接：extundelete

提取码：ztj0

版本：extundelete.0.2.4

2.实验环境

1.CentOS6.8

系统版本命令：

cat /etc/redhat-release

2.磁盘：/dev/sdb

磁盘查看命令：

lsblk |grep "sdb"

3.分区大小：5G(ext4文件系统)，/dev/sdb1并挂载至/tmp/sdb1

分区命令：

echo -e "o\nn\np\n1\n\n+5G\nw" | fdisk /dev/sdb

格式化命令：

mkfs.ext4 /dev/sdb1

挂载命令：

mount /dev/sdb1 /tmp/sdb1

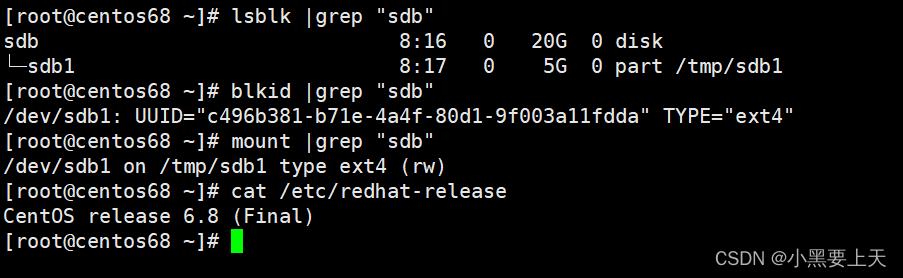

磁盘挂载后的验证：

​

3.误删除文件步骤恢复

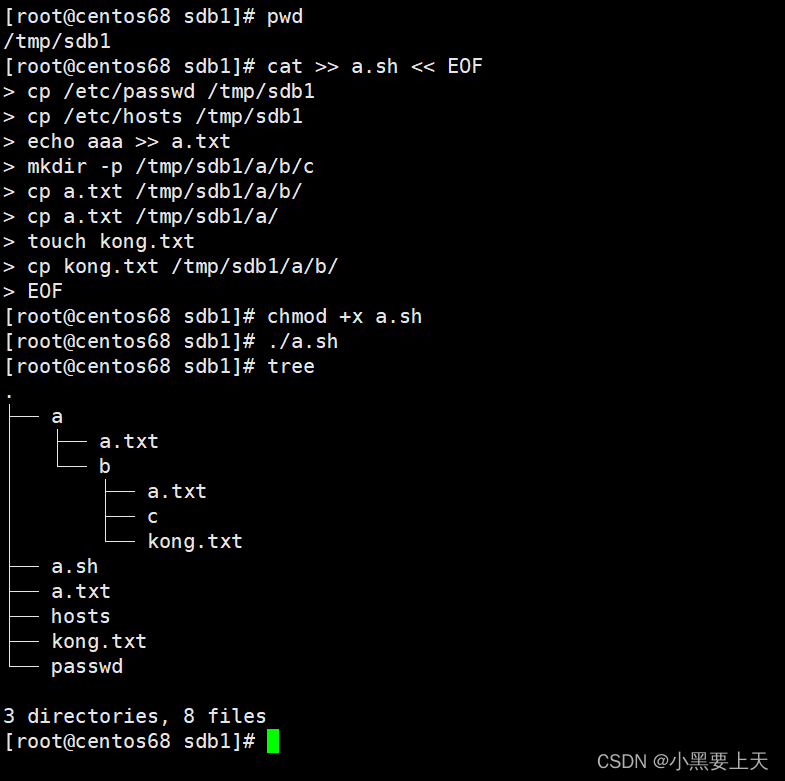

1.创建空⽂件， 空⽬录，普通⽂件，普通目录

命令：

cd /tmp/sdb1

chmod +x a.sh

./a.sh

#a.sh源码

cp /etc/passwd /tmp/sdb1
cp /etc/hosts /tmp/sdb1
echo aaa >> a.txt
mkdir -p /tmp/sdb1/a/b/c
cp a.txt /tmp/sdb1/a/b/
cp a.txt /tmp/sdb1/a/
touch kong.txt
cp kong.txt /tmp/sdb1/a/b/

共计：3个目录，8个文件

​

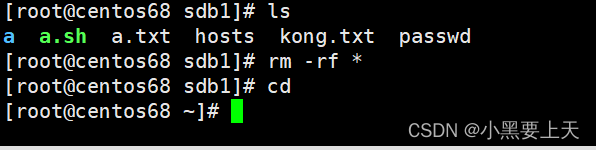

 2.模式删除/tmp/sdb1(/dev/sdb1)下的文件

命令：

cd /tmp/sdb1

rm -rf *

cd

​

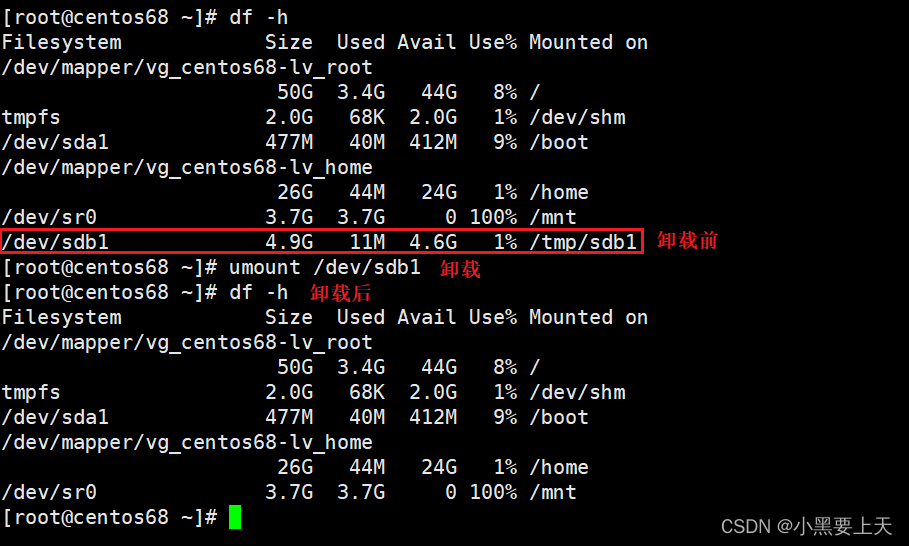

3.卸载/dev/sdb1

df -h

umount /dev/sdb1

df -h

​

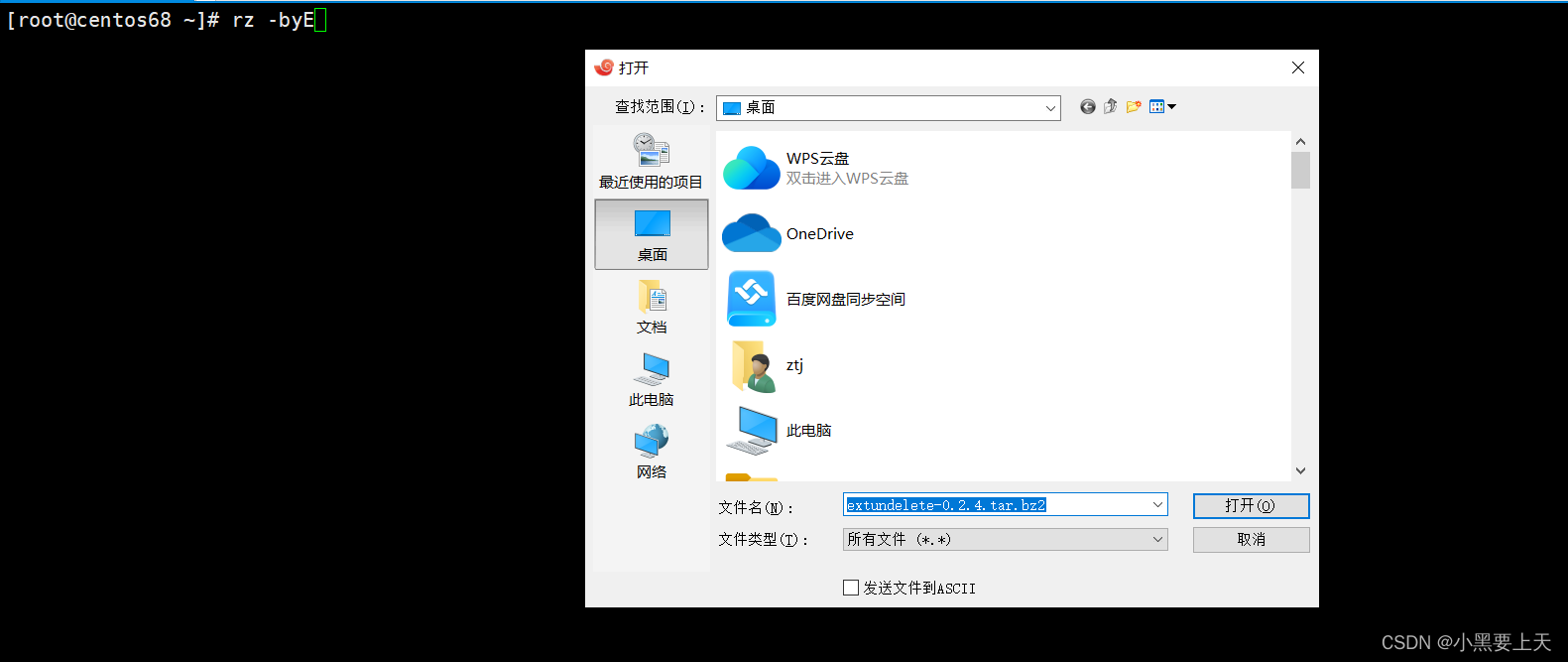

4.上传恢复工具软件extundelete-0.2.4.tar.bz2

命令：

rz -byE

​

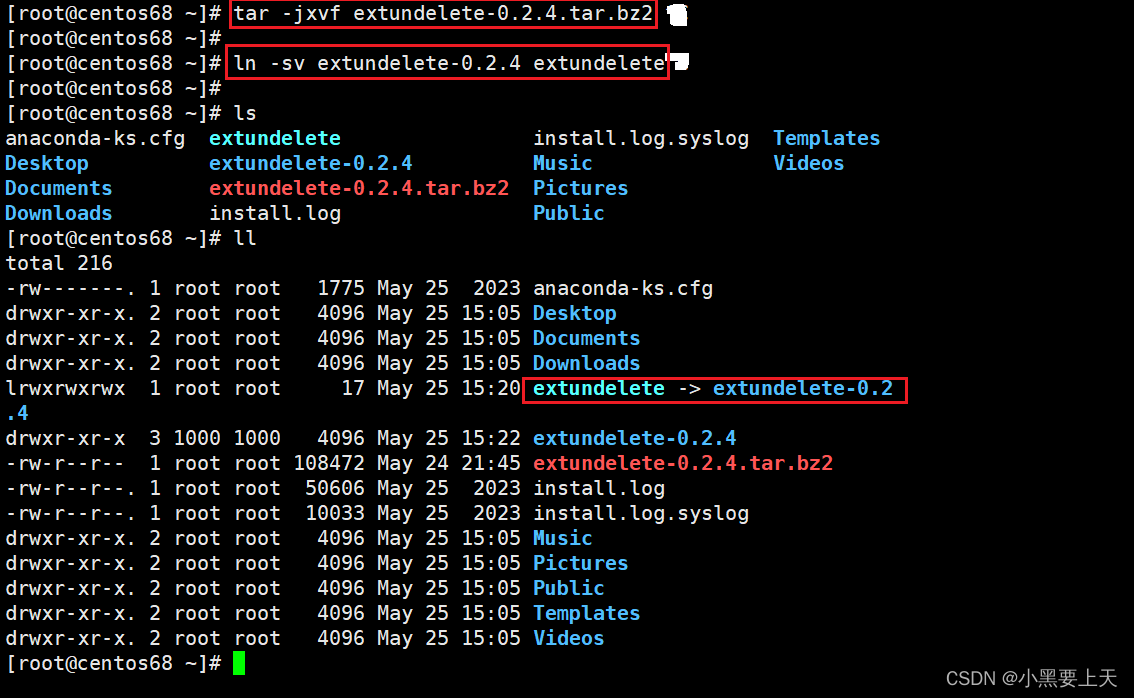

5.解压并设置软链接

命令：

tar -jxvf extundelete-0.2.4.tar.bz2

ln -sv extundelete-0.2.4 extundelete

​

6.安装编译包

命令：

yum install -y gcc gcc-c++ e2fsprogs e2fsprogs-libs e2fsprogs-devel

7.编译源码包

cd /root/extundelete

./configure && make && make install && echo "Success"

8.查看哪些文件被删除

命令：

cd /root

extundelete /dev/sdb1 --inode 2          #2含义：ext4文件系统的分区根目录的inode值为2

[root@centos68 ~]# cd /root
[root@centos68 ~]# extundelete /dev/sdb1 --inode 2
NOTICE: Extended attributes are not restored.
Loading filesystem metadata ... 41 groups loaded.
Group: 0
Contents of inode 2:
0000 | ed 41 00 00 00 10 00 00 a9 10 6f 64 bc 11 6f 64 | .A........od..od
0010 | bc 11 6f 64 00 00 00 00 00 00 02 00 08 00 00 00 | ..od............
0020 | 00 00 00 00 17 00 00 00 b2 20 00 00 00 00 00 00 | ......... ......
0030 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
0040 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
0050 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
0060 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
0070 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
0080 | 1c 00 00 00 f0 3e f4 4d f0 3e f4 4d cc 37 54 89 | .....>.M.>.M.7T.
0090 | 73 0b 6f 64 00 00 00 00 00 00 00 00 00 00 00 00 | s.od............
00a0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
00b0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
00c0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
00d0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
00e0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
00f0 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................
​
Inode is Allocated
File mode: 16877
Low 16 bits of Owner Uid: 0
Size in bytes: 4096
Access time: 1685000361
Creation time: 1685000636
Modification time: 1685000636
Deletion Time: 0
Low 16 bits of Group Id: 0
Links count: 2
Blocks count: 8
File flags: 0
File version (for NFS): 0
File ACL: 0
Directory ACL: 0
Fragment address: 0
Direct blocks: 8370, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
Indirect block: 0
Double indirect block: 0
Triple indirect block: 0
​
File name                                       | Inode number | Deleted status
.                                                 2
..                                                2
a.sh                                              11             Deleted
passwd                                            12             Deleted
hosts                                             13             Deleted
a.txt                                             14             Deleted
a                                                 128257         Deleted
kong.txt                                          15             Deleted
[root@centos68 ~]#
​

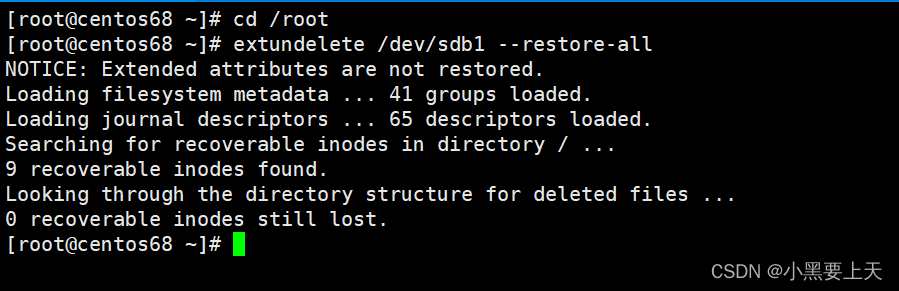

9.执行恢复

执行恢复的方式：

1)通过inode号(extundelete /dev/sdb1 --restore-inode InodeNum)

2)通过file文件名(extundelete /dev/sdb1 --restore-file FileName)

3)通过directory目录名(extundelete /dev/sdb1 --restore-directory DirectoryName)

4)all全部恢复(extundelete /dev/sdb1 --restore-all)

本实验以4)方式实现误删文件的全部恢复

命令：

cd /root

extundelete /dev/sdb1 --restore-all

​

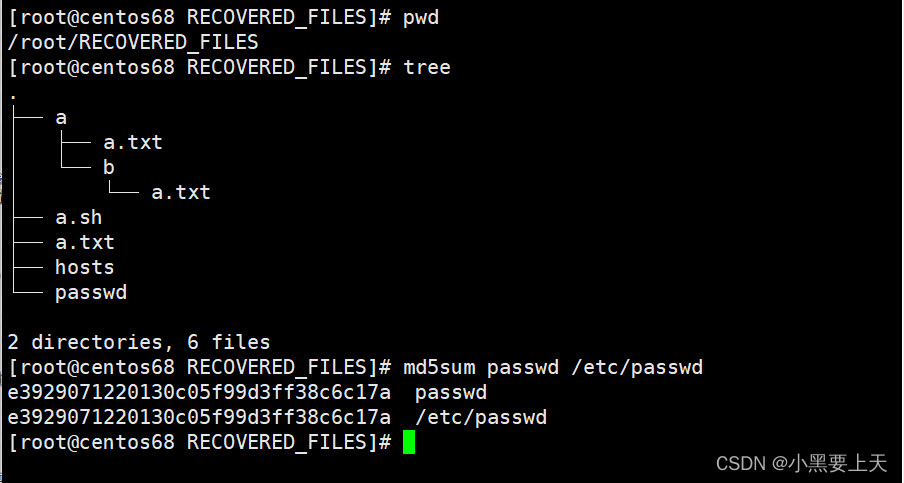

10.验证

1)执行extundelete恢复出的文件存放在当前路径的RECOVERED_FILES目录下

2)extundelete在恢复文件的时候不会恢复之前创建的空文件和空目录

​

备注：

1.使用extundelete命令只能恢复centos6(rhel6)版本且文件系统为ext4(3/2)类型中文件误删的恢复。

2.对于centos7文件系统(xfs)，通过在其挂载文件系统，并设置为ext4(3/2)类型来进行文件误删的恢复，命令extundelete命令是恢复不了，必须得是centos6(rhel6)版本且文件系统为ext4(3/2)类型的才行。
