1.需求
1、需要一个RelativeLayout, 进度条环绕此布局,进度条可以设置宽度,颜色,背景
2、可设置进度起点,方向
3、可设置进度文字提示

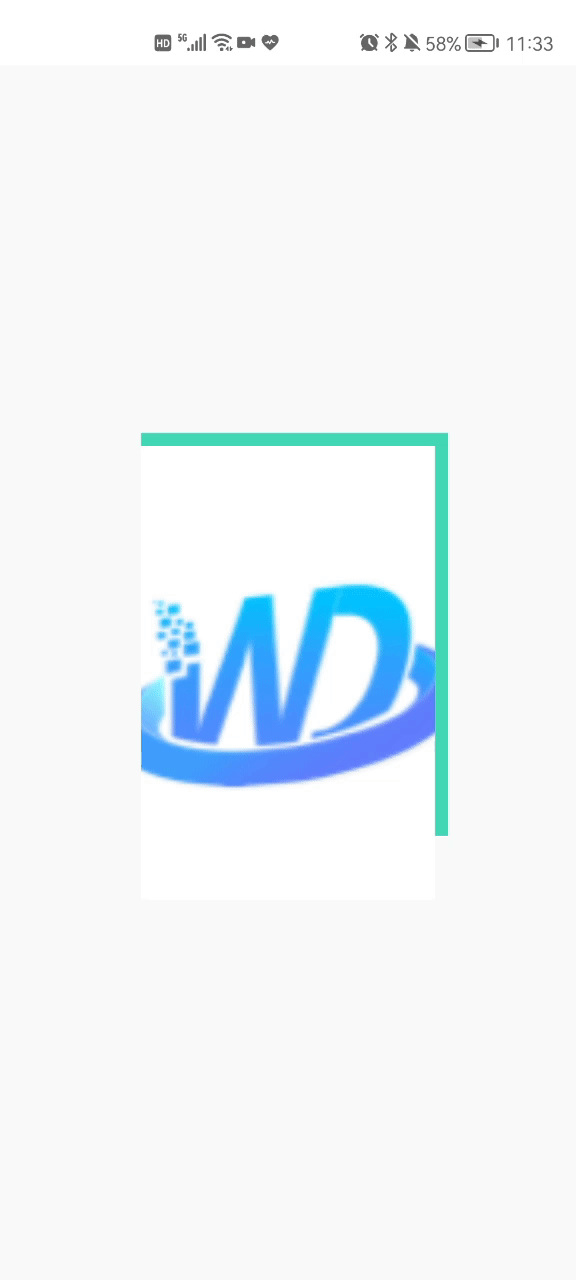

先看效果
2.实现
根据需求定义参数和属性,定义四个起点 和 进度条的方向:顺时针和逆时针等
companion object {
//起点位置
const val LEFT_TOP = 0
const val RIGHT_TOP = 1
const val RIGHT_BOTTOM = 2
const val LEFT_BOTTOM = 3
//方向
const val CLOCKWISE = 0
const val ANTI_CLOCKWISE = 1
}
/**
* 进度条宽度
*/
var progressWidth = 0f
/**
* 进度条颜色
*/
var progressColor = Color.GREEN
/**
* 进度条背景
*/
var progressBgColor = Color.TRANSPARENT
/**
* 进度条开始点
*/
var startPoint = LEFT_TOP
/**
* 进度条进度方向
*/
var orientation = CLOCKWISE
/**
* 文字颜色
*/
var textColor = Color.BLACK
/**
* 文字大小
*/
var textSize = 0f
/**
* 当前进度
*/
var currentProgress = 0
添加对应的attr
<declare-styleable name="RecProgressLayout">
<attr name="rpl_progress_width" format="dimension" />
<attr name="rpl_progress_color" format="color|reference" />
<attr name="rpl_progress_bg_color" format="color|reference" />
<attr name="rpl_start_point" format="enum">
<enum name="left_top" value="0" />
<enum name="right_top" value="1" />
<enum name="right_bottom" value="2" />
<enum name="left_bottom" value="3" />
</attr>
<attr name="rpl_orientation" format="enum">
<enum name="clockwise" value="0" />
<enum name="anti_clockwise" value="1" />
</attr>
<attr name="rpl_text_color" format="color|reference" />
<attr name="rpl_text_size" format="dimension" />
<attr name="rpl_current_progress" format="integer" />
</declare-styleable>
然后画进度条,根据进度刷新进度条和文字进度提示,根据不同起点和方向计算进度条的长度和位置,刷新进度即可,详细看源码
3.源码
有很多要优化的地方,在此就不做了,实现功能就行了
class RecProgressLayout @JvmOverloads constructor(
context: Context,
attrs: AttributeSet? = null,
defStyleAttr: Int = 0
) : RelativeLayout(context, attrs, defStyleAttr) {
companion object {
//起点位置
const val LEFT_TOP = 0
const val RIGHT_TOP = 1
const val RIGHT_BOTTOM = 2
const val LEFT_BOTTOM = 3
//方向
const val CLOCKWISE = 0
const val ANTI_CLOCKWISE = 1
}
/**
* 进度条宽度
*/
var progressWidth = 0f
/**
* 进度条颜色
*/
var progressColor = Color.GREEN
/**
* 进度条背景
*/
var progressBgColor = Color.TRANSPARENT
/**
* 进度条开始点
*/
var startPoint = LEFT_TOP
/**
* 进度条进度方向
*/
var orientation = CLOCKWISE
/**
* 文字颜色
*/
var textColor = Color.BLACK
/**
* 文字大小
*/
var textSize = 0f
/**
* 当前进度
*/
var currentProgress = 0
private var progressBgPaint: Paint
private var progressPaint: Paint
var textView: TextView? = null
var layoutParams: LayoutParams
init {
val a = context.obtainStyledAttributes(attrs, R.styleable.RecProgressLayout)
progressWidth = a.getDimension(R.styleable.RecProgressLayout_rpl_progress_width, 1f)
progressColor = a.getColor(R.styleable.RecProgressLayout_rpl_progress_color, Color.GREEN)
progressBgColor =
a.getColor(R.styleable.RecProgressLayout_rpl_progress_bg_color, Color.TRANSPARENT)
startPoint = a.getInteger(R.styleable.RecProgressLayout_rpl_start_point, LEFT_TOP)
orientation = a.getInteger(R.styleable.RecProgressLayout_rpl_orientation, CLOCKWISE)
textColor = a.getColor(R.styleable.RecProgressLayout_rpl_text_color, Color.BLACK)
textSize = a.getDimension(R.styleable.RecProgressLayout_rpl_text_size, 0f)
currentProgress = a.getInteger(R.styleable.RecProgressLayout_rpl_current_progress, 0)
a.recycle()
progressBgPaint = Paint(Paint.ANTI_ALIAS_FLAG)
progressBgPaint.color = progressBgColor
progressBgPaint.strokeWidth = progressWidth
progressBgPaint.style = Paint.Style.STROKE
progressPaint = Paint(Paint.ANTI_ALIAS_FLAG)
progressPaint.color = progressColor
progressPaint.strokeWidth = progressWidth
progressPaint.style = Paint.Style.STROKE
if (textSize != 0f) {
textView = TextView(context)
textView?.setTextColor(textColor)
textView?.setTextSize(TypedValue.COMPLEX_UNIT_PX, textSize)
}
layoutParams = LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT)
setWillNotDraw(false)
}
override fun onDraw(canvas: Canvas?) {
super.onDraw(canvas)
drawProgressBg(canvas)
drawProgress(canvas)
if (textView != null)
drawText()
}
fun setProgress(progress: Int) {
currentProgress = progress
invalidate()
}
/**
* 绘制进度条背景
* @param canvas Canvas?
*/
private fun drawProgressBg(canvas: Canvas?) {
if (orientation == CLOCKWISE) {
drawTop(canvas, progressBgPaint, width.toFloat())
drawRight(canvas, progressBgPaint, height.toFloat())
drawBottom(canvas, progressBgPaint, 0f)
drawLeft(canvas, progressBgPaint, 0f)
} else {
drawTop(canvas, progressBgPaint, 0f)
drawRight(canvas, progressBgPaint, 0f)
drawBottom(canvas, progressBgPaint, width.toFloat())
drawLeft(canvas, progressBgPaint, height.toFloat())
}
}
/**
* 绘制进度条
* @param canvas Canvas?
*/
private fun drawProgress(canvas: Canvas?) {
val totalWidth = 2 * (width + height) - 4 * progressWidth
val progress = totalWidth * (currentProgress / 100.0f)
when (startPoint) {
LEFT_TOP -> {
drawAtLeftTop(canvas, totalWidth, progress)
}
LEFT_BOTTOM -> {
drawAtLeftBottom(canvas, totalWidth, progress)
}
RIGHT_TOP -> {
drawAtRightTop(canvas, totalWidth, progress)
}
RIGHT_BOTTOM -> {
drawAtRightBottom(canvas, totalWidth, progress)
}
}
}
@SuppressLint("NewApi")
private fun drawText() {
removeView(textView)
val content = "$currentProgress%"
textView?.text = content
layoutParams.addRule(CENTER_IN_PARENT)
textView?.layoutParams = layoutParams
addView(textView)
}
/**
* 绘制上方边进度条
* @param canvas Canvas?
*/
private fun drawTop(canvas: Canvas?, paint: Paint, width: Float) {
if (orientation == CLOCKWISE) {
canvas?.drawLine(
progressWidth,
progressWidth / 2.0f,
width,
progressWidth / 2.0f,
paint
)
} else {
canvas?.drawLine(
this.width - progressWidth,
progressWidth / 2.0f,
width,
progressWidth / 2.0f,
paint
)
}
}
/**
* 绘制右边进度条
* @param canvas Canvas?
*/
private fun drawRight(canvas: Canvas?, paint: Paint, height: Float) {
if (orientation == CLOCKWISE) {
canvas?.drawLine(
width.toFloat() - progressWidth / 2.0f,
progressWidth,
width.toFloat() - progressWidth / 2.0f,
height,
paint
)
} else {
canvas?.drawLine(
width - progressWidth / 2.0f,
this.height - progressWidth,
width - progressWidth / 2.0f,
height,
paint
)
}
}
/**
* 绘制下方进度条
* @param canvas Canvas?
*/
private fun drawBottom(canvas: Canvas?, paint: Paint, width: Float) {
if (orientation == CLOCKWISE) {
canvas?.drawLine(
this.width - progressWidth,
height.toFloat() - progressWidth / 2.0f,
width,
height.toFloat() - progressWidth / 2.0f,
paint
)
} else {
canvas?.drawLine(
progressWidth,
height - progressWidth / 2.0f,
width,
height - progressWidth / 2.0f,
paint
)
}
}
/**
* 绘制左边进度条
* @param canvas Canvas?
*/
private fun drawLeft(canvas: Canvas?, paint: Paint, height: Float) {
if (orientation == CLOCKWISE) {
canvas?.drawLine(
progressWidth / 2.0f,
this.height - progressWidth,
progressWidth / 2.0f,
height,
paint
)
} else {
canvas?.drawLine(
progressWidth / 2.0f,
progressWidth,
progressWidth / 2.0f,
height,
paint
)
}
}
/**
* 绘制起点在左上
* @param canvas Canvas?
* @param totalWidth Float
* @param progress Float
*/
private fun drawAtLeftTop(canvas: Canvas?, totalWidth: Float, progress: Float) {
if (orientation == CLOCKWISE) {
if (progress >= width - progressWidth) {
drawTop(canvas, progressPaint, width.toFloat())
if (currentProgress >= 50) {
drawRight(canvas, progressPaint, height.toFloat())
if (progress >= width * 2 + height - 3 * progressWidth) {
drawBottom(canvas, progressPaint, 0f)
if (currentProgress == 100) {
drawLeft(canvas, progressPaint, 0f)
} else {
drawLeft(canvas, progressPaint, totalWidth - progress)
}
} else {
drawBottom(
canvas,
progressPaint,
2 * width + height - 3 * progressWidth - progress
)
}
} else {
drawRight(
canvas,
progressPaint,
progress - width + 2 * progressWidth
)
}
} else {
drawTop(canvas, progressPaint, progressWidth + progress)
}
} else {
if (progress >= height - progressWidth) {
drawLeft(canvas, progressPaint, height.toFloat())
if (currentProgress >= 50) {
drawBottom(canvas, progressPaint, height.toFloat())
if (progress >= height * 2 + width - 3 * progressWidth) {
drawRight(canvas, progressPaint, 0f)
if (currentProgress == 100) {
drawTop(canvas, progressPaint, 0f)
} else {
drawTop(canvas, progressPaint, width - (totalWidth - progress))
}
} else {
drawRight(
canvas,
progressPaint,
2 * height + width - (progress + 3 * progressWidth)
)
}
} else {
drawBottom(
canvas,
progressPaint,
progress + 2 * progressWidth - height
)
}
} else {
drawLeft(canvas, progressPaint, progressWidth + progress)
}
}
}
/**
* 绘制起点在左下
* @param canvas Canvas?
* @param totalWidth Float
* @param progress Float
*/
private fun drawAtLeftBottom(canvas: Canvas?, totalWidth: Float, progress: Float) {
if (orientation == CLOCKWISE) {
if (progress >= height - progressWidth) {
drawLeft(canvas, progressPaint, 0f)
if (currentProgress >= 50) {
drawTop(canvas, progressPaint, width.toFloat())
if (progress >= height * 2 + width - 3 * progressWidth) {
drawRight(canvas, progressPaint, height.toFloat())
if (currentProgress == 100) {
drawBottom(canvas, progressPaint, 0f)
} else {
drawBottom(canvas, progressPaint, totalWidth - progress)
}
} else {
drawRight(
canvas,
progressPaint,
progress - 3 * progressWidth - height - width
)
}
} else {
drawTop(
canvas,
progressPaint,
progress - height + 2 * progressWidth
)
}
} else {
drawLeft(canvas, progressPaint, height - progress)
}
} else {
if (progress >= width - progressWidth) {
drawBottom(canvas, progressPaint, width.toFloat())
if (currentProgress >= 50) {
drawRight(canvas, progressPaint, 0f)
if (progress >= width * 2 + height - 3 * progressWidth) {
drawTop(canvas, progressPaint, 0f)
if (currentProgress == 100) {
drawLeft(canvas, progressPaint, height.toFloat())
} else {
drawLeft(
canvas,
progressPaint,
height - (totalWidth - progress)
)
}
} else {
drawTop(
canvas,
progressPaint,
2 * width + height - (progress + 3 * progressWidth)
)
}
} else {
drawRight(
canvas,
progressPaint,
height + width - (progress + 2 * progressWidth)
)
}
} else {
drawBottom(canvas, progressPaint, progress)
}
}
}
/**
* 绘制起点在右上
* @param canvas Canvas?
* @param totalWidth Float
* @param progress Float
*/
private fun drawAtRightTop(canvas: Canvas?, totalWidth: Float, progress: Float) {
if (orientation == CLOCKWISE) {
if (progress >= height - progressWidth) {
drawRight(canvas, progressPaint, height.toFloat())
if (currentProgress >= 50) {
drawBottom(canvas, progressPaint, 0f)
if (progress >= height * 2 + width - 3 * progressWidth) {
drawLeft(canvas, progressPaint, 0f)
if (currentProgress == 100) {
drawTop(canvas, progressPaint, width.toFloat())
} else {
drawTop(canvas, progressPaint, width - (totalWidth - progress))
}
} else {
drawLeft(
canvas,
progressPaint,
2 * height + width - 3 * progressWidth - progress
)
}
} else {
drawBottom(
canvas,
progressPaint,
width + height - progress - 2 * progressWidth
)
}
} else {
drawRight(canvas, progressPaint, progressWidth + progress)
}
} else {
if (progress >= width - progressWidth) {
drawTop(canvas, progressPaint, 0f)
if (currentProgress >= 50) {
drawLeft(canvas, progressPaint, height.toFloat())
if (progress >= width * 2 + height - 3 * progressWidth) {
drawBottom(canvas, progressPaint, width.toFloat())
if (currentProgress == 100) {
drawRight(canvas, progressPaint, 0f)
} else {
drawRight(canvas, progressPaint, totalWidth - progress)
}
} else {
drawBottom(
canvas,
progressPaint,
progress + 3 * progressWidth - width - height
)
}
} else {
drawLeft(
canvas,
progressPaint,
progress + 2 * progressWidth - width
)
}
} else {
drawTop(canvas, progressPaint, width - progressWidth - progress)
}
}
}
/**
* 绘制起点在左上
* @param canvas Canvas?
* @param totalWidth Float
* @param progress Float
*/
private fun drawAtRightBottom(canvas: Canvas?, totalWidth: Float, progress: Float) {
if (orientation == CLOCKWISE) {
if (progress >= width - progressWidth) {
drawBottom(canvas, progressPaint, 0f)
if (currentProgress >= 50) {
drawLeft(canvas, progressPaint, 0f)
if (progress >= width * 2 + height - 3 * progressWidth) {
drawTop(canvas, progressPaint, width.toFloat())
if (currentProgress == 100) {
drawRight(canvas, progressPaint, height.toFloat())
} else {
drawRight(canvas, progressPaint, totalWidth - progress)
}
} else {
drawTop(
canvas,
progressPaint,
3 * progressWidth + progress - width - height
)
}
} else {
drawLeft(
canvas,
progressPaint,
width + height - progress - 2 * progressWidth
)
}
} else {
drawBottom(canvas, progressPaint, width - progressWidth - progress)
}
} else {
if (progress >= height - progressWidth) {
drawRight(canvas, progressPaint, 0f)
if (currentProgress >= 50) {
drawTop(canvas, progressPaint, 0f)
if (progress >= height * 2 + width - 3 * progressWidth) {
drawLeft(canvas, progressPaint, height.toFloat())
if (currentProgress == 100) {
drawBottom(canvas, progressPaint, width.toFloat())
} else {
drawBottom(canvas, progressPaint, width - (totalWidth - progress))
}
} else {
drawLeft(
canvas,
progressPaint,
progress + 3 * progressWidth - width - height
)
}
} else {
drawTop(
canvas,
progressPaint,
height + width - progress - 2 * progressWidth
)
}
} else {
drawRight(canvas, progressPaint, height - progress - progressWidth)
}
}
}
}
4.使用
<com.xx.xxx.widget.RecProgressLayout android:id="@+id/rec_layout" android:layout_width="200dp" android:layout_height="300dp" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintBottom_toBottomOf="parent" app:rpl_orientation="clockwise" app:rpl_start_point="left_top" app:rpl_progress_width="8dp" app:rpl_current_progress="0" app:rpl_progress_color="@color/progress_color" app:rpl_progress_bg_color="@color/transparent_color"> <ImageView android:id="@+id/iv_image" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_margin="8dp" android:scaleType="centerCrop" android:src="@mipmap/ic_logo" android:visibility="visible"/> </com.xx.xxx.widget.RecProgressLayout>
代码中直接 调用 binding.recProgressLayout.setProgress(进度1-100)就可以了
