在金融场景或者其余场景，经常我们需要进行规则或者是策略，如何通过一些算法对入模特征完成分布式化的规则切分是必须要做的事情。这里面有两个点：一种是规则切分成可解释性的规则，天然比如决策树、随机森林等，第二个点就是生产阶段我们的数据规模往往比较大，不是单机可以解决的，这种情况下如何完成分布式化改造应对生产需求？围绕这两个命题我们展开下文的解决方案。

1 基于Ray的分布式版本的决策树与随机森林

1.1 Ray实现的第一版以及问题

我们基于Ray的Api 以及 sklearn的包来实现第一版本的决策树

import ray
from sklearn.datasets import load_iris
from sklearn.tree import DecisionTreeClassifier
from sklearn.model_selection import train_test_split

# Initialize Ray
ray.init()

@ray.remote
def train_decision_tree(subset_x, subset_y):
    """Train a decision tree on a subset of data."""
    clf = DecisionTreeClassifier()
    clf.fit(subset_x, subset_y)
    return clf

def distribute_training(data, labels, num_splits=4):
    """Distribute training across multiple cores using Ray."""
    # Split the data into multiple subsets
    chunked_data = np.array_split(data, num_splits)
    chunked_labels = np.array_split(labels, num_splits)

    # Distribute the training tasks
    futures = [train_decision_tree.remote(chunked_data[i], chunked_labels[i]) for i in range(num_splits)]

    # Fetch results
    models = ray.get(futures)
    return models

if __name__ == "__main__":
    iris = load_iris()
    X_train, X_test, y_train, y_test = train_test_split(iris.data, iris.target, test_size=0.2, random_state=42)

    models = distribute_training(X_train, y_train)
    for model in models:
        score = model.score(X_test, y_test)
        print(f"Model accuracy: {score:.2f}")

# Shutdown Ray
ray.shutdown()

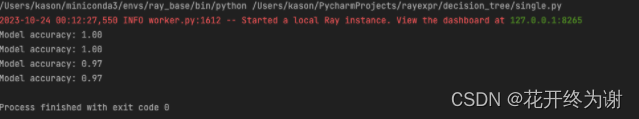

运行之后的结果：

在这里插入图片描述

不过我们看下上面的代码，我们可以看到训练是使用了分布式，不过我们的load却是单机的，从实际来用的话，往往我们的数据集是非常庞大的，这时候就需要通过分布式的形式来加载数据集，之后再分布式的来进行训练.

1.2 基于Ray的分布式DecisionTree版本

这里面为了达到分布式的效果，我们准备自己mock 几个数据集文件，然后并行分布式的去读取这些文件，然后再进行并行的训练。

首先我们假设我们的数据集存在多个文件里比如csv，真实情况可能对应的就是某些数仓，下面我们将会呈现怎么进行分布式并行的加载数据，并针对决策树进行升级。

1.2.1 mock数据

mock数据写入到CSV

from sklearn.datasets import load_iris
import pandas as pd
import numpy as np

def create_mock_csv_files(num_files=4):
    iris = load_iris()
    df = pd.DataFrame(data= np.c_[iris['data'], iris['target']], columns= iris['feature_names'] + ['target'])

    # Split and save to CSV
    chunked_data = np.array_split(df, num_files)
    file_paths = []
    for i, chunk in enumerate(chunked_data):
        file_name = f"data{i + 1}.csv"
        chunk.to_csv(file_name, index=False)
        file_paths.append(file_name)

    return file_paths

file_paths = create_mock_csv_files()
print(f"Created CSV files: {file_paths}")

1.2.2 分布式加载数据，分布式训练

import ray
import numpy as np
import pandas as pd
from sklearn.tree import DecisionTreeClassifier

# Initialize Ray
ray.init()

@ray.remote
def load_data(file_path):
    """Load data from a given file."""
    # For demonstration, I'm assuming the data is in CSV format.
    data = pd.read_csv(file_path)
    X = data.drop('target', axis=1).values
    y = data['target'].values
    return X, y

@ray.remote
def train_decision_tree(X, y):
    """Train a decision tree on given data."""
    clf = DecisionTreeClassifier()
    clf.fit(X, y)
    return clf

def distributed_loading_and_training(file_paths):
    """Distribute data loading and training across cores using Ray."""

    # Distribute the data loading tasks
    data_futures = [load_data.remote(file) for file in file_paths]
    datasets = ray.get(data_futures)

    # Distribute the training tasks
    training_futures = [train_decision_tree.remote(X, y) for X, y in datasets]
    models = ray.get(training_futures)

    return models

if __name__ == "__main__":
    # Assume you have data split across 4 CSV files
    file_paths = ["data1.csv", "data2.csv", "data3.csv", "data4.csv"]

    models = distributed_loading_and_training(file_paths)
    # Note: For demonstration purposes, this example lacks testing and accuracy reporting.
    # You can extend it as per the previous example.

# Shutdown Ray
ray.shutdown()

1.2.3 测试模型的性能

from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# ... [distributed_loading_and_training code from above] ...

if __name__ == "__main__":
    file_paths = create_mock_csv_files()
    print(f"Created CSV files: {file_paths}")

    models = distributed_loading_and_training(file_paths)

    # Test the performance of one of the models
    iris = load_iris()
    X_train, X_test, y_train, y_test = train_test_split(iris.data, iris.target, test_size=0.2, random_state=42)
    predictions = models[0].predict(X_test)
    accuracy = accuracy_score(y_test, predictions)
    print(f"Model accuracy: {accuracy:.2f}")

完整的工程实现：

from sklearn.datasets import load_iris
import pandas as pd
import numpy as np
import ray
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score
from sklearn.tree import DecisionTreeClassifier

def create_mock_csv_files(num_files=4):
    iris = load_iris()
    df = pd.DataFrame(data=np.c_[iris['data'], iris['target']], columns=iris['feature_names'] + ['target'])

    # Split and save to CSV
    chunked_data = np.array_split(df, num_files)
    file_paths = []
    for i, chunk in enumerate(chunked_data):
        file_name = f"data{i + 1}.csv"
        chunk.to_csv(file_name, index=False)
        file_paths.append(file_name)

    return file_paths




@ray.remote
def load_data(file_path):
    """Load data from a given file."""
    # For demonstration, I'm assuming the data is in CSV format.
    data = pd.read_csv(file_path)
    X = data.drop('target', axis=1).values
    y = data['target'].values
    return X, y


@ray.remote
def train_decision_tree(X, y):
    """Train a decision tree on given data."""
    clf = DecisionTreeClassifier()
    clf.fit(X, y)
    return clf


def distributed_loading_and_training(file_paths):
    """Distribute data loading and training across cores using Ray."""

    # Distribute the data loading tasks
    data_futures = [load_data.remote(file) for file in file_paths]
    datasets = ray.get(data_futures)

    # Distribute the training tasks
    training_futures = [train_decision_tree.remote(X, y) for X, y in datasets]
    models = ray.get(training_futures)

    return models


# if __name__ == "__main__":
#     # Assume you have data split across 4 CSV files
#     file_paths = ["data1.csv", "data2.csv", "data3.csv", "data4.csv"]
#
#     models = distributed_loading_and_training(file_paths)
#     # Note: For demonstration purposes, this example lacks testing and accuracy reporting.
#     # You can extend it as per the previous example.



#file_paths = create_mock_csv_files()
#print(f"Created CSV files: {file_paths}")

if __name__ == "__main__":
    file_paths = create_mock_csv_files()
    print(f"Created CSV files: {file_paths}")
    # Initialize Ray
    ray.init()
    models = distributed_loading_and_training(file_paths)

    # Test the performance of one of the models
    iris = load_iris()
    X_train, X_test, y_train, y_test = train_test_split(iris.data, iris.target, test_size=0.2, random_state=42)
    predictions = models[0].predict(X_test)
    accuracy = accuracy_score(y_test, predictions)
    print(f"Model accuracy: {accuracy:.2f}")
    # Shutdown Ray
    ray.shutdown()

在这里插入图片描述

问题来了，我们发现准确率比较低，只有0.33 相比于单机差多了，这是什么问题导致的呢？

这是因为我们本身的数据就比较小，只是Iris的一个子集，如果我们再切片的话，这个数据就不全，就可能造成样本偏差了，效果自然就会差许多

为了解决这个问题，我们可以引用bagging的概念，Bagging可以更好的均衡效果，解决模型偏差，提高模型准确度，一个比较好的方式就是随机森林Random Forest

1.3 基于Ray的分布式随机森林

那我们要怎么样改造我们的上面的代码呢？

首先改造训练方法，我们要使用随机森林


from sklearn.ensemble import RandomForestClassifier
  @ray.remote
  def train_random_forest(X, y):
      """Train a random forest on given data."""
      clf = RandomForestClassifier(n_estimators=10)  # Using 10 trees for demonstration
      clf.fit(X, y)
      return clf

我们需要改造分布式训练以及主类

def distributed_loading_and_training(file_paths):
      """Distribute data loading and training across cores using Ray."""

      # Distribute the data loading tasks
      data_futures = [load_data.remote(file) for file in file_paths]
      datasets = ray.get(data_futures)

      # Distribute the training tasks
      training_futures = [train_random_forest.remote(X, y) for X, y in datasets]
      models = ray.get(training_futures)

      return models

  if __name__ == "__main__":
      file_paths = create_mock_csv_files()
      print(f"Created CSV files: {file_paths}")

      models = distributed_loading_and_training(file_paths)

      # Testing the ensemble's performance
      iris = load_iris()
      X_train, X_test, y_train, y_test = train_test_split(iris.data, iris.target, test_size=0.2, random_state=42)

      # Average the predictions from all models to get the final prediction
      predictions = []
      for x in X_test:
          model_predictions = [model.predict([x])[0] for model in models]
          # Using majority voting for classification
          final_prediction = max(set(model_predictions), key=model_predictions.count)
          predictions.append(final_prediction)

      accuracy = accuracy_score(y_test, predictions)
      print(f"Ensemble model accuracy: {accuracy:.2f}")

完整的代码如下：

from sklearn.datasets import load_iris
import pandas as pd
import numpy as np
import ray
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score
from sklearn.ensemble import RandomForestClassifier

def create_mock_csv_files(num_files=4):
    iris = load_iris()
    df = pd.DataFrame(data=np.c_[iris['data'], iris['target']], columns=iris['feature_names'] + ['target'])

    # Split and save to CSV
    chunked_data = np.array_split(df, num_files)
    file_paths = []
    for i, chunk in enumerate(chunked_data):
        file_name = f"data{i + 1}.csv"
        chunk.to_csv(file_name, index=False)
        file_paths.append(file_name)

    return file_paths




@ray.remote
def load_data(file_path):
    """Load data from a given file."""
    # For demonstration, I'm assuming the data is in CSV format.
    data = pd.read_csv(file_path)
    X = data.drop('target', axis=1).values
    y = data['target'].values
    return X, y


@ray.remote
def train_random_forest(X, y):
    """Train a random forest on given data."""
    clf = RandomForestClassifier(n_estimators=10)  # Using 10 trees for demonstration
    clf.fit(X, y)
    return clf


def distributed_loading_and_training(file_paths):
    """Distribute data loading and training across cores using Ray."""

    # Distribute the data loading tasks
    data_futures = [load_data.remote(file) for file in file_paths]
    datasets = ray.get(data_futures)

    # Distribute the training tasks
    training_futures = [train_random_forest.remote(X, y) for X, y in datasets]
    models = ray.get(training_futures)

    return models


if __name__ == "__main__":
    file_paths = create_mock_csv_files()
    print(f"Created CSV files: {file_paths}")
    # Initialize Ray
    ray.init()
    models = distributed_loading_and_training(file_paths)

    # Testing the ensemble's performance
    iris = load_iris()
    X_train, X_test, y_train, y_test = train_test_split(iris.data, iris.target, test_size=0.2, random_state=42)

    # Average the predictions from all models to get the final prediction
    predictions = []
    for x in X_test:
        model_predictions = [model.predict([x])[0] for model in models]
        # Using majority voting for classification
        final_prediction = max(set(model_predictions), key=model_predictions.count)
        predictions.append(final_prediction)

    accuracy = accuracy_score(y_test, predictions)
    print(f"Ensemble model accuracy: {accuracy:.2f}")
    # Shutdown Ray
    ray.shutdown()
