android 播放视频常见问题

在android 开发中常见到视频播放的问题,在常规的视频中 有直接用videoView + MediaController 或者 mediaController + serfercie holder

常见的问题

1 在播放中如何处理播放器的横屏切换 和 播放器上的文案显示的布局变化

在activity 中 设置

 android:configChanges="orientation|screenSize"
  • 1

这样在旋转中,activity 就不会重建

重写系统方法

 public void onConfigurationChanged(Configuration newConfig) {
        // TODO Auto-generated method stub
        super.onConfigurationChanged(newConfig);
        if (newConfig.orientation == Configuration.ORIENTATION_LANDSCAPE) {
            initVideoLandLayout();
        } else {
            initVideoPortLayout();
        }
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

通过 判断 newConfig.orientation 来判断 当前是横屏还是竖屏, 这个是在看视频的过程中去判断是不是横屏还是竖屏,在我门一开始播放视频的时候,也可以去判断,具体的处理方法是

 private void initVideoPlayerLayout() {
        DisplayMetrics dm = new DisplayMetrics();
        getWindowManager().getDefaultDisplay().getMetrics(dm);
        width = dm.widthPixels;
        heigh = dm.heightPixels;
        if (width / heigh > 0) { // 横屏
            initVideoLandLayout();
            fullscreen = true;
        }
        if (width / heigh == 0) { //竖屏
            initVideoPortLayout();
        }

    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15

在具体变化播放器上的布局的时候我们可以动态的去更换


    private void initVideoPortLayout() {
        RelativeLayout.LayoutParams videoLp = new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.MATCH_PARENT, RelativeLayout.LayoutParams.MATCH_PARENT);
        videoLp.addRule(RelativeLayout.CENTER_IN_PARENT);
        videoView.setLayoutParams(videoLp);
        videoView.start();
        RelativeLayout.LayoutParams hotelInfoLp = new RelativeLayout.LayoutParams(DeviceInfoUtil.getPixelFromDip(200), DeviceInfoUtil.getPixelFromDip(55));
        hotelInfoLp.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
        hotelInfoLp.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
        hotelInfoLp.rightMargin = DeviceInfoUtil.getPixelFromDip(8);
        hotelInfoLp.bottomMargin = DeviceInfoUtil.getPixelFromDip(90);
        mHotelInfoLayout.setLayoutParams(hotelInfoLp);
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13

这是竖屏处理

   private void initVideoLandLayout() {
        RelativeLayout.LayoutParams layoutParams =
                new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.FILL_PARENT, RelativeLayout.LayoutParams.FILL_PARENT);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_TOP);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_LEFT);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
        videoView.setLayoutParams(layoutParams);
        RelativeLayout.LayoutParams hotelInfoLp = new RelativeLayout.LayoutParams(DeviceInfoUtil.getPixelFromDip(200), DeviceInfoUtil.getPixelFromDip(55));
        hotelInfoLp.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
        hotelInfoLp.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
        hotelInfoLp.rightMargin = DeviceInfoUtil.getPixelFromDip(8);
        hotelInfoLp.bottomMargin = DeviceInfoUtil.getPixelFromDip(95);
        mHotelInfoLayout.setLayoutParams(hotelInfoLp);
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14

这是横屏处理

我门知道 系统的videoView 控件 自带有播放,暂停 等进度条这是MediaContronller 当我们手点击的时候 进度条会显示,手离开界面的时候,会不显示,这是videoView 中的方法

 @Override
    public boolean onTouchEvent(MotionEvent ev) {
        if (isInPlaybackState() && mMediaController != null) {
            toggleMediaControlsVisiblity();
        }
        return false;
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7

再朝下看

private void toggleMediaControlsVisiblity() {
        if (mMediaController.isShowing()) {
            mMediaController.hide();
        } else {
            mMediaController.show();
        }
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7

最终调的是 mMediaController.hide(); 和 mMediaController.show(),

所以我门在自己的播放器界面要是实现自己的布局和播放器进度条 重写hide() 和 show() 方法即可

2 在视频播放的过程中经常会出现播放异常的情况,比如弹出无法播放视频的弹框,当然我门是不想让它弹的,于是我门的处理方式为:

 videoView.setOnErrorListener(new MediaPlayer.OnErrorListener() {
            @Override
            public boolean onError(MediaPlayer mp, int what, int extra) {
                return true;
            }
        });
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

让onError 直接返回为true 这样能阻止异常框的弹出 同时什么都不做,原理是

   Log.e(TAG, "Error (" + msg.arg1 + "," + msg.arg2 + ")");
                boolean error_was_handled = false;
                if (mOnErrorListener != null) {
                    error_was_handled = mOnErrorListener.onError(mMediaPlayer, msg.arg1, msg.arg2);
                }
                if (mOnCompletionListener != null && ! error_was_handled) {
                    mOnCompletionListener.onCompletion(mMediaPlayer);
                }
                stayAwake(false);
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

这里error_was_handled 为true 这样就不走进mOnCompletionListener.onCompletion(mMediaPlayer);
了。

3 视频上线发现 在部分小米机型和魅族等机器上横屏 视频没有办法横屏。解决方案为

在布局中

 <RelativeLayout
        android:id="@+id/videoView_layout"
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <VideoView
            android:id="@+id/video"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:visibility="gone" />
    </RelativeLayout>
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

嵌套RelativeLayout;

在代码中处理

     RelativeLayout.LayoutParams layoutParams =
                new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.MATCH_PARENT, RelativeLayout.LayoutParams.MATCH_PARENT);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_TOP);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_LEFT);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_RIGHT);
        layoutParams.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
        mVideoViewLayout.setLayoutParams(layoutParams);
        getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN);
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

4 在视频开发中,回发现window Leacked 问题,看了下
MediaController 的show 方法

    if (!mShowing && mAnchor != null) {
            setProgress();
            if (mPauseButton != null) {
                mPauseButton.requestFocus();
            }
            disableUnsupportedButtons();
            updateFloatingWindowLayout();
            mWindowManager.addView(mDecor, mDecorLayoutParams);
            mShowing = true;
        }
        updatePausePlay();
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

在不停的向view 中加布局,在MediaContrller 中方法了 中hide

  /**
     * Remove the controller from the screen.
     */
    public void hide() {
        if (mAnchor == null)
            return;

        if (mShowing) {
            try {
                mHandler.removeMessages(SHOW_PROGRESS);
                mWindowManager.removeView(mDecor);
            } catch (IllegalArgumentException ex) {
                Log.w("MediaController", "already removed");
            }
            mShowing = false;
        }
    }
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17

讲view remove 因此 我门在activity 的industry 的生命周期的回调中 执行 hide() 方法即可


android 横竖屏切换属性和播放视频全屏切换


通常我们的应用只会设计成横屏或者竖屏,锁定横屏或竖屏的方法是在manifest.xml文件中设定属性android:screenOrientation为”landscape”或”portrait”:

<activity
    android:name="com.jooylife.jimei_tablet.base.Main"
    android:label="@string/app_name"
    android:screenOrientation="landscape">
    <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
    </intent-filter>
</activity>
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10

其实screenOrientation还可以设置成很多值:

android:screenOrientation=
[“unspecified” | “behind” |”landscape” | “portrait”|”reverseLandscape”|”reversePortrait” |”sensorLandscape” | “sensorPortrait” |”userLandscape” | “userPortrait” |”sensor” | “fullSensor” | “nosensor” |”user” | “fullUser” | “locked”]


其中sensorLandscape就是横屏根据重力切换,sensorPortrait竖屏根据重力切换。

播放视频全屏切换:
1.Demo:

@Override
protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
if(this.getResources().getConfiguration().orientation==Configuration.ORIENTATION_LANDSCAPE) {
getWindow().getDecorView().setSystemUiVisibility(View.INVISIBLE);
}else if (this.getResources().getConfiguration().orientation==Configuration.ORIENTATION_PORTRAIT) {
// this.requestWindowFeature(Window.f);// 去掉标题栏
// this.getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,
// WindowManager.LayoutParams.FLAG_FULLSCREEN);// 去掉信息栏
Log.i(“info”, “portrait”); // 竖屏

}

View类提供了setSystemUiVisibility和getSystemUiVisibility方法,这两个方法实现对状态栏的动态显示或隐藏的操作,以及获取状态栏当前可见性。

setSystemUiVisibility(int visibility)方法可传入的实参为:

  1. View.SYSTEM_UI_FLAG_VISIBLE:显示状态栏,Activity不全屏显示(恢复到有状态的正常情况)。

  2. View.INVISIBLE:隐藏状态栏,同时Activity会伸展全屏显示。

  3. View.SYSTEM_UI_FLAG_FULLSCREEN:Activity全屏显示,且状态栏被隐藏覆盖掉。

  4. View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN:Activity全屏显示,但状态栏不会被隐藏覆盖,状态栏依然可见,Activity顶端布局部分会被状态遮住。

  5. View.SYSTEM_UI_FLAG_LAYOUT_HIDE_NAVIGATION:效果同View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN

  6. View.SYSTEM_UI_LAYOUT_FLAGS:效果同View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN

  7. View.SYSTEM_UI_FLAG_HIDE_NAVIGATION:隐藏虚拟按键(导航栏)。有些手机会用虚拟按键来代替物理按键。

  8. View.SYSTEM_UI_FLAG_LOW_PROFILE:状态栏显示处于低能显示状态(low profile模式),状态栏上一些图标显示会被隐藏。
    2.

if (this.getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE) {
WindowManager.LayoutParams attrs = getWindow().getAttributes();
attrs.flags |= WindowManager.LayoutParams.FLAG_FULLSCREEN;
getWindow().setAttributes(attrs);
getWindow().addFlags(
WindowManager.LayoutParams.FLAG_LAYOUT_NO_LIMITS);
} else if (this.getResources().getConfiguration().orientation == Configuration.ORIENTATION_PORTRAIT) {
WindowManager.LayoutParams attrs = getWindow().getAttributes();
attrs.flags &= (~WindowManager.LayoutParams.FLAG_FULLSCREEN);
getWindow().setAttributes(attrs);
getWindow().clearFlags(
WindowManager.LayoutParams.FLAG_LAYOUT_NO_LIMITS);
}


android 视频播放器Vitamio踩坑之路


一、Vitamio底层音视频解码原理基于FFmpeg开发,vitamio的优点:

(1)Vitamio 能够流畅播放720P甚至1080P高清MKV,FLV,MP4,MOV,TS,RMVB等常见格式的视频,

(2)可以在 Android 上支持 MMS, RTSP, RTMP, HLS(m3u8) 等常见的多种视频流媒体协议,包括点播与直播。

支持 ARMv6 和 ARMv7 两种 ARM CPU,同时对 VFP, VFPv3, NEON 等指令集都做相应优化。

二、使用:

(1)集成:

1.github下载vitamio资源 https://github.com/yixia/VitamioBundle

2.解压文件,将其中的vitamio导入到as中 ,打开AS,File -> New -> Import Moudle,选择刚才解压文件夹下的 vitamio 文件. 并且在app的gradle中添加该包的依赖

3.按照app目录下的build.gradle配置vitamio目录下的build.gradle(注意不是vitamio文件夹下app下的)

(2)使用

1.mainfest文件


    <uses-permission android:name="android.permission.WAKE_LOCK" />
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
在自己的AndroidManifest.xm 中添加
<!-- 必须初始化 -->
 <activity android:name="io.vov.vitamio.activity.InitActivity" android:configChanges="orientation|screenSize|smallestScreenSize|keyboard|keyboardHidden|navigation" android:launchMode="singleTop" android:theme="@android:style/Theme.NoTitleBar" android:windowSoftInputMode="stateAlwaysHidden" />

2.使用Vitamio库

在视频播放的Activity onCreate中 setContentView()之前添加解码监听判断,

//检查vitamio框架是否可用

if (!io.vov.vitamio.LibsChecker.checkVitamioLibs(this))
    return;

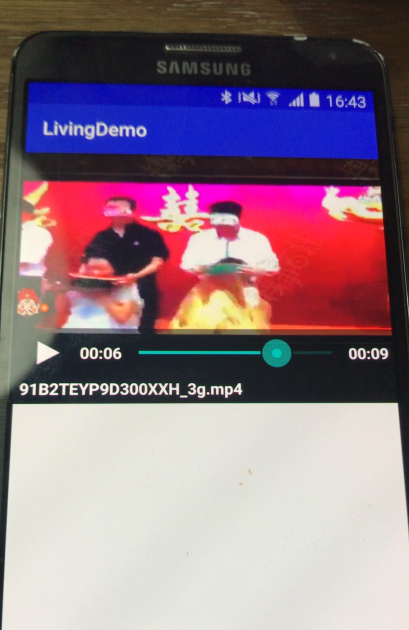

1.布局中

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.gbf.livingdemo.VitamioActivity"
    android:orientation="vertical">
<io.vov.vitamio.widget.VideoView
    android:id="@+id/vitamio_videoview"
    android:layout_width="match_parent"
    android:layout_height="200dp"/>
</LinearLayout>

2.activity

public class VitamioActivity extends AppCompatActivity implements MediaPlayer.OnPreparedListener, MediaPlayer.OnErrorListener, MediaPlayer.OnCompletionListener{
    private VideoView mVideoView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //检查vitamio框架是否可用
        if (!io.vov.vitamio.LibsChecker.checkVitamioLibs(this))
            return;
        setContentView(R.layout.activity_vitamio);
        //一定要初始化
        Vitamio.initialize(this);
        initView();
        initData();
    }

    private void initData() {
        mVideoView.setVideoURI(Uri.parse("http://qiubai-video.qiushibaike.com/91B2TEYP9D300XXH_3g.mp4"));
//        mVideoView.setVideoURI(Uri.parse("http://alcdn.hls.xiaoka.tv/2017427/14b/7b3/Jzq08Sl8BbyELNTo/index.m3u8"));

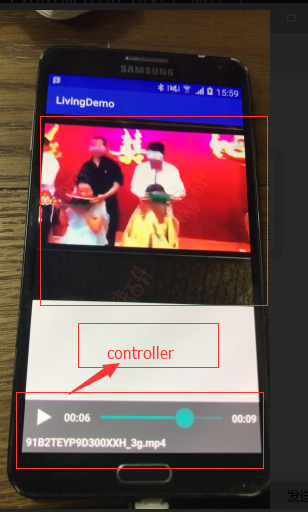

        mVideoView.setMediaController(new MediaController(this));

        //设置监听
        mVideoView.setOnPreparedListener(this);
        mVideoView.setOnErrorListener(this);
        mVideoView.setOnCompletionListener(this);
    }

    private void initView() {
        mVideoView=findViewById(R.id.vitamio_videoview);
    }



    @Override
    public void onPrepared(MediaPlayer mp) {
        Toast.makeText(this,"准备好了", Toast.LENGTH_LONG).show();
        mVideoView.start();
    }

    @Override
    public void onCompletion(MediaPlayer mp) {
        Toast.makeText(this,"播放完成", Toast.LENGTH_LONG).show();
    }

    @Override
    public boolean onError(MediaPlayer mp, int what, int extra) {
        Toast.makeText(this,"Error", Toast.LENGTH_LONG).show();
//          返回 true
        return true;
    }
}

别忘记

@Override
protected void onDestroy() {
    mVideoView.stopPlayback();
    super.onDestroy();
}

效果如下:

竖屏:

正常情况下来,进度条应该是在视频的底部,而不是在手机屏幕的底部

修改如下:(1)xml布局,在videoview外面添加一层布局如下:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.gbf.livingdemo.VitamioActivity"
    android:orientation="vertical">
    <RelativeLayout
        android:id="@+id/rela"
        android:layout_width="match_parent"
        android:layout_height="260dp">
<io.vov.vitamio.widget.VideoView
    android:id="@+id/vitamio_videoview"
    android:layout_width="match_parent"
    android:layout_height="match_parent"/>
    </RelativeLayout>
</LinearLayout>

(2)MediaController添加构造函数

public MediaController(Context context, boolean isFromXml, View container) {
  super(context);
  initController(context);
  mFromXml = isFromXml;
  mRoot = makeControllerView();
  if(container instanceof RelativeLayout)
  {
    RelativeLayout.LayoutParams p = new RelativeLayout.LayoutParams(LayoutParams.MATCH_PARENT,
            LayoutParams.WRAP_CONTENT);
    p.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM);
    mRoot.setLayoutParams(p);
    ((RelativeLayout)container).addView(mRoot);
  }
}  public MediaController(Context context) {
  super(context);
  if (!mFromXml && initController(context))
    initFloatingWindow();
}

(3)activity中实例化MediaController

//        mVideoView.setMediaController(new MediaController(this));
        mVideoView.setMediaController(new MediaController(this,true,mRelatviLayout));
效果如下:

竖屏显示正常~~

横屏幕:



解决办法:

(1)清单文件中当前activity

设置如下:

android:configChanges="orientation|keyboardHidden|screenLayout|screenSize"

(2)判断屏幕是否是横屏或者竖屏

@Override
public void onConfigurationChanged(Configuration newConfig) {
    //屏幕切换时,设置全屏
    if(getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE)
    {
        Log.d("haha","切换横屏");
        setFullScreen();
    }
    else
    {
        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
                LinearLayout.LayoutParams.MATCH_PARENT,
                600);
        mRelatviLayout.setLayoutParams(layoutParams);
        RelativeLayout.LayoutParams layoutParams1 = new RelativeLayout.LayoutParams(
                RelativeLayout.LayoutParams.MATCH_PARENT,
                RelativeLayout.LayoutParams.MATCH_PARENT);
        mVideoView.setLayoutParams(layoutParams1);
    }
    super.onConfigurationChanged(newConfig);
}

private void setFullScreen() {
    Log.d("haha","调用设置全屏");

    LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
            LinearLayout.LayoutParams.MATCH_PARENT,
            LinearLayout.LayoutParams.MATCH_PARENT);
    mRelatviLayout.setLayoutParams(layoutParams);
    RelativeLayout.LayoutParams layoutParams1 = new RelativeLayout.LayoutParams(
            RelativeLayout.LayoutParams.MATCH_PARENT,
            RelativeLayout.LayoutParams.MATCH_PARENT);
    mVideoView.setLayoutParams(layoutParams1);
}

效果:



像一个正常的播放器了~~



©️2020 CSDN 皮肤主题: 书香水墨 设计师:CSDN官方博客 返回首页
