安卓应用《撕掉她的衣服》简化版

首先是activity_main.xml文件

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <ImageView
        android:id="@+id/iv_after"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/hello_world" />
    <ImageView
        android:id="@+id/iv_pre"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
          />

</FrameLayout>

接下来就是MainActivity.java文件

package com.csdn.gril;

import android.os.Bundle;
import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.BitmapFactory.Options;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.util.Log;
import android.view.Menu;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnTouchListener;
import android.widget.ImageView;

public class MainActivity extends Activity {

	private ImageView iv_after;
	private ImageView iv_before;
	private Bitmap alterBitmap;
	private Canvas canvas;
	private Paint paint;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		BitmapFactory.Options opts = new Options();
		opts.inSampleSize = 2;
		iv_after = (ImageView) findViewById(R.id.iv_after);
		iv_before = (ImageView) findViewById(R.id.iv_pre);

		Bitmap after = BitmapFactory.decodeResource(getResources(),
				R.drawable.after, opts);
		// 只读图片
		Bitmap before = BitmapFactory.decodeResource(getResources(),
				R.drawable.pre, opts);
		// 可以修改的空白的bitmap
		alterBitmap = Bitmap.createBitmap(before.getWidth(), before.getHeight(),
				before.getConfig());
		canvas = new Canvas(alterBitmap);
		paint = new Paint();
		paint.setStrokeWidth(5);
		paint.setColor(Color.BLACK);
		canvas.drawBitmap(before, new Matrix(), paint);

		iv_after.setImageBitmap(after);
		iv_before.setImageBitmap(alterBitmap);

		iv_before.setOnTouchListener(new OnTouchListener() {

			@Override
			public boolean onTouch(View v, MotionEvent event) {
				switch (event.getAction()) {
				case MotionEvent.ACTION_DOWN:

					break;
				case MotionEvent.ACTION_MOVE:
					Log.i("xx", "move!");
					int newX = (int) event.getX();
					int newY = (int) event.getY();
					for (int i = -10; i < 5; i++) {
						for (int j = -10; j < 5; j++) {
							alterBitmap.setPixel(i+newX, j+newY, Color.TRANSPARENT);
						}
					}
					iv_before.setImageBitmap(alterBitmap);
					break;
				}
				return true;
			}
		});

	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		// Inflate the menu; this adds items to the action bar if it is present.
		getMenuInflater().inflate(R.menu.main, menu);
		return true;
	}

}

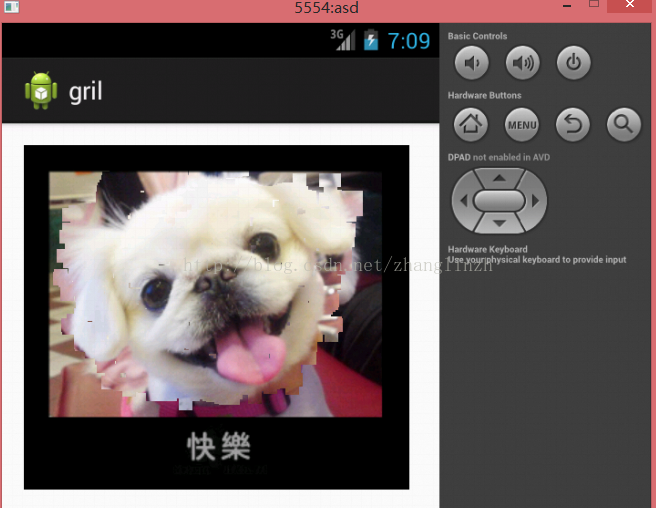

操作前：

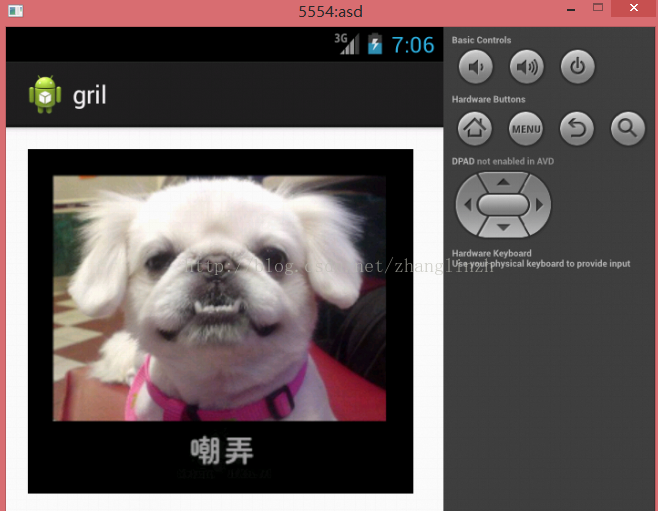

操作后：
