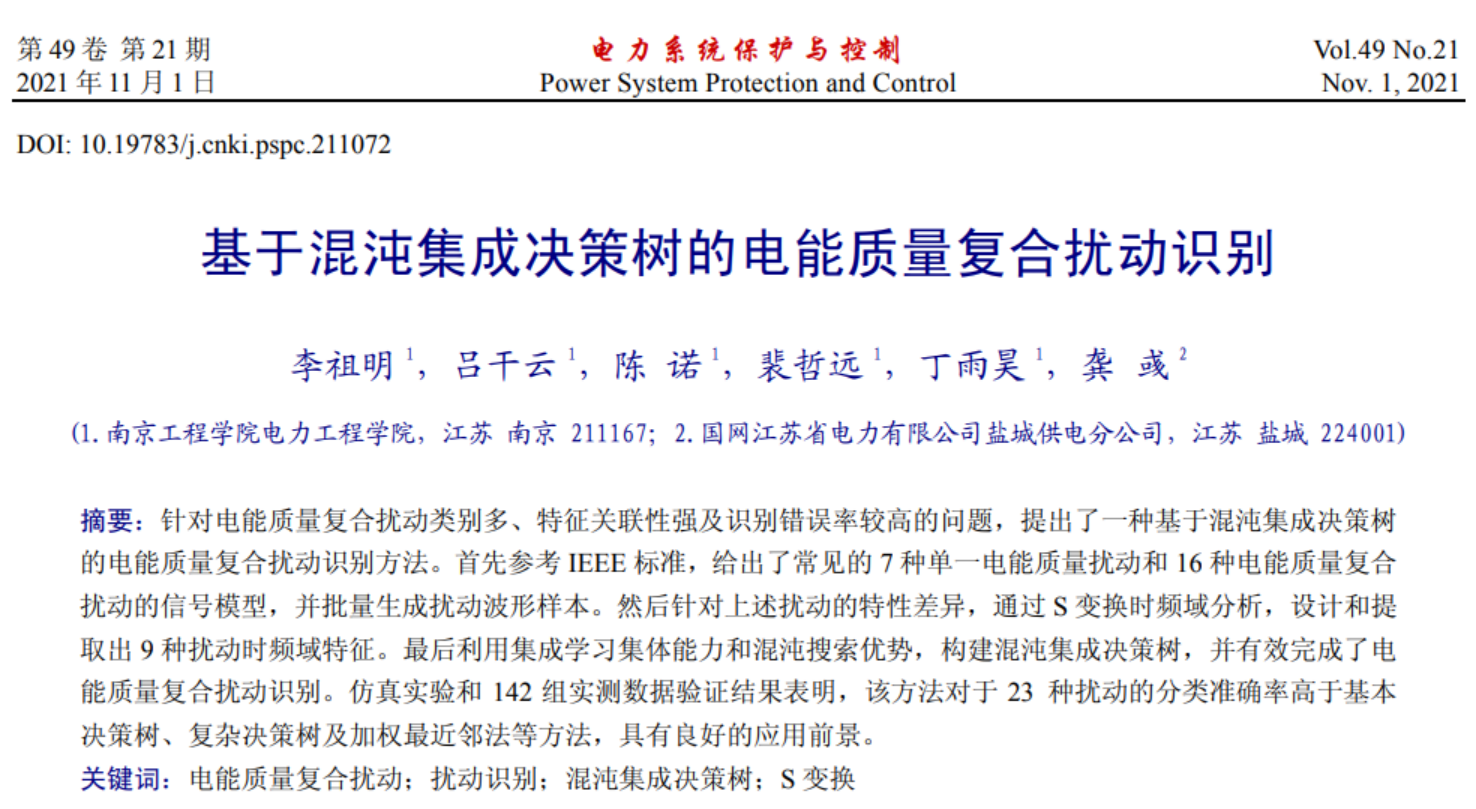

基于混沌集成决策树的电能质量复合扰动识别（matlab代码）

目录

1 主要内容

2 部分代码

3 程序结果

4 程序链接

---

1 主要内容

该程序参考《基于混沌集成决策树的电能质量复合扰动识别》，主要做的是S变换电能质量扰动识别，通过S变换对电能质量扰动（谐波，闪变，暂升等单一扰动和复合扰动）进行变换得到时频图，并对其进行特征提取。

2 部分代码

%% 电能质量扰动函数
V1=sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7);
% plot(t,V1);    title('1:谐波'); 谐波
V2=(1-a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x);
%   plot(t,V2)  电压暂降   0.1-0.9
V3=(1+a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x);
  % 电压暂升
V4=(1-a4.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x);
%   plot(t,V4)      %0.9-1  电压中断
V5=(1+a_f*sin(b*w*x)).*sin(w*x);
%subplot(2,1,2);  plot(t,V5);   title('5:闪变');
V6=sin(w*x)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%plot(t,V6)   暂态振荡
V7=sin(w*x)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%plot(t,V7)   暂态脉冲
​
V8=(1-a2.*(stepfun(x,0.18)-stepfun(x,0.26))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7);
%电压暂降+谐波
V9=(1+a2.*(stepfun(x,0.18)-stepfun(x,0.26))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7);
%电压暂升+谐波
V10=(1-a4.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7);
%电压中断+谐波
V11=(1+a_f*sin(b*w*x)).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7);
%电压闪变+谐波
​
V12=(1-a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%电压暂降+暂态振荡
V13=(1+a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%电压暂升+暂态振荡
V14=(1+a_f*sin(b*w*x)).*sin(w*x)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%电压闪变+暂态振荡
V15=sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%谐波+暂态振荡
​
V16=(1-a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%电压暂降+暂态脉冲
V17=(1+a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%电压暂升+暂态脉冲
V18=(1+a_f*sin(b*w*x)).*sin(w*x)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%闪变+暂态脉冲
V19=sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%谐波+暂态脉冲
​
V20=(1-a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%暂降+谐波+暂态振荡
V21=(1+a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03));
%暂升+谐波+暂态振荡
V22=(1+a_f*sin(b*w*x)).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%闪变+谐波+暂态脉冲
V23=(1-a2.*(stepfun(x,0.08)-stepfun(x,0.16))).*sin(w*x)+a_3*sin(3*w*x+b_3)+a_5*sin(5*w*x+b_5)+a_7*sin(7*w*x+b_7)+a6*exp(-(x-0.02)/tao).*sin(Wn*w*x).*(stepfun(x,0.02)-stepfun(x,0.03))+a7*exp(-(x-0.02)/tao).*(stepfun(x,0.02)-stepfun(x,0.06));
%暂降+谐波+暂态振荡+暂态脉冲
%plot(x,V20)
​
%%  V1 谐波  S变换  做时频图

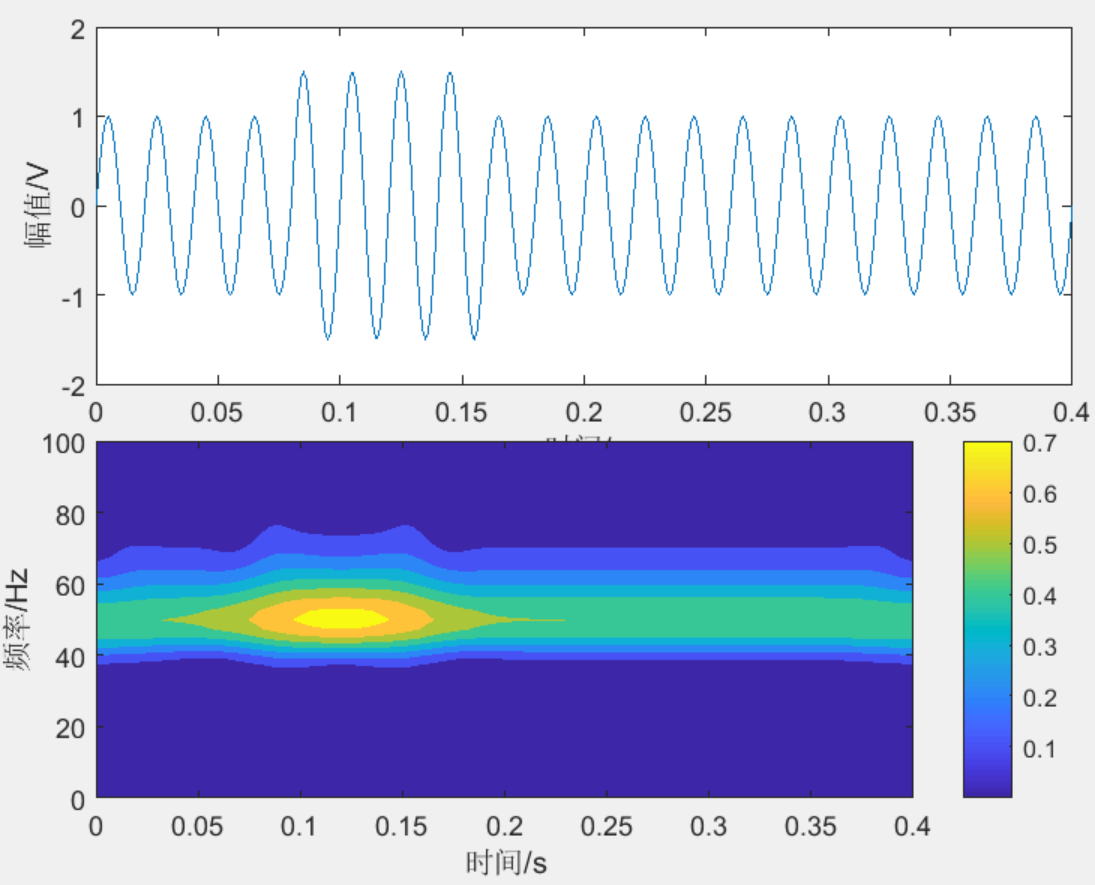

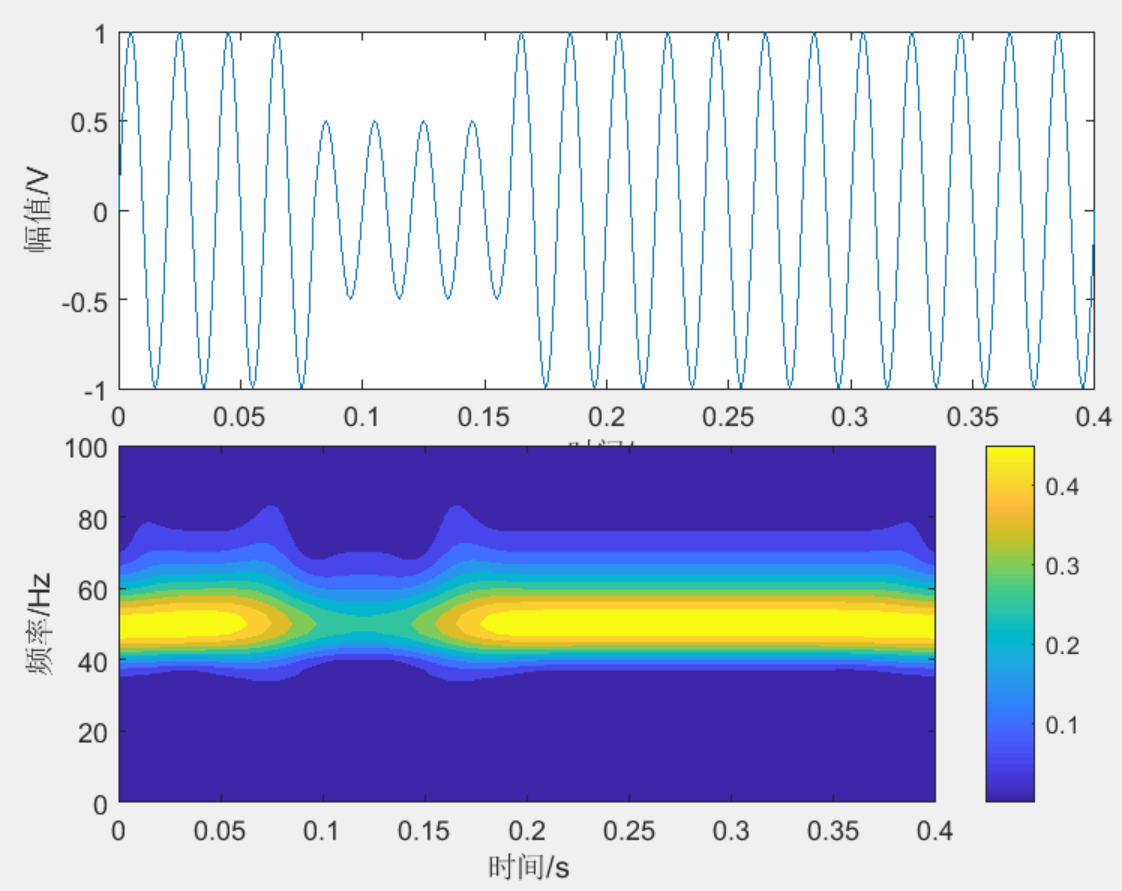

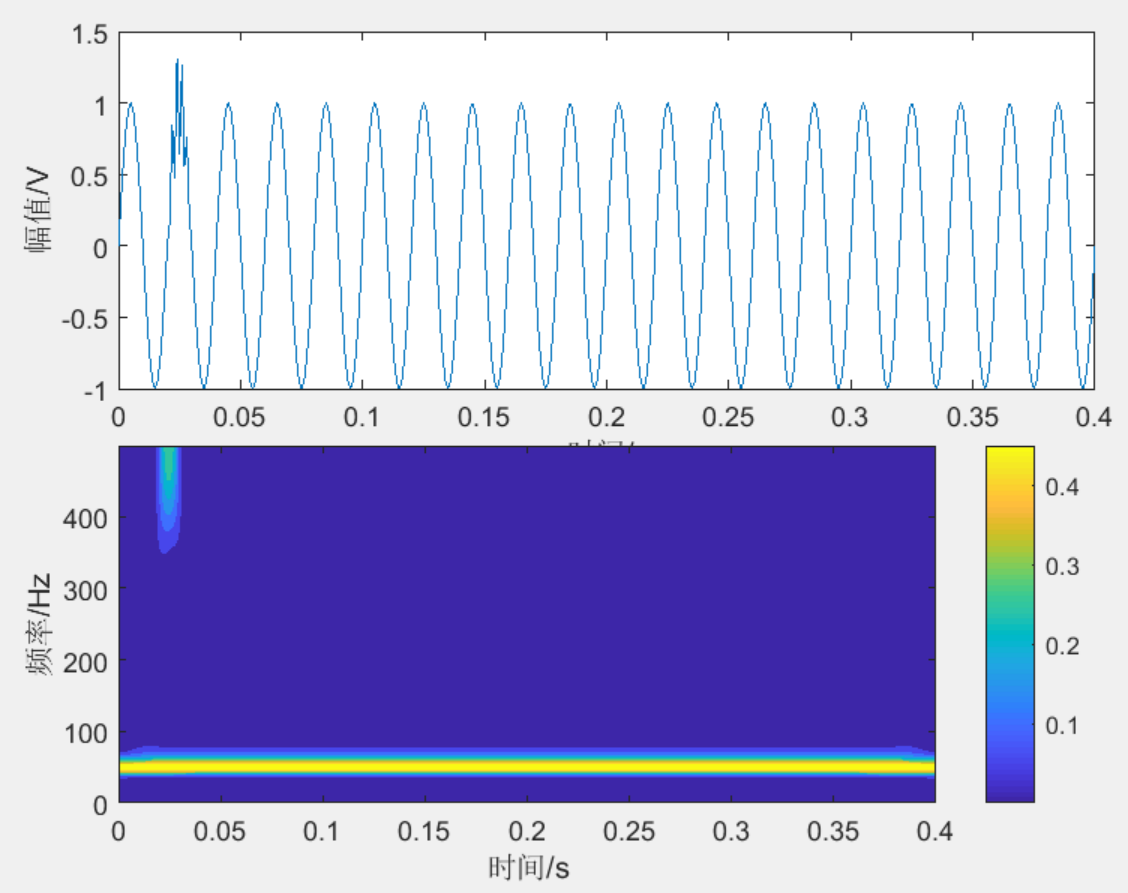

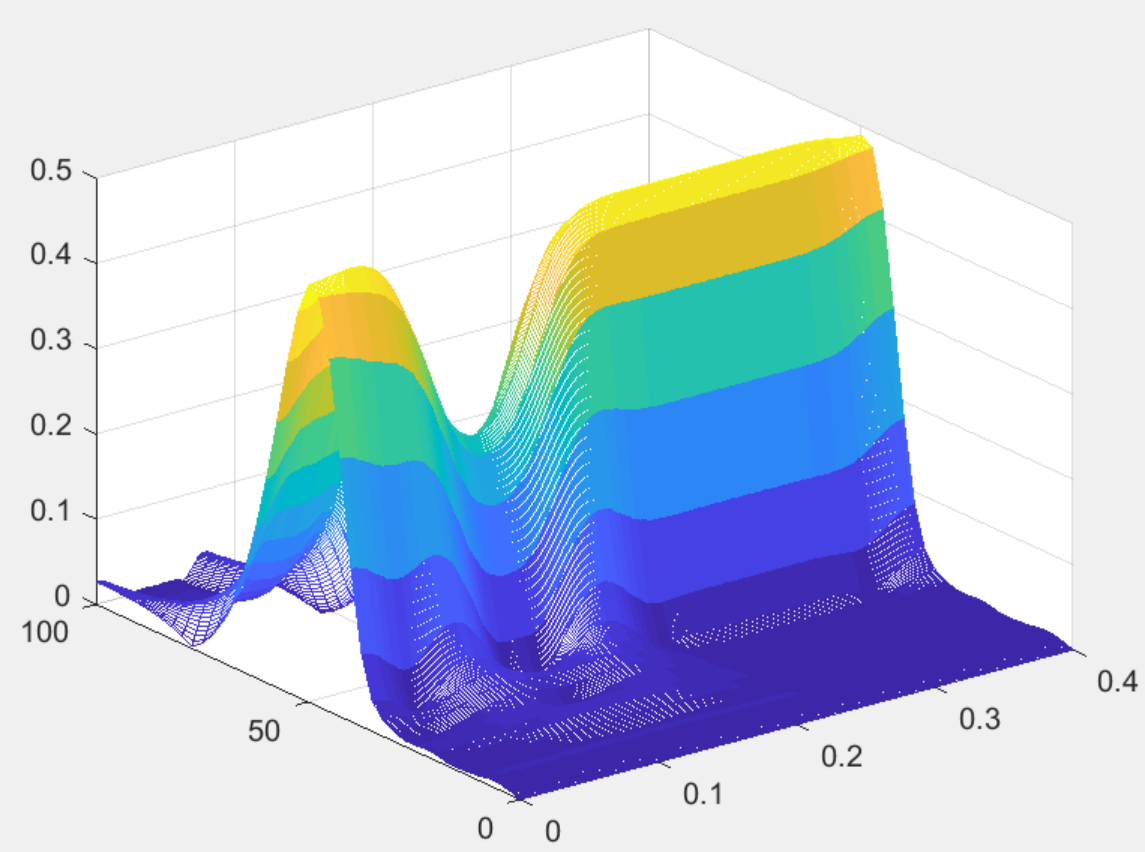

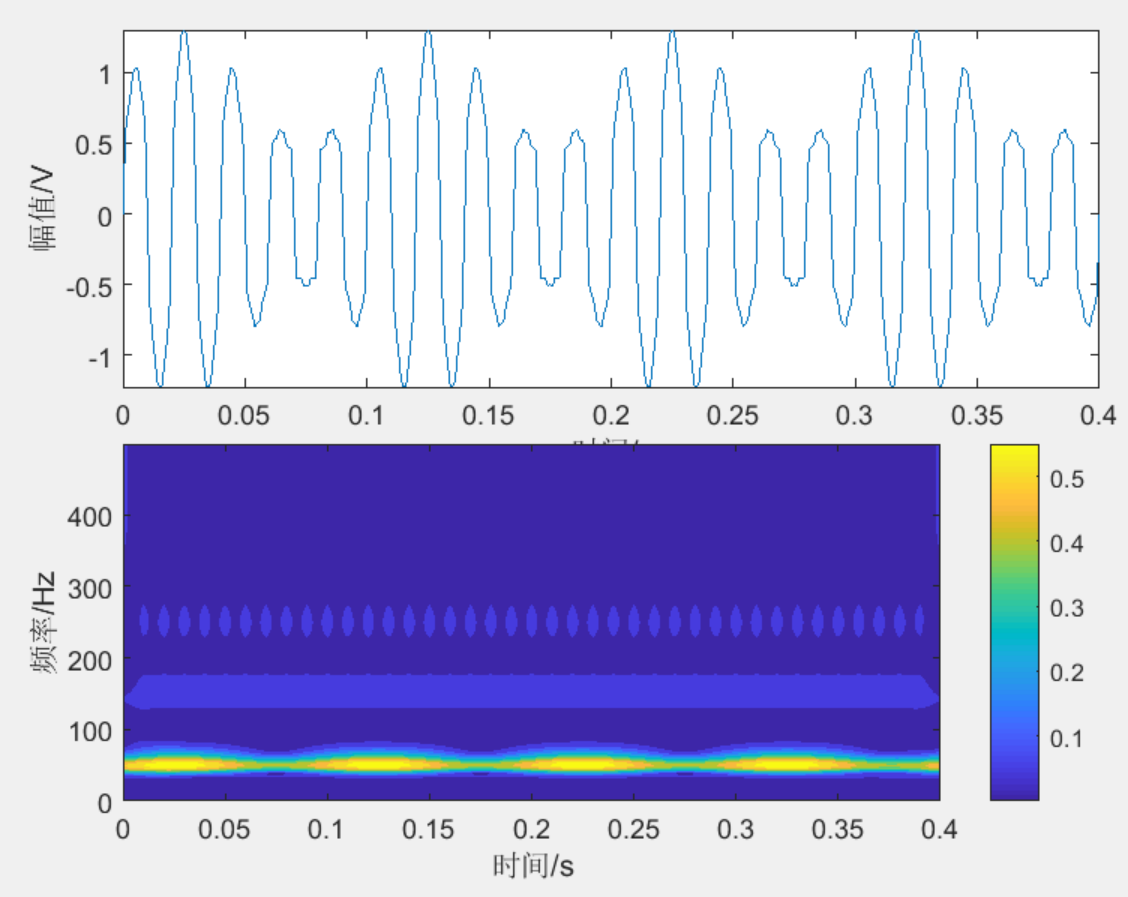

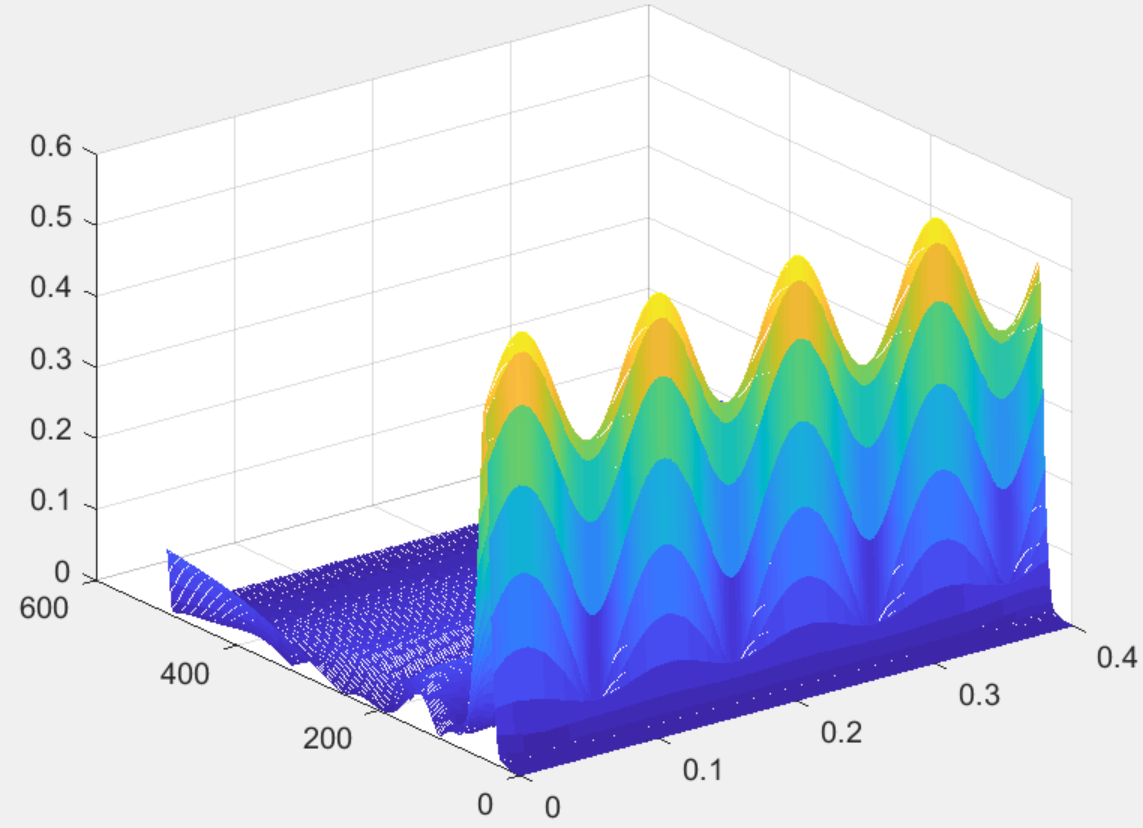

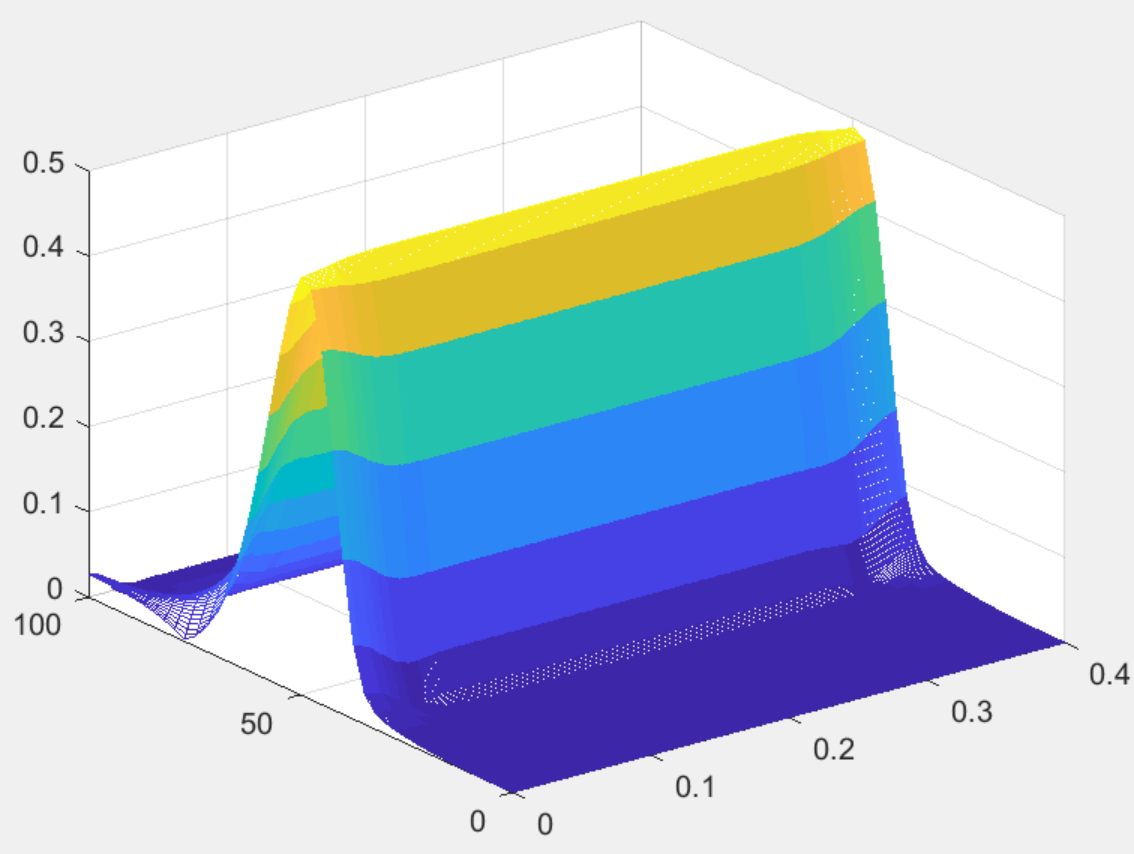

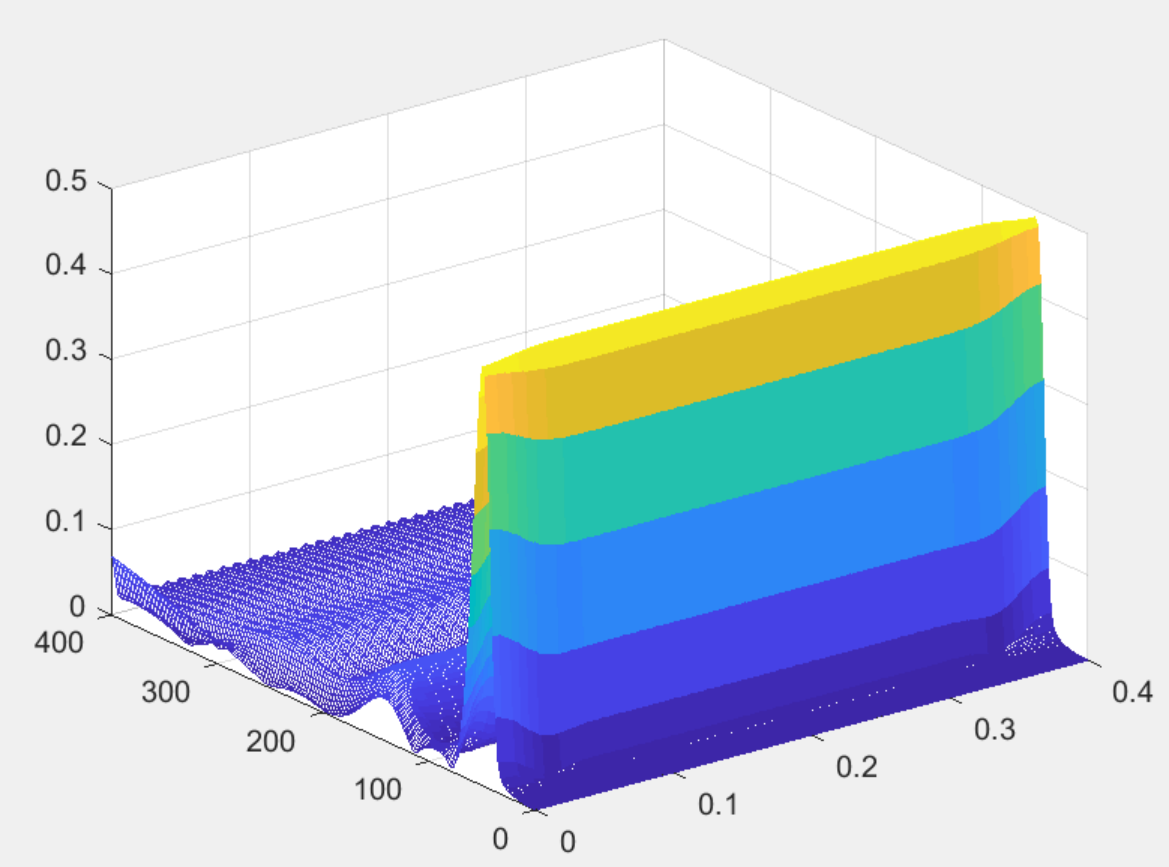

3 程序结果
