EFI 下载
https://download.csdn.net/download/zhangyingda/35089973
环境
项目 | 规格 |
---|---|
CPU | Intel i5 10400 |
Motherboards | MSI MAG B460M Mortao |
Memory | Gloway 光威弈 DDR4 8Gx2@3000 |
Graphics card | 蓝宝石 AMD 7770 1G |
SSD | WD SN550 500G |
POWER SUPPLY | CORSAIR CX600M |
操作系统 | macOS Big Sur 11.6 |

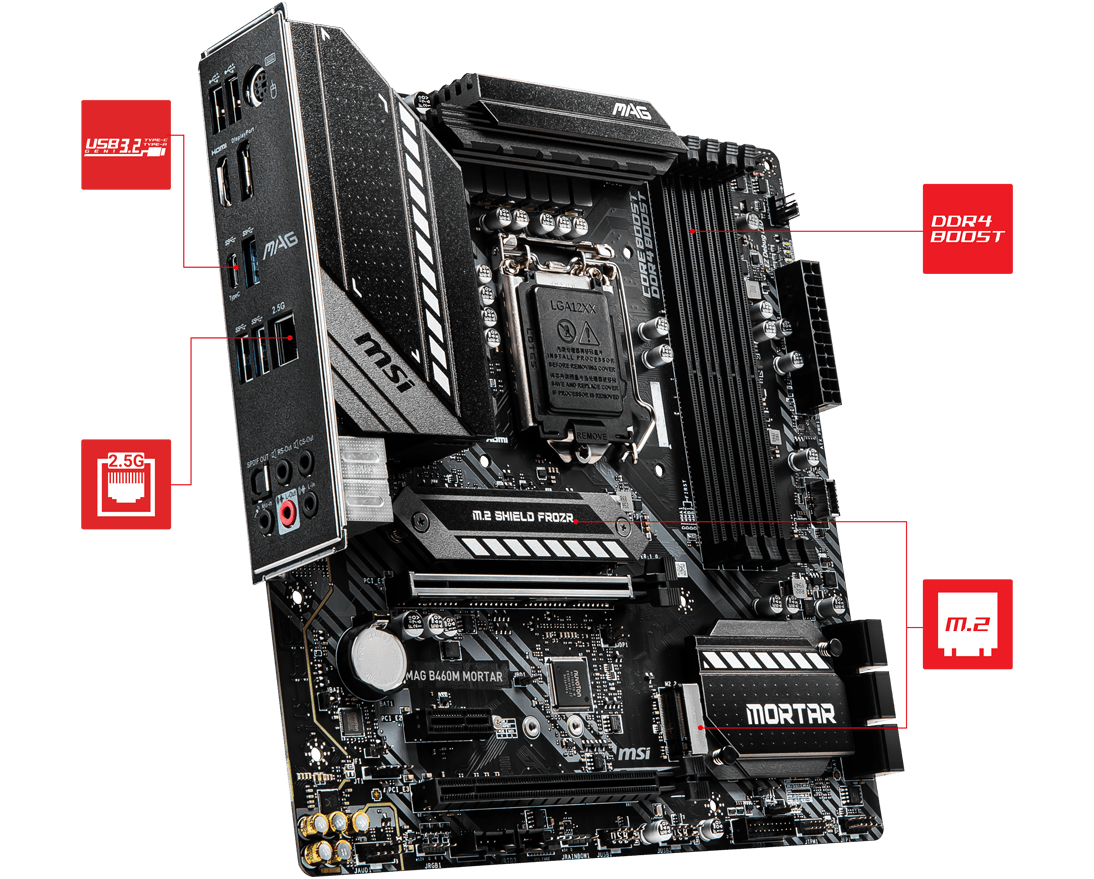

主板参数
https://cn.msi.com/Motherboard/MAG-B460M-MORTAR
参考文档
Dortania’s OpenCore Install Guide
https://dortania.github.io/OpenCore-Install-Guide/
简单说明
先创建启动盘,然后下载 OpenCore 最新版,解压到 U 盘 EFI 分区的根目录
复制 OpenCore Docs 文件夹中的 Sample.plist 到 OC 目录中,改名为 config.plist。使用 ProperTree 来修改 config.plist,驱动放到 kexts 目录后,点击菜单中的 OC Snapshot,自动扫描添加到配置文件中。
仔细阅读针对 Intel 10代 CPU 的设定,逐个修改。
https://dortania.github.io/OpenCore-Install-Guide/config.plist/coffee-lake.html#starting-point
需要注意的是核显的设定项 PciRoot(0x0)/Pci(0x2,0x0),我给出的压缩包里,用的是独立显卡 AMD 7770 1G,核心显卡只是用来加速运算,所以 AAPL,ig-platform-id 设定为 0300913E ,如果只用核心显卡,请设置为 00009B3E。
OpenCore 引导操作系统时主板 BIOS 的设置
https://dortania.github.io/OpenCore-Install-Guide/config.plist/coffee-lake.html#intel-bios-settings
[附] 在 Windows 下创建 macOS 安装U盘
此附加与本文内容无关
https://dortania.github.io/OpenCore-Install-Guide/installer-guide/winblows-install.html#downloading-macos
这个很好用,我在一块USB3.0 的 32G IS903 SLC 定制 U 盘上,创建了三个分区 EFI(2.15G) UBUNTU(8.6G) DATA(21.21G),分别引导 macOS,ubuntu,另一个用来存放数据。三个分区都格式化成 FAT32。这样可以引导 MacOS,也可以引导 UBUNTU。
EFI 里放的是从 MacOS Recovery Image 里提取出来的 com.apple.recovery.boot,里面是 BaseSystem.chunklist BaseSystem.dmg。这些文件是使用 macrecovery.py (OpenCore 里提供的工具)下载的。
UBUNTU 里是 UBUNTU 的 iso,使用 Rufus 写入。
