Swift3.0学习实践-一个简单的画板(七色轨迹、可撤销、可清除、带橡皮擦)

写着玩儿的小程序，继续学习swift.运行效果＋代码＋知识点总结

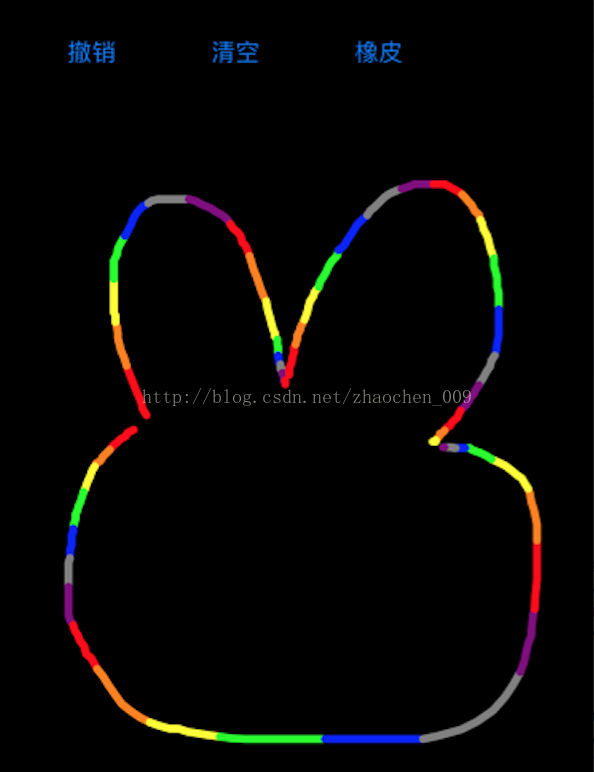

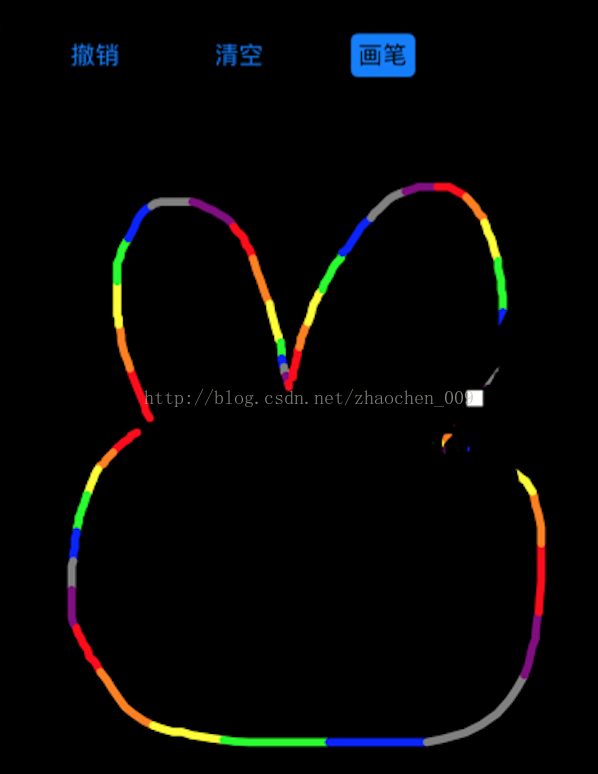

运行效果：



代码:

Canvas类：画布，画图板状态管理、交互、处理手势

class Canvas:UIView{
    //负责线条的生成、操作与管理
    private let pathCreator:PathCreator
    //是否处于擦除状态
    private var isInErasering:Bool
    //橡皮擦视图
    private let eraserView:UIView

    override init(frame: CGRect) {
        isInErasering = false
        pathCreator = PathCreator()

        eraserView = UIView.init()
        eraserView.frame = CGRect(x: 0, y: 0, width: 10, height: 10)
        eraserView.backgroundColor = UIColor.white
        eraserView.alpha = 0

        super.init(frame: frame)

        self.backgroundColor = UIColor.black

        self.addSubview(eraserView)

        let revokeBut = UIButton(type: UIButtonType.system)
        revokeBut.frame = CGRect(x: 20, y: 20, width: 80, height: 30)
        revokeBut.setTitle("撤销", for: UIControlState.normal)
        revokeBut.addTarget(self, action: #selector(revokeButClick), for: UIControlEvents.touchUpInside)
        self.addSubview(revokeBut)

        let cleanBut = UIButton(type: UIButtonType.system)
        cleanBut.frame = CGRect(x: 110, y: 20, width: 80, height: 30)
        cleanBut.setTitle("清空", for: UIControlState.normal)
        cleanBut.addTarget(self, action: #selector(cleanButClick), for: UIControlEvents.touchUpInside)
        self.addSubview(cleanBut)

        let eraserBut = UIButton(type: UIButtonType.system)
        eraserBut.frame = CGRect(x: 200, y: 20, width:80, height: 30)
        eraserBut.setTitle("橡皮", for: UIControlState.normal)
        eraserBut.setTitle("画笔", for: UIControlState.selected)
        eraserBut.addTarget(self, action: #selector(eraserButClick(but:)), for: UICo
