C/C++编程：ZeroMQ示例学习

最新推荐文章于 2023-12-28 18:46:45 发布

OceanStar的学习笔记

最新推荐文章于 2023-12-28 18:46:45 发布

阅读量2k

点赞数 1

分类专栏： C++

原文链接：https://zguide.zeromq.org/docs/chapter1/

版权

C++ 专栏收录该内容

1059 篇文章 275 订阅

订阅专栏

获取例子：git clone --depth=1 https://github.com/imatix/zguide.git

获取版本

ZeroMQ确实有多个版本，并且经常出现问题，如果您遇到问题，它将在更高版本中得到修复。因此，准确地知道您实际链接的ZeroMQ版本是一个有用的技巧。

C

#include <zmq.h>

int main (void)
{
    int major, minor, patch;
    zmq_version (&major, &minor, &patch);
    printf ("Current 0MQ version is %d.%d.%d\n", major, minor, patch);
    return 0;
}

请求-答复模式

（Hello World CS）

效果：客户端向服务器发送“ Hello”，服务器回复“ World”
在这里插入图片描述

服务端

效果：在端口12345上打开ZeroMQ套接字，读取该端口上的请求，并对每个请求回复“World”

#include <zmq.h>
#include <stdio.h>
#include <unistd.h>
#include <assert.h>

int main (void)
{
    //  Socket to talk to clients
    void *context = zmq_ctx_new ();
    void *responder = zmq_socket (context, ZMQ_REP);
    int rc = zmq_bind (responder, "tcp://*:5555");
    assert (rc == 0);

    while (1) {
        char buffer [10];
        zmq_recv (responder, buffer, 10, 0);
        printf ("Received Hello\n");
        sleep (1);          //  Do some 'work'
        zmq_send (responder, "World", 5, 0);
    }
    return 0;
}

客户端

//  Hello World client
#include <zmq.h>
#include <string.h>
#include <stdio.h>
#include <unistd.h>

int main (void)
{
    printf ("Connecting to hello world server...\n");
    void *context = zmq_ctx_new ();
    void *requester = zmq_socket (context, ZMQ_REQ);
    zmq_connect (requester, "tcp://localhost:5555");

    int request_nbr;
    for (request_nbr = 0; request_nbr != 10; request_nbr++) {
        char buffer [10];
        printf ("Sending Hello %d...\n", request_nbr);
        zmq_send (requester, "Hello", 5, 0);
        zmq_recv (requester, buffer, 10, 0);
        printf ("Received World %d\n", request_nbr);
    }
    zmq_close (requester);
    zmq_ctx_destroy (context);
    return 0;
}

在这里插入图片描述

文件传输

1、服务器

#include <zmq.h>
#include <stdio.h>
#include <unistd.h>
#include <assert.h>
#include <cstring>
#include <malloc.h>
#include <sstream>
#include <vector>

#define BUFSIZE 262144  //256k
using namespace std;
//ostringstream对象用来进行格式化的输出，常用于将各种类型转换为string类型
//ostringstream只支持<<操作符
template<typename T> string toString(const T& t){
    ostringstream oss;  //创建一个格式化输出流
    oss<<t;             //把值传递如流中
    return oss.str();
}

void SplitString(const std::string& s, std::vector<std::string>& v, const std::string& c)
{
    std::string::size_type pos1, pos2;
    pos2 = s.find(c);
    pos1 = 0;
    while(std::string::npos != pos2)
    {
        v.push_back(s.substr(pos1, pos2-pos1));

        pos1 = pos2 + c.size();
        pos2 = s.find(c, pos1);
    }
    if(pos1 != s.length())
        v.push_back(s.substr(pos1));
}


int main (void)
{
    //  Socket to talk to clients
    void *context = zmq_ctx_new ();
    void *socket = zmq_socket (context, ZMQ_REP);
    int rc = zmq_bind (socket, "tcp://*:5555");
    assert (rc == 0);
    char *buf = (char *)malloc(BUFSIZE);//申请一个缓冲区，存放接收到的文件内容

    memset(buf, 0, BUFSIZE);

    rc = zmq_recv (socket, buf, BUFSIZE, 0);
    if (rc == -1){
        printf("sorry, zmq_recv failed %s\n",  zmq_strerror(errno));
        return 0;
    }
    printf ("Received  %s\n", buf);


    FILE *fd;
    int total = 0;
    std::string rs ;
    std::vector<std::string> v;
    SplitString(buf, v, "_");
    if(v.size() != 2){
        memset(buf, 0, BUFSIZE);
        strcpy(buf, "name_total");
    }else{
        total = atoi(v[1].c_str());
        fd = fopen(v[0].c_str(), "wb");//以只写方式打开文件
        if (fd == NULL){
            memset(buf, 0, BUFSIZE);
            snprintf(buf, BUFSIZ, "open %s failed %s\n",  v[0].c_str(), strerror(errno));
            printf("open %s failed %s\n", v[0].c_str(), strerror(errno));
        }else{
            memset(buf, 0, BUFSIZE);
            strcpy(buf, "ok");
        }
    }


    zmq_send (socket, buf, strlen(buf), 0);



    while (true) {
        memset(buf, 0, BUFSIZE);
        rc = zmq_recv (socket, buf, BUFSIZE, 0);
        if (rc == -1){
            printf("sorry, zmq_recv failed %s\n",  zmq_strerror(errno));
            break;
        }else{
            printf("ok = %d\n", rc);
        }

        fwrite(buf, 1, rc, fd);//将从client端收到的内容写入文件
        total = total - rc;
        if(total == 0){
            printf("finished");
            fclose(fd);//关闭打开的文件
        }


        memset(buf, 0, BUFSIZE);
        snprintf(buf, BUFSIZ, "%d\n",  rc);
        zmq_send (socket, buf, strlen(buf), 0);
    }

    free(buf);
    zmq_close(socket);
    zmq_ctx_destroy(context);
    return 0;
}

2、客户端

//  Hello World client
#include <zmq.h>
#include <string.h>
#include <stdio.h>
#include <unistd.h>
#include "File.h"
#define BUFSIZE 262144  //256k
void getfilename(const char *filename, char *name)//从完整路径名中解析出文件名称，例如：/home/test/abc.txt,解析完成后为abc.txt
{
    int len = strlen(filename);
    int i;
    for (i = (len - 1); i >= 0; i--)
    {
        if ((filename[i] == '\\') || (filename[i] == '/'))
        {
            break;
        }
    }
    strcpy(name, &filename[i + 1]);
    return;
}

int main (void)
{
    printf ("Connecting to hello world server...\n");
    void *context = zmq_ctx_new ();
    void *socket = zmq_socket (context, ZMQ_REQ);
    zmq_connect (socket, "tcp://192.168.0.12:5555");

    const char * filename = "/home/oceanstar/CLionProjects/acl.tar.gz";
    FILE *file = fopen(filename, "rb");//以只读方式打开filename指定的文件
    if (file == NULL)//如果文件打开失败，函数返回
    {
        printf("open %s failed %s\n", filename, strerror(errno));
        return 0;
    }

    char *buf = (char *)malloc(BUFSIZE);//申请一个缓冲区，存放接收到的文件内容


    char name[256] ;
    getfilename(filename, name);

    rewind(file);
    fseek(file,0L,SEEK_END);
    long length=ftell(file);
    rewind(file);


    printf("%s has [%ld] characters...", name,  length);


    memset(buf, 0, BUFSIZE);
    snprintf(buf, BUFSIZ, "%s_%ld\n",  name, length);


    int rc;
    rc = zmq_send(socket, buf, strlen(buf), 0);
    if (rc == -1){
        printf("send filename failed %s\n",  zmq_strerror(errno));
    }

    rc = zmq_recv (socket, buf, BUFSIZE, 0);
    if (rc == -1){
        printf("sorry, zmq_recv ok failed %s\n",  zmq_strerror(errno));
        return 0;
    }

    if (strncmp(buf, "ok", 2) != 0){
        printf("sorry, server error %s\n",  zmq_strerror(errno));
        return 0;
    }






    while (true){
        memset(buf, 0, BUFSIZE);
        rc = fread(buf, 1, BUFSIZE, file);
        if (rc <= 0)
        {
            if (rc < 0)
                printf("fread failed %s\n", strerror(errno));
            break;
        }

        printf("file = %d\t", rc);
        rc = zmq_send(socket, buf, rc, 0);
        if (rc == -1){
            printf("send failed %s\n",  zmq_strerror(errno));
        }else{
            printf("ok = %d\t\t", rc);
        }

        memset(buf, 0, BUFSIZE);
        rc = zmq_recv (socket, buf, BUFSIZE, 0);
        printf("%d, %s\n", rc, buf);
    }


    fclose(file);

    zmq_close (socket);
    zmq_ctx_destroy (context);
    return 0;
}

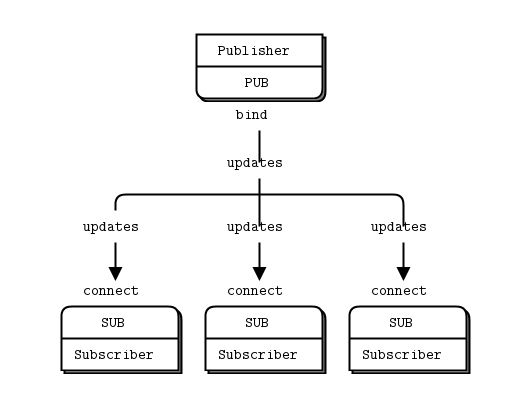

发布-订阅模式(天气 CS)

在这里插入图片描述
效果：

服务器先启动：
- 服务器会一直运行(while)，这个期间只要有客户端连上来了，服务器就会主动往客户端发送消息。当客户端接收完消息，客户端会停止
客户端先启动：
- 客户端会一直阻塞，直到接收到服务器发送的消息，才会停止

C

服务器

#include <zmq.h>

#include <assert.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <time.h>

//  Provide random number from 0..(num-1)
#define randof(num)  (int) ((float) (num) * random () / (RAND_MAX + 1.0))

//  Convert C string to 0MQ string and send to socket
static int s_send (void *socket, char *string) {
    int size = zmq_send (socket, string, strlen (string), 0);
    return size;
}

int main (void)
{
    //  Prepare our context and publisher
    void *context = zmq_ctx_new ();
    void *publisher = zmq_socket (context, ZMQ_PUB);
    int rc = zmq_bind (publisher, "tcp://*:5556");
    assert (rc == 0);

    //  Initialize random number generator
    srandom ((unsigned) time (NULL));
    while (1) {
        //  Get values that will fool the boss
        int zipcode, temperature, relhumidity;
        zipcode     = randof (100000);
        temperature = randof (215) - 80;
        relhumidity = randof (50) + 10;

        //  Send message to all subscribers
        char update [20];
        sprintf (update, "%05d %d %d", zipcode, temperature, relhumidity);
        s_send (publisher, update);
    }
    zmq_close (publisher);
    zmq_ctx_destroy (context);
    return 0;
}

客户端

#include <zmq.h>
#include <assert.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>


//  Receive 0MQ string from socket and convert into C string
//  Caller must free returned string. Returns NULL if the context
//  is being terminated.
static char *s_recv (void *socket) {
    enum { cap = 256 };
    char buffer [cap];
    int size = zmq_recv (socket, buffer, cap - 1, 0);
    if (size == -1)
        return NULL;
    buffer[size < cap ? size : cap - 1] = '\0';

#if (defined (WIN32))
    return strdup (buffer);
#else
    return strndup (buffer, sizeof(buffer) - 1);
#endif

    // remember that the strdup family of functions use malloc/alloc for space for the new string.  It must be manually
    // freed when you are done with it.  Failure to do so will allow a heap attack.
}
int main (int argc, char *argv [])
{
    //  Socket to talk to server
    printf ("Collecting updates from weather server...\n");
    void *context = zmq_ctx_new ();
    void *subscriber = zmq_socket (context, ZMQ_SUB);
    int rc = zmq_connect (subscriber, "tcp://localhost:5556");
    assert (rc == 0);

    //  Subscribe to zipcode, default is NYC, 10001
    const char *filter = (argc > 1)? argv [1]: "10001 ";
    rc = zmq_setsockopt (subscriber, ZMQ_SUBSCRIBE,
                         filter, strlen (filter));
    assert (rc == 0);

    //  Process 100 updates
    int update_nbr;
    long total_temp = 0;
    for (update_nbr = 0; update_nbr < 100; update_nbr++) {
        char *string = s_recv (subscriber);

        int zipcode, temperature, relhumidity;
        sscanf (string, "%d %d %d",
                &zipcode, &temperature, &relhumidity);
        total_temp += temperature;
        free (string);
    }
    printf ("Average temperature for zipcode '%s' was %dF\n",
            filter, (int) (total_temp / update_nbr));

    zmq_close (subscriber);
    zmq_ctx_destroy (context);
    return 0;
}

在字符串上的小注解

除字节大小之外，ZMQ对你发送的数据一无所知。这意味着你有责任安全的格式化数据，使得应用程序可以读取它

在C语言和某些其他语言中，字符串以空字节终止。我们可以发送一个像“ HELLO”这样的字符串，并带有一个额外的空字节：

zmq_send (requester, "Hello", 6, 0);

但是，如果您使用其他语言发送字符串，则该字符串可能不会包含该空字节。例如，当我们在Python中发送相同的字符串时，我们将执行以下操作：

socket.send ("Hello")

如果您从C程序中读取此内容，可能会得到一个错误的结果。也就是说，当您的客户端和服务器在字符串格式上不一致时，您将得到奇怪的结果。
因此，让我们建立一个规则，即ZeroMQ字符串是长度指定的，并且在发送时不带尾随null。在最简单的情况下（我们将在示例中进行此操作），ZeroMQ字符串整齐地映射到ZeroMQ消息帧，它看起来像下图所示—一个长度和一个字节

在zhelpers.h，封装了很多有用辅助函数，比如下面函数可以帮助接收ZeroMQ字符串并将其作为有效的C字符串传递给应用程序

#include <zmq.h>
#include <memory.h>

//从套接字接收ZeroMQ字符串并转换为C字符串
//如果字符串长度较长，则将字符串截断为255个字符
static char *s_recv (void *socket) {
    char buffer [256];
    int size = zmq_recv (socket, buffer, 255, 0);
    if (size == -1)
        return NULL;
    if (size > 255)
        size = 255;
    buffer [size] = '\0';
    /* 在*nix中使用strndup(buffer, sizeof(buffer)-1)*/
    return strdup (buffer);
}
