头文件:
#include <QMetaMethod>
cmake:
find_package(Qt6 COMPONENTS Core REQUIRED) target_link_libraries(mytarget PRIVATE Qt6::Core)
qmake:
QT += core
详细介绍
QMetaMethod
:获取成员函数的元信息
- 通过该类,我们可以获取到一个成员函数的类型,比如它是信号、槽、方法还是构造函数。
- 也可以获取方法的完整签名,以及方法所接受的参数类型和参数名字
- 同样,可以获取方法的返回值类型
- 还可以使用access()方法获取成员函数的访问权限。
- 当然,最重要的还是invoke()方法,使用该方法我们可以在任意的QObject对象上调用成员函数。
而要得到一个QMetaMethod类的实例,有如下方法:
- 对于信号,可以使用该类的静态方法fromSignal()来获得相对于该信号的QMetaMethod对象;
QMetaMethod destroyedSignal = QMetaMethod::fromSignal(&QObject::destroyed);
- 对于普通成员函数和槽函数,可以使用类的QMetaObject对象来间接获取。
QString retVal;
QByteArray normalizedSignature = QMetaObject::normalizedSignature(“compute(QString, int, double)”);
int methodIndex = obj->metaObject()->indexOfMethod(normalizedSignature);
QMetaMethod method = obj->metaObject()->method(methodIndex);
method.invoke(obj,
Qt::DirectConnection,
Q_RETURN_ARG(QString, retVal),
Q_ARG(QString, “sqrt”),
Q_ARG(int, 42),
Q_ARG(double, 9.7));
其中,要使用QMetaObject::normalizedSignature()来规范化函数签名,确保方法签名是invoke()所期望的。
成员类型
Access
enum QMetaMethod::Access
这个枚举遵循C++中使用的约定描述了一个方法的访问级别。
Constant | Value |
---|---|
QMetaMethod::Private | 0 |
QMetaMethod::Protected | 1 |
QMetaMethod::Public | 2 |
MethodType
enum QMetaMethod::MethodType
Constant | Value | 描述 |
---|---|---|
QMetaMethod::Method | 0 | 该成员函数是一个方法 |
QMetaMethod::Signal | 1 | 该成员函数是一个信号 |
QMetaMethod::Slot | 2 | 该成员函数是一个槽 |
QMetaMethod::Constructor | 3 | 该成员函数是一个构造函数 |
成员函数
access
QMetaMethod::Access access() const
返回此方法的访问规范(private、protected或public)。
注意:信号总是公共的,但您应该将其视为实现细节。从类外发出信号几乎总是个坏主意。
另请参见:methodType().
fromSignal
[static, since 5.0]
template<
typename PointerToMemberFunction> QMetaMethod
QMetaMethod::fromSignal(PointerToMemberFunction signal)
返回与给定信号对应的元方法,如果信号不是类的信号,则返回无效的QMetaMethod。
例子:
QMetaMethod destroyedSignal = QMetaMethod::fromSignal(&QObject::destroyed);
isValid
[since 5.0]
bool QMetaMethod::isValid() const
如果此方法有效(可以自省和调用),则返回true,否则返回false。
这个函数是在qt5.0中引入的。
methodIndex
int QMetaMethod::methodIndex() const
返回此方法的索引。
methodSignature
[since 5.0]
QByteArray QMetaMethod::methodSignature() const
返回此方法的签名(例如,setValue(double))。
这个函数是在qt5.0中引入的。
另请参见:parameterTypes() 、 parameterNames().
methodType
QMetaMethod::MethodType QMetaMethod::methodType() const
返回此方法的类型(信号、插槽或方法)。
另请参见:access()
name
[since 5.0]
QByteArray QMetaMethod::name() const
返回此方法的名称。
这个函数是在qt5.0中引入的。
另请参见:methodSignature() 、 parameterCount().
parameterCount
[since 5.0]
int QMetaMethod::parameterCount() const
返回此方法的参数数。
这个函数是在qt5.0中引入的。
另请参见:parameterType() 、 parameterNames().
parameterMetaType
[since 6.0]
QMetaType QMetaMethod::parameterMetaType(int index) const
返回给定索引处参数的元类型。
如果索引小于零或大于parameterCount(),则返回无效的QMetaType。
这个函数是在qt6.0中引入的。
另请参见:parameterCount(), returnMetaType(), QMetaType.
parameterNames
QList
<
QByteArray> QMetaMethod::parameterNames() const
返回参数名列表。
另请参见:parameterTypes() , methodSignature().
parameterType
[since 5.0]
int QMetaMethod::parameterType(int index) const
返回给定索引处的参数类型。
返回值是使用QMetaType注册的类型之一,如果该类型未注册,则返回QMetaType::UnknownType。
这个函数是在qt5.0中引入的。
另请参见:parameterCount(), parameterMetaType(), returnType(), QMetaType.
parameterTypeName
[since 6.0]
QByteArray QMetaMethod::parameterTypeName(int index) const
返回位置索引处类型的名称,如果索引处没有参数,则返回空的QByteArray
这个函数是在qt6.0中引入的。
另请参见:parameterNames()
parameterTypes
QList< QByteArray > QMetaMethod::parameterTypes() const
返回参数类型的列表
另请参见:parameterNames() 、 methodSignature().
relativeMethodIndex
[since 6.0]
int QMetaMethod::relativeMethodIndex() const
返回此方法的内部局部索引。
这个函数是在qt6.0中引入的。
returnMetaType
[since 6.0]
QMetaType QMetaMethod::returnMetaType() const
返回此方法的返回类型。
这个函数是在qt6.0中引入的。
另请参见:parameterMetaType(), QMetaType, typeName().
returnType
[since 5.0]
int QMetaMethod::returnType() const
返回此方法的返回类型。
返回值是使用QMetaType注册的类型之一,如果该类型未注册,则返回QMetaType::UnknownType。
这个函数是在qt5.0中引入的。
另请参见:parameterType(), QMetaType, typeName(), returnMetaType().
revision
[since 5.1]
int QMetaMethod::revision() const
如果Q_REVISION
指定了一个方法修订版,则返回方法修订版,否则返回0。
此功能在Qt 5.1中引入。
tag
const char
*
QMetaMethod::tag() const
返回与此方法关联的tag。
Tags 是由moc识别的特殊宏,可以添加有关方法的额外信息。
tag信息可以通过以下方式添加到函数声明中:
// In the class MainWindow declaration
#ifndef Q_MOC_RUN
// define the tag text as empty, so the compiler doesn't see it
# define MY_CUSTOM_TAG
#endif
...
private slots:
MY_CUSTOM_TAG void testFunc();
可以通过以下方式访问该信息:
MainWindow win;
win.show();
int functionIndex = win.metaObject()->indexOfSlot("testFunc()");
QMetaMethod mm = win.metaObject()->method(functionIndex);
qDebug() << mm.tag(); // prints MY_CUSTOM_TAG
目前,moc将提取并记录所有标签,但不会对任何标签进行特殊处理。您可以使用这些标记对方法进行不同的注释,并根据应用程序的特定需要对它们进行处理。
注意:由于qt5.0,moc扩展了预处理器宏,因此有必要用#ifndef Q_MOC_RUN
包围定义,如上面的示例所示。这在Qt 4中不是必需的。上面显示的代码也适用于qt4。
typeName
const char
*
QMetaMethod::typeName() const
返回此方法的返回类型名称。
另请参见returnType() 、 QMetaType::type().
例子:
QByteArray normalizedSignature = QMetaObject::normalizedSignature("cirleSolve(int)");
int methodIndex = obj.metaObject()->indexOfMethod(normalizedSignature);
QMetaMethod metaMethod = obj.metaObject()->method(methodIndex);
qDebug() << "Access: " << metaMethod.access();
qDebug() << "Valid: " << metaMethod.isValid();
qDebug() << "Index: " << metaMethod.methodIndex();
qDebug() << "Signature: " << metaMethod.methodSignature();
qDebug() << "Type: " << metaMethod.methodType();
qDebug() << "Name: " << metaMethod.name();
qDebug() << "Parameter names: " << metaMethod.parameterNames();
qDebug() << "Parameter types: " << metaMethod.parameterTypes();
qDebug() << "Return type: " << metaMethod.returnType();
qDebug() << "Type name: " << metaMethod.typeName();
//int result = 0;
bool bCall = metaMethod.invoke(&obj, Qt:: AutoConnection,Q_ARG(int, 42));
if(bCall)
{
qDebug() << "the area of obj " << obj.getArea();
}

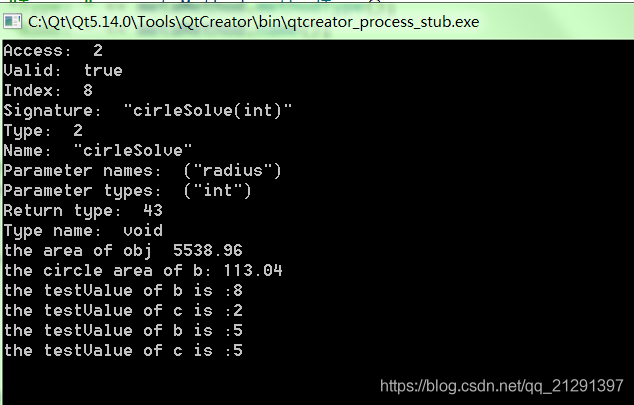

输出:
可以看到,QMetaObject对象obj 获取到了槽函数的相关信息,并且通过invoke ()函数实现了对 槽函数circleSolve(int)的调用,将“”42”的值传入,并进行计算。
