本文介绍如何在CAS服务器中实现自定义登录流程，包括自定义验证类、凭证信息、登入流程及图形验证码的集成，详细展示了代码实现和系统配置。

自定义验证很重要,因为我们后续的很多功能,都是基于自定义验证。
CAS服务器的org.apereo.cas.authentication.AuthenticationManager负责基于提供的凭证信息进行用户认证。与Spring Security很相似，实际的认证委托给了一个或多个实现了org.apereo.cas.authentication.AuthenticationHandler接口的处理类。在cas的认证过程中逐个执行authenticationHandlers中配置的认证管理，直到有一个成功为止。

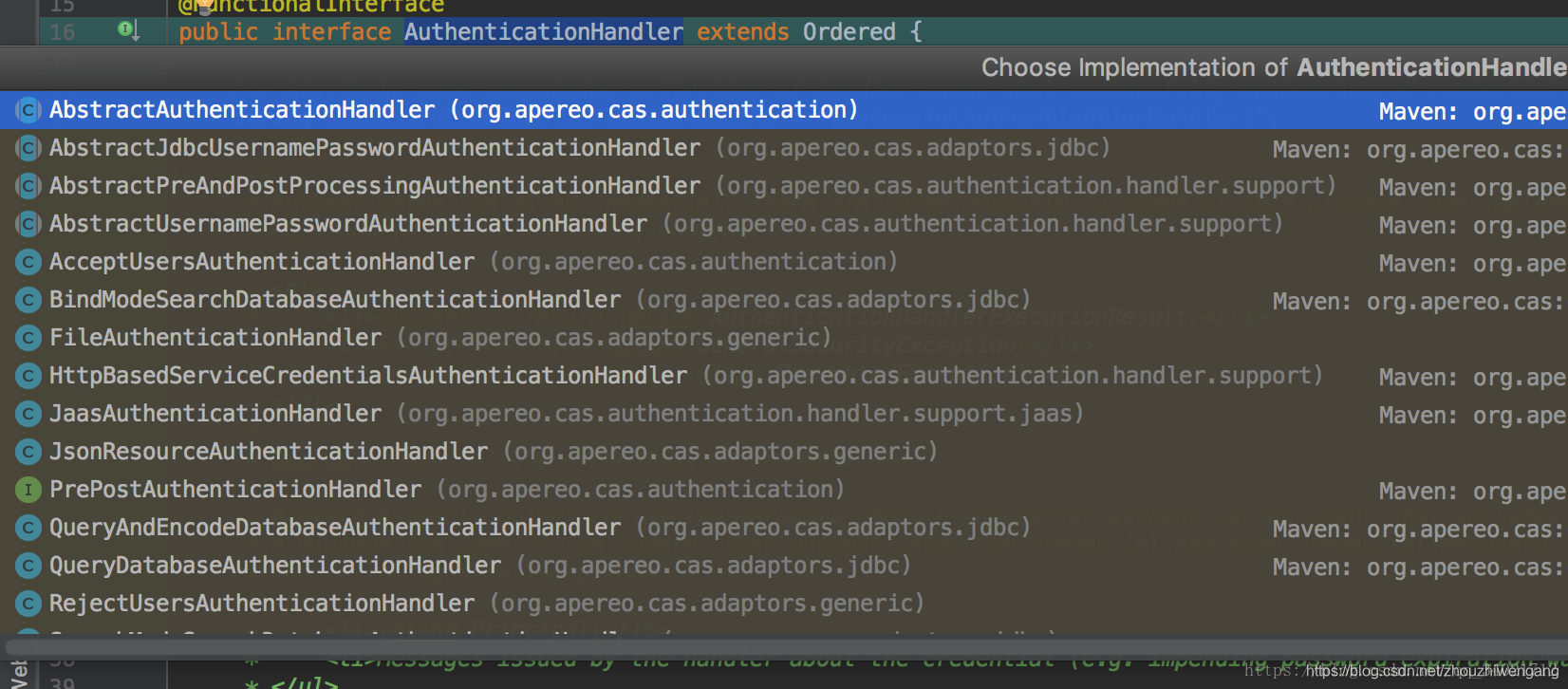

CAS内置了一些AuthenticationHandler实现类，如下图所示，QueryDatabaseAuthenticationHandler中提供了基于jdbc的用户认

如果需要实现自定义登录，只需要实现org.apereo.cas.authentication.AuthenticationHandler接口即可。当然也可以利用已有的实现，比如创建一个继承自org.apereo.cas.authentication.handler.support.AbstractPreAndPostProcessingAuthenticationHandler的类。下面我们就来实现自定义验证。

自定义登入

pom.xml 添加如下依赖jar包

<!--自定义用户登入依赖集成 -->
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-webflow</artifactId>
					<version>${cas.version}</version>
				</dependency>

				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-authentication</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-authentication-api</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-webflow-api</artifactId>
					<version>${cas.version}</version>
				</dependency>

自定义验证类,继承AbstractPreAndPostProcessingAuthenticationHandler

package com.digipower.authentication.handler;

import java.security.GeneralSecurityException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import javax.security.auth.login.AccountNotFoundException;
import javax.security.auth.login.FailedLoginException;
import org.apache.commons.lang.StringUtils;
import org.apereo.cas.authentication.AuthenticationHandlerExecutionResult;
import org.apereo.cas.authentication.Credential;
import org.apereo.cas.authentication.MessageDescriptor;
import org.apereo.cas.authentication.PreventedException;
import org.apereo.cas.authentication.handler.support.AbstractPreAndPostProcessingAuthenticationHandler;
import org.apereo.cas.authentication.principal.PrincipalFactory;
import org.apereo.cas.services.ServicesManager;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.datasource.DriverManagerDataSource;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import com.digipower.encrypt.PasswordEncryption;
import com.digipower.exception.CaptchaException;
import com.digipower.verification.code.UsernamePasswordCaptchaCredential;
/**
 * 自定义用户认证核心代码
 * @author zzg
 *
 */
public class UsernamePasswordCaptchaAuthenticationHandler extends AbstractPreAndPostProcessingAuthenticationHandler {

	public UsernamePasswordCaptchaAuthenticationHandler(String name, ServicesManager servicesManager,
			PrincipalFactory principalFactory, Integer order) {
		super(name, servicesManager, principalFactory, order);
		// TODO Auto-generated constructor stub
	}

	@Override
	protected AuthenticationHandlerExecutionResult doAuthentication(Credential credential)
			throws GeneralSecurityException, PreventedException {
		// TODO Auto-generated method stub
		// 用户凭证
		UsernamePasswordCaptchaCredential myCredential = (UsernamePasswordCaptchaCredential) credential;
		String requestCaptcha = myCredential.getCaptcha();
		ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
		Object attribute = attributes.getRequest().getSession().getAttribute("captcha");

		String realCaptcha = attribute == null ? null : attribute.toString();

		if (StringUtils.isBlank(requestCaptcha) || !requestCaptcha.equalsIgnoreCase(realCaptcha)) {
			throw new CaptchaException("验证码错误");
		}

		// 验证用户名和密码
		DriverManagerDataSource d = new DriverManagerDataSource();
		d.setDriverClassName("com.mysql.jdbc.Driver");
		d.setUrl(
				"jdbc:mysql://192.168.1.73:3306/boot-security?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true");
		d.setUsername("root");
		d.setPassword("digipower");

		JdbcTemplate template = new JdbcTemplate();
		template.setDataSource(d);

		// 查询数据库加密的的密码
		Map<String, Object> user = template.queryForMap("select pswd from u_user where nickname = ?",
				myCredential.getUsername());

		if (user == null) {
			throw new AccountNotFoundException("用户名输入错误或用户名不存在");
		}

		// 返回多属性
		Map<String, Object> map = new HashMap<>();
		map.put("username", myCredential.getUsername());

		// 密码加密验证(MD5 32位 大写)
		PasswordEncryption passwordEncryption = new PasswordEncryption();
		List<MessageDescriptor>  warning = new ArrayList<MessageDescriptor>();
		if (passwordEncryption.matches(myCredential.getPassword(), user.get("pswd").toString())) {
			return createHandlerResult(myCredential, principalFactory.createPrincipal(myCredential.getUsername(), map),
					warning);
		}

		throw new FailedLoginException("密码输入错误");
	}

	// 判断是否支持自定义用户登入凭证
	@Override
	public boolean supports(Credential credential) {
		// TODO Auto-generated method stub
		return credential instanceof UsernamePasswordCaptchaCredential;
	}

}

绑定自定义认证流程和自定义凭证信息

package com.digipower.captcha.config;

import org.apereo.cas.authentication.AuthenticationEventExecutionPlan;
import org.apereo.cas.authentication.AuthenticationEventExecutionPlanConfigurer;
import org.apereo.cas.authentication.AuthenticationHandler;
import org.apereo.cas.authentication.principal.DefaultPrincipalFactory;
import org.apereo.cas.configuration.CasConfigurationProperties;
import org.apereo.cas.services.ServicesManager;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.digipower.authentication.handler.UsernamePasswordCaptchaAuthenticationHandler;

/**
 * 自定义用户登入流程使用的自定义的用户凭证
 * @author zzg
 *
 */

@Configuration("usernamePasswordCaptchaConfig")
@EnableConfigurationProperties(CasConfigurationProperties.class)
public class UsernamePasswordCaptchaConfig implements AuthenticationEventExecutionPlanConfigurer{

	@Autowired
    private CasConfigurationProperties casProperties;

    @Autowired
    @Qualifier("servicesManager")
    private ServicesManager servicesManager;

	 /**
     * 用户定义用户登入处理器
     * @return
     */
    @Bean
    public AuthenticationHandler rememberMeUsernamePasswordCaptchaAuthenticationHandler() {
    	UsernamePasswordCaptchaAuthenticationHandler handler = new UsernamePasswordCaptchaAuthenticationHandler(
    			UsernamePasswordCaptchaAuthenticationHandler.class.getSimpleName(),
                servicesManager,
                new DefaultPrincipalFactory(),
                9);
        return handler;
    }

	/**
	 *
	 * <p>Title: configureAuthenticationExecutionPlan</p>
	 * <p>Description: 用户自定义表单处理注册 </p>
	 * @param plan
	 * @see org.apereo.cas.authentication.AuthenticationEventExecutionPlanConfigurer#configureAuthenticationExecutionPlan(org.apereo.cas.authentication.AuthenticationEventExecutionPlan)
	 */
	@Override
	public void configureAuthenticationExecutionPlan(AuthenticationEventExecutionPlan plan) {
		// TODO Auto-generated method stub
		plan.registerAuthenticationHandler(rememberMeUsernamePasswordCaptchaAuthenticationHandler());
	}

}

创建用户登入凭证，添加验证码属性

package com.digipower.verification.code;

import org.apache.commons.lang.builder.HashCodeBuilder;
import org.apereo.cas.authentication.RememberMeUsernamePasswordCredential;

/**
 * 自定义用户凭证，添加验证码属性
 * @author zzg
 *
 */
@SuppressWarnings("serial")
public class UsernamePasswordCaptchaCredential extends RememberMeUsernamePasswordCredential  {

	private String captcha;

    public String getCaptcha() {
        return captcha;
    }

    public void setCaptcha(String captcha) {
        this.captcha = captcha;
    }

    @Override
    public int hashCode() {
        return new HashCodeBuilder()
                .appendSuper(super.hashCode())
                .append(this.captcha)
                .toHashCode();
    }


}

重新定义Apereo Cas5 服务端的登入流程

package com.digipower.webflow.action;

import org.apereo.cas.configuration.CasConfigurationProperties;
import org.apereo.cas.web.flow.CasWebflowConstants;
import org.apereo.cas.web.flow.configurer.DefaultLoginWebflowConfigurer;
import org.springframework.context.ApplicationContext;
import org.springframework.webflow.definition.registry.FlowDefinitionRegistry;
import org.springframework.webflow.engine.Flow;
import org.springframework.webflow.engine.ViewState;
import org.springframework.webflow.engine.builder.BinderConfiguration;
import org.springframework.webflow.engine.builder.support.FlowBuilderServices;

import com.digipower.verification.code.UsernamePasswordCaptchaCredential;

/**
 * 自定义系统登入设置自定义用户凭证
 * @author zzg
 *
 */
public class CaptchaWebflowConfigurer extends DefaultLoginWebflowConfigurer {



	public CaptchaWebflowConfigurer(FlowBuilderServices flowBuilderServices,
			FlowDefinitionRegistry flowDefinitionRegistry, ApplicationContext applicationContext,
			CasConfigurationProperties casProperties) {
		super(flowBuilderServices, flowDefinitionRegistry, applicationContext, casProperties);
	}

	@Override
	protected void createRememberMeAuthnWebflowConfig(Flow flow) {
		 if (casProperties.getTicket().getTgt().getRememberMe().isEnabled()) {
	            createFlowVariable(flow, CasWebflowConstants.VAR_ID_CREDENTIAL, UsernamePasswordCaptchaCredential.class);
	            final ViewState state = getState(flow, CasWebflowConstants.STATE_ID_VIEW_LOGIN_FORM, ViewState.class);
	            final BinderConfiguration cfg = getViewStateBinderConfiguration(state);
	            cfg.addBinding(new BinderConfiguration.Binding("rememberMe", null, false));
	            cfg.addBinding(new BinderConfiguration.Binding("captcha", null, true));
	        } else {
	            createFlowVariable(flow, CasWebflowConstants.VAR_ID_CREDENTIAL, UsernamePasswordCaptchaCredential.class);
	            final ViewState state = getState(flow, CasWebflowConstants.STATE_ID_VIEW_LOGIN_FORM, ViewState.class);
	            final BinderConfiguration cfg = getViewStateBinderConfiguration(state);
	            // cfg.addBinding(new BinderConfiguration.Binding("rememberMe", null, false));
	            cfg.addBinding(new BinderConfiguration.Binding("captcha", null, true));
	        }
	}

}

修改Apereo Cas 5 系统自带的登入流程定义webflow

在login-webflow.xml/viewLoginForm 添加如下代码：

	<binding property="captcha" required="false"/>

源码修改如下：

<?xml version="1.0" encoding="UTF-8"?>
<flow xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns="http://www.springframework.org/schema/webflow"
      xsi:schemaLocation="http://www.springframework.org/schema/webflow
                          http://www.springframework.org/schema/webflow/spring-webflow.xsd">

    <action-state id="initializeLoginForm">
        <evaluate expression="initializeLoginAction" />
        <transition on="success" to="viewLoginForm"/>
    </action-state>

    <view-state id="viewLoginForm" view="casLoginView" model="credential">
        <binder>
            <binding property="username" required="true"/>
            <binding property="password" required="true"/>
          	<binding property="captcha" required="false"/>
        </binder>
        <transition on="submit" bind="true" validate="true" to="realSubmit" history="invalidate"/>
    </view-state>

    <action-state id="realSubmit">
        <evaluate expression="authenticationViaFormAction"/>
        <transition on="warn" to="warn"/>
        <transition on="success" to="createTicketGrantingTicket"/>
        <transition on="successWithWarnings" to="showAuthenticationWarningMessages"/>
        <transition on="authenticationFailure" to="handleAuthenticationFailure"/>
        <transition on="error" to="initializeLoginForm"/>
    </action-state>

</flow>

将自定义登入流程添加如Apereo Cas 5服务器中webflow 中

package com.digipower.captcha.config;

import org.apereo.cas.configuration.CasConfigurationProperties;
import org.apereo.cas.web.flow.CasWebflowConfigurer;
import org.apereo.cas.web.flow.config.CasWebflowContextConfiguration;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.AutoConfigureBefore;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.webflow.definition.registry.FlowDefinitionRegistry;
import org.springframework.webflow.engine.builder.support.FlowBuilderServices;
import com.digipower.webflow.action.CaptchaWebflowConfigurer;

/**
 * 自定义登入流程配置入webflow
 * @author zzg
 *
 */

@Configuration("captchaWebflowConfigurer")
@EnableConfigurationProperties(CasConfigurationProperties.class)
@AutoConfigureBefore(value = CasWebflowContextConfiguration.class)
public class CaptchaConfigurer {
	@Autowired
	@Qualifier("loginFlowRegistry")
	private FlowDefinitionRegistry loginFlowRegistry;
	@Autowired
	private ApplicationContext applicationContext;
	@Autowired
	private CasConfigurationProperties casProperties;
	@Autowired
	private FlowBuilderServices flowBuilderServices;

	@Bean("defaultLoginWebflowConfigurer")
	public CasWebflowConfigurer defaultLoginWebflowConfigurer() {
		CasWebflowConfigurer c = new CaptchaWebflowConfigurer(flowBuilderServices, loginFlowRegistry,
				applicationContext, casProperties);
		c.initialize();
		return c;
	}
}

补充相关的工具类：Kaptcha 图形验证码初始化，用户密码加密工具类，springBean 工具类和相关自定义异常

package com.digipower.kaptcha.config;

import javax.servlet.ServletException;

import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.google.code.kaptcha.servlet.KaptchaServlet;

@Configuration
public class KaptchaConfig {
	@Bean
    public ServletRegistrationBean servletRegistrationBean() throws ServletException {
        ServletRegistrationBean servlet = new ServletRegistrationBean(new KaptchaServlet(),  "/kaptcha.jpg");//加载路径
        servlet.addInitParameter("kaptcha.border", "no"/* kborder */);// 无边框
        servlet.addInitParameter("kaptcha.session.key", "captcha");// session key
        servlet.addInitParameter("kaptcha.textproducer.font.color", "black");
        servlet.addInitParameter("kaptcha.textproducer.font.size", "25");
        servlet.addInitParameter("kaptcha.obscurificator.impl", "com.google.code.kaptcha.impl.WaterRipple");
        servlet.addInitParameter("kaptcha.noise.impl", "com.google.code.kaptcha.impl.NoNoise");
        servlet.addInitParameter("kaptcha.image.width", "90");
        servlet.addInitParameter("kaptcha.image.height", "33");
        servlet.addInitParameter("kaptcha.textproducer.char.length", "4");
        servlet.addInitParameter("kaptcha.textproducer.char.space", "5");
        servlet.addInitParameter("kaptcha.background.clear.from", "247,247,247"); // 和登录框背景颜色一致
        servlet.addInitParameter("kaptcha.background.clear.to", "247,247,247");
        return servlet;
    }
}

package com.digipower.encrypt;

import org.apache.commons.codec.digest.DigestUtils;
import org.apereo.cas.authentication.handler.support.AbstractPreAndPostProcessingAuthenticationHandler;
import org.springframework.security.crypto.password.PasswordEncoder;

/**
 * 自定义数据密码加密工具类
 * @author zzg
 *
 */
public class PasswordEncryption implements PasswordEncoder{

	@Override
	public String encode(CharSequence password) {
		return DigestUtils.md5Hex(password.toString()).toUpperCase();
	}

	@Override
	public boolean matches(CharSequence rawPassword, String encodePassword) {
		// 判断密码是否存在
        if (rawPassword == null) {
            return false;
        }
        //通过md5加密后的密码
        String pass = this.encode(rawPassword.toString());
        //比较密码是否相等的问题
        return pass.equals(encodePassword);
	}

	AbstractPreAndPostProcessingAuthenticationHandler  handler;

}

package com.digipower.exception;

import javax.security.auth.login.AccountException;

@SuppressWarnings("serial")
public class CaptchaException extends AccountException {
	public CaptchaException() {
		super();
		// TODO Auto-generated constructor stub
	}

	public CaptchaException(String msg) {
		super(msg);
		// TODO Auto-generated constructor stub
	}

}

package com.digipower.util;

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;


@Component
public class SpringContextUtils implements ApplicationContextAware {

	private static ApplicationContext applicationContext;

	@Override
	public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
		SpringContextUtils.applicationContext = applicationContext;
	}

	public static Object getBean(String name) {
		return applicationContext.getBean(name);
	}

	public static <T> T getBean(String name, Class<T> requiredType) {
		return applicationContext.getBean(name, requiredType);
	}

	public static boolean containsBean(String name) {
		return applicationContext.containsBean(name);
	}

	public static boolean isSingleton(String name) {
		return applicationContext.isSingleton(name);
	}

	public static Class<?> getType(String name) {
		return applicationContext.getType(name);
	}

}

加载该配置类

在resources\META-INF\spring.factories中配置该类

org.springframework.boot.autoconfigure.EnableAutoConfiguration=com.digipower.captcha.config.CaptchaConfigurer,\
	com.digipower.kaptcha.config.KaptchaConfig,\
	com.digipower.captcha.config.UsernamePasswordCaptchaConfig,\
	com.digipower.util.SpringContextUtils

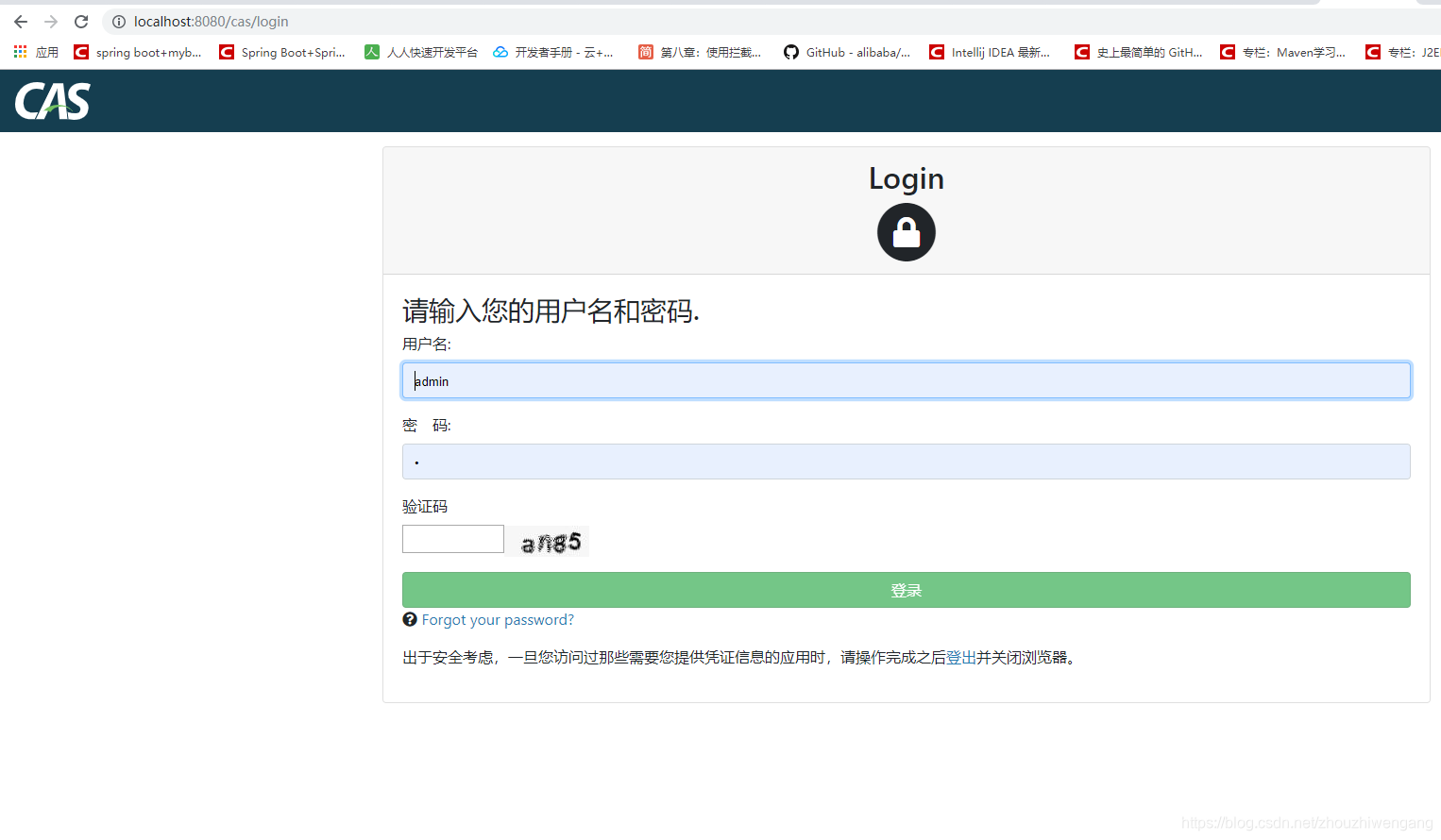

系统登入页面修改，添加验证码（/templates/fragments/loginfrom.html）,添加如下代码：

 <section class="form-group">
                            <label for="captcha">验证码</label>

                            <div>
                                <input class="required"
                                       type="text"
                                       id="captcha"
                                       size="10"
                                       tabindex="3"
                                       th:field="*{captcha}"
                                       autocomplete="off"/>
                                <img th:src="@{/kaptcha.jpg}" id="captcha_img" onclick="javascript:refreshCaptcha()" />
                                <script type="text/javascript">
    								function refreshCaptcha(){
        									$("#captcha_img").attr("src","/cas/kaptcha.jpg?id=" + new Date() + Math.floor(Math.random()*24));
    								}
								</script>

                            </div>
                        </section>

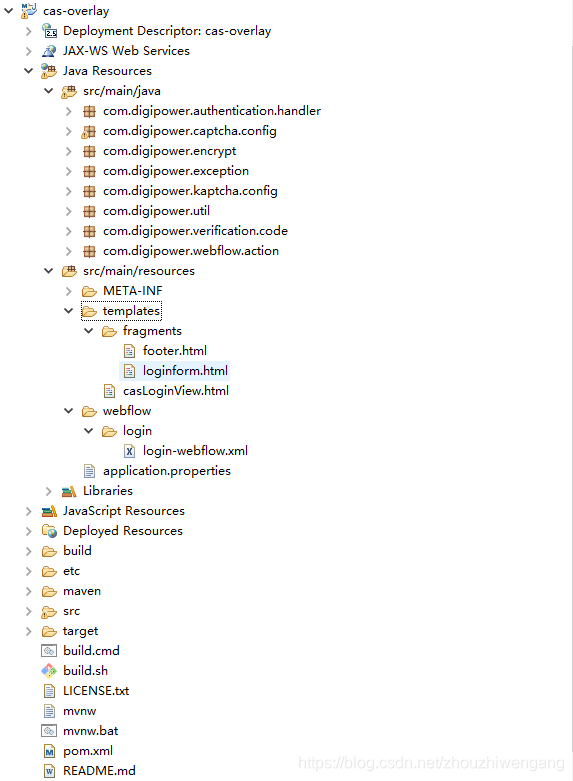

apereo cas5 自定义项目的整体结构：

pom.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd ">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.apereo.cas</groupId>
	<artifactId>cas-overlay</artifactId>
	<packaging>war</packaging>
	<version>1.0</version>

	<build>
		<plugins>
			<plugin>
				<groupId>com.rimerosolutions.maven.plugins</groupId>
				<artifactId>wrapper-maven-plugin</artifactId>
				<version>0.0.5</version>
				<configuration>
					<verifyDownload>true</verifyDownload>
					<checksumAlgorithm>MD5</checksumAlgorithm>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<version>${springboot.version}</version>
				<configuration>
					<mainClass>${mainClassName}</mainClass>
					<addResources>true</addResources>
					<executable>${isExecutable}</executable>
					<layout>WAR</layout>
				</configuration>
				<executions>
					<execution>
						<goals>
							<goal>repackage</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-war-plugin</artifactId>
				<version>2.6</version>
				<configuration>
					<warName>cas</warName>
					<failOnMissingWebXml>false</failOnMissingWebXml>
					<recompressZippedFiles>false</recompressZippedFiles>
					<archive>
						<compress>false</compress>
						<manifestFile>${manifestFileToUse}</manifestFile>
					</archive>
					<overlays>
						<overlay>
							<groupId>org.apereo.cas</groupId>
							<artifactId>cas-server-webapp${app.server}</artifactId>
						</overlay>
					</overlays>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.3</version>
			</plugin>
		</plugins>
		<finalName>cas</finalName>
	</build>

	<properties>
		<mysql.driver.version>8.0.13</mysql.driver.version>
		<cas.version>5.3.9</cas.version>
		<springboot.version>1.5.18.RELEASE</springboot.version>
		<!-- app.server could be -jetty, -undertow, -tomcat, or blank if you plan
			to provide appserver -->
		<app.server>-tomcat</app.server>

		<mainClassName>org.springframework.boot.loader.WarLauncher</mainClassName>
		<isExecutable>false</isExecutable>
		<manifestFileToUse>${project.build.directory}/war/work/org.apereo.cas/cas-server-webapp${app.server}/META-INF/MANIFEST.MF</manifestFileToUse>

		<maven.compiler.source>1.8</maven.compiler.source>
		<maven.compiler.target>1.8</maven.compiler.target>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<repositories>
		<repository>
			<id>sonatype-releases</id>
			<url>http://oss.sonatype.org/content/repositories/releases/</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
			<releases>
				<enabled>true</enabled>
			</releases>
		</repository>
		<repository>
			<id>sonatype-snapshots</id>
			<url>https://oss.sonatype.org/content/repositories/snapshots/</url>
			<snapshots>
				<enabled>true</enabled>
			</snapshots>
			<releases>
				<enabled>false</enabled>
			</releases>
		</repository>
		<repository>
			<id>shibboleth-releases</id>
			<url>https://build.shibboleth.net/nexus/content/repositories/releases</url>
		</repository>
	</repositories>

	<profiles>
		<profile>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
			<id>default</id>
			<dependencies>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-webapp${app.server}</artifactId>
					<version>${cas.version}</version>
					<type>war</type>
					<scope>runtime</scope>
				</dependency>
				<!-- ...Additional dependencies may be placed here... -->

				<!-- 数据库 -->
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-support-jdbc</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-support-jdbc-drivers</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<!-- Database Authentication End -->
				<dependency>
					<groupId>mysql</groupId>
					<artifactId>mysql-connector-java</artifactId>
					<version>${mysql.driver.version}</version>
				</dependency>
				<!-- ticker redis 存储 -->
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-support-redis-ticket-registry</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<!--自定义用户登入依赖集成 -->
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-webflow</artifactId>
					<version>${cas.version}</version>
				</dependency>

				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-authentication</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-authentication-api</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-webflow-api</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-core-configuration</artifactId>
					<version>${cas.version}</version>
				</dependency>
				<!--验证码工具包 -->
				<dependency>
					<groupId>com.github.penggle</groupId>
					<artifactId>kaptcha</artifactId>
					<version>2.3.2</version>
				</dependency>

				<!-- 审计功能 -->
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-support-audit-jdbc</artifactId>
					<version>${cas.version}</version>
					<scope>runtime</scope>
				</dependency>
			</dependencies>
		</profile>

		<profile>
			<activation>
				<activeByDefault>false</activeByDefault>
			</activation>
			<id>exec</id>
			<properties>
				<mainClassName>org.apereo.cas.web.CasWebApplication</mainClassName>
				<isExecutable>true</isExecutable>
				<manifestFileToUse></manifestFileToUse>
			</properties>
			<build>
				<plugins>
					<plugin>
						<groupId>com.soebes.maven.plugins</groupId>
						<artifactId>echo-maven-plugin</artifactId>
						<version>0.3.0</version>
						<executions>
							<execution>
								<phase>prepare-package</phase>
								<goals>
									<goal>echo</goal>
								</goals>
							</execution>
						</executions>
						<configuration>
							<echos>
								<echo>Executable profile to make the generated CAS web
									application executable.</echo>
							</echos>
						</configuration>
					</plugin>
				</plugins>
			</build>
		</profile>

		<profile>
			<activation>
				<activeByDefault>false</activeByDefault>
			</activation>
			<id>bootiful</id>
			<properties>
				<app.server>-tomcat</app.server>
				<isExecutable>false</isExecutable>
			</properties>
			<dependencies>
				<dependency>
					<groupId>org.apereo.cas</groupId>
					<artifactId>cas-server-webapp${app.server}</artifactId>
					<version>${cas.version}</version>
					<type>war</type>
					<scope>runtime</scope>
				</dependency>
			</dependencies>
		</profile>

		<profile>
			<activation>
				<activeByDefault>false</activeByDefault>
			</activation>
			<id>pgp</id>
			<build>
				<plugins>
					<plugin>
						<groupId>com.github.s4u.plugins</groupId>
						<artifactId>pgpverify-maven-plugin</artifactId>
						<version>1.1.0</version>
						<executions>
							<execution>
								<goals>
									<goal>check</goal>
								</goals>
							</execution>
						</executions>
						<configuration>
							<pgpKeyServer>hkp://pool.sks-keyservers.net</pgpKeyServer>
							<pgpKeysCachePath>${settings.localRepository}/pgpkeys-cache</pgpKeysCachePath>
							<scope>test</scope>
							<verifyPomFiles>true</verifyPomFiles>
							<failNoSignature>false</failNoSignature>
						</configuration>
					</plugin>
				</plugins>
			</build>
		</profile>
	</profiles>
</project>

效果展示：
