android圆角框–透明背景圆角框

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
    <solid android:color="#CCFFFFFF" />
 <!-- CC(16)表示透明度00-FF(10)  00为完全透明  FFFFFF表示颜色值 -->
    <stroke
        android:width="3dp"
        android:color="#FFFFFF" /><!-- 边框 -->
<!--圆角半径 -->
    <corners
        android:bottomLeftRadius="30dp"
        android:bottomRightRadius="30dp"
        android:topLeftRadius="30dp"
        android:topRightRadius="30dp" />
</shape>

dialog 圆角框—解决dialog边角显示不透明问题

自定义dialog style

  <style name="dialog" parent="@android:style/Theme.Dialog">
        <item name="android:windowFrame">@null</item>
        <item name="android:windowIsFloating">true</item>
        <item name="android:windowIsTranslucent">true</item>
        <item name="android:windowNoTitle">true</item>
        <item name="android:background">@android:color/transparent</item>
        <item name="android:windowBackground">@android:color/transparent</item>
        <item name="android:backgroundDimEnabled">true</item>
        <item name="android:backgroundDimAmount">0.6</item>

    </style>

自定义dialog

public class MyDialog extends Dialog{

    public MyDialog(Context context) {
        super(context);
    }
    public MyDialog(Context context, View view, int style) {
        this(context, view.getWidth(), view.getHeight(), view, style);
    }

    public MyDialog(Context context, int width, int height, View layout, int style) {
        super(context, style);
        setContentView(layout);
        Window window = getWindow();
        window.setBackgroundDrawableResource(android.R.color.transparent);//dialog窗口背景透明
        WindowManager.LayoutParams params = window.getAttributes();
        params.gravity = Gravity.CENTER;
        window.setAttributes(params);
    }

}

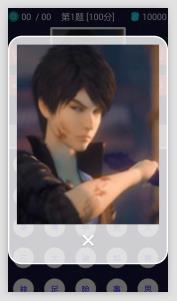

自定义dialog示例


LayoutInflater inflater = LayoutInflater.from(this);
            View view = inflater.inflate(R.layout.dialog_img_dangda, null);
            ImageButton ib_close = (ImageButton) view
                    .findViewById(R.id.ib_dialog_fangda_close);
            ImageView iv_img_big = (ImageView) view
                    .findViewById(R.id.iv_img_fangda);
            Bitmap bitmap = ThumbnailUtils.extractThumbnail(
                    getDrawableBitmap(currentMovie.getResource()), 640, 810);
            iv_img_big.setImageBitmap(bitmap);
            ib_close.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                    dialog.dismiss();
                }
            });
            dialog = new MyDialog(this, view, R.style.dialog);
            dialog.show();
