GeoEast切除直达波

Geoeast切除直达波

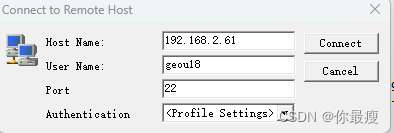

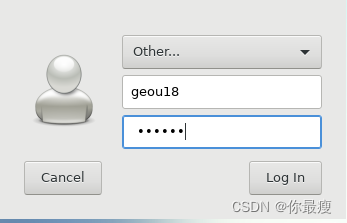

1.登录

节点：newnode4
账号：geou**
密码：******

在终端输入

[geou18@newnode4 ~/Desktop]$ geoeast

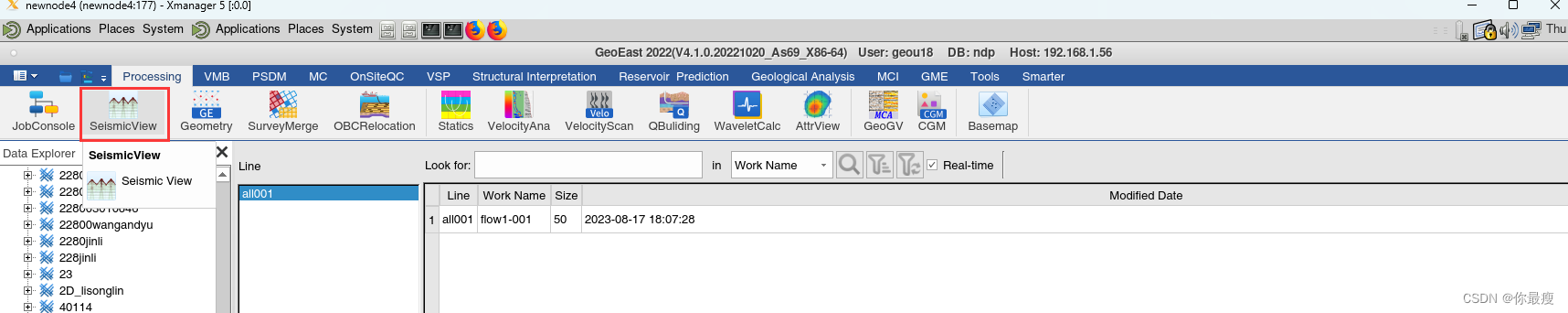

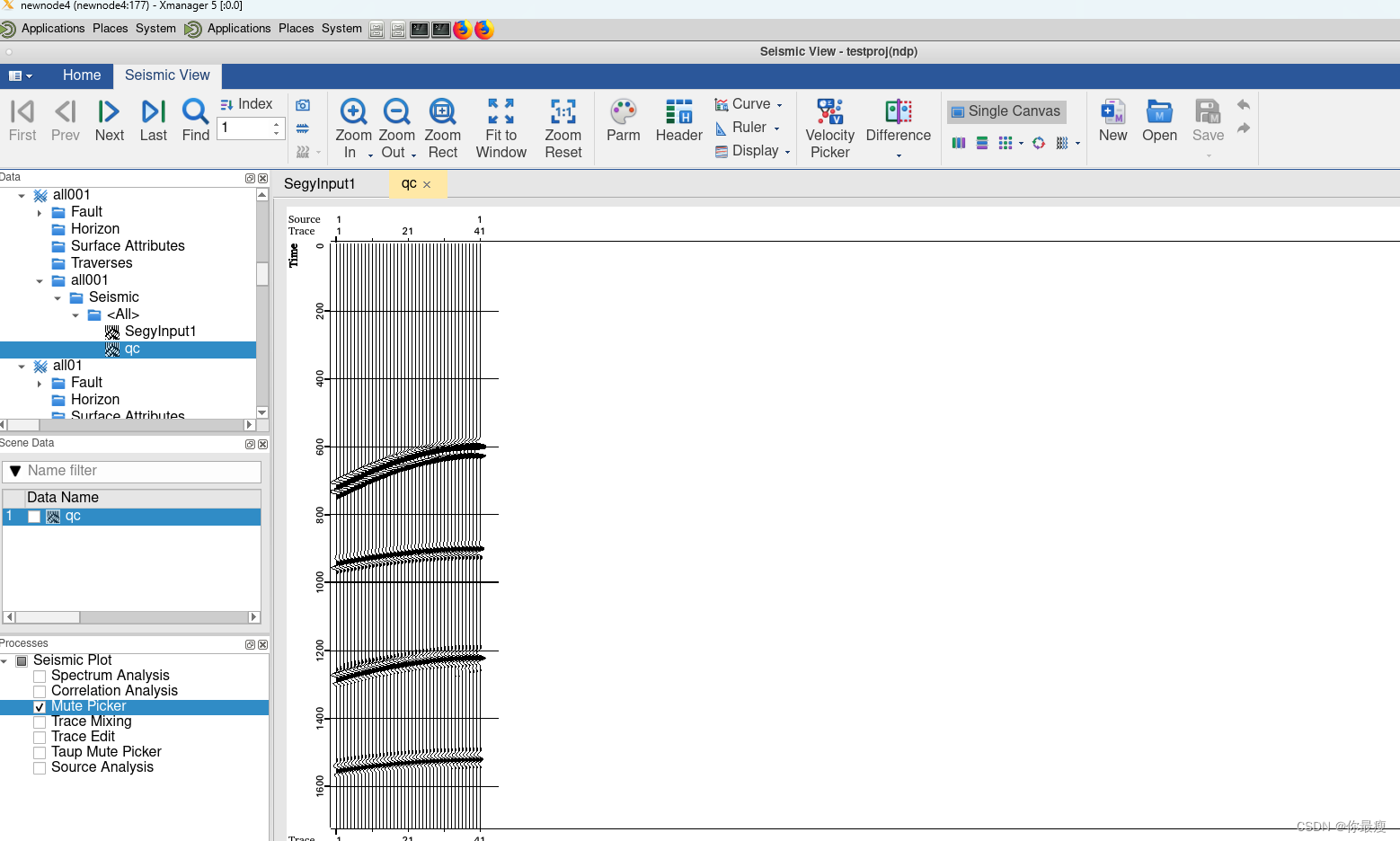

进入geoeast

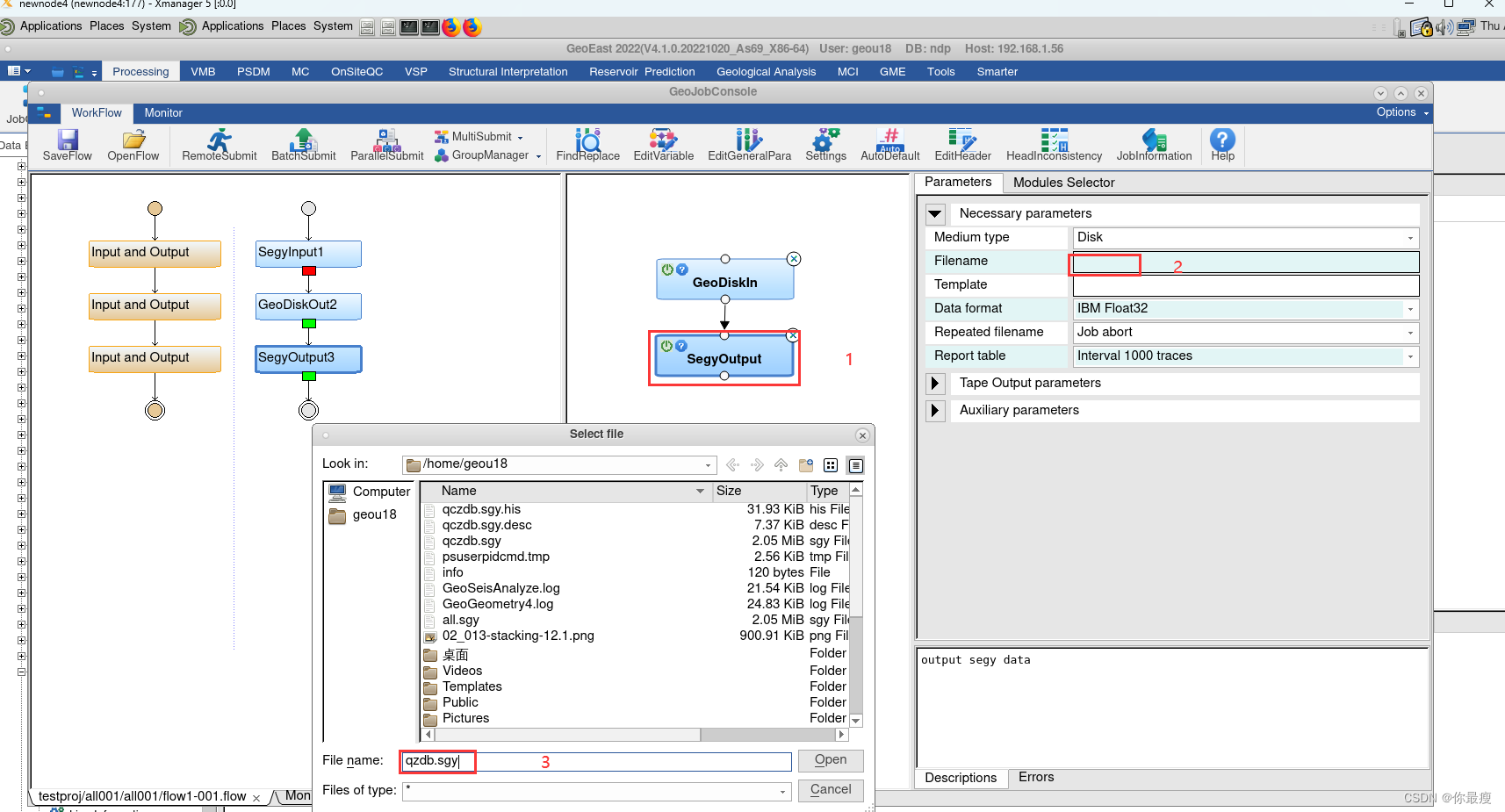

导出segy格式文件

segyread tape='all.sgy' verbose=1 endian=0>all.su
suximage<all.su perc=99&
surange<all.su

[newuser57@GPU7 all]$ segyread tape='all.sgy' verbose=1 endian=0>all.su

segyread: header file opened successfully

segyread: binary file opened successfully

segyread: assuming IBM floating point input

segyread: binary file closed successfully
记录了3200+0 的读入
记录了6+1 的写出
3200字节(3.2 kB)已复制，0.00372512 秒，859 kB/秒

segyread: header file closed successfully
Using Big Endian SU data format w/ XDR.
getpar() call after checkpars(): nextended

segyread: Number of extended text headers: 0

segyread:  50 traces from tape

segyread:  100 traces from tape

segyread:  150 traces from tape

segyread:  200 traces from tape

segyread:  250 traces from tape

segyread:  300 traces from tape

segyread:  350 traces from tape

segyread:  400 traces from tape

segyread: tape closed successfully

[newuser57@GPU7 all]$ surange<all.su
410 traces:
tracl    1 410 (1 - 410)
tracr    1 410 (1 - 410)
fldr     1 10 (1 - 10)
tracf    1 41 (1 - 41)
ep       1 10 (1 - 10)
cdp      1 10 (1 - 10)
cdpt     1 41 (1 - 41)
trid     1
duse     1
offset   -400 0 (-400 - 0)
scalel   1
scalco   -100
sx       40000 58000 (40000 - 58000)
gx       0 58000 (0 - 58000)
counit   1
ns       1251
dt       2000
d1       -42867602864063536901147777694041112576.000000 2679225179003971056321736105877569536.000000 (0.000000 - 520.000000)
d2       0.000000 0.000000 (0.000000 - 0.000000)
f2       -170141183460469231731687303715884105728.000000 171470411456254147604591110776164450304.000000 (0.000000 - -0.000000)

Shot coordinate limits:
	North(-400,-0) South(-400,-0) East(-400,-0) West(-580,-0)

Receiver coordinate limits:
	North(-0,-0) South(-0,-0) East(-0,-0) West(-580,-0)

Midpoint coordinate limits:
	North(-200,-0) South(-200,-0) East(-200,-0) West(-580,-0)

[newuser57@GPU7 qczdb]$ segyread tape='qczdb.sgy' verbose=1 endian=0>qczdb.su

segyread: header file opened successfully

segyread: binary file opened successfully

segyread: assuming IBM floating point input

segyread: binary file closed successfully
记录了3200+0 的读入
记录了6+1 的写出
3200字节(3.2 kB)已复制，0.0035562 秒，900 kB/秒

segyread: header file closed successfully
Using Big Endian SU data format w/ XDR.
getpar() call after checkpars(): nextended

segyread: Number of extended text headers: 0

segyread:  50 traces from tape

segyread:  100 traces from tape

segyread:  150 traces from tape

segyread:  200 traces from tape

segyread:  250 traces from tape

segyread:  300 traces from tape

segyread:  350 traces from tape

segyread:  400 traces from tape

segyread: tape closed successfully

[newuser57@GPU7 qczdb]$ surange<qczdb.su
410 traces:
tracr    1 410 (1 - 410)
fldr     1 10 (1 - 10)
tracf    1 41 (1 - 41)
cdp      1 10 (1 - 10)
cdpt     1 41 (1 - 41)
trid     1
offset   0 1137180672 (1137180672 - 0)
sx       40000 58000 (40000 - 58000)
gx       0 58000 (0 - 58000)
ns       1251
dt       2000
year     2000
d1       -42867602864063536901147777694041112576.000000 2679225179003971056321736105877569536.000000 (0.000000 - 520.000000)
d2       0.000000 0.000000 (0.000000 - 0.000000)
f2       0.000000 0.000000 (0.000000 - 0.000000)
ungpow   0.000000 0.000000 (0.000000 - 0.000000)

Shot coordinate limits:
	North(40000,0) South(40000,0) East(58000,0) West(40000,0)

Receiver coordinate limits:
	North(0,0) South(0,0) East(58000,0) West(0,0)

Midpoint coordinate limits:
	North(20000,0) South(20000,0) East(58000,0) West(20000,0)

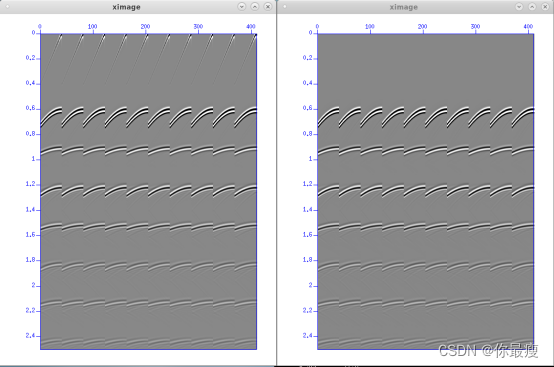

成功切除直达波
