自定义tab bar控件

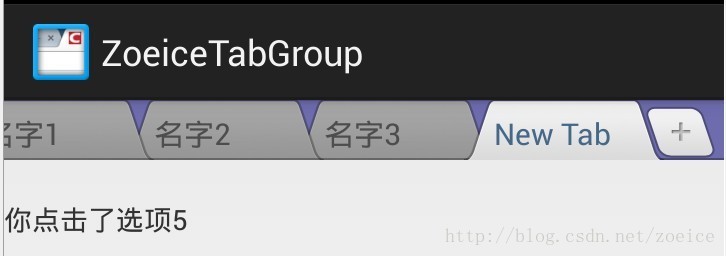

实现了一个自定义tabBar,效果如下：

代码写的有点罗嗦：控件如下：

import java.util.Vector;

import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.NinePatch;
import android.graphics.Paint;
import android.graphics.Rect;
import android.util.DisplayMetrics;
import android.view.GestureDetector;
import android.view.GestureDetector.OnGestureListener;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnTouchListener;
import android.widget.PopupWindow;

import com.example.zoeicetabgroup.R;

/**
 * custom tab bar
 * @author zoeice
 *
 */
public class LPTabGroupWithGesture extends View implements OnGestureListener, OnTouchListener{
	private int tabNum = 0;
	private int curSelect = 0;
	private int curX = 0;
	private int savedClickIndex = -1;
	private int savedX = 0;

	private boolean isDraging = false;
	private int dragCurrentX = 0;
	private int dragSavedX = 0;
	private int dragSelectIndex = -1;

	private final int TEXT_SIZE = 30;
	private final int TAB_MARGIN = 30;

	private int tabWidth = 200;
	private int tabHeight = 0;
	private int tabGap = 30;// IF
	private int tabAddWidth = 90;// IF

	private Bitmap bitCur;
	private NinePatch npCur;
	private Bitmap bitNor;
	private NinePatch npNor;
	private Bitmap bitAdd;

	private int screenWidth;
	private int screenHeight;
	private float screenDensity;

	private PopupWindow popMenu;

	private OnTabItemClickListener clickListener;

	private GestureDetector mGestureDetector;

	private Vector<TabItem> tabLists = new Vector<TabItem>();

	public LPTabGroupWithGesture(Context context, Vector<TabItem> vec) {
		this(context);
		tabLists = vec;
		tabNum = vec.size();
	}

	public LPTabGroupWithGesture(Context context) {
		super(context);
		if(tabNum == 0){
			tabNum = 1;
			tabLists.add(new TabItem());
		}

		initParams(context);
	}

	/**
	 * init view's params
	 */
	private void initParams(Context context){
		this.setLongClickable(true);
		this.setOnTouchListener(this);
		mGestureDetector = new GestureDetector(context, this);
		mGestureDetector.setIsLongpressEnabled(true);

		DisplayMetrics displayMetrics = getResources().getDisplayMetrics();
		screenWidth = displayMetrics.widthPixels;
		screenHeight = displayMetrics.heightPixels;
		screenDensity = displayMetrics.density;

		bitCur = BitmapFactory.decodeResource(getResources(),
				R.drawable.tab);
		npCur = new NinePatch(bitCur, bitCur.getNinePatchChunk(), null);
		tabHeight = bitCur.getHeight();

		bitNor = BitmapFactory.decodeResource(getResources(),
				R.drawable.tab);
		npNor = new NinePatch(bitNor, bitNor.getNinePatchChunk(), null);
		bitAdd = BitmapFactory.decodeResource(getResources(),
				R.drawable.tab_add);
		tabAddWidth = bitAdd.getWidth();

	}

	/**设置当前选中选项的位置*/
	public void setCurrentSelect(int index) {
		curSelect = index;
		invalidate();
	}

	 /**
	  * @see android.view.View#measure(int, int)
	  */
	 @Override
	 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
	  setMeasuredDimension(screenWidth, tabHeight);
	 }

	@Override
	protected void onDraw(Canvas canvas) {
		super.onDraw(canvas);
		Paint paint = new Paint();
		paint.setColor(0xff707070);
		paint.setTextSize(TEXT_SIZE);
		/*draw bg*/
		canvas.drawARGB(0xff, 0xa1, 0x9c, 0xff);

		if(isDraging){
			int dX = dragCurrentX +  (tabWidth - tabGap) * curSelect;

			/*draw normal tab*/
			for (int i = tabNum - 1; i >= 0; i--) {
				if (i != curSelect) {
					int nX = curX + (tabWidth - tabGap) * i ;
					if(i > savedClickIndex && savedClickIndex > -1){
						nX -= tabWidth - tabGap;
					}
					if(i > dragSelectIndex && dragSelectIndex > -1){
						nX += tabWidth - tabGap;
					}
					Rect nR = new Rect(nX, 0, nX + tabWidth, tabHeight);
					npNor.draw(canvas, nR);

					//draw text
					canvas.save();
					canvas.clipRect(new Rect(nX + TAB_MARGIN, 0, nX + tabWidth - TAB_MARGIN, tabHeight));
					canvas.drawText(tabLists.get(i).name, nX + TAB_MARGIN, (tabHeight + TEXT_SIZE) >> 1, paint);
					canvas.restore();
				}
			}
			/*draw shape for above normal tab*/
			canvas.drawARGB(0x50, 0x00, 0x00, 0x00);
			/*draw buttom line*/
			Paint paintShape = new Paint();
			paintShape.setColor(0x50000000);
			canvas.drawRect(0, tabHeight - 2, screenWidth, tabHeight, paintShape);

			/*draw current selected tab*/
			Rect dR = new Rect(dX, 0, dX + tabWidth, tabHeight);
			npCur.draw(canvas, dR);

			//draw current text
			paint.setColor(0xff456789);
			canvas.drawText(tabLists.get(curSelect).name, dX + tabGap, (tabHeight + TEXT_SIZE) >> 1, paint);

			/*draw add button*/
			int aX =  curX + (tabWidth - tabGap) * tabNum;
			if(dX + tabWidth > aX)
				canvas.drawBitmap(bitAdd, dX + tabWidth - tabGap, 0, paint);
			else
				canvas.drawBitmap(bitAdd, aX, 0, paint);
		}else{
			/*draw normal tab*/
			for (int i = tabNum - 1; i >= 0; i--) {
				if (i != curSelect) {
					int nX = curX + (tabWidth - tabGap) * i ;
					Rect nR = new Rect(nX, 0, nX + tabWidth, tabHeight);
					npNor.draw(canvas, nR);

					//draw text
					canvas.save();
					canvas.clipRect(new Rect(nX + TAB_MARGIN, 0, nX + tabWidth - TAB_MARGIN, tabHeight));
					canvas.drawText(tabLists.get(i).name, nX + TAB_MARGIN, (tabHeight + TEXT_SIZE) >> 1, paint);
					canvas.restore();
				}
			}
			/*draw shape for above normal tab*/
			canvas.drawARGB(0x50, 0x00, 0x00, 0x00);
			/*draw buttom line*/
			Paint paintShape = new Paint();
			paintShape.setColor(0x50000000);
			canvas.drawRect(0, tabHeight - 2, screenWidth, tabHeight, paintShape);

			/*draw current selected tab*/
			int cX = curX +  (tabWidth - tabGap) * curSelect;
			Rect cR = new Rect(cX, 0, cX + tabWidth, tabHeight);
			npCur.draw(canvas, cR);

			//draw current text
			paint.setColor(0xff456789);
			canvas.drawText(tabLists.get(curSelect).name, cX + tabGap, (tabHeight + TEXT_SIZE) >> 1, paint);

			/*draw add button*/
			canvas.drawBitmap(bitAdd, curX + (tabWidth - tabGap) * tabNum, 0, paint);
		}

	}

	@Override
	public boolean onTouch(View v, MotionEvent event) {
		   if (mGestureDetector.onTouchEvent(event)) {
               return true;
           }

           if(event.getAction() == MotionEvent.ACTION_UP) {
               if(isDraging ) {
            	   if(dragSelectIndex != curSelect){
            		   if(dragSelectIndex >= tabNum){
    					   dragSelectIndex = tabNum - 1;
    	    		   }
            		   TabItem tempItem = tabLists.elementAt(curSelect);
            		   tabLists.removeElementAt(curSelect);
                	   tabLists.add(dragSelectIndex, tempItem);
            	   }

            	   float x = event.getX();
        		   curSelect = (int) ((x - curX) / (tabWidth - tabGap));
        		   if(curSelect >= tabNum){
        			   curSelect = tabNum - 1;
        		   }

            	   isDraging  = false;
                   dragSelectIndex = -1;
                   dragCurrentX = 0;
                   dragSavedX = 0;

                   invalidate();
               }
           }

           return false;
	}

	/**选项点击事件设置*/
	public void setOnTabItemClickListener(OnTabItemClickListener click) {
		this.clickListener = click;
	}

	/**选项点击事件接口*/
	public interface OnTabItemClickListener {
		public void onclickListenr(int index);
	}

	@Override
	public boolean onDown(MotionEvent event) {
		float x = event.getX();
		savedClickIndex = (int) ((x - curX) / (tabWidth - tabGap));
		if(savedClickIndex == curSelect){
			isDraging = true;
			dragSavedX = savedX;
			clickListener.onclickListenr(savedClickIndex);
		}
		return false;
	}

	@Override
	public boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX,
			float velocityY) {
		   if(isDraging ) {
			   if(dragSelectIndex != curSelect){
				   if(dragSelectIndex >= tabNum){
					   dragSelectIndex = tabNum - 1;
	    		   }
        		   TabItem tempItem = tabLists.elementAt(curSelect);
        		   tabLists.removeElementAt(curSelect);
            	   tabLists.add(dragSelectIndex, tempItem);
        	   }

        	   float x = e2.getX();
    		   curSelect = (int) ((x - curX) / (tabWidth - tabGap));
    		   if(curSelect >= tabNum){
    			   curSelect = tabNum - 1;
    		   }

        	   isDraging  = false;
               dragSelectIndex = -1;
               dragCurrentX = 0;
               dragSavedX = 0;

               invalidate();
           }
		return true;
	}

	@Override
	public void onLongPress(MotionEvent event) {
	}

	@Override
	public boolean onScroll(MotionEvent e1, MotionEvent e2,
			float distanceX, float distanceY) {
		int tempWidth = (tabWidth - tabGap) * tabNum + tabAddWidth;
		if(isDraging){
			//drag
			int nextX = (int) (dragSavedX + e2.getX() - e1.getX());

			dragSelectIndex = (int) ((e2.getX() - curX) / (tabWidth - tabGap));

			dragCurrentX = nextX;


			invalidate();
		}else{
			//move
			int nextX = (int) (savedX - distanceX);
			if(tempWidth > screenWidth && (nextX <=0  && nextX + tempWidth >= screenWidth)){
				curX = nextX;
				savedX = curX;
				invalidate();
			}
		}

		return false;
	}

	@Override
	public void onShowPress(MotionEvent event) {
	}

	@Override
	public boolean onSingleTapUp(MotionEvent event) {
		float x = event.getX();
		int curClickIndex = (int) ((x - curX) / (tabWidth - tabGap));
		if(savedClickIndex == curClickIndex){
			if(curClickIndex < tabNum){
				setCurrentSelect(curClickIndex);
				clickListener.onclickListenr(curClickIndex);
			}else if(curClickIndex == tabNum){
				tabLists.add(new TabItem());
				tabNum++;
				curX = screenWidth - tabAddWidth - (tabWidth - tabGap) * tabNum;
				setCurrentSelect(tabNum - 1);
				clickListener.onclickListenr(curClickIndex);
				invalidate();
			}
		}
		savedClickIndex = -1;
		savedX = curX;
		return false;
	}

}

tabItem类：

public class TabItem{
	public int index;
	public String name = "New Tab";
	public String url = "www.baidu.com";
}

调用如下：

Vector<TabItem> vec = new Vector<TabItem>();
		for(int i = 0; i < 4; i++){
			TabItem item = new TabItem();
			item.name = "名字" + i;
			vec.add(item);
		}

		LPTabGroupWithGesture tabGroup = new LPTabGroupWithGesture(this, vec);
	 	LayoutParams lptab = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT);
		addContentView(tabGroup, lptab);

	 	final TextView txt = new TextView(this);
	 	LayoutParams lptxt = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);
	 	txt.setPadding(0, 100, 0, 0);
	 	addContentView(txt, lptxt);

	 	tabGroup.setOnTabItemClickListener(new OnTabItemClickListener() {

			@Override
			public void onclickListenr(int index) {
				// TODO Auto-generated method stub
				txt.setText("你点击了选项" + (index + 1));
			}
		});
