#max7219.py
from machine import Pin
from micropython import const
import framebuf
_DIGIT_0 = const(0x1)
_DECODE_MODE = const(0x9)
_NO_DECODE = const(0x0)
_INTENSITY = const(0xA)
_INTENSITY_MIN = const(0x0)
_SCAN_LIMIT = const(0xB)
_DISPLAY_ALL_DIGITS = const(0x7)
_SHUTDOWN = const(0xC)
_SHUTDOWN_MODE = const(0x0)
_NORMAL_OPERATION = const(0x1)
_DISPLAY_TEST = const(0xF)
_DISPLAY_TEST_NORMAL_OPERATION = const(0x0)
_MATRIX_SIZE = const(8)
class Max7219(framebuf.FrameBuffer):
"""
Driver for MAX7219 8x8 LED matrices
Example for ESP8266 with 2x4 matrices (one on top, one on bottom),
so we have a 32x16 display area:
>>> from machine import Pin, SPI
>>> from max7219 import Max7219
>>> spi = SPI(1, baudrate=10000000)
>>> screen = Max7219(32, 16, spi, Pin(15))
>>> screen.rect(0, 0, 32, 16, 1) # Draws a frame
>>> screen.text('Hi!', 4, 4, 1)
>>> screen.show()
On some matrices, the display is inverted (rotated 180°), in this case
you can use `rotate_180=True` in the class constructor.
"""
def __init__(self, width, height, spi, cs, rotate_180=False):
# Pins setup
self.spi = spi
self.cs = cs
self.cs.init(Pin.OUT, True)
# Dimensions
self.width = width
self.height = height
# Guess matrices disposition
self.cols = width // _MATRIX_SIZE
self.rows = height // _MATRIX_SIZE
self.nb_matrices = self.cols * self.rows
self.rotate_180 = rotate_180
# 1 bit per pixel (on / off) -> 8 bytes per matrix
self.buffer = bytearray(width * height // 8)
format = framebuf.MONO_HLSB if not self.rotate_180 else framebuf.MONO_HMSB
super().__init__(self.buffer, width, height, format)
# Init display
self.init_display()
def _write_command(self, command, data):
"""Write command on SPI"""
cmd = bytearray([command, data])
self.cs(0)
for matrix in range(self.nb_matrices):
self.spi.write(cmd)
self.cs(1)
def init_display(self):
"""Init hardware"""
for command, data in (
(_SHUTDOWN, _SHUTDOWN_MODE), # Prevent flash during init
(_DECODE_MODE, _NO_DECODE),
(_DISPLAY_TEST, _DISPLAY_TEST_NORMAL_OPERATION),
(_INTENSITY, _INTENSITY_MIN),
(_SCAN_LIMIT, _DISPLAY_ALL_DIGITS),
(_SHUTDOWN, _NORMAL_OPERATION), # Let's go
):
self._write_command(command, data)
self.fill(0)
self.show()
def brightness(self, value):
"""Set display brightness (0 to 15)"""
if not 0 <= value < 16:
raise ValueError("Brightness must be between 0 and 15")
self._write_command(_INTENSITY, value)
def show(self):
"""Update display"""
# Write line per line on the matrices
for line in range(8):
self.cs(0)
for matrix in range(self.nb_matrices):
# Guess where the matrix is placed
row, col = divmod(matrix, self.cols)
# Compute where the data starts
if not self.rotate_180:
offset = row * 8 * self.cols
index = col + line * self.cols + offset
else:
offset = 8 * self.cols - row * self.cols * 8 - 1
index = self.cols * (8 - line) - col + offset
self.spi.write(bytearray([_DIGIT_0 + line, self.buffer[index]]))
self.cs(1)
#url https://github.com/vrialland/micropython-max7219
from machine import Pin, SPI
import max7219
import network#导入网络模块
import urequests
import ujson
def connect_wifi():#连接程序
#并将网络凭据(ssid和密码)存储在两个变量上。
ssid = "maker"
password = "qazwsx12"
try:
#获取站点WiFi接口的实例并将其存储在变量上
wlan = network.WLAN(network.STA_IF)
wlan.active(True)
if not wlan.isconnected():
print('Connecting to network...')
wlan.connect(ssid, password)
while not wlan.isconnected():
time.sleep(1)
print('Network connected:', wlan.ifconfig())
except:
print('--')
pass
import time
connect_wifi()
spi = SPI(1, baudrate=10000000)
screen = max7219.Max7219(32, 8, spi, Pin(15))
screen.brightness(7) #设置灯泡的高度
'''
response = urequests.get('http://quan.suning.com/getSysTime.do')
data = ujson.loads(response.text)
print(data['sysTime2'])
'''
while True:
screen.fill(0)
response = urequests.get('http://quan.suning.com/getSysTime.do')
data = ujson.loads(response.text)
tt = data['sysTime2'].split(' ')[1].split(":")[0:2]
screen.text(tt[0]+tt[1], 0, 0, 1)
screen.show()
time.sleep(2)
ESP32 MAX7219
5V VCC
GND GND
GPIO13 (HWSPI #1 MOSI) DIN
GPIO14 (HWSPI #1 SCK) CLK
GPIO15 CS

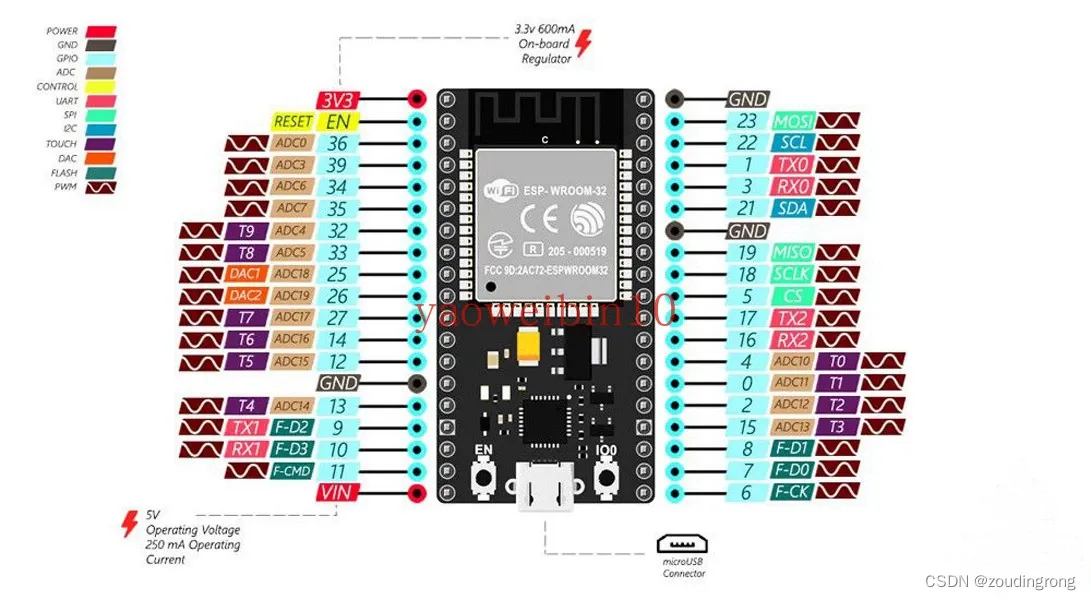

gpio使用上图中浅蓝色标注的io口
# max7219测试程序
import max7219
from machine import Pin, SPI
spi = SPI(1, baudrate=10000000)
screen = max7219.Max7219(32, 8, spi, Pin(15))
screen.text('1234',0,0,1)
screen.show()
import upip
upip.install(‘micropython-urequests’)
