本章介绍Android应用开发中回去分辨率的方法及屏幕尺寸的计算方法。

一、通过Display class 获取到屏幕分辨率的接口

参考googlehttps://developer.android.com/reference/android/view/Display

注意：其中有很多接口已经标记deprecated弃用

Public methods
int	getWidth() This method was deprecated in API level 15. Use WindowMetrics#getBounds instead.
int	getHeight() This method was deprecated in API level 15. Use WindowMetrics#getBounds() instead.
void	getCurrentSizeRange(Point outSmallestSize, Point outLargestSize) Return the range of display sizes an application can expect to encounter under normal operation, as long as there is no physical change in screen size.
void	getRealMetrics(DisplayMetrics outMetrics) This method was deprecated in API level 31. Use WindowManager#getCurrentWindowMetrics() to identify the current size of the activity window. UI-related work, such as choosing UI layouts, should rely upon WindowMetrics#getBounds(). Use Configuration#densityDpi to get the current density.
void	getMetrics(DisplayMetrics outMetrics) This method was deprecated in API level 30. Use WindowMetrics#getBounds() to get the dimensions of the application window. Use WindowMetrics#getDensity() to get the density of the application window.
void	getRealSize(Point outSize) This method was deprecated in API level 31. Use WindowManager#getCurrentWindowMetrics() to identify the current size of the activity window. UI-related work, such as choosing UI layouts, should rely upon WindowMetrics#getBounds().
void	getSize(Point outSize) This method was deprecated in API level 30. Use WindowMetrics instead. Obtain a WindowMetrics instance by calling WindowManager#getCurrentWindowMetrics(), then call WindowMetrics#getBounds() to get the dimensions of the application window.
void	getRectSize(Rect outSize) This method was deprecated in API level 30. Use WindowMetrics#getBounds() to get the dimensions of the application window.
Display.Mode	getMode() Returns the active mode of the display.
Mode[]	getSupportedModes() Gets the supported modes of this display.


//如果在active中可以直接使用getWindow().getWindowManager()
WindowManager windowManager = getWindow().getWindowManager();
//如果是在在Service等中获取需要通过Context
WindowManager windowManager = (WindowManager) mContext.getSystemService(Context.WINDOW_SERVICE);
Display display = windowManager.getDefaultDisplay();

Log.i(TAG, "getWidth:" + display.getWidth());
Log.i(TAG, "getHeight:" + display.getHeight());//不包含状态栏和导航栏

Point outSmallestSize = new Point();
Point outLargestSize = new Point();
display.getCurrentSizeRange(outSmallestSize, outLargestSize);
Log.i(TAG, "outSmallestSize:" + outSmallestSize.toString());
Log.i(TAG, "outLargestSize:" + outLargestSize.toString());
 outLargestSize.x, outLargestSize.y

DisplayMetrics realDisplayMetrics = new DisplayMetrics();
display.getRealMetrics(realDisplayMetrics);//屏幕实际分辨率
Log.i(TAG, "getRealMetrics:" + realDisplayMetrics.toString());
// displayMetrics.widthPixels,  displayMetrics.heightPixels

DisplayMetrics displayMetrics = new DisplayMetrics();
display.getMetrics(displayMetrics);//不包含状态栏和导航栏

Point outSize = new Point();
display.getRealSize(outSize);//屏幕实际分辨率
Log.i(TAG, "getRealSize:" + outSize.toString());
// outSize.x, outSize.y

display.getSize(outSize);//不包含状态栏和导航栏
Log.i(TAG, "getSize:" + outSize.toString());

Rect outRect = new Rect();
display.getRectSize(outRect);
Log.i(TAG, "getRectSize:" + outRect.toString());
//outRect.width(), outRect.height()

Display.Mode activeMode = display.getMode();
Log.i(TAG, "activeMode:" + activeMode.toString());

Display.Mode[] modes = display.getSupportedModes();
for (int i = 0; i < modes.length; i++) {
    Log.i(TAG, "Mode[" + i + "]:"+ modes[i].toString());
}

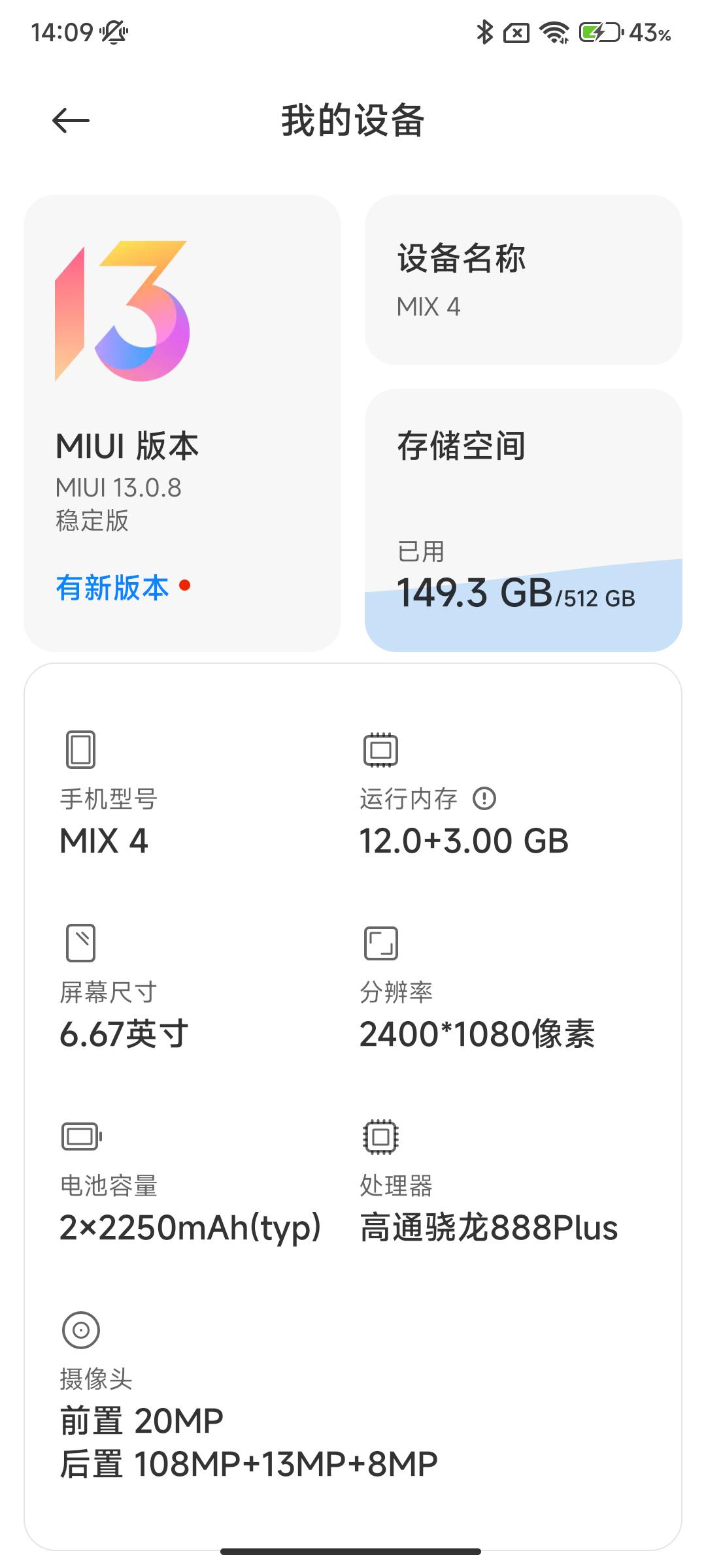

我使用小米MIX4测试如下（MIX4屏幕的分辨率是1080 x 2400）：

getWidth:1080
getHeight:2252
outSmallestSize:Point(1080, 932)
outLargestSize:Point(2296, 2252)
getRealMetrics:DisplayMetrics{density=2.75, width=1080, height=2400, scaledDensity=2.75, xdpi=394.705, ydpi=394.563}
getRealSize:Point(1080, 2400)
getSize:Point(1080, 2252)
getRectSize:Rect(0, 0 - 1080, 2252)
activeMode:{id=2, width=1080, height=2400, fps=120.00001, alternativeRefreshRates=[60.000004, 90.0]}
Mode[0]:{id=1, width=1080, height=2400, fps=60.000004, alternativeRefreshRates=[90.0, 120.00001]}
Mode[1]:{id=2, width=1080, height=2400, fps=120.00001, alternativeRefreshRates=[60.000004, 90.0]}
Mode[2]:{id=3, width=1080, height=2400, fps=90.0, alternativeRefreshRates=[60.000004, 120.00001]}

二、getResources().getDisplayMetrics()


//不包含状态栏和导航栏
DisplayMetrics displayMetrics = getApplicationContext().getResources().getDisplayMetrics();
Log.i(TAG, "getDisplayMetrics:" + displayMetrics.toString());
Log.i(TAG, "widthPixels:" + displayMetrics.widthPixels + ", heightPixels:" + displayMetrics.heightPixels);

我使用小米MIX4测试如下（MIX4屏幕的分辨率是1080 x 2400）：

getDisplayMetrics:DisplayMetrics{density=2.75, width=1080, height=2252, scaledDensity=2.75, xdpi=394.705, ydpi=394.563}
widthPixels:1080, heightPixels:2252

三、WindowMetrics#getBounds()


WindowManager windowManager = (WindowManager) getApplicationContext().getSystemService(Context.WINDOW_SERVICE);
WindowMetrics windowMetrics = windowManager.getCurrentWindowMetrics();
Rect rect = windowMetrics.getBounds();
Log.i(TAG, "rect:"+ rect.toString());
Log.i(TAG, "rect:"+ rect.toString());

我使用小米MIX4测试如下（MIX4屏幕的分辨率是1080 x 2400）：

rect:Rect(0, 0 - 1080, 2400)
width:1080, height:2400

四、屏幕尺寸计算公式

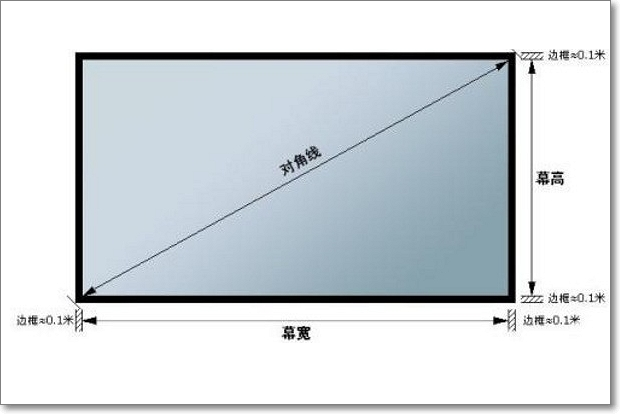

屏幕尺寸计算公式：对角线 √((x)^2+(y)^2)

屏幕尺寸通常说的是英寸，1英寸 = 2.54厘米 = 25.4毫米

通过widthPixels=1080, heightPixels=2252, xdpi=394.705, ydpi=394.563 ，我们就可以计算屏幕尺寸

xdpi = (FLOAT(widthPixels) * 25.4f) / FLOAT(mm_width); // x_dpi 的计算公式

ydpi = (FLOAT(heightPixels) * 25.4f) / FLOAT(mm_height); // y_dpi 的计算公式

上面公式中mm_width和mm_height是屏幕的实际尺寸（单位毫米mm）

如果使用英寸为单位，公式为：

xdpi = FLOAT(widthPixels) / FLOAT(in_width); // x_dpi 的计算公式

ydpi = FLOAT(heightPixels) / FLOAT(in_height); // y_dpi 的计算公式

上面公式中in_width和in_width是屏幕的实际尺寸（单位英寸in）

in_width = widthPixels/xdpi

in_height = heightPixels/ydpi

屏幕尺寸 = √((widthPixels/xdpi)^2+(heightPixels/ydpi)^2)

使用代码：


Display display = getWindow().getWindowManager().getDefaultDisplay();
DisplayMetrics realDisplayMetrics = new DisplayMetrics();
display.getRealMetrics(realDisplayMetrics);
double screenSize = Math.sqrt(Math.pow(realDisplayMetrics.widthPixels/realDisplayMetrics.xdpi,2) + Math.pow(realDisplayMetrics.heightPixels/realDisplayMetrics.ydpi,2));
Log.i(TAG, "screenSize:" + screenSize);

打印
