4. producer 生产消息

测试代码



    public static void main(String[] args) throws MQClientException {
        logger.info("producer start ...");
        DefaultMQProducer producer = new DefaultMQProducer("ProducerGroupName1");
        producer.setNamesrvAddr("127.0.0.1:9876");//外网地址
        producer.start();

        for (int i = 0; i < 128; i++){
            try {
                Message msg = new Message("TopicTest",//主题
                        "TagA",
                        "OrderID188",
                        "Hello world".getBytes(RemotingHelper.DEFAULT_CHARSET));//发送的内容;
                SendResult sendResult = producer.send(msg);
                System.out.printf("%s%n", sendResult);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }

        producer.shutdown();
    }

--

public void start() throws MQClientException {
        this.setProducerGroup(withNamespace(this.producerGroup));
        this.defaultMQProducerImpl.start();
        if (null != traceDispatcher) {
            try {
                traceDispatcher.start(this.getNamesrvAddr(), this.getAccessChannel());
            } catch (MQClientException e) {
                log.warn("trace dispatcher start failed ", e);
            }
        }
    }

--

public void start() throws MQClientException {
    this.start(true);
}

public void start(final boolean startFactory) throws MQClientException {
    switch (this.serviceState) {
        case CREATE_JUST:
            this.serviceState = ServiceState.START_FAILED;

            this.checkConfig();

            // producer group 检查
            if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
                this.defaultMQProducer.changeInstanceNameToPID();
            }

            this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);

            // 保存producerGroup信息
            boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
            if (!registerOK) {
                this.serviceState = ServiceState.CREATE_JUST;
                throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
                    + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                    null);
            }

            this.topicPublishInfoTable.put(this.defaultMQProducer.getCreateTopicKey(), new TopicPublishInfo());

            if (startFactory) {
                mQClientFactory.start();
            }

            log.info("the producer [{}] start OK. sendMessageWithVIPChannel={}", this.defaultMQProducer.getProducerGroup(),
                this.defaultMQProducer.isSendMessageWithVIPChannel());
            this.serviceState = ServiceState.RUNNING;
            break;
        case RUNNING:
        case START_FAILED:
        case SHUTDOWN_ALREADY:
            throw new MQClientException("The producer service state not OK, maybe started once, "
                + this.serviceState
                + FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
                null);
        default:
            break;
    }

    this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();

    this.startScheduledTask();

}

--

mQClientFactory.start();

    public void start() throws MQClientException {

        synchronized (this) {
            switch (this.serviceState) {
                case CREATE_JUST:
                    this.serviceState = ServiceState.START_FAILED;
                    // If not specified,looking address from name server
                    if (null == this.clientConfig.getNamesrvAddr()) {
                        this.mQClientAPIImpl.fetchNameServerAddr();
                    }
                    // Start request-response channel
                    this.mQClientAPIImpl.start();
                    // Start various schedule tasks
                    this.startScheduledTask();
                    // Start pull service
                    this.pullMessageService.start();
                    // Start rebalance service
                    this.rebalanceService.start();
                    // Start push service
                    this.defaultMQProducer.getDefaultMQProducerImpl().start(false);
                    log.info("the client factory [{}] start OK", this.clientId);
                    this.serviceState = ServiceState.RUNNING;
                    break;
                case START_FAILED:
                    throw new MQClientException("The Factory object[" + this.getClientId() + "] has been created before, and failed.", null);
                default:
                    break;
            }
        }
    }

--

    private void startScheduledTask() {
        if (null == this.clientConfig.getNamesrvAddr()) {
            this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

                @Override
                public void run() {
                    try {
                        MQClientInstance.this.mQClientAPIImpl.fetchNameServerAddr();
                    } catch (Exception e) {
                        log.error("ScheduledTask fetchNameServerAddr exception", e);
                    }
                }
            }, 1000 * 10, 1000 * 60 * 2, TimeUnit.MILLISECONDS);
        }

        // 定时从namesrv拉取topic的routeInfo
        this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

            @Override
            public void run() {
                try {
                    MQClientInstance.this.updateTopicRouteInfoFromNameServer();
                } catch (Exception e) {
                    log.error("ScheduledTask updateTopicRouteInfoFromNameServer exception", e);
                }
            }
        }, 10, this.clientConfig.getPollNameServerInterval(), TimeUnit.MILLISECONDS);

        this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

            @Override
            public void run() {
                try {
                    MQClientInstance.this.cleanOfflineBroker();
                    MQClientInstance.this.sendHeartbeatToAllBrokerWithLock();
                } catch (Exception e) {
                    log.error("ScheduledTask sendHeartbeatToAllBroker exception", e);
                }
            }
        }, 1000, this.clientConfig.getHeartbeatBrokerInterval(), TimeUnit.MILLISECONDS);

        this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

            @Override
            public void run() {
                try {
                    MQClientInstance.this.persistAllConsumerOffset();
                } catch (Exception e) {
                    log.error("ScheduledTask persistAllConsumerOffset exception", e);
                }
            }
        }, 1000 * 10, this.clientConfig.getPersistConsumerOffsetInterval(), TimeUnit.MILLISECONDS);

        this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {

            @Override
            public void run() {
                try {
                    MQClientInstance.this.adjustThreadPool();
                } catch (Exception e) {
                    log.error("ScheduledTask adjustThreadPool exception", e);
                }
            }
        }, 1, 1, TimeUnit.MINUTES);
    }

这里有个定时任务，定时从namesrv拉取producerGroup对应的topic route信息

public void updateTopicRouteInfoFromNameServer() {
    Set<String> topicList = new HashSet<String>();

    // Consumer
    ...

    // Producer
    {
        Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
        while (it.hasNext()) {
            Entry<String, MQProducerInner> entry = it.next();
            MQProducerInner impl = entry.getValue();
            if (impl != null) {
                Set<String> lst = impl.getPublishTopicList();
                topicList.addAll(lst);
            }
        }
    }

    for (String topic : topicList) {
        this.updateTopicRouteInfoFromNameServer(topic);
    }
}

--

public Set<String> getPublishTopicList() {
        Set<String> topicList = new HashSet<String>();
        for (String key : this.topicPublishInfoTable.keySet()) {
            topicList.add(key);
        }

        return topicList;
    }

以上，获取getPublishTopicList为空的，因为现在只有producerGroup信息，所以，这时不会去调用updateTopicRouteInfoFromNameServer

再来看心跳

  public void sendHeartbeatToAllBrokerWithLock() {
        if (this.lockHeartbeat.tryLock()) {
            try {
                this.sendHeartbeatToAllBroker();
                this.uploadFilterClassSource();
            } catch (final Exception e) {
                log.error("sendHeartbeatToAllBroker exception", e);
            } finally {
                this.lockHeartbeat.unlock();
            }
        } else {
            log.warn("lock heartBeat, but failed. [{}]", this.clientId);
        }
    }

--

private void sendHeartbeatToAllBroker() {
        final HeartbeatData heartbeatData = this.prepareHeartbeatData();
        final boolean producerEmpty = heartbeatData.getProducerDataSet().isEmpty();
        final boolean consumerEmpty = heartbeatData.getConsumerDataSet().isEmpty();
        if (producerEmpty && consumerEmpty) {
            log.warn("sending heartbeat, but no consumer and no producer. [{}]", this.clientId);
            return;
        }

        if (!this.brokerAddrTable.isEmpty()) {
            ...
        }
    }

上面的方法中，brokerAddrTable到目前为止，还是空的，所以也不会发送心跳信息

到这里，producer.start()方法已经执行完了，完成了producer的初始化工作

开始发送消息

  public SendResult send(
        Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        Validators.checkMessage(msg, this);
        msg.setTopic(withNamespace(msg.getTopic()));
        return this.defaultMQProducerImpl.send(msg);
    }

--

默认是同步发送

 /**
     * DEFAULT SYNC -------------------------------------------------------
     */
    public SendResult send(
        Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        return send(msg, this.defaultMQProducer.getSendMsgTimeout());
    }

    public SendResult send(Message msg,
        long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
    }

--

private SendResult sendDefaultImpl(
    Message msg,
    final CommunicationMode communicationMode,
    final SendCallback sendCallback,
    final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    this.makeSureStateOK();
    Validators.checkMessage(msg, this.defaultMQProducer);
    final long invokeID = random.nextLong();
    long beginTimestampFirst = System.currentTimeMillis();
    long beginTimestampPrev = beginTimestampFirst;
    long endTimestamp = beginTimestampFirst;
    // 获取topic信息
    // 第一次发送时，会和namesrv建立连接，拉取topic的路由信息
    TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
    if (topicPublishInfo != null && topicPublishInfo.ok()) {
        boolean callTimeout = false;
        MessageQueue mq = null;
        Exception exception = null;
        SendResult sendResult = null;
        int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
        int times = 0;
        String[] brokersSent = new String[timesTotal];
        for (; times < timesTotal; times++) {
            // 选择一个broker
            String lastBrokerName = null == mq ? null : mq.getBrokerName();
            // 选择一个queue
            MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
            if (mqSelected != null) {
                mq = mqSelected;
                brokersSent[times] = mq.getBrokerName();
                try {
                    beginTimestampPrev = System.currentTimeMillis();
                    if (times > 0) {
                        //Reset topic with namespace during resend.
                        msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
                    }
                    long costTime = beginTimestampPrev - beginTimestampFirst;
                    if (timeout < costTime) {
                        callTimeout = true;
                        break;
                    }
                    // 执行发送
                    sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
                    endTimestamp = System.currentTimeMillis();
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                    // 同步发送还是异步发送，处理发送结果
                    switch (communicationMode) {
                        case ASYNC:
                            return null;
                        case ONEWAY:
                            return null;
                        case SYNC:
                            if (sendResult.getSendStatus() != SendStatus.SEND_OK) {
                                if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
                                    continue;
                                }
                            }

                            return sendResult;
                        default:
                            break;
                    }
                } catch (RemotingException e) {
                    // 发送异常
                    ...
                }
            } else {
                break;
            }
        }

        if (sendResult != null) {
            return sendResult;
        }

        // 发送失败
        ...

        throw mqClientException;
    }

    validateNameServerSetting();

    throw new MQClientException("No route info of this topic: " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO_TOPIC_ROUTE_INFO),
        null).setResponseCode(ClientErrorCode.NOT_FOUND_TOPIC_EXCEPTION);
}

--

第一次发送时，会和namesrv建立连接，拉取topic的路由信息

private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
        // 第一个获取时，topicPublishInfo为空
        TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
        if (null == topicPublishInfo || !topicPublishInfo.ok()) {
            this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
            // 从namesrv拉取topic信息，包含broker的地址
            this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
            topicPublishInfo = this.topicPublishInfoTable.get(topic);
        }

        if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
            return topicPublishInfo;
        } else {
            this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
            topicPublishInfo = this.topicPublishInfoTable.get(topic);
            return topicPublishInfo;
        }
    }

--

public boolean updateTopicRouteInfoFromNameServer(final String topic) {
        return updateTopicRouteInfoFromNameServer(topic, false, null);
    }


public boolean updateTopicRouteInfoFromNameServer(final String topic, boolean isDefault,
    DefaultMQProducer defaultMQProducer) {
    try {
        if (this.lockNamesrv.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
            try {
                TopicRouteData topicRouteData;
                if (isDefault && defaultMQProducer != null) {
                    // 通过网络组件，去namesrv拉取topic信息
                    topicRouteData = this.mQClientAPIImpl.getDefaultTopicRouteInfoFromNameServer(defaultMQProducer.getCreateTopicKey(),
                        1000 * 3);
                    if (topicRouteData != null) {
                        for (QueueData data : topicRouteData.getQueueDatas()) {
                            int queueNums = Math.min(defaultMQProducer.getDefaultTopicQueueNums(), data.getReadQueueNums());
                            data.setReadQueueNums(queueNums);
                            data.setWriteQueueNums(queueNums);
                        }
                    }
                } else {
                    topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3);
                }
                if (topicRouteData != null) {
                    //处理topic信息
                    ...
                } else {
                    log.warn("updateTopicRouteInfoFromNameServer, getTopicRouteInfoFromNameServer return null, Topic: {}. [{}]", topic, this.clientId);
                }
            } catch (MQClientException e) {
                if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                    log.warn("updateTopicRouteInfoFromNameServer Exception", e);
                }
            } catch (RemotingException e) {
                log.error("updateTopicRouteInfoFromNameServer Exception", e);
                throw new IllegalStateException(e);
            } finally {
                this.lockNamesrv.unlock();
            }
        } else {
            log.warn("updateTopicRouteInfoFromNameServer tryLock timeout {}ms. [{}]", LOCK_TIMEOUT_MILLIS, this.clientId);
        }
    } catch (InterruptedException e) {
        log.warn("updateTopicRouteInfoFromNameServer Exception", e);
    }

    return false;
}

--

public TopicRouteData getDefaultTopicRouteInfoFromNameServer(final String topic, final long timeoutMillis)
        throws RemotingException, MQClientException, InterruptedException {

        return getTopicRouteInfoFromNameServer(topic, timeoutMillis, false);
    }



public TopicRouteData getTopicRouteInfoFromNameServer(final String topic, final long timeoutMillis,
    boolean allowTopicNotExist) throws MQClientException, InterruptedException, RemotingTimeoutException, RemotingSendRequestException, RemotingConnectException {
    GetRouteInfoRequestHeader requestHeader = new GetRouteInfoRequestHeader();
    requestHeader.setTopic(topic);

    RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ROUTEINFO_BY_TOPIC, requestHeader);

    RemotingCommand response = this.remotingClient.invokeSync(null, request, timeoutMillis);
    assert response != null;
    switch (response.getCode()) {
        case ResponseCode.TOPIC_NOT_EXIST: {
            if (allowTopicNotExist) {
                log.warn("get Topic [{}] RouteInfoFromNameServer is not exist value", topic);
            }

            break;
        }
        case ResponseCode.SUCCESS: {
            byte[] body = response.getBody();
            if (body != null) {
                return TopicRouteData.decode(body, TopicRouteData.class);
            }
        }
        default:
            break;
    }

    throw new MQClientException(response.getCode(), response.getRemark());
}

最终构造成GET_ROUTEINFO_BY_TOPIC数据包，同个remotingClient.invokerSync(),发送到nameSrv,

nameSrv的defaultProcessor接收并处理消息

nameSrv会返回topic的信息，里面包含了broker的信息，有了这些信息之后，按照策略，选择一个broker，就可以发送消息了

续接上面的发送流程

// 执行发送
sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);

private SendResult sendKernelImpl(final Message msg,
    final MessageQueue mq,
    final CommunicationMode communicationMode,
    final SendCallback sendCallback,
    final TopicPublishInfo topicPublishInfo,
    final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    long beginStartTime = System.currentTimeMillis();
    // 再次处理broker地址
    String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
    if (null == brokerAddr) {
        tryToFindTopicPublishInfo(mq.getTopic());
        brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
    }

    SendMessageContext context = null;
    if (brokerAddr != null) {
        brokerAddr = MixAll.brokerVIPChannel(this.defaultMQProducer.isSendMessageWithVIPChannel(), brokerAddr);

        byte[] prevBody = msg.getBody();
        try {
            //for MessageBatch,ID has been set in the generating process
            if (!(msg instanceof MessageBatch)) {
                MessageClientIDSetter.setUniqID(msg);
            }
            ...

            if (hasCheckForbiddenHook()) {
                ...
            }

            if (this.hasSendMessageHook()) {
                ...
            }

            SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
            //构造消息
            ...
            // 重试队列
            if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                ...
            }

            SendResult sendResult = null;
            // 默认同步发送消息
            switch (communicationMode) {
                case ASYNC:
                    Message tmpMessage = msg;
                    boolean messageCloned = false;
                    if (msgBodyCompressed) {
                        ...
                    }

                    if (topicWithNamespace) {
                        ...
                    }

                    long costTimeAsync = System.currentTimeMillis() - beginStartTime;
                    if (timeout < costTimeAsync) {
                        throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
                    }
                    sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                        brokerAddr,
                        mq.getBrokerName(),
                        tmpMessage,
                        requestHeader,
                        timeout - costTimeAsync,
                        communicationMode,
                        sendCallback,
                        topicPublishInfo,
                        this.mQClientFactory,
                        this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
                        context,
                        this);
                    break;
                case ONEWAY:
                case SYNC:
                    ...
                    break;
                default:
                    assert false;
                    break;
            }

            if (this.hasSendMessageHook()) {
                ...
            }

            return sendResult;
        } catch (RemotingException e) {
            ...
        } finally {
            msg.setBody(prevBody);
            msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
        }
    }

    throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);
}

--

    public SendResult sendMessage(
        final String addr,
        final String brokerName,
        final Message msg,
        final SendMessageRequestHeader requestHeader,
        final long timeoutMillis,
        final CommunicationMode communicationMode,
        final SendCallback sendCallback,
        final TopicPublishInfo topicPublishInfo,
        final MQClientInstance instance,
        final int retryTimesWhenSendFailed,
        final SendMessageContext context,
        final DefaultMQProducerImpl producer
    ) throws RemotingException, MQBrokerException, InterruptedException {
        long beginStartTime = System.currentTimeMillis();
        RemotingCommand request = null;
        String msgType = msg.getProperty(MessageConst.PROPERTY_MESSAGE_TYPE);
        boolean isReply = msgType != null && msgType.equals(MixAll.REPLY_MESSAGE_FLAG);
        if (isReply) {
            if (sendSmartMsg) {
                SendMessageRequestHeaderV2 requestHeaderV2 = SendMessageRequestHeaderV2.createSendMessageRequestHeaderV2(requestHeader);
                request = RemotingCommand.createRequestCommand(RequestCode.SEND_REPLY_MESSAGE_V2, requestHeaderV2);
            } else {
                request = RemotingCommand.createRequestCommand(RequestCode.SEND_REPLY_MESSAGE, requestHeader);
            }
        } else {
            if (sendSmartMsg || msg instanceof MessageBatch) {
                SendMessageRequestHeaderV2 requestHeaderV2 = SendMessageRequestHeaderV2.createSendMessageRequestHeaderV2(requestHeader);
                request = RemotingCommand.createRequestCommand(msg instanceof MessageBatch ? RequestCode.SEND_BATCH_MESSAGE : RequestCode.SEND_MESSAGE_V2, requestHeaderV2);
            } else {
                request = RemotingCommand.createRequestCommand(RequestCode.SEND_MESSAGE, requestHeader);
            }
        }
        request.setBody(msg.getBody());

        switch (communicationMode) {
            case ONEWAY:
                this.remotingClient.invokeOneway(addr, request, timeoutMillis);
                return null;
            case ASYNC:
                final AtomicInteger times = new AtomicInteger();
                long costTimeAsync = System.currentTimeMillis() - beginStartTime;
                if (timeoutMillis < costTimeAsync) {
                    throw new RemotingTooMuchRequestException("sendMessage call timeout");
                }
                this.sendMessageAsync(addr, brokerName, msg, timeoutMillis - costTimeAsync, request, sendCallback, topicPublishInfo, instance,
                    retryTimesWhenSendFailed, times, context, producer);
                return null;
            case SYNC:
                long costTimeSync = System.currentTimeMillis() - beginStartTime;
                if (timeoutMillis < costTimeSync) {
                    throw new RemotingTooMuchRequestException("sendMessage call timeout");
                }
                return this.sendMessageSync(addr, brokerName, msg, timeoutMillis - costTimeSync, request);
            default:
                assert false;
                break;
        }

        return null;
    }

--

最终通过调用remotingClient.invokeSync()发送出去

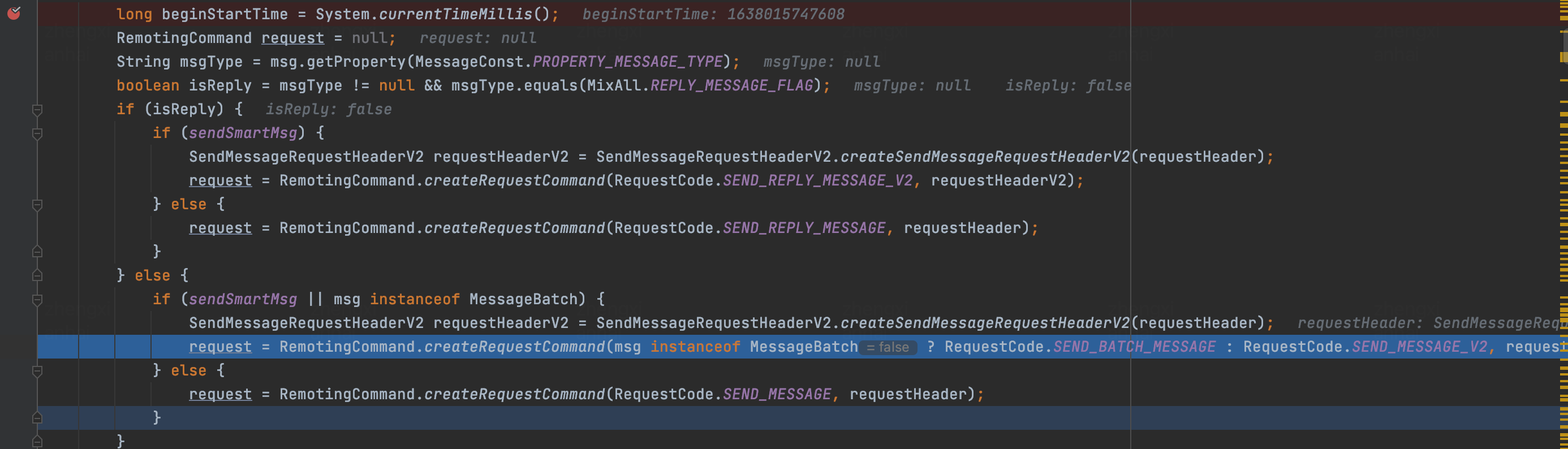

本地调试，发送的消息类型是SEND_MESSAGE_V2
