android自定义TabWidget样式

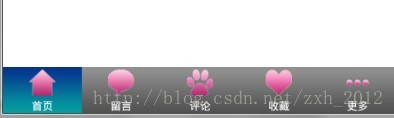

先看看效果图吧,个人觉得图标丑了点,不过还行,自己用PS做的


下面是全部代码和流程,一定要按流程顺序来,不然错误!

1.tabhost.xml

<TabHost xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@android:id/tabhost"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content" >

    <RelativeLayout
        android:id="@+id/relativelayout"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent" >

        <FrameLayout
            android:id="@android:id/tabcontent"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content" >

            <LinearLayout
                android:id="@+id/tab1"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >
            </LinearLayout>

            <LinearLayout
                android:id="@+id/tab2"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >
            </LinearLayout>

            <LinearLayout
                android:id="@+id/tab3"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >
            </LinearLayout>

            <LinearLayout
                android:id="@+id/tab4"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >
            </LinearLayout>

            <LinearLayout
                android:id="@+id/tab5"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >
            </LinearLayout>
        </FrameLayout>

        <TabWidget
            android:id="@android:id/tabs"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true"
            android:background="@drawable/tabwidget_bj" >
        </TabWidget>
    </RelativeLayout>

</TabHost>
2.tab_item_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:orientation="vertical" >

    <ImageView
        android:id="@+id/imageview"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal|top"
        android:padding="3dp" />

    <TextView
        android:id="@+id/textview"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal|bottom"
        android:textColor="#fff"
        android:textSize="13sp"
        style="bold"/>

</LinearLayout>
3.样式选择器selector:tab_item_style.xml,新建文件夹drawable,然后将该xml文件放进去

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">

    <item android:drawable="@drawable/unpressed_bj" android:state_selected="false"/>
    <item android:drawable="@drawable/pressed_bj" android:state_selected="true"/>

</selector>
4.java代码实现:MyTabHost.java

package com.example.androidtabhost4;

import android.os.Bundle;
import android.app.Activity;
import android.app.TabActivity;
import android.content.Intent;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.View;
import android.widget.ImageView;
import android.widget.TabHost;
import android.widget.TextView;
import android.widget.TabHost.TabSpec;

public class MyTabHost extends TabActivity {

	private TabHost tabHost;
	private LayoutInflater layoutInflater;
	String[] mTitle = new String[] { "首页", "留言", "评论", "收藏", "更多" };
	int[] mIcon = new int[] { R.drawable.home, R.drawable.saying,
			R.drawable.zan, R.drawable.collect, R.drawable.more };
	int[] mTab = new int[] { R.id.tab1, R.id.tab2, R.id.tab3, R.id.tab4,
			R.id.tab5 };

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.tabhost);
		init();
	}

	public View getTabItemView(int i) {
		// TODO Auto-generated method stub
		View view = layoutInflater.inflate(R.layout.tab_item_view, null);
		ImageView imageView = (ImageView) view.findViewById(R.id.imageview);
		imageView.setImageResource(mIcon[i]);
		TextView textView = (TextView) view.findViewById(R.id.textview);
		textView.setText(mTitle[i]);
		return view;
	}

	public void init() {
		// TODO Auto-generated method stub
		tabHost = getTabHost();
		layoutInflater = LayoutInflater.from(this);
		for (int i = 0; i < mTitle.length; i++) {
			TabSpec tabSpec = tabHost.newTabSpec(mTitle[i])
					.setIndicator(getTabItemView(i)).setContent(mTab[i]);
			tabHost.addTab(tabSpec);
			tabHost.getTabWidget().getChildAt(i)
					.setBackgroundResource(R.drawable.tab_item_style);
			tabHost.setup();
		}
	}

}
5.大功告成,如有错误,详见

http://blog.csdn.net/zxh_2012/article/details/10559155
http://blog.csdn.net/zxh_2012/article/details/10681629

6.欢迎分享和转载,转载注明出处,如需源码,站内留言,不足之处,欢迎留言指正,不胜感激!
