1.引言

在前面我们大多数的程序是对矢量数据的操作，在这篇博客中，主要介绍影响服务的操作。在影像服务的操作中主要用到的类有：

esri/tasks/ImageServiceIdentifyTask用于对影像数据的查询，它主要对应的参数为esri/tasks/ImageServiceIdentifyParameters,查询返回的结果用esri/tasks/ImageServiceIdentifyResult接受
对影像数据的测量主要用到的类为esri/tasks/ImageServiceMeasureTask,它所对应的的参数为esri/tasks/ImageServiceMeasureParameters

对于影像服务的操作大多都基于这两个类来实现，接下来在本博客中，主要介绍一下影像数据的查询操作，如何发布影响服务请看：ArcGIS Server发布影响服务

在本博客中以青岛的Dem为例，来介绍一下影像的查询工具esri/tasks/ImageServiceMeasureTask应该如何使用。

2.ArcGIS API影像测量

2.1 代码实现

首先加载地图

require(["esri/map","esri/layers/ArcGISImageServiceLayer","dojo/domReady!"],function(Map,ArcGISImageServiceLayer){
   		var map=new Map("mapDiv")
   		//注意这里是影响服务
   		var layer=new ArcGISImageServiceLayer("http://localhost:6080/arcgis/rest/services/Test/Dem/ImageServer")
   		map.addLayer(layer);
   	});

添加两个按钮，一个用于绘制折线，一个用于测量分析

	<button id="drawp">绘制点</button>
	<button id="btn">查询</button>

创建必要对象

			//用于绘制点
			var toolbar =new Draw(map);

			//创建影像分析对象
			var task=new ImageServiceIdentifyTask("http://192.168.0.112:6080/arcgis/rest/services/Test/Dem1/ImageServer");
			//创建影像分析参数对象
			var params=new ImageServiceIdentifyParameters();
			var lineSymbol = new SimpleLineSymbol(SimpleLineSymbol.STYLE_DASH, new dojo.Color([255, 0, 0]), 3);
            var marker= new SimpleMarkerSymbol(SimpleMarkerSymbol.STYLE_CIRCLE,10, lineSymbol, new dojo.Color([255, 0, 0]));
            var fill= new SimpleFillSymbol(SimpleFillSymbol.STYLE_SOLID, lineSymbol,  new dojo.Color([255, 0, 0]));

给绘制折现按钮添加绑定事件

			//给绘制点按钮绑定事件
			on(dom.byId("drawp"),"click",function(){
				toolbar.activate(Draw.POLYLINE, {
                        showTooltips:true
                })
			})
			//给draw工具的绘制完成事件绑定函数
			on(toolbar,"draw-complete", function (result) {
                var geometry=result.geometry;
				//给参数对象的几何属性赋值
				params.geometry=geometry;
				toolbar.deactivate();

			})

给分析按钮绑定事件

on(dom.byId("btn"),"click",function(){
				//设置掩膜规则
				var mosaicRule=new MosaicRule();
				mosaicRule.ascending=false;
				mosaicRule.method=MosaicRule.METHOD_CENTER
				params.mosaicRule=mosaicRule
				params.pixelSizeX=layer.pixelSizeX;
				params.pixelSizeY=layer.pixelSizeY;
				task.execute(params,function(result){
					//弹出改点的高程值
					alert(result.value)
				})
			})

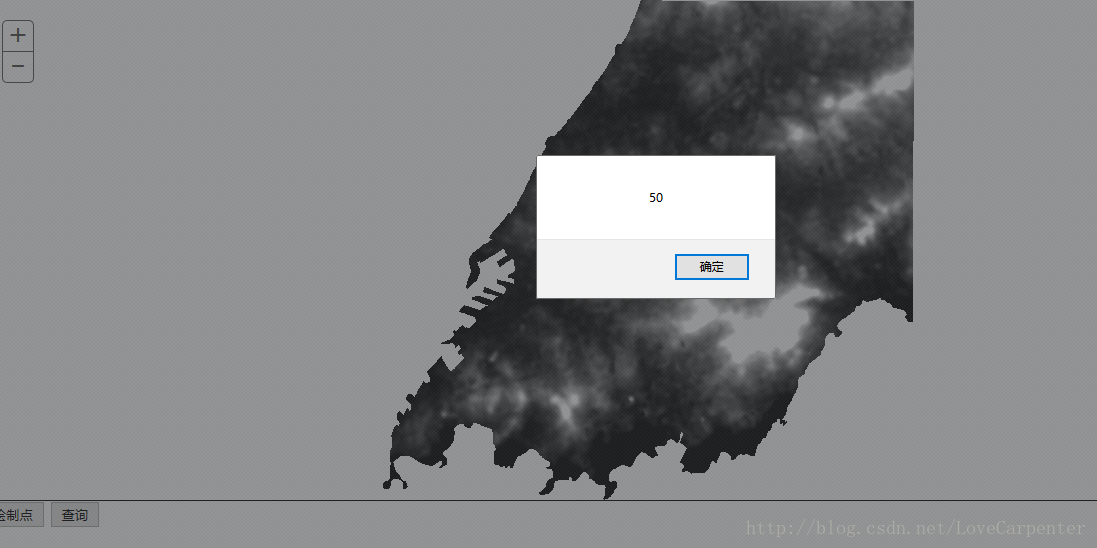

2.2 代码结果

这里写图片描述

2.3全部代码

<!DOCTYPE html>
<html>
  <head>
    <title>index.html</title>

    <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
    <meta http-equiv="description" content="this is my page">
    <meta http-equiv="content-type" content="text/html; charset=utf-8">
    <link  rel="stylesheet"  type="text/css" href="http://localhost/arcgis_js_api/library/3.17/3.17/dijit/themes/tundra/tundra.css"/>
    <link  rel="stylesheet"  type="text/css" href="http://localhost/arcgis_js_api/library/3.17/3.17/esri/css/esri.css" />
    <script  type="text/Javascript" src="http://localhost/arcgis_js_api/library/3.17/3.17/init.js"></script>
    <!--<link rel="stylesheet" type="text/css" href="./styles.css">-->
	<style>
        .MapClass{
            width:100%;
            height:500px;
            border:1px solid #000;
        }
    </style>
	<script>
		require(["esri/map","esri/layers/ArcGISImageServiceLayer","dojo/on",
		"dojo/dom","esri/toolbars/draw",
		"esri/tasks/ImageServiceIdentifyTask","esri/tasks/ImageServiceIdentifyParameters",
		"esri/symbols/SimpleLineSymbol","esri/graphic","esri/symbols/SimpleMarkerSymbol", "esri/symbols/SimpleFillSymbol",
		"esri/layers/MosaicRule",
		"dojo/domReady!"],function(Map,ArcGISImageServiceLayer,on,dom,Draw,ImageServiceIdentifyTask,
		ImageServiceIdentifyParameters,SimpleLineSymbol,
		Graphic,SimpleMarkerSymbol,SimpleFillSymbol,MosaicRule){
			var map=new Map("mapDiv")

			//注意这里是影响服务
			var layer=new ArcGISImageServiceLayer("http://192.168.0.112:6080/arcgis/rest/services/Test/Dem1/ImageServer")
			map.addLayer(layer);
			//用于绘制点
			var toolbar =new Draw(map);

			//创建影像分析对象
			var task=new ImageServiceIdentifyTask("http://192.168.0.112:6080/arcgis/rest/services/Test/Dem1/ImageServer");
			//创建影像分析参数对象
			var params=new ImageServiceIdentifyParameters();
			var lineSymbol = new SimpleLineSymbol(SimpleLineSymbol.STYLE_DASH, new dojo.Color([255, 0, 0]), 3);
            var marker= new SimpleMarkerSymbol(SimpleMarkerSymbol.STYLE_CIRCLE,10, lineSymbol, new dojo.Color([255, 0, 0]));
            var fill= new SimpleFillSymbol(SimpleFillSymbol.STYLE_SOLID, lineSymbol,  new dojo.Color([255, 0, 0]));
			//给绘制折线按钮绑定事件
			on(dom.byId("drawp"),"click",function(){
				toolbar.activate(Draw.POINT, {
                        showTooltips:true
                })
			})
			//给draw工具的绘制完成事件绑定函数
			on(toolbar,"draw-complete", function (result) {
				map.graphics.clear();
                var geometry=result.geometry;
				//给参数对象的几何属性赋值
				params.geometry =geometry;
				graphic= new Graphic(geometry, marker);
				map.graphics.add(graphic);
				toolbar.deactivate();

			})

			on(dom.byId("btn"),"click",function(){
				//设置掩膜规则
				var mosaicRule=new MosaicRule();
				mosaicRule.ascending=false;
				mosaicRule.method=MosaicRule.METHOD_CENTER
				params.mosaicRule=mosaicRule
				params.pixelSizeX=layer.pixelSizeX;
				params.pixelSizeY=layer.pixelSizeY;
				task.execute(params,function(result){
					//弹出改点的高程值
					alert(result.value)
				})
			})

		});
	</script>
  </head>

  <body>
    <div id="mapDiv" class="MapClass"></div>
	<button id="drawp">绘制点</button>
	<button id="btn">查询</button>
  </body>
</html>
