利用DrawerLayout和触摸事件分发来实现抽屉侧滑业务

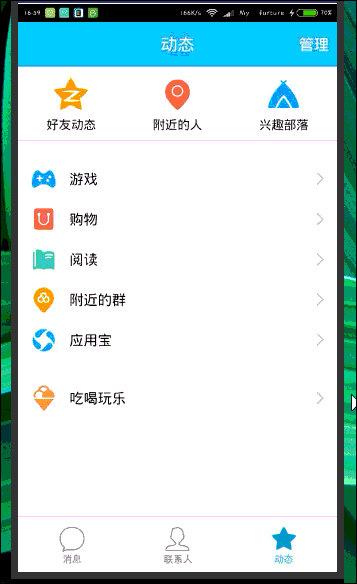

效果展示

还是看代码实在，直接上菜了。
1.MainActivity的代码：

public class MainActivity extends AppCompatActivity implements    MyDraweLayout.GetPositionCallback {

        private List<ImageView> imageList;
        private ViewPager viewPager;
        private MyAdapter adapter;
        private MyDraweLayout myDraweLayout;
        private int currentPosition;

        @Override
        protected void onCreate (Bundle savedInstanceState){
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        viewPager = (ViewPager) findViewById(R.id.viewpager);
        myDraweLayout = (MyDraweLayout) findViewById(R.id.mydrawelayout);
        initdata();
        adapter = new MyAdapter(this, imageList);
         myDraweLayout.setCallback(this);
        viewPager.setAdapter(adapter);
            viewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {
                @Override
                public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {

                }

                @Override
                public void onPageSelected(int position) {
                    currentPosition=position;
                }

                @Override
                public void onPageScrollStateChanged(int state) {

                }
            });

    }
    private void initdata() {
        imageList = new ArrayList<ImageView>();

        ImageView imageView = new ImageView(this);
        imageView.setImageResource(R.mipmap.ic_launcher);
        imageView.setScaleType(ImageView.ScaleType.FIT_XY);
        imageList.add(imageView);

        imageView = new ImageView(this);
        imageView.setImageResource(R.mipmap.ic_launcher);
        imageView.setScaleType(ImageView.ScaleType.FIT_XY);
        imageList.add(imageView);

        imageView = new ImageView(this);
        imageView.setImageResource(R.mipmap.ic_launcher);
        imageView.setScaleType(ImageView.ScaleType.FIT_XY);
        imageList.add(imageView);

        imageView = new ImageView(this);
        imageView.setImageResource(R.mipmap.ic_launcher);
        imageView.setScaleType(ImageView.ScaleType.FIT_XY);
        imageList.add(imageView);


    }


    @Override
    public int position() {
        return currentPosition;//TODO  通过接口回调把当前位置传到MyDraweLayout中
    }
}

2.MyDraweLayout类中的代码：

public class MyDraweLayout extends DrawerLayout {
    public MyDraweLayout(Context context) {
        super(context);
    }

    public MyDraweLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public MyDraweLayout(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
    }
    //TODO　事件拦截
    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev) {
        //Todo 获得当前位置，进行判断
        if(callback.position()==0){
            return  super.onInterceptTouchEvent(ev);
        }else {
            return false;
        }
    }



    public  interface  GetPositionCallback{
        int position();
    }
  private GetPositionCallback callback;
   public void setCallback(GetPositionCallback callback){
       this.callback = callback;

    }
}

3.适配器的代码;

public class MyAdapter extends PagerAdapter {

    private final List<ImageView> imageList;
    private final Context contex;

    public MyAdapter(Context context, List<ImageView> imageList) {
    this.contex=context;
        this.imageList = imageList;
    }

    @Override
    public int getCount() {
        return imageList.size();
    }

    @Override
    public boolean isViewFromObject(View view, Object object) {
        return view==object;
    }

    @Override
    public Object instantiateItem(ViewGroup container, int position) {
        ImageView imageView = imageList.get(position);
        container.addView(imageView);
        return imageView;
    }

    @Override
    public void destroyItem(ViewGroup container, int position, Object object) {
        //super.destroyItem(container, position, object);这行代码记得删除，不然滑到Viewpager的时候会闪退哦
        container.removeView(imageList.get(position));
    }
}

4.xml布局：

<?xml version="1.0" encoding="utf-8"?>
<com.example.a43_drawelayoutandviewpager.MyDraweLayout
    android:id="@+id/mydrawelayout"
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
>
<RelativeLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <android.support.v4.view.ViewPager
        android:layout_width="match_parent"
        android:layout_height="250dp"
        android:id="@+id/viewpager"/>
    </RelativeLayout>
    <ImageView

       android:background="@mipmap/ic_launcher"
        android:layout_width="300dp"
        android:layout_gravity = "start"
        android:layout_height="match_parent"
        android:layout_below="@+id/viewpager"
     />
</com.example.a43_drawelayoutandviewpager.MyDraweLayout>
