图像处理之基于采样距离变换算法

算法是别人提出来的，感兴趣可以搜索《Distance Transforms of Sampled Functions》

这篇论文，网上也有很多实现的代码，但是结构不是很好，而且很分散不是一个完整的

算法。所以我整理了一下，写成一个单独的类，只要简单调用一下即可出结果图片。

至于算法原理什么的，我真很难解释清楚，大致的思想是基于能量最小化的，分别

进行行与列的1D距离变变换采样。

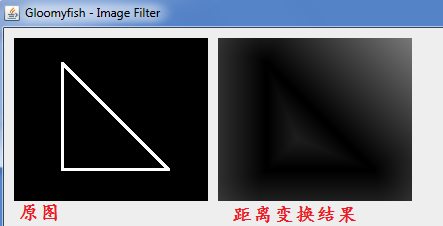

运行结果：

算法代码：

package com.gloomyfish.image.transform;

import java.awt.image.BufferedImage;

import com.gloomyfish.filter.study.GrayFilter;
/**
 *
 * @author gloomyfish
 *
 */
public class FastDistanceTransformAlg extends GrayFilter {
	public final static double INF = 1E20;
	private int backgroundColor = 0; // default black

	public int getBackgroundColor() {
		return backgroundColor;
	}

	public void setBackgroundColor(int backgroundColor) {
		this.backgroundColor = backgroundColor;
	}

	@Override
	public BufferedImage filter(BufferedImage src, BufferedImage dest) {
		int width = src.getWidth();
        int height = src.getHeight();
        dest = super.filter(src, null);

        //
        int[] inPixels = new int[width*height];
        float[] outPixels = new float[width*height];
        getRGB( dest, 0, 0, width, height, inPixels );
        int index = 0;
        for(int row=0; row<height; row++) {
        	int tr = 0;
        	for(int col=0; col<width; col++) {
        		index = row * width + col;
                tr = (inPixels[index] >> 16) & 0xff;
                if(tr == backgroundColor)
                	outPixels[index] = (float)INF;
                else
                	outPixels[index] = 0;
        	}
        }

        // transform along columns
        float[] f = new float[Math.max(width, height)];
        for(int col=0; col<width; col++) {
        	for(int row=0; row<height; row++) {
        		index = row * width + col;
                f[row] = outPixels[index];
        	}
        	float[] disColumns = distance1DTransform(f, height);
        	for(int row=0; row<height; row++) {
        		index = row * width + col;
        		outPixels[index] = disColumns[row];
        	}
        }

        // transform along rows
        for (int row = 0; row < height; row++) {
          for (int col = 0; col < width; col++) {
      		index = row * width + col;
            f[col] = outPixels[index];
          }
          float[] disColumns = distance1DTransform(f, width);
          for (int col = 0; col < width; col++) {
      		index = row * width + col;
      		outPixels[index] = disColumns[col];
          }
        }

        // post sqrt calculation
        int[] result = new int[width*height];
        for(int row=0; row<height; row++) {
        	for(int col=0; col<width; col++) {
        		index = row * width + col;
        		int pc = clamp(Math.sqrt(outPixels[index]));
        		result[index] = (255 << 24) | (pc << 16) | (pc << 8) | pc;
        	}
        }
        setRGB( dest, 0, 0, width, height, result );
        return dest;
	}

	public static int clamp(double c)
	{
		return c > 255 ? 255 : (c < 0 ? 0 : (int)c);
	}

	/**
	 * 1D distance transform using squared distance
	 *
	 * @param data
	 * @param n
	 * @return
	 */
	private float[] distance1DTransform(float[] f, int n)
	{
		  float[] d = new float[n];
		  int[] v = new int[n];
		  double[] z = new double[n+1];
		  int k = 0;
		  v[0] = 0;
		  z[0] = -INF;
		  z[1] = +INF;
		  for (int q = 1; q <= n-1; q++) {
		    double s  = ((f[q]+square(q))-(f[v[k]]+square(v[k])))/(2*q-2*v[k]);
		    while (s <= z[k]) {
		      k--;
		      s  = ((f[q]+square(q))-(f[v[k]]+square(v[k])))/(2*q-2*v[k]);
		    }
		    k++;
		    v[k] = q;
		    z[k] = s;
		    z[k+1] = +INF;
		  }

		  k = 0;
		  for (int q = 0; q <= n-1; q++) {
		    while (z[k+1] < q)
		      k++;
		    d[q] = (float)square(q-v[k]) + f[v[k]];
		  }
		  return d;
	}

	private double square(double v)
	{
		return v*v;
	}

}

2013年的最后一篇！谢谢一直关注的各位！
