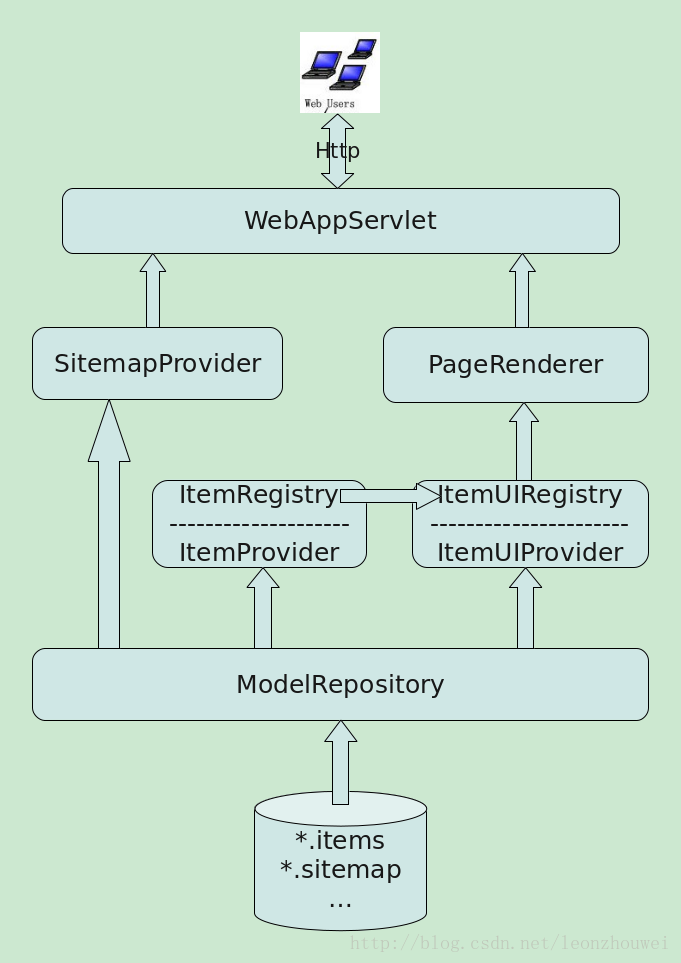

[置顶] <废弃> openHAB 体系结构与编程模型 (2) --- Web Application Servlet 源码结构

1753人阅读 评论(2) 收藏 举报
分类:


||

||

||

||

||

||

demo.items

Group All
Group gGF 		(All)
Group gFF 		(All)
Group gC 		(All)
Group Outdoor 	(All)
Group Shutters 	(All)
Group Weather 	(All)
Group Status 	(All)

Group GF_Living 	"Living Room" 	<video> 	(gGF)
Group GF_Kitchen 	"Kitchen" 		<kitchen> 	(gGF)
Group GF_Toilet 	"Toilet" 		<bath> 		(gGF)
Group GF_Corridor 	"Corridor" 		<corridor> 	(gGF)

Group FF_Bath 		"Bathroom" 		<bath> 		(gFF)
Group FF_Office 	"Office" 		<office> 	(gFF)
Group FF_Child 		"Child's Room" 	<boy1> 		(gFF)
Group FF_Bed 		"Bedroom" 		<bedroom> 	(gFF)
Group FF_Corridor 	"Corridor" 		<corridor> 	(gFF)

/* active groups */
Group:Switch:OR(ON, OFF) 		Lights 		"All Lights [(%d)]" 								(All)
Group:Switch:OR(ON, OFF) 		Heating 	"No. of Active Heatings [(%d)]" 	<heating> 		(All)
Group:Number:AVG 				Temperature	"Avg. Room Temperature [%.1f °C]" 	<temperature>	(Status)
Group:Contact:OR(OPEN, CLOSED) 	Windows 	"Open windows [(%d)]"				<contact>		(All)

/* Lights */
Dimmer Light_GF_Living_Table 		"Table" 		(GF_Living, Lights)
Switch Light_GF_Corridor_Ceiling 	"Ceiling" 		(GF_Corridor, Lights)
Switch Light_GF_Kitchen_Ceiling 	"Ceiling" 		(GF_Kitchen, Lights)
Switch Light_GF_Kitchen_Table 		"Table" 		(GF_Kitchen, Lights)
Switch Light_GF_Corridor_Wardrobe 	"Wardrobe"	 	(GF_Corridor, Lights)
Switch Light_GF_Toilet_Ceiling 		"Ceiling" 		(GF_Toilet, Lights)
Switch Light_GF_Toilet_Mirror 		"Mirror" 		(GF_Toilet, Lights)

Switch Light_FF_Bath_Ceiling 		"Ceiling" 		(FF_Bath, Lights)
Switch Light_FF_Bath_Mirror 		"Mirror" 		(FF_Bath, Lights)
Switch Light_FF_Corridor_Ceiling 	"Corridor" 		(FF_Corridor, Lights)
Switch Light_FF_Office_Ceiling 		"Ceiling" 		(FF_Office, Lights)
Switch Light_FF_Child_Ceiling 		"Ceiling" 		(FF_Child, Lights)
Switch Light_FF_Bed_Ceiling 		"Ceiling" 		(FF_Bed, Lights)

Switch Light_C_Corridor_Ceiling 	"Ceiling" 		(gC, Lights)
Switch Light_C_Staircase 			"Staircase" 	(gC, Lights)
Switch Light_C_Washing_Ceiling 		"Washing" 		(gC, Lights)
Switch Light_C_Workshop 			"Workshop" 		(gC, Lights)

Switch Light_Outdoor_Garage 		"Garage" 		(Outdoor, Lights)
Switch Light_Outdoor_Terrace 		"Terrace" 		(Outdoor, Lights)
Switch Light_Outdoor_Frontdoor 		"Frontdoor"		(Outdoor, Lights)

/* Heating */
Switch Heating_GF_Corridor 	"GF Corridor" 	<heating>	(GF_Corridor, Heating)
Switch Heating_GF_Toilet 	"Toilet"	 	<heating>	(GF_Toilet, Heating)
Switch Heating_GF_Living 	"Livingroom" 	<heating>	(GF_Living, Heating)
Switch Heating_GF_Kitchen 	"Kitchen" 		<heating>	(GF_Kitchen, Heating)

Switch Heating_FF_Bath 		"Bath" 			<heating>	(FF_Bath, Heating)
Switch Heating_FF_Office 	"Office" 		<heating>	(FF_Office, Heating)
Switch Heating_FF_Child 	"Child's Room" 	<heating>	(FF_Child, Heating)
Switch Heating_FF_Bed 		"Bedroom" 		<heating>	(FF_Bed, Heating)

/* Rollershutters */
Switch Shutter_all (Shutters)

Rollershutter Shutter_GF_Toilet 		"Toilet"		(GF_Toilet, Shutters)
Rollershutter Shutter_GF_Kitchen 		"Kitchen"		(GF_Kitchen, Shutters)
Rollershutter Shutter_GF_Living 		"Livingroom"	(GF_Living, Shutters)

Rollershutter Shutter_FF_Bed 			"Bedroom"		(FF_Bed, Shutters)
Rollershutter Shutter_FF_Bath 			"Bath"			(FF_Bath, Shutters)
Rollershutter Shutter_FF_Office_Window	"Office Window"	(FF_Office, Shutters)
Rollershutter Shutter_FF_Office_Door 	"Office Door"	(FF_Office, Shutters)

/* Indoor Temperatures */
Number Temperature_GF_Corridor 	"Temperature [%.1f °C]"	<temperature>	(Temperature, GF_Corridor)
Number Temperature_GF_Toilet 	"Temperature [%.1f °C]"	<temperature>	(Temperature, GF_Toilet)
Number Temperature_GF_Living 	"Temperature [%.1f °C]"	<temperature>	(Temperature, GF_Living)
Number Temperature_GF_Kitchen 	"Temperature [%.1f °C]"	<temperature>	(Temperature, GF_Kitchen)
Number Temperature_FF_Bath 		"Temperature [%.1f °C]"	<temperature>	(Temperature, FF_Bath)
Number Temperature_FF_Office 	"Temperature [%.1f °C]"	<temperature>	(Temperature, FF_Office)
Number Temperature_FF_Child 	"Temperature [%.1f °C]"	<temperature>	(Temperature, FF_Child)
Number Temperature_FF_Bed 		"Temperature [%.1f °C]"	<temperature>	(Temperature, FF_Bed)

/* Windows */
Contact Window_GF_Frontdoor 	"Frontdoor [MAP(en.map):%s]"		(GF_Corridor, Windows)
Contact Window_GF_Kitchen 		"Kitchen [MAP(en.map):%s]"			(GF_Kitchen, Windows)
Contact Window_GF_Living 		"Terrace door [MAP(en.map):%s]"		(GF_Living, Windows)
Contact Window_GF_Toilet 		"Toilet [MAP(en.map):%s]"			(GF_Toilet, Windows)

Contact Window_FF_Bath 			"Bath [MAP(en.map):%s]"				(FF_Bath, Windows)
Contact Window_FF_Bed 			"Bedroom [MAP(en.map):%s]"			(FF_Bed, Windows)
Contact Window_FF_Office_Window "Office Window [MAP(en.map):%s]"	(FF_Office, Windows)
Contact Window_FF_Office_Door 	"Balcony Door [MAP(en.map):%s]"		(FF_Office, Windows)

Contact Garage_Door 			"Garage Door [MAP(en.map):%s]"		(Outdoor, Windows)

Group Weather_Chart													(Weather)
Number Weather_Temperature 		"Outside Temperature [%.1f °C]"	<temperature> (Weather_Chart) { http="<[http://weather.yahooapis.com/forecastrss?w=638242&u=c:60000:XSLT(yahoo_weather_temperature.xsl)]" }
Number Weather_Temp_Max 		"Todays Maximum [%.1f °C]"	<temperature> (Weather_Chart)
Number Weather_Temp_Min 		"Todays Minimum [%.1f °C]"	<temperature> (Weather_Chart)

/* NTP binding demo item */
DateTime		Date			"Date [%1$tA, %1$td.%1$tm.%1$tY]"	<calendar>	{ ntp="Europe/Berlin:de_DE" }

/* Demo items */
Switch DemoSwitch				"Switch"
Dimmer DimmedLight				"Dimmer [%d %%]"		<slider>
Color  RGBLight					"RGB Light"				<slider>
Rollershutter DemoShutter	 	"Roller Shutter"
Dimmer DemoBlinds			 	"Blinds [%d %%]"		<rollershutter>
Number Scene_General			"Scene"					<sofa>
Number Radio_Station			"Radio"					<network>
Dimmer Volume 					"Volume [%.1f %%]"
Number Temperature_Setpoint		"Temperature [%.1f °C]" <temperature>

String UnknownDevices    "Unknown Devices in Range: [%s]" { bluetooth="?" }
Number NoOfPairedDevices "Paired Devices in Range: [%d]"  { bluetooth="!" }

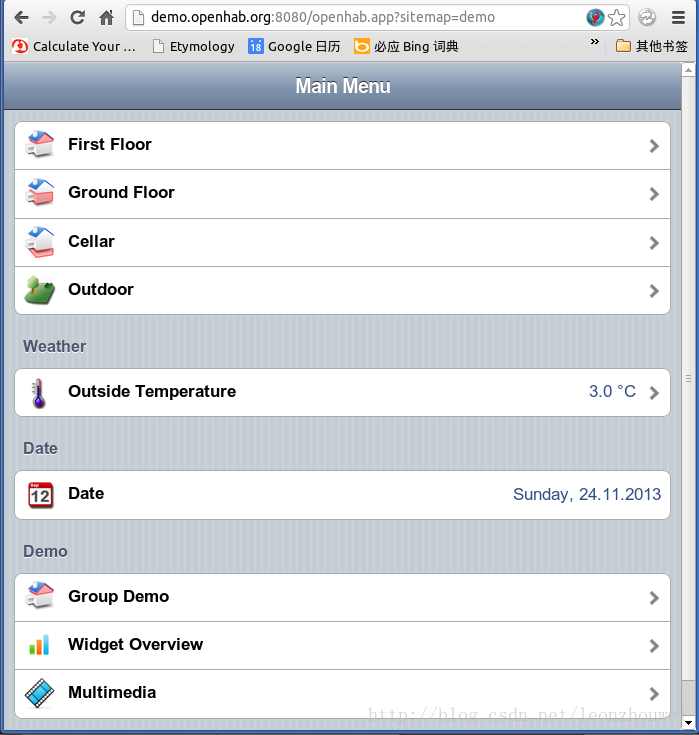

demo.sitemap

sitemap demo label="Main Menu"
{
	Frame {
		Group item=gFF label="First Floor" icon="firstfloor"
		Group item=gGF label="Ground Floor" icon="groundfloor"
		Group item=gC label="Cellar" icon="cellar"
		Group item=Outdoor icon="garden"
	}
	Frame label="Weather" {
		Text item=Weather_Temperature {
			Frame {
				Text item=Weather_Temp_Max
				Text item=Weather_Temp_Min
			}
			Frame {
				Chart item=Weather_Chart period=h refresh=10000
			}
		}
	}
	Frame label="Date" {
		Text item=Date
	}
	Frame label="Demo" {
		Text label="Group Demo" icon="firstfloor" {
			Switch item=Lights mappings=[OFF="All Off"]
			Group item=Heating
			Group item=Windows
			Text item=Temperature
		}
		Text label="Widget Overview" icon="chart" {
			Frame label="Binary Widgets" {
				Switch item=DemoSwitch label="Toggle Switch"
				Switch item=DemoSwitch label="Button Switch" mappings=[ON="On"]
			}
			Frame label="Discrete Widgets" {
				Selection item=Scene_General label="Scene Selection" mappings=[0=off, 1=TV, 2=Dinner, 3=Reading]
				Switch item=Scene_General label="Scene" mappings=[1=TV, 2=Dinner, 3=Reading]
				Setpoint item=Temperature_Setpoint minValue=16 maxValue=28 step=0.5
			}
			Frame label="Percent-based Widgets" {
				Slider item=DimmedLight switchSupport
				Colorpicker item=RGBLight icon="slider"
				Switch item=DemoShutter
				Slider item=DemoBlinds
			}
		}
		Text label="Multimedia" icon="video" {
			Frame label="Radio Control" {
				Selection item=Radio_Station mappings=[0=off, 1=HR3, 2=SWR3, 3=FFH]
				Slider item=Volume
			}
			Frame label="Multimedia Widgets" {
				Image url="http://localhost:8080/images/splash-ipad-h.png" label="openHAB" {
					Text label="http://www.openHAB.org" icon="icon"
				}
				Video url="http://demo.openhab.org/Hue.m4v"
				Webview url="http://heise-online.mobi/" height=8
			}
		}
	}
}
