RevitAPI: 如何获取某个材质参数？

我经常听到这样的问题：Asset里面有太多的参数，怎么才能知道哪个参数是我想要的？尤其是我们中国的用户，界面都是中文，而API基本都是英文，寻找对应关系就更难了。

开发人员可能走到这里就止步了：

private void CustomerApproach(Material material)
{
    ElementId appearanceId = material.AppearanceAssetId;
    AppearanceAssetElement appearanceElem =
        RevitDoc.GetElement(appearanceId) as AppearanceAssetElement;
    Asset theAsset = appearanceElem.GetRenderingAsset();
    for (int idx = 0; idx < theAsset.Size; idx++)
    {
        //太多参数了，头晕了吧?
        AssetProperty ap = theAsset[idx];
    }
}

其实我也不知道答案，但是我们可以自己动手来探测一下，代码如下：

private void DumpAppearanceAssetProperties(Material material)
{
    ElementId appearanceId = material.AppearanceAssetId;
    AppearanceAssetElement appearanceElem = material.Document.
        GetElement(appearanceId) as AppearanceAssetElement;
    Asset theAsset = appearanceElem.GetRenderingAsset();
    List<AssetProperty> assets = new List<AssetProperty>();
    for (int idx = 0; idx < theAsset.Size; idx++)
    {
        AssetProperty ap = theAsset[idx];
        assets.Add(ap);
    }
    // order the properties!
    assets = assets.OrderBy(ap => ap.Name).ToList();
    for (int idx = 0; idx < assets.Count; idx++)
    {
        AssetProperty ap = assets[idx];
        Type type = ap.GetType();
        object apVal = null;
        try
        {
            // using .net reflection to get the value
            var prop = type.GetProperty("Value");
            if (prop != null &&
                prop.GetIndexParameters().Length == 0)
            {
                apVal = prop.GetValue(ap);
            }
            else
            {
                apVal = "<No Value Property>";
            }
        }
        catch (Exception ex)
        {
            apVal = ex.GetType().Name + "-" + ex.Message;
        }

        if (apVal is DoubleArray)
        {
            var doubles = apVal as DoubleArray;
            apVal = doubles.Cast<double>().Aggregate("", (s, d) => s + Math.Round(d,5) + ",");
        }
        Log(idx + " : [" + ap.Type + "] " + ap.Name + " = " + apVal);
    }
}

有人问就算输出这些参数，我也还是不知道哪个是我要的啊。因为结果看上去是这样的：

结果1:

0 : [APT_String] AdvancedUIDefinition = Mats/Generic/GenericAdvancedUI.xml
1 : [APT_String] AssetLibID = AD121259-C03E-4A1D-92D8-59A22B4807AD
2 : [APT_String] assettype = materialappearance
3 : [APT_String] BaseSchema = GenericSchema
4 : [APT_String] category = :Concrete:Default:Miscellaneous
5 : [APT_Boolean] color_by_object = False
6 : [APT_Integer] common_Shared_Asset = 1
7 : [APT_DoubleArray4d] common_Tint_color = 0.315,0.315,0.315,1,
8 : [APT_Boolean] common_Tint_toggle = False
9 : [APT_String] description = Generic material.
10 : [APT_String] ExchangeGUID =
11 : [APT_Boolean] generic_ao_details = True
12 : [APT_Double] generic_ao_distance = 4
13 : [APT_Boolean] generic_ao_on = False
14 : [APT_Integer] generic_ao_samples = 16
15 : [APT_Boolean] generic_backface_cull = False
16 : [APT_Double] generic_bump_amount = 9.39325797868605E-275
17 : [APT_DoubleArray4d] generic_bump_map = 0,0,0,1,
18 : [APT_Double] generic_cutout_opacity = 1
19 : [APT_DoubleArray4d] generic_diffuse = 0.51353,0.52278,0.47005,1,
20 : [APT_Double] generic_diffuse_image_fade = 1
21 : [APT_Double] generic_glossiness = 0
22 : [APT_Boolean] generic_is_metal = False
23 : [APT_Integer] generic_refl_depth = 0
24 : [APT_Integer] generic_reflection_glossy_samples = 12
25 : [APT_Double] generic_reflectivity_at_0deg = 0.5
26 : [APT_Double] generic_reflectivity_at_90deg = 0.5
27 : [APT_Integer] generic_refr_depth = -1
28 : [APT_Integer] generic_refraction_glossy_samples = 12
29 : [APT_Double] generic_refraction_index = 1
30 : [APT_Double] generic_refraction_translucency_weight = 0
31 : [APT_Boolean] generic_roundcorners_allow_different_materials = False
32 : [APT_Double] generic_roundcorners_radius = 0
33 : [APT_Double] generic_self_illum_color_temperature = 6500
34 : [APT_DoubleArray4d] generic_self_illum_filter_map = 1,1,1,1,
35 : [APT_Double] generic_self_illum_luminance = 0
36 : [APT_Double] generic_transparency = 0
37 : [APT_Double] generic_transparency_image_fade = 1
38 : [APT_Boolean] Hidden = False
39 : [APT_String] ImplementationGeneric =
40 : [APT_String] ImplementationMentalRay = Mats/Generic/MentalImage.xml
41 : [APT_String] ImplementationOGS = Mats/Generic/OGS.xml
42 : [APT_String] ImplementationPreview = Mats/Generic/PreviewColor.xml
43 : [APT_String] keyword =
44 : [APT_String] localname = Generic
45 : [APT_String] localtype = Appearance
46 : [APT_Integer] mode = 4
47 : [APT_DoubleArray2d] PatternOffset = 0,0,
48 : [APT_Integer] revision = 1
49 : [APT_Integer] SchemaVersion = 4
50 : [APT_String] swatch = Swatch-Cube
51 : [APT_String] thumbnail = C:/Users/lua.ADS/AppData/Local/Temp/MaterialThumbnails_PID_1434/73c06a00Smooth Precast Structural.png
52 : [APT_String] UIDefinition = Mats/Generic/GenericUI.xml
53 : [APT_String] UIName = Smooth Precast Structural
54 : [APT_Integer] version = 2
55 : [APT_String] VersionGUID = B1E74BC9-150D-4CB2-BFF1-376BEAD5FEAE

别急，我们修改一下我们感兴趣的几个属性，再输出一次，例如我更改了Reflectivity下面的两个属性，结果如下：

0 : [APT_String] AdvancedUIDefinition = Mats/Generic/GenericAdvancedUI.xml
1 : [APT_String] AssetLibID = AD121259-C03E-4A1D-92D8-59A22B4807AD
2 : [APT_String] assettype = materialappearance
3 : [APT_String] BaseSchema = GenericSchema
4 : [APT_String] category = :Concrete:Default:Miscellaneous
5 : [APT_Boolean] color_by_object = False
6 : [APT_Integer] common_Shared_Asset = 1
7 : [APT_DoubleArray4d] common_Tint_color = 0.315,0.315,0.315,1,
8 : [APT_Boolean] common_Tint_toggle = False
9 : [APT_String] description = Generic material.
10 : [APT_String] ExchangeGUID =
11 : [APT_Boolean] generic_ao_details = True
12 : [APT_Double] generic_ao_distance = 4
13 : [APT_Boolean] generic_ao_on = False
14 : [APT_Integer] generic_ao_samples = 16
15 : [APT_Boolean] generic_backface_cull = False
16 : [APT_Double] generic_bump_amount = 9.39325797868605E-275
17 : [APT_DoubleArray4d] generic_bump_map = 0,0,0,1,
18 : [APT_Double] generic_cutout_opacity = 1
19 : [APT_DoubleArray4d] generic_diffuse = 0.51353,0.52278,0.47005,1,
20 : [APT_Double] generic_diffuse_image_fade = 1
21 : [APT_Double] generic_glossiness = 0
22 : [APT_Boolean] generic_is_metal = False
23 : [APT_Integer] generic_refl_depth = 0
24 : [APT_Integer] generic_reflection_glossy_samples = 12
25 : [APT_Double] generic_reflectivity_at_0deg = 0.2
26 : [APT_Double] generic_reflectivity_at_90deg = 0.96
27 : [APT_Integer] generic_refr_depth = -1
28 : [APT_Integer] generic_refraction_glossy_samples = 12
29 : [APT_Double] generic_refraction_index = 1
30 : [APT_Double] generic_refraction_translucency_weight = 0
31 : [APT_Boolean] generic_roundcorners_allow_different_materials = False
32 : [APT_Double] generic_roundcorners_radius = 0
33 : [APT_Double] generic_self_illum_color_temperature = 6500
34 : [APT_DoubleArray4d] generic_self_illum_filter_map = 1,1,1,1,
35 : [APT_Double] generic_self_illum_luminance = 0
36 : [APT_Double] generic_transparency = 0
37 : [APT_Double] generic_transparency_image_fade = 1
38 : [APT_Boolean] Hidden = False
39 : [APT_String] ImplementationGeneric =
40 : [APT_String] ImplementationMentalRay = Mats/Generic/MentalImage.xml
41 : [APT_String] ImplementationOGS = Mats/Generic/OGS.xml
42 : [APT_String] ImplementationPreview = Mats/Generic/PreviewColor.xml
43 : [APT_String] keyword =
44 : [APT_String] localname = Generic
45 : [APT_String] localtype = Appearance
46 : [APT_Integer] mode = 4
47 : [APT_DoubleArray2d] PatternOffset = 0,0,
48 : [APT_Integer] revision = 1
49 : [APT_Integer] SchemaVersion = 4
50 : [APT_String] swatch = Swatch-Cube
51 : [APT_String] thumbnail = C:/Users/lua.ADS/AppData/Local/Temp/MaterialThumbnails_PID_1434/70db4100Smooth Precast Structural(7).png
52 : [APT_String] UIDefinition = Mats/Generic/GenericUI.xml
53 : [APT_String] UIName = Smooth Precast Structural
54 : [APT_Integer] version = 2
55 : [APT_String] VersionGUID = E5E10B97-7ED0-4EE5-B64B-314565517119

你知道该怎么办了吧！

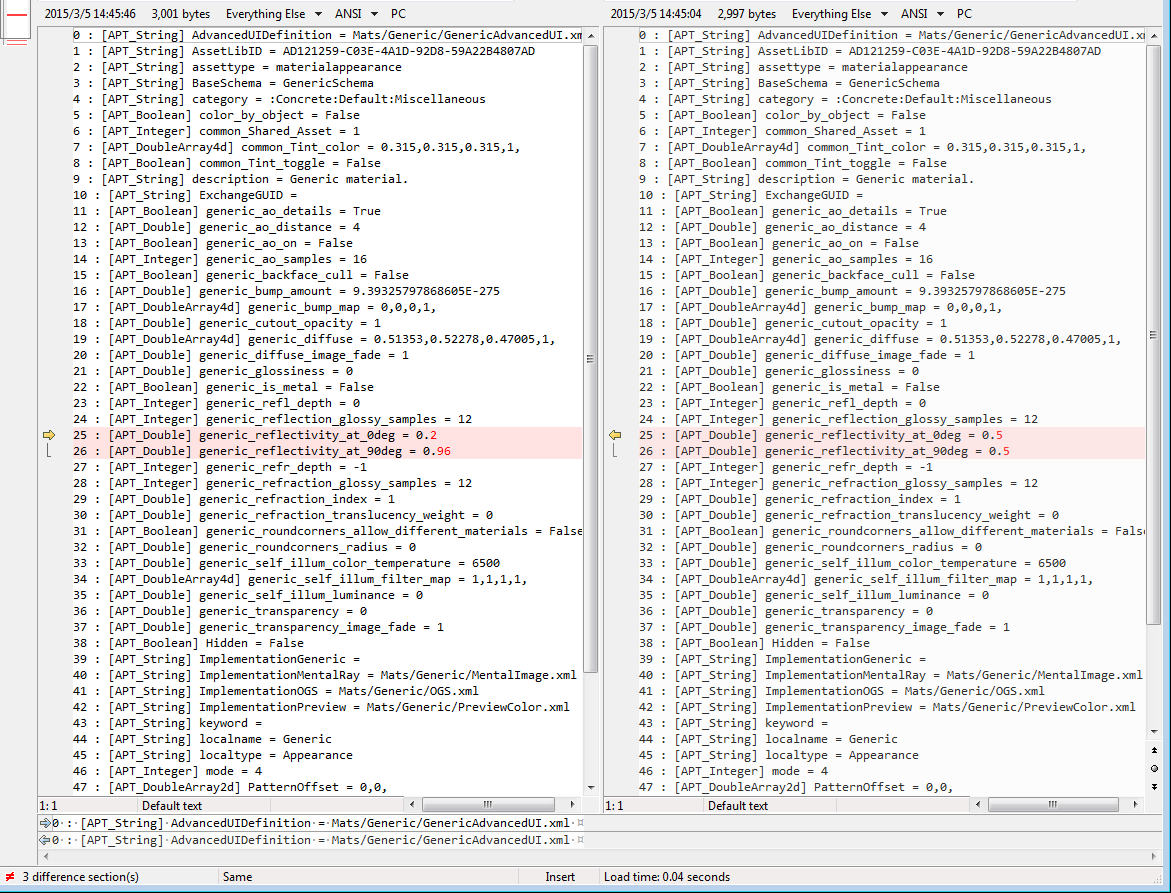

没错，比较一下两次输出的结果。下面是比较结果：

现在是不是很明显了，就是下面两个属性：

generic_reflectivity_at_0deg

generic_reflectivity_at_90deg

注意：

• 我把所有的AssetProperty放在一个列表里面，然后对它进行名字排序，这样名字就不会乱了。
• 使用了.net的反射技术，对AssetProperty没有进行向下转型，直接调用Value属性获得参数的值。

• 如果AssetProperty可以转型为AssetPropertyReference，那么我们可以调用GetAllConnectedProperties()方法递归获取它下面的子属性。

• 程序的Bug: 代码第17行AssetProperty ap = assets[idx];获取到AssetProperty之后，我们就开始读取它的Value了，而实际上它不止有Value，还可能有ConnectedProperties，所以，我们这里除了读取Value之外，还需要判断(NumberOfConnectedProperties>0)它有没有ConnectedProperties，如果有，那就调用GetAllConnectedProperties()获取它相关的子节点，这里可能有你需要的重要数据哦！bug fix就交给读者您吧~

我使用的比较工具是BeyondCompare，是可以免费试用的软件。
