一、前言
处理器用于过滤或者增强要发送的event。如果在配置文件中了定义了多个processor,filebeat会按照定义的顺序依次执行。
event -> processor 1 -> event1 -> processor 2 -> event2 ...
我们来看下官方都给我定义了哪些默认的processor。
二、processor
1、add_cloud_metadata
2、add_cloudfoundry_metadata
3、add_docker_metadata
4、add_fields
5、add_host_metadata
6、add_id
7、add_kubernetes_metadata
该处理器使用相关元数据对每个事件进行注释,基于kubernetes pod生成事件的元数据。在启动时,它会检测到集群内的环境并缓存Kubernetes相关的元数据。只有在检测到有效配置时才会对事件进行注释。如果它不能检测到有效的Kubernetes配置,那么事件不会用Kubernetes相关的元数据进行注释。
添加的注释有Pod Name
、Pod UID
、Namespace
、Labels
processors:
- add_kubernetes_metadata: ~
8、add_labels
9、add_locale
自动添加时区信息,常用语国际业务中。
processors:
- add_locale: ~
下面的意思是 使用缩写模式 , 例如国内输出结果为CST
processors:
- add_locale:
format: abbreviation
10、add_observer_metadata
自动添加观察者机器的相关元数据
processors:
- add_observer_metadata:
cache.ttl: 5m
输出为:
{
"observer" : {
"hostname" : "avce",
"type" : "heartbeat",
"vendor" : "elastic",
"ip" : [
"192.168.1.251",
"fe80::64b2:c3ff:fe5b:b974",
],
"mac" : [
"dc:c1:02:6f:1b:ed",
]
}
}
11、add_tags
添加标签,并可指定标签在哪个字段下。
例如:
processors:
- add_tags:
tags: [web, production]
target: "environment"
输出为:
{
"environment": ["web", "production"]
}
12、convert
将event中的某个字段转换为其他类型,例如将字符串转换为整数。
processors:
- convert:
fields:
- {from: "src_ip", to: "source.ip", type: "ip"}
- {from: "src_port", to: "source.port", type: "integer"}
ignore_missing: true
fail_on_error: false
13、copy_fields
将event中的某个字段的值赋值给另一个字段
processors:
- copy_fields:
fields:
- from: message
to: event.original
fail_on_error: false
ignore_missing: true
输出:
{
"message": "my-interesting-message",
"event": {
"original": "my-interesting-message"
}
}
14、decode_base64_field
base64解码,从一个字段里获取值,解码后赋值给另一个字段。
processors:
- decode_base64_field:
field:
from: "message"
to: "decode"
ignore_missing: true
fail_on_error: false
15、decode_cef
如果你的日式符合Common Event Format (CEF) 标准,你可以使用它进行解码:
processors:
- rename:
fields:
- {from: "message", to: "event.original"}
- decode_cef:
field: event.original
16、decode_csv_fields
解析CSF格式的日志到指定字段,内容为数组。
processors:
- decode_csv_fields:
# 解析到哪里
fields:
message: decoded.csv
separator: ","
ignore_missing: false
overwrite_keys: true
trim_leading_space: false
fail_on_error: true
17、decode_json_fields
处理对包含JSON字符串的字段进行解码,并将字符串替换为有效的JSON对象。默认是在当前字段替换。
processors:
- decode_json_fields:
fields: ["field1", "field2", ...]
# process_array: false
# max_depth: 1
# overwrite_keys: false
# add_error_key: true
18、decompress_gzip_field
gzip解压缩,从一个字段值中加压缩到另一个字段中 。 使用场景少。
processors:
- decompress_gzip_field:
field:
from: "field1"
to: "field2"
ignore_missing: false
fail_on_error: true
感兴趣的可以看下 gzip压缩初探
19、dissect
从某个字段里(默认message)取值,按照tokenizer
定义的格式 拆分(切割)数据,并输出到target_prefix
字段里,默认是dissect
processors:
- dissect:
tokenizer: "%{key1} %{key2}"
# field: "message"
# target_prefix: "dissect"
如果是这样的log"App01 - WebServer is up and running"
,输出为
"service": {
"name": "App01",
"status": "WebServer is up and running"
},
20、dns
反向解析 根据id查找hostname 。每个processor有自己查询结果的缓存。该processor使用自己的域名服务器,不会查找/etc/hosts
,默认使用/etc/resolv.conf
里面的域名服务器。
processors:
- dns:
type: reverse
fields:
source.ip: source.hostname
destination.ip: destination.hostname
fields
字段里source.ip
是指ip所在的字段,source.hostname
是指新值存入的字段。
21、drop_event
丢弃该event,一般要设置特定条件 。
例如 http响应码为200 就不上报event:
processors:
- drop_event:
when:
equals:
http.code: 200
22、drop_fields
丢弃(过滤掉)特定字段, 一般防止敏感信息上报,例如ip 、mac地址…
processors:
- drop_fields:
fields: ["cpu.user", "cpu.system"]
23、extract_array
24、fingerprint

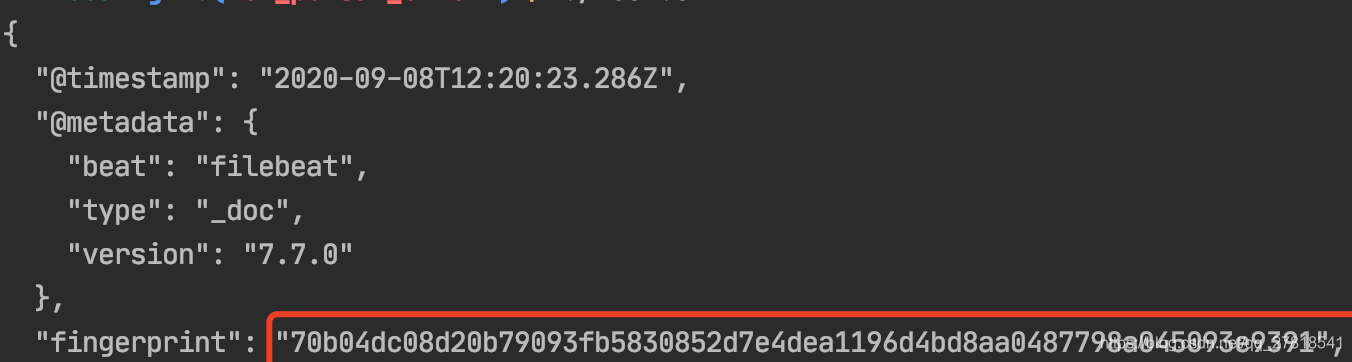

根据事件指定字段字段值生成事件的指纹。
processors:
- fingerprint:
fields: ["field1", "field2", ...]
输出结果:
25、include_fields
输出的event里 会包含哪些字段值。@timestamp
和type
字段会始终出现在event中,即使未在include_fields列表中定义。
processors:
- include_fields:
when:
condition
fields: ["field1", "field2", ...]
26、registered_domain
27、rename
28、script
使用Javascript
处理event ,可以更加灵活的预处理业务
29、timestamp
从字段解析时间戳并将解析结果写入@timestamp
(日志采集时间)字段
30、translate_sid
将Windows安全标识符(SID)转换为帐户名,使用仅限Windows
系统。
processors:
- translate_sid:
field: winlog.event_data.MemberSid
account_name_target: user.name
domain_target: user.domain
ignore_missing: true
ignore_failure: true
31、translate_sid
按照指定大小截取字段值
processors:
- truncate_fields:
fields:
- message
max_characters: 5
#max_bytes: 128
fail_on_error: false
ignore_missing: true
32、urldecode
url 解码
processors:
- urldecode:
fields:
- from: "field1"
to: "field2"
# - from: "fieldx"
# to: "fieldy"
ignore_missing: false
fail_on_error: true
