前言
Spring使用增强类定义横切逻辑,同时由于Spring只支持方法连接点,增强类还包括在方法的哪一点加入横切代码的方位信息,所以增强既包含横切逻辑,又包含部分连接点信息。使用增强前,最好能理解动态代理的知识。本文分别采用继承接口和使用配置文件来实现增强。

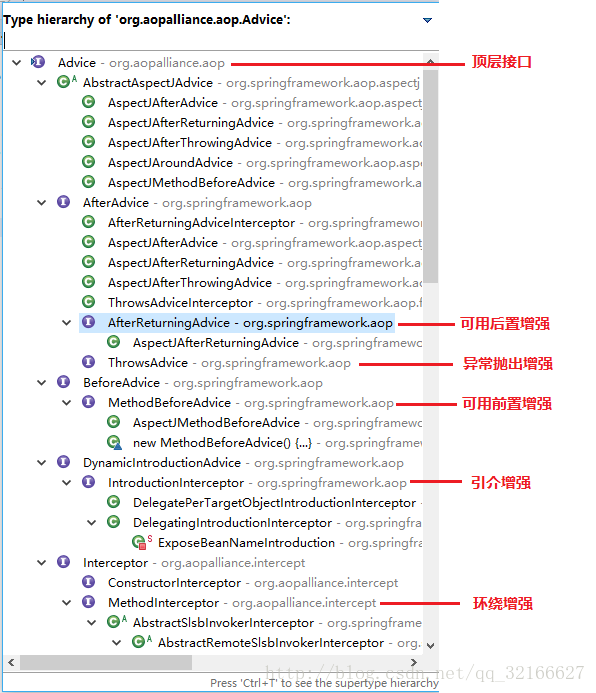

按照增强在目标类方法中的连接点位置,可以分为5种:
- 前置增强:org.springframework.aop.BeforeAdvice是前置增强顶层接口,因为Spring只支持方法的增强,其子接口MethodBeforeAdvice是目前可用的前置增强。表示在目标方法执行前实施增强。
- 后置增强:org.springframework.aop.AfterReturningAdvice是目前可用的后置增强,表示在目标方法执行后实施增强。
- 环绕增强:org.aopalliance.intercept.MethodInterceptor代表了环绕增强,表示在目标方法执行前后实施增强。直接使用了AOP联盟定义的接口。
- 异常抛出增强:org.springframework.aop.ThrowsAdvice代表了异常抛出增强,表示在目标方法抛出异常后实施增强。
- 引介增强:org.springframework.aop.IntroductionInterceptor代表引介增强,表示在目标类中添加一些新的方法和属性。
正文
一,前置增强
1,我们先不用配置文件,先使用原始的方法–继承底层接口的形式来实现增强。配置文件或者注解的底层也是使用这些接口来生成代理的。
首先,创建maven工程,利用pom文件自动导入所需的包。
然后,编写目标类和增强类。
package com.jimmy.mvn.a.BeforeAdvice;
/**
* 目标类(被增强类),say方法将被增强,其中say方法执行前后都可以是切入点(point-cut)
*/
public class Target {
public void say() {
System.out.println("我需要被增强!");
}
}
package com.jimmy.mvn.a.BeforeAdvice;
import java.lang.reflect.Method;
import org.springframework.aop.MethodBeforeAdvice;
/**
* 增强类,用于在切入点处进行增强
*
* 该类实现了MethodBeforeAdvice接口,并实现了唯一的before()方法。
*
*/
public class Advice implements MethodBeforeAdvice{
/**
* method是目标类的方法
* args是目标类方法的入参
* target是目标类实例
*
* before()方法会在目标类方法调用前执行。
*/
public void before(Method method, Object[] args, Object target) throws Throwable {
System.out.println("我是前置增强,很高兴为你服务!");
}
}
最后,编写测试类。
package com.jimmy.mvn.SpringAdvice;
import org.springframework.aop.framework.ProxyFactory;
import com.jimmy.mvn.a.BeforeAdvice.Advice;
import com.jimmy.mvn.a.BeforeAdvice.Target;
public class BeforeAdviceTest {
public static void main(String[] args) {
Target target = new Target(); // 目标类对象
Advice advice = new Advice(); // 增强类对象
ProxyFactory pf = new ProxyFactory(); // Spring提供的代理工厂
pf.setTarget(target); // 设置代理目标
pf.addAdvice(advice); // 为代理目标添加增强
Target target2 = (Target) pf.getProxy(); // 生成代理实例
target2.say(); // 代理对象再调用say()方法就能产生前置增强
}
}
输出结果:
我是前置增强,很高兴为你服务!
我需要被增强!
2,我们来看如何使用xml配置文件进行增强
首先,还是先创建maven工程,自动导入需要的包。
然后,创建目标类和增强类。
package com.jimmy.mvn.a.BeforeAdviceXML;
/**
* 目标类。同上,很普通的一个类,实际开发中往往是一个业务类
*/
public class Target {
public void say() {
System.out.println("我需要被增强!");
}
}
package com.jimmy.mvn.a.BeforeAdviceXML;
/**
* 增强类,该类不再继承任何接口,就是个普通的POJO类
*
* 从外观上看,根本看不出来这个类要干嘛
*/
public class Advice {
public void beforeAdvice() {
System.out.println("我是前置增强,很高兴为你服务!");
}
}
再然后,写配置文件
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-4.0.xsd">
<bean id="target" class="com.jimmy.mvn.a.BeforeAdviceXML.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.a.BeforeAdviceXML.Advice"></bean>
<aop:config>
<aop:aspect ref="advice">
<aop:before method="beforeAdvice" pointcut="execution(* com.jimmy.mvn.a.BeforeAdviceXML.*.*(..))"/>
</aop:aspect>
</aop:config>
</beans>
解读上面的配置文件:
1,定义2个bean,target是增强后的bean,而advice是为了在文件中被切面引用。
2,aop:config,AOP设置的最外层元素,一个文件可以有多个aop:config,不同的aop:config可以采用不同的代理技术。
3,aop:aspect,改元素定义一个切面,其ref属性用来引用增强类的bean。
4,aop:before,定义一个前置增强,method属性是增强类bean中的方法名;pointcut属性是一个“切点表达式”,该表达式用于匹配“切入点”,即需要被增强的bean的方法。
最后,写测试代码:
package com.jimmy.mvn.SpringAdvice;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.jimmy.mvn.a.BeforeAdviceXML.Target;
public class BeforeAdviceXMLTest {
public static void main(String[] args) {
String path = "com/jimmy/mvn/a/BeforeAdviceXML/smart-context.xml";
ApplicationContext app1 = new ClassPathXmlApplicationContext(path);
Target target = (Target) app1.getBean("target");
target.say();
}
}
输出结果为:
我是前置增强,很高兴为你服务!
我需要被增强!
注:配置文件配置AOP时,有很多种写法,还可以将“切点表达式”单独命名,如下:
<bean id="target" class="com.jimmy.mvn.a.BeforeAdviceXML.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.a.BeforeAdviceXML.Advice"></bean>
<aop:config>
<aop:aspect ref="advice">
<aop:pointcut id="pointcut" expression="execution(* com.jimmy.mvn.a.BeforeAdviceXML.*.*(..))"/>
<aop:before method="beforeAdvice" pointcut-ref="pointcut"/>
</aop:aspect>
</aop:config>
当然,还可以将aop:pointcut提取出来,单独写,可以供很多切面aop:aspect引用:
<bean id="target" class="com.jimmy.mvn.a.BeforeAdviceXML.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.a.BeforeAdviceXML.Advice"></bean>
<aop:config>
<aop:pointcut id="pointcut" expression="execution(* com.jimmy.mvn.a.BeforeAdviceXML.*.*(..))"/>
<aop:aspect ref="advice">
<aop:before method="beforeAdvice" pointcut-ref="pointcut"/>
</aop:aspect>
<aop:aspect ref="advice">
<aop:before method="beforeAdvice" pointcut-ref="pointcut"/>
</aop:aspect>
</aop:config>
上面这个配置,对切入点进行了2次增强,输出如下:
我是前置增强,很高兴为你服务!
我是前置增强,很高兴为你服务!
我需要被增强!
3,最后我们再来用注解Annotation开发
首先,创建maven工程,自动导入所需要的包
然后,编写目标类和增强类。
package com.jimmy.mvn.a.BeforeAdviceAnnotation;
/**
* 目标类。同上,很普通的一个类,实际开发中往往是一个业务类
*/
public class Target {
public void say() {
System.out.println("我还要被增强!");
}
}
package com.jimmy.mvn.a.BeforeAdviceAnnotation;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
/**
* 增强类,使用注解开发,该类同样不再继承任何接口
*
* @Aspect用于将类标识为一个切面
* @Before("execution(...)")用于将方法标识为增强方法,"切入点表达式"用于定位被切入方法。
*/
@Aspect
public class Advice {
@Before("execution(* *..Target.*(..))")
public void beforeAdvice() {
System.out.println("我是前置增强,很高兴为你服务!");
}
}
再然后,我们仍然需要配置一点xml文件
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-4.0.xsd">
<aop:aspectj-autoproxy/>
<bean id="target" class="com.jimmy.mvn.a.BeforeAdviceAnnotation.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.a.BeforeAdviceAnnotation.Advice"></bean>
</beans>
解读上述配置文件,文件中只有短短的3行配置。
1,aop:aspectj-autoproxy自动为Spring容器中那些匹配@Aspect切面的bean创建代理,完成切面织入。
2,两个bean,其中target供测试时getBean方法调用;advice可以没有id,其为自动创建代理时使用。
最后,编写测试类
package com.jimmy.mvn.SpringAdvice;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.jimmy.mvn.a.BeforeAdviceAnnotation.Target;
public class BeforeAdviceAnnotationTest1 {
public static void main(String[] args) {
String path = "com/jimmy/mvn/a/BeforeAdviceAnnotation/smart-context.xml";
ApplicationContext app1 = new ClassPathXmlApplicationContext(path);
Target target = (Target) app1.getBean("target");
target.say();
}
}
这里的输出结果是:
我是前置增强,很高兴为你服务!
我还要被增强!
二,后置增强
跟前置增强的使用一样一样的。
三,环绕增强
1,还是先使用继承底层接口的形式。
首先,创建maven工程,自动导入jar包。
然后,创建目标类和增强类。
package com.jimmy.mvn.b.AroundAdvice;
/**
* 目标类,普通POJO类,其say方法被增强。
*/
public class Target {
public void say(){
System.out.println("我需要前后都增强!");
}
}
package com.jimmy.mvn.b.AroundAdvice;
import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;
/**
* 增强类实现了MethodInterceptor接口,并实现了其中的invoke方法
*/
public class AroundAdvice implements MethodInterceptor{
/**
* 该方法截获目标类方法的执行,并在前后加上横断逻辑
*/
public Object invoke(MethodInvocation invocation) throws Throwable {
System.out.println("我是前置增强,很高兴为你服务!"); // 前置增强
Object obj = invocation.proceed(); // 通过反射机制调用目标方法
System.out.println("我是前置增强,很高兴为你服务!"); // 后置增强
return obj;
}
}
最后,编写测试类,该测试类跟前置增强时用的一样。
package com.jimmy.mvn.SpringAdvice;
import org.springframework.aop.framework.ProxyFactory;
import com.jimmy.mvn.b.AroundAdvice.AroundAdvice;
import com.jimmy.mvn.b.AroundAdvice.Target;
public class AroundAdviceTest {
public static void main(String[] args) {
Target target = new Target();
AroundAdvice advice = new AroundAdvice();
ProxyFactory pf = new ProxyFactory();
pf.setTarget(target);
pf.addAdvice(advice);
Target target2 = (Target) pf.getProxy();
target2.say();
}
}
输出结果:
我是前置增强,很高兴为你服务!
我需要前后都增强!
我是后置增强,很高兴为你服务!
2,我们再来使用XML配置文件配置环绕增强AOP
首先,创建maven工程,自动导入jar包。
然后,创建目标类和增强类。
package com.jimmy.mvn.b.AroundAdviceXML;
/**
* 目标类,跟上面是一样一样的。
*/
public class Target {
public void say() {
System.out.println("我还要前后增强!");
}
}
package com.jimmy.mvn.b.AroundAdviceXML;
import org.aspectj.lang.ProceedingJoinPoint;
/**
* 增强类,普通POJO类,不再继承任何接口。
* 自定义环绕增强方法,由于是要在切入点前后横插入逻辑,所以将ProceedingJoinPoint接口对象pjp作为方法的入参。
* pjp.proceed()方法通过反射机制调用目标方法。
* 在pjp.proceed()前后加上横断逻辑。
*/
public class AroundAdvice {
public void myAroundAdvice(ProceedingJoinPoint pjp) throws Throwable{
System.out.println("我是前置增强,很高兴为你服务!");
pjp.proceed();
System.out.println("我是后置增强,很高兴为你服务!");
}
}
再然后,编写配置文件,smart-context.xml。
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-4.0.xsd">
<bean id="target" class="com.jimmy.mvn.b.AroundAdviceXML.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.b.AroundAdviceXML.AroundAdvice"></bean>
<aop:config>
<aop:aspect ref="advice">
<aop:around method="myAroundAdvice" pointcut="execution(* *..Target.*(..))"/>
</aop:aspect>
</aop:config>
</beans>
我们看到,配置文件跟前置增强的差别不大,无非是把aop:before换成了aop:around。
最后,编写测试类。
package com.jimmy.mvn.SpringAdvice;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.jimmy.mvn.b.AroundAdviceXML.Target;
public class AroundAdviceXMLTest {
public static void main(String[] args) {
String path = "com/jimmy/mvn/b/AroundAdviceXML/smart-context.xml";
ApplicationContext app1 = new ClassPathXmlApplicationContext(path);
Target target = (Target) app1.getBean("target");
target.say();
}
}
输出结果:
我是前置增强,很高兴为你服务!
我还要前后增强!
我是后置增强,很高兴为你服务!
3,最后我们用注解(Annotation)写代码
首先,创建maven工程,自动导入jar包。
然后,创建目标类和增强类。
package com.jimmy.mvn.b.AroundAdviceAnnotation;
public class Target {
public void say() {
System.out.println("我还要前后增强!");
}
}
package com.jimmy.mvn.b.AroundAdviceAnnotation;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
@Aspect
public class AroundAdvice {
@Around(value = "execution(* *..Target.*(..))")
public void myAroundAdvice(ProceedingJoinPoint pjp) throws Throwable {
System.out.println("我是前置增强,很高兴为你服务!");
pjp.proceed();
System.out.println("我是后置增强,很高兴为你服务!");
}
}
再然后,编写配置文件,smart-context.xml。
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-4.0.xsd">
<aop:aspectj-autoproxy/>
<bean id="target" class="com.jimmy.mvn.b.AroundAdviceAnnotation.Target"></bean>
<bean id="advice" class="com.jimmy.mvn.b.AroundAdviceAnnotation.AroundAdvice"></bean>
</beans>
同样,使用了注解,只有3句配置信息。
最后,编写测试代码
package com.jimmy.mvn.SpringAdvice;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.jimmy.mvn.b.AroundAdviceAnnotation.Target;
public class AroundAdviceAnnotationTest {
public static void main(String[] args) {
String path = "com/jimmy/mvn/b/AroundAdviceAnnotation/smart-context.xml";
ApplicationContext app1 = new ClassPathXmlApplicationContext(path);
Target target = (Target) app1.getBean("target");
target.say();
}
}
输出结果为:
我是前置增强,很高兴为你服务!
我还要前后增强!
我是后置增强,很高兴为你服务!
总结
SpringAOP的概念一开始不容易接受,一旦接受了,结合Spring提供的AOP框架使用起来就会很方便。
