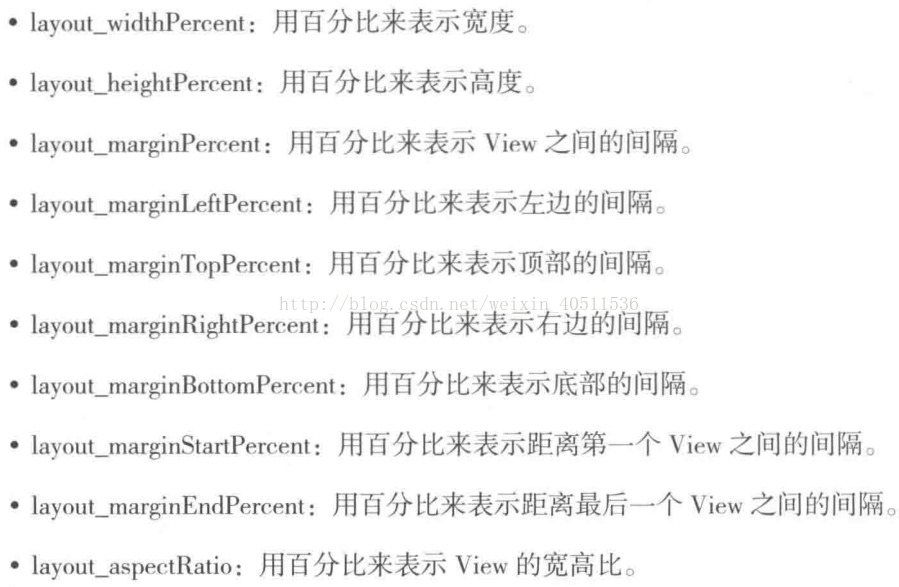

一、在dependencies中添加库,此库支持PercentRelativeLayout PercentFrameLayout
dependencies {
compile 'com.android.support:percent:26.0.0-alpha1'
}
开始用的23版本,提示错误,找到android SDK的文件夹I:\AndroidSDk\extras\android\m2repository\com\android\support\percent
在这里就能看到各种版本的,这里我选择26的26.0.0-alpha1,重新导入,之后重新Sync就可以了!
二、此库没有LinearLayout,不过github上有一个,地址:PercentLinearLayout_github地址
三、看到个更牛的,记录一下:增强版:github源码地址 日后自己实现一个
三、布局文件中用PercentRelativeLayout
<?xml version="1.0" encoding="utf-8"?>
<android.support.percent.PercentRelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.example.testlibrarys.PercentRelativeLayout">
<TextView
android:id="@+id/top_left"
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_alignParentTop="true"
android:background="@android:color/holo_blue_bright"
android:gravity="center"
android:text="@string/blue"
android:textSize="@dimen/text_size"
app:layout_heightPercent="30%"
app:layout_widthPercent="70%" />
<TextView
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_alignParentTop="true"
android:layout_toEndOf="@+id/top_left"
android:background="@android:color/holo_red_light"
android:gravity="center"
android:text="@string/red"
android:textSize="@dimen/text_size"
app:layout_heightPercent="30%"
app:layout_widthPercent="30%" />
<TextView
android:layout_width="200dp"
android:layout_height="0dp"
android:layout_alignParentBottom="true"
android:background="@android:color/holo_green_light"
android:gravity="center"
android:text="@string/green"
android:textSize="@dimen/text_size"
app:layout_aspectRatio="200%" />
</android.support.percent.PercentRelativeLayout>
