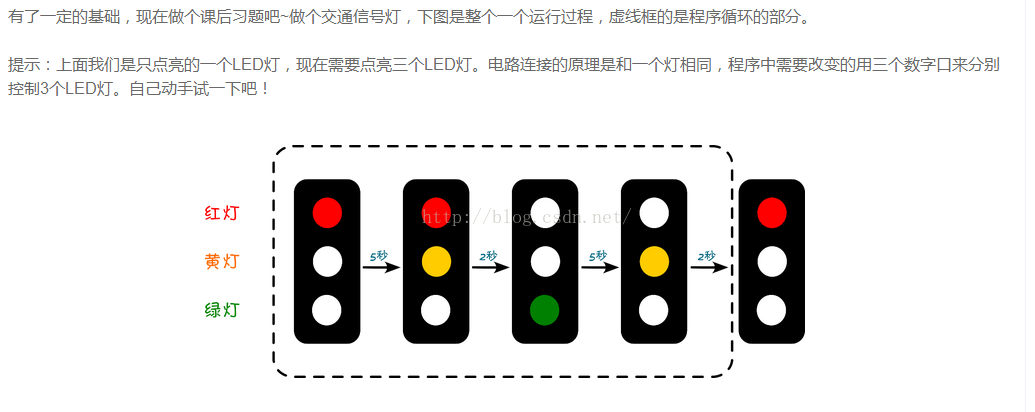

本文介绍了一个使用Arduino实现的交通信号灯循环控制程序，包括红绿黄灯的顺序闪烁和延时控制。

int red = 8;
int yellow = 9;
int green = 10;
void setup() {
  // put your setup code here, to run once:
  pinMode(red,OUTPUT);
  pinMode(yellow,OUTPUT);
  pinMode(green,OUTPUT);
}

void loop() {
  // put your main code here, to run repeatedly:
  digitalWrite(red,HIGH);
  delay(5000);
  digitalWrite(red,LOW);

  digitalWrite(yellow,HIGH);
  delay(2000);
  digitalWrite(yellow,LOW);

  digitalWrite(green,HIGH);
  delay(5000);
  digitalWrite(green,LOW);

  digitalWrite(yellow,HIGH);
  delay(2000);
  digitalWrite(yellow,LOW);
}
