Android设置android:clipChildren达到的特殊UI设计效果



Android设置android:clipChildren达到的特殊UI设计效果

在Android的布局XML文件中,有一个不常用的属性android:clipChildren,该属性值可设为true或者false。
该属性控制Android的一个子view是否运行超越父控件边界放置。Android系统默认赋予该属性值是true,即不允许超越所在父布局的边界。如果设置为false,则表示允许该子view超越父布局的边界。

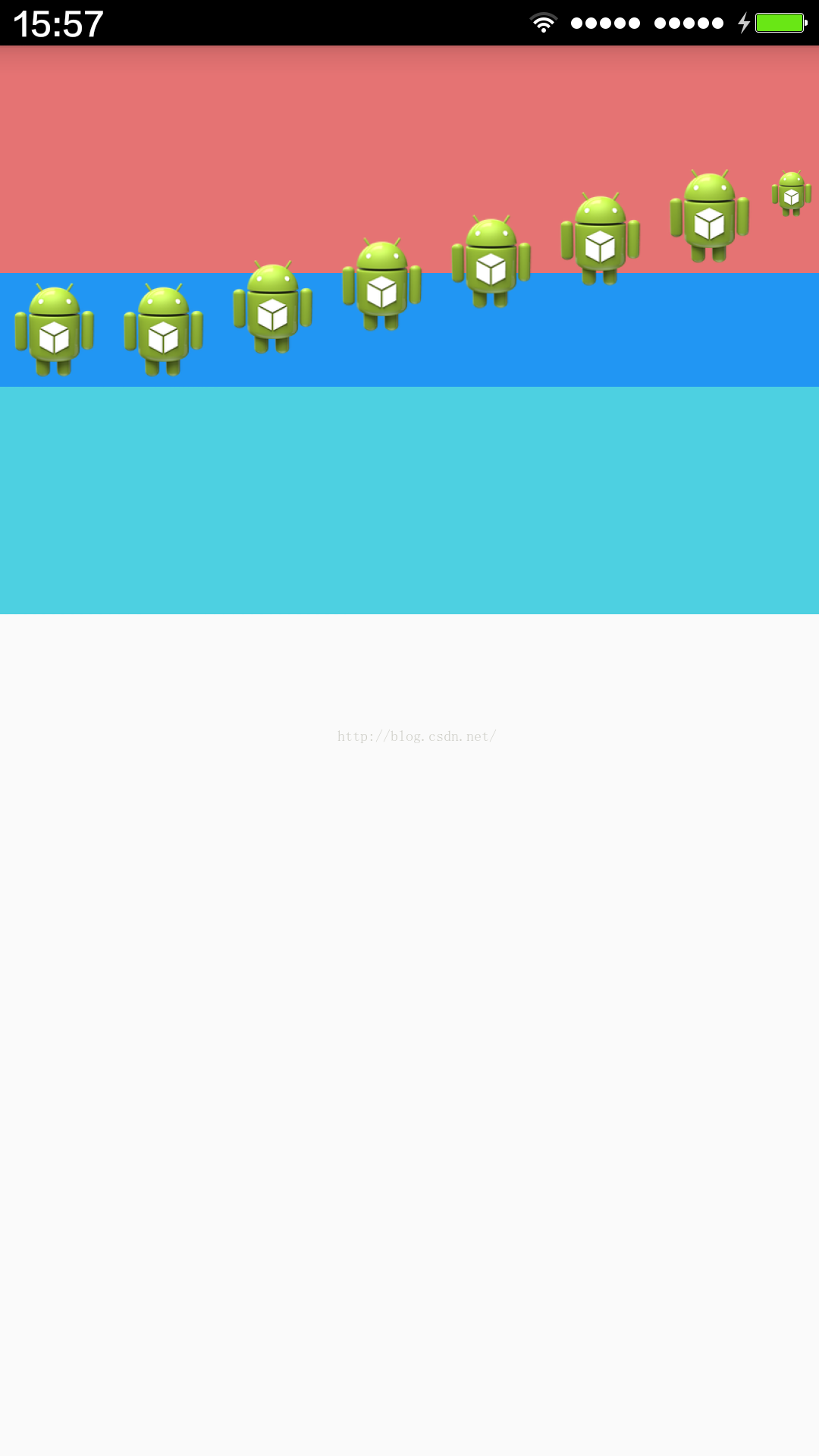

当把android:clipChildren的属性设置为false后,在Android的UI设计中会产生一些比较有趣的设计效果,比如下面一个在LinearLayout布局中简单水平并排放置的若干ImageView效果,如图:


其实现代码(布局XML)为:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:clipChildren="false"
    android:orientation="vertical" >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="100dip"
        android:background="#e57373" />

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="50dip"
        android:background="#2196f3"
        android:orientation="horizontal" >

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="50dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="70dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="90dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="110dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="130dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="150dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="170dip"
            android:layout_gravity="bottom"
            android:src="@drawable/ic_launcher" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="100dip"
        android:background="#4dd0e1" />
</LinearLayout>


android:layout_gravity="bottom" , 告知Android系统要从底部向上绘制该子view。
