一篇掌握BFD技术（二）：OSPF与BFD联动配置

1. 实验目的

1. 熟悉OSPF与BFD联动的应用场景
2. 掌握OSPF与BFD联动的配置方法

想要华为数通配套实验拓扑和配置笔记的朋友们点赞+关注，评论区留下邮箱发给你！

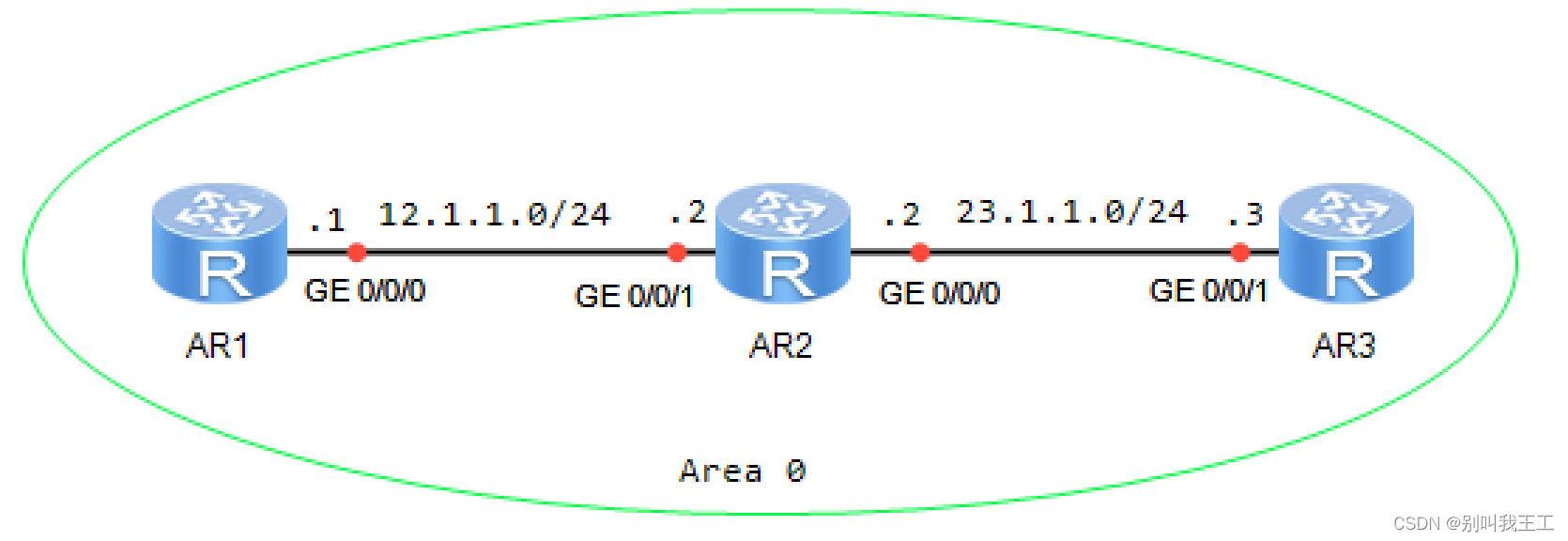

2. 实验拓扑



3.    实验步骤

1）IP地址的配置

AR1的配置

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]sysname AR1

[AR1]interface g0/0/0

[AR1-GigabitEthernet0/0/0]ip address 12.1.1.1 24

[AR1-GigabitEthernet0/0/0]quit

[AR1]interface LoopBack 0

[AR1-LoopBack0]ip address 1.1.1.1 32

[AR1-LoopBack0]quit

AR2的配置

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]sysname AR2

[AR2]interface g0/0/1

[AR2-GigabitEthernet0/0/1]ip address 12.1.1.2 24

[AR2-GigabitEthernet0/0/1]quit

[AR2]interface g0/0/0

[AR2-GigabitEthernet0/0/0]ip address 23.1.1.2
