日常很多算法，比如数值积分、数值微分、 PID指令都需要在固定的步长里调用，中断程序提供了一个这样的基础步长，最小步长。我们可以利用这样的基础步长完成步长的变换。

下面给大家介绍下在博途PLC里如何自动获取中断程序的中断时间值。

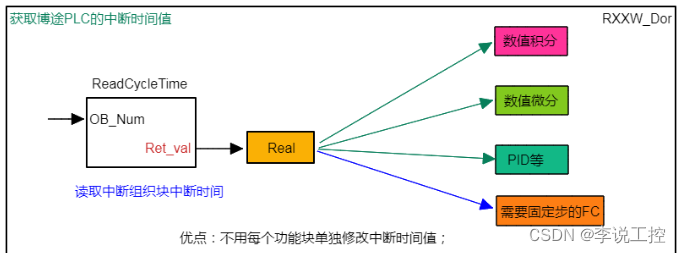

一、中断时间读取FC

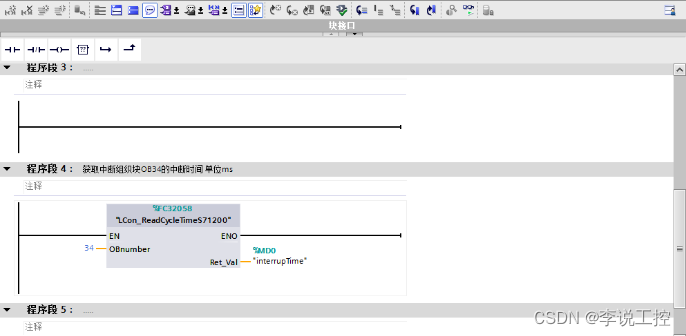

利用这样的FC，我们可以自动读取对应中断程序的中断时间值，将时间值存储到全局变量表，之后其它数值算法都可以调用，不用一个个分别更改，提高效率降低出错概率。

2、1200PLC-SCL完整代码

FUNCTION "LCon_ReadCycleTimeS71200" : Real
{ S7_Optimized_Access := 'TRUE' }
VERSION : 0.1
   VAR_INPUT
      OBnumber : Int;   // OB number; cyclic interupt
   END_VAR

   VAR_TEMP
      tmpRetInt : Int;
      tmpPhase : UDInt;
      tmpStatus : Word;
      tmpCycleTime : UDInt;   // Cycle time in Microseconds
   END_VAR

   VAR CONSTANT
      UNIT_ID : DWord := 16#1001_0000;
   END_VAR


BEGIN
	//------------------------------------------------------------------------------------------------------------------------
	//SIEMENS DF FA PMA APC
	//------------------------------------------------------------------------------------------------------------------------
	//name          : ReadCycleTimeS71200
	//functionality : Cycle time identification for S7-1200 CPU
	//assignment    : Any
	//library       : LCon
	//------------------------------------------------------------------------------------------------------------------------
	//change log table:
	//version   date          expert in charge            changes applied
	//V1.0      10.11.2016    APC ERL                     Creation
	//V1.1      17.11.2016    APC ERL                     adapted to styleguide
	//=========================================================================================================================

	#LCon_ReadCycleTimeS71200 := 0.0;
	#tmpRetInt := QRY_CINT(OB_NR := #OBnumber, CYCLE => #tmpCycleTime, PHASE => #tmpPhase, STATUS => #tmpStatus);
	IF (#tmpStatus = 16#0014) THEN
	  IF #tmpRetInt = 0 THEN
	    #LCon_ReadCycleTimeS71200 := (UDINT_TO_REAL(#tmpCycleTime)) / 1000;                            //Conversion from microseconds to milliseconds
	  END_IF;
	END_IF;

END_FUNCTION

3、1500PLC-SCL完整代码

FUNCTION "LCon_ReadCycleTimeS71500" : Real
{ S7_Optimized_Access := 'TRUE' }
VERSION : 0.1
   VAR_INPUT
      OBnumber : Int;   // OB number; cyclic interupt or synchronous operation
   END_VAR

   VAR_TEMP
      tmpRetInt : Int;
      tmpCycleTime : UDInt;   // Cycle time in Microseconds
      tmpPhase : UDInt;
      tmpStatus : Word;
      tmpStartUpSi {InstructionName := 'SI_Startup'; LibVersion := '1.0'} : SI_Startup;
      tmpTopSi {InstructionName := 'SI_SynchCycle'; LibVersion := '1.0'} : SI_SynchCycle;
      tmpSiNone {InstructionName := 'SI_none'; LibVersion := '1.0'} : SI_none;
   END_VAR

   VAR CONSTANT
      UNIT_ID : DWord := 16#1001_0000;
   END_VAR


BEGIN
	//------------------------------------------------------------------------------------------------------------------------
	//SIEMENS DF FA PMA APC / Mumbai,India | Erlangen, Germany
	//------------------------------------------------------------------------------------------------------------------------
	//name          : ReadCycleTimeS71500
	//functionality : Cycle time identification for S7-1500 CPU
	//assignment    : Any
	//library       : LCon
	//------------------------------------------------------------------------------------------------------------------------
	//change log table:
	//version   date          expert in charge              changes applied
	//V1.0      02.07.2012    APC GMC group                 Creation
	//V2.0      10.11.2016    APC ERL                       extended to read cycle time from synchronous cycle OBs
	//V2.1      17.11.2016    APC ERL                       adapted to styleguide
	//=========================================================================================================================

	#LCon_ReadCycleTimeS71500 := 0.0;

	#tmpRetInt := RD_SINFO(TOP_SI => #tmpSiNone, START_UP_SI => #tmpStartUpSi);

	IF #tmpSiNone.OB_Class = 30 THEN
	  #tmpRetInt := QRY_CINT(OB_NR := #OBnumber, CYCLE => #tmpCycleTime, PHASE => #tmpPhase, STATUS => #tmpStatus);
	  IF (#tmpStatus = 16#0014) THEN
	    IF #tmpRetInt = 0 THEN
	      #LCon_ReadCycleTimeS71500 := (UDINT_TO_REAL(#tmpCycleTime)) / 1000;                            //Conversion from microseconds to milliseconds
	    END_IF;
	  END_IF;

	ELSIF #tmpSiNone.OB_Class = 61 THEN
	  #tmpRetInt := RD_SINFO(TOP_SI => #tmpTopSi, START_UP_SI => #tmpStartUpSi);
	  IF #tmpTopSi.OB_Nr = #OBnumber THEN
	    IF #tmpRetInt = 0 THEN
	      #LCon_ReadCycleTimeS71500 := DINT_TO_REAL(LTIME_TO_DINT(#tmpTopSi.SyncCycleTime)) / 1000000; // convert to milliseconds in REAL-Format
	    END_IF;
	  END_IF;
	ELSE
	  #LCon_ReadCycleTimeS71500 := 0.0;
	END_IF;
END_FUNCTION
