HCIP-小实验（超详细）

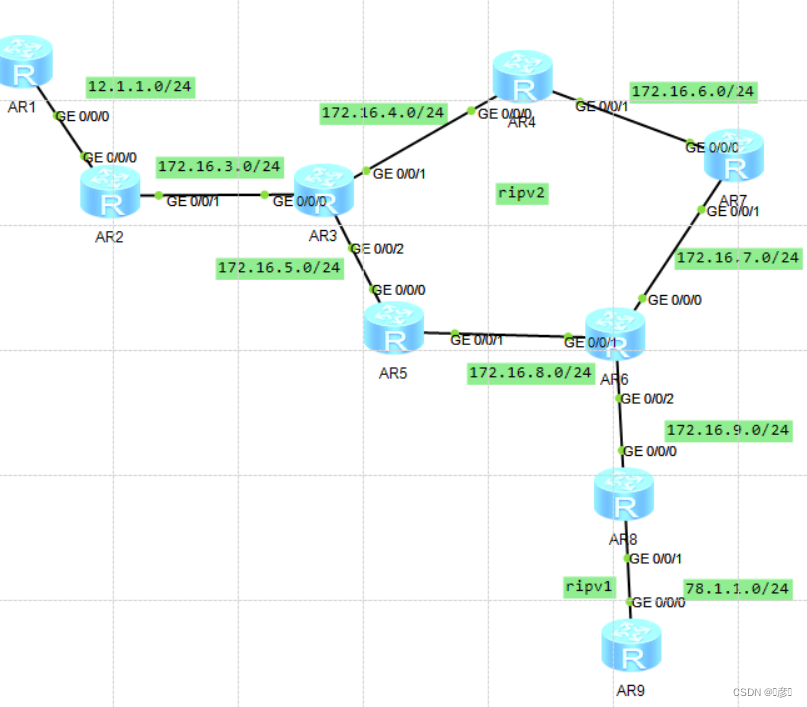

R8和r9的环回分别是172.16.1.0/24和172.16.2.0/24
中间使用78.1.1.0/24
剩下的路由器2-6使用172.16.0.0/16
R1为运营商 r1远程登录r2实际登录r7
R2访问r7要求走r5去访问
全网可达

 先对其进行子网划分。

一、R8和r9的环回分别是172.16.1.0/24和172.16.2.0/24
       中间使用78.1.1.0/24
       剩下的路由器2-6使用172.16.0.0/16

ip地址配置：

 r1:

<Huawei>system-view
[Huawei]sysname r1
[r1]interface LoopBack 0
[r1-LoopBack0]ip address 1.1.1.1 32
[r1-LoopBack0]quit
[r1]interface g0/0/0
[r1-GigabitEthernet0/0/0]ip address 12.1.1.1 24
[r1-GigabitEthernet0/0/0]quit

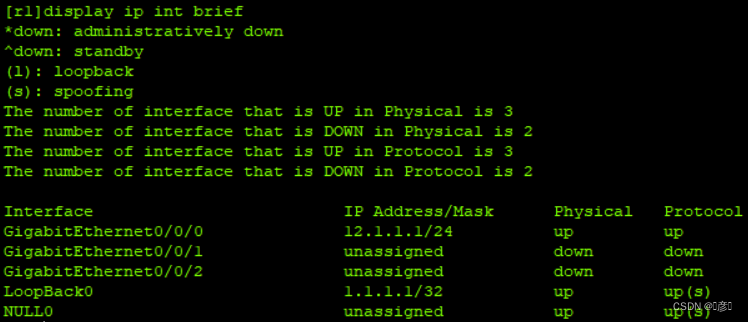

[r1]display ip int brief

r2：

<Huawei>system-view
[Huawei]sysname r2
[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]ip address 12.1.1.2 24
[r2-GigabitEthernet0/0/0]quit
[r2]interface g0/0/1
[r2-GigabitEthernet0/0/1]ip address 172.16.3.1 24
[r2-GigabitEthernet0/0/1]quit
[r2]display ip int brief

r3：

<Huawei>system-view
[Huawei]sysname r3
[r3]interface g0/0/0
[r3-GigabitEthernet0/0/0]ip address 172.16.3.2 24
[r3-GigabitEthernet0/0/0]quit
[r3]interface g0/0/1
[r3-GigabitEthernet0/0/1]ip address 172.16.4.1 24
[r3-GigabitEthernet0/0/1]quit
[r3]interface g0/0/2
[r3-GigabitEthernet0/0/2]ip address 172.16.5.1 24
[r3-GigabitEthernet0/0/2]quit

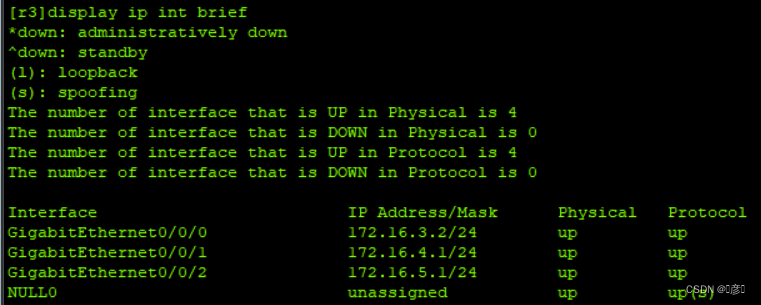

[r3]display ip int brief

r4：

<Huawei>system-view
[Huawei]sysname r4
[r4]interface LoopBack 0
[r4-LoopBack0]ip address 4.4.4.4 32
[r4-LoopBack0]quit
[r4]interface g0/0/0
[r4-GigabitEthernet0/0/0]ip address 172.16.4.2 24
[r4-GigabitEthernet0/0/0]quit
[r4]interface g0/0/1
[r4-GigabitEthernet0/0/1]ip address 172.16.6.1 24
[r4-GigabitEthernet0/0/1]quit

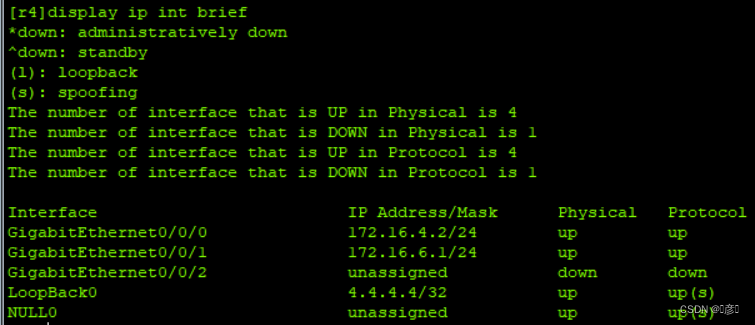

[r4]display ip int brief

r5：

<Huawei>system-view
[Huawei]sysname r5
[r5]interface g0/0/0
[r5-GigabitEthernet0/0/0]ip address 172.16.5.2 24
[r5-GigabitEthernet0/0/0]quit
[r5]interface g0/0/1
[r5-GigabitEthernet0/0/1]ip address 172.16.8.1 24
[r5-GigabitEthernet0/0/1]quit

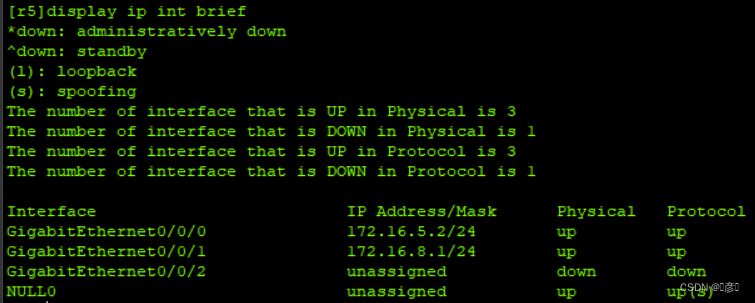

[r5]display ip int brief

r6：

<Huawei>system-view
[Huawei]sysname r6
[r6]interface g0/0/0
[r6-GigabitEthernet0/0/0]ip address 172.16.8.2 24
[r6-GigabitEthernet0/0/0]quit
[r6]interface g0/0/1
[r6-GigabitEthernet0/0/1]ip address 172.16.7.1 24
[r6-GigabitEthernet0/0/1]quit
[r6]interface g0/0/2
[r6-GigabitEthernet0/0/2]ip address 172.16.9.1 24
[r6-GigabitEthernet0/0/2]quit

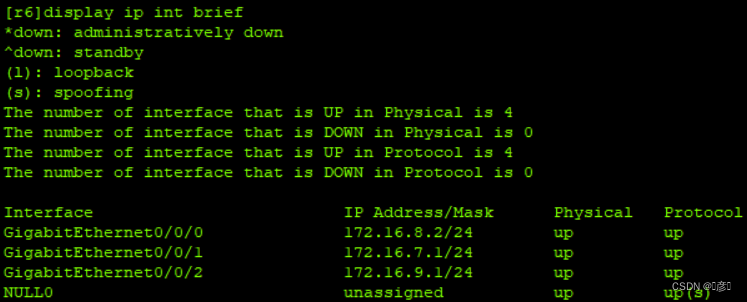

[r6]display ip int brief

r7：

<Huawei>system-view
[Huawei]sysname r7
[r7]interface g0/0/0
[r7-GigabitEthernet0/0/0]ip address 172.16.6.2 24
[r7-GigabitEthernet0/0/0]quit
[r7]interface g0/0/1
[r7-GigabitEthernet0/0/1]ip address 172.16.7.2 24
[r7-GigabitEthernet0/0/1]quit
[r7]interface LoopBack 0
[r7-LoopBack0]ip address 7.7.7.7 32
[r7-LoopBack0]quit
[r7]display ip int brief

r8：

<Huawei>system-view
[Huawei]sysname r8
[r8]interface g0/0/0
[r8-GigabitEthernet0/0/0]ip address 172.16.9.2 24
[r8-GigabitEthernet0/0/0]quit
[r8]interface g0/0/1
[r8-GigabitEthernet0/0/1]ip address 78.1.1.1 24
[r8-GigabitEthernet0/0/1]quit
[r8]interface LoopBack 0
[r8-LoopBack0]ip address  172.16.1.1 24
[r8-LoopBack0]quit
[r8]display ip int brief

r9：

<Huawei>system-view
[Huawei]sysname r9
[r9]interface LoopBack 0
[r9-LoopBack0]ip address 172.16.2.1 24
[r9-LoopBack0]quit
[r9]interface g0/0/0
[r9-GigabitEthernet0/0/0]ip address 78.1.1.2 24
[r9-GigabitEthernet0/0/0]quit
[r9]display ip int brief

 二、全网可达

1、内网全网可达

r2：

[r2]rip 1
[r2-rip-1]version 2
[r2-rip-1]network 172.16.0.0

r3:

[r3]rip 1
[r3-rip-1]version 2
[r3-rip-1]network 172.16.0.0

r4:

[r4]rip 1
[r4-rip-1]version 2
[r4-rip-1]network 172.16.0.0

r5:

[r5]rip 1
[r5-rip-1]version 2
[r5-rip-1]network 172.16.0.0

r6:

[r6]rip 1
[r6-rip-1]version 2
[r6-rip-1]network 172.16.0.0

r7:

[r7]rip 1
[r7-rip-1]version 2
[r7-rip-1]network 172.16.0.0
[r7-rip-1]network 7.0.0.0

r8:

[r8]rip 1
[r8-rip-1]version 1
[r8-rip-1]network 172.16.0.0
[r8-rip-1]network 78.0.0.0

[r8]interface g0/0/0
[r8-GigabitEthernet0/0/0]rip version 2
[r8-GigabitEthernet0/0/0]quit

r9:

[r9]rip 1
[r9-rip-1]version 1
[r9-rip-1]network 172.16.0.0
[r9-rip-1]network 78.0.0.0

查看r2、r8、r9路由表

display ip routing-table

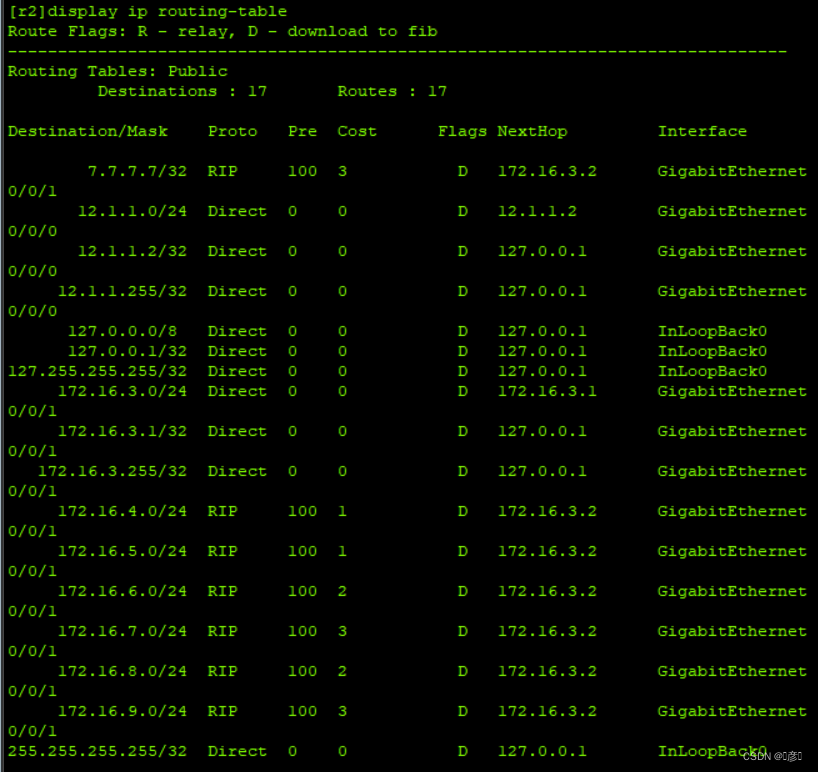

r2:

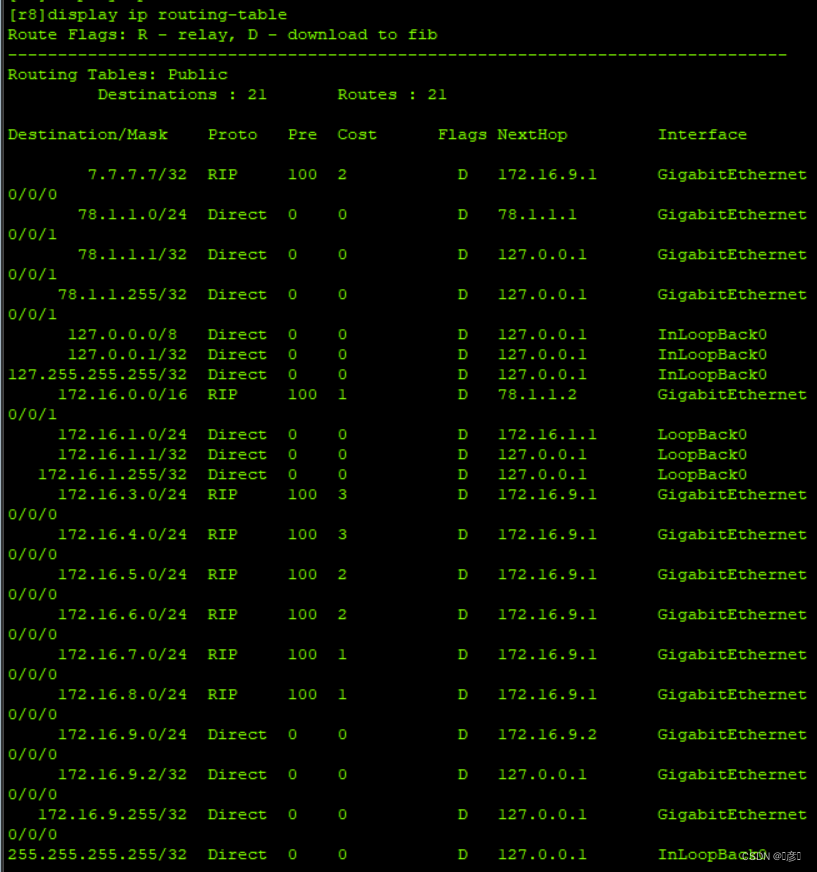

r8:

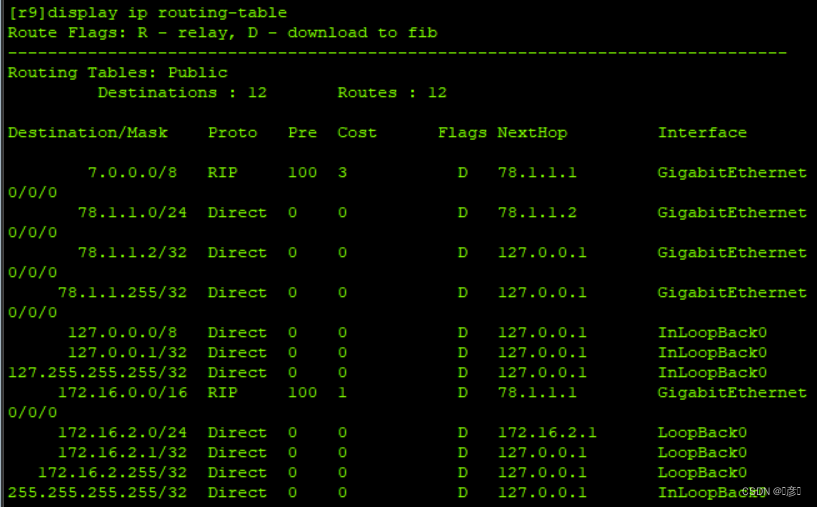

r9:

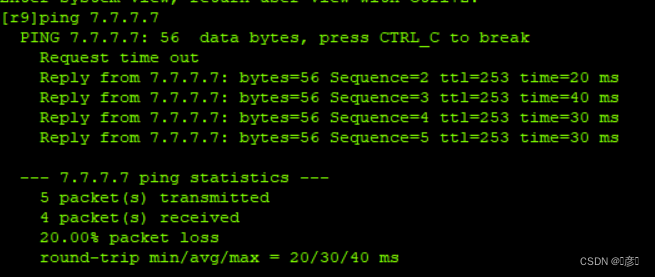

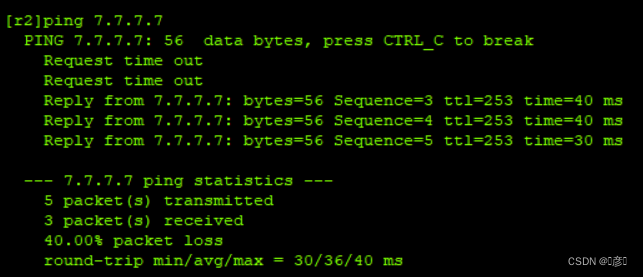

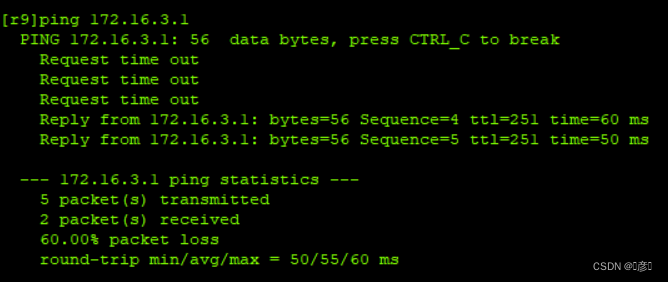

 测试结果如下：

2.外网全网可达

r2:

[r2]acl 2000
[r2-acl-basic-2000]rule permit source any
[r2-acl-basic-2000]quit
[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]nat outbound 2000
[r2-GigabitEthernet0/0/0]quit
[r2]ip route-static 0.0.0.0 0 12.1.1.1
[r2]rip 1
[r2-rip-1]default-route originate

查看下放的缺省：

display ip routing-table

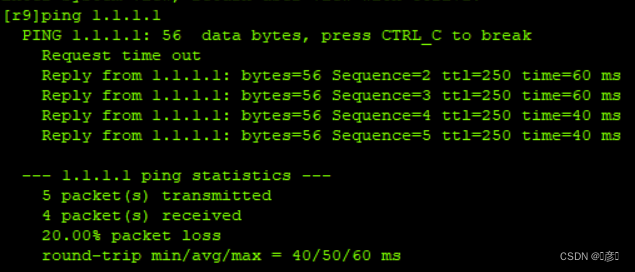

 测试如下：

成功则实现全网可达。

三、 R2访问r7要求走r5去访问

r3:

[r3]acl 2000
[r3-acl-basic-2000]rule permit source 7.7.7.7 0.0.0.0
[r3-acl-basic-2000]quit
[r3]interface g0/0/1
[r3-GigabitEthernet0/0/1]rip metricin 2000 4
[r3-GigabitEthernet0/0/1]quit

查看是否修改成功：

[r3]display ip routing-table

 走 g0/0/2 口修改成功.

四、R1为运营商 r1远程登录r2实际登录r7

 r7打开远程登录:

[r7]user-interface vty 0 4
[r7-ui-vty0-4]authentication-mode password
Please configure the login password (maximum length 16):1234

r2：

[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]nat static protocol tcp global 12.1.1.3 23 inside 7
.7.7.7 23

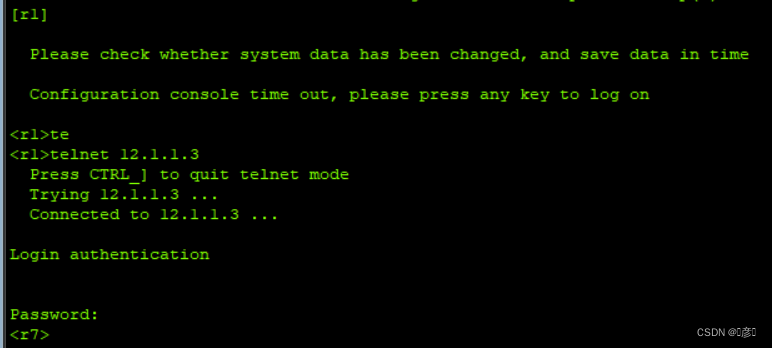

 在r1测试：

成功登录r7,小实验圆满成功。
