【华三】防火墙IPSec NAT穿越实验

1.实验一 防火墙IPSec NAT穿越实验

 实验拓扑及需求

1.1 用防火墙搭建IPSec VPN（FW1采用CLI命令行配置，FW2上采用网页配置）

FW1配置过程：

对防火墙接口进行安全域的划分，和相关流量的放行

[FW1]security-zone name trust  ---进入FW1防火墙trust区域
[FW1-security-zone-Trust]import interface g2/0 ---将FW1的g2/0接口划分进trust安全域
[FW1-security-zone-Trust]security-zone name untrust ---进入FW1防火墙untrust区域
[FW1-security-zone-Untrust]import interface g3/0 ---将FW1的g3/0接口划分进untrust安全域
[FW1-security-zone-Untrust]qu

[FW1]int g2/0
[FW1-GigabitEthernet2/0]manage ping outbound
[FW1-GigabitEthernet2/0]manage ping inbound
[FW1]int g3/0
[FW1-GigabitEthernet3/0]manage ping outbound   ---放行g3/0接口ping包流量的放行
[FW1-GigabitEthernet3/0]manage ping inbound    ---放行g3/0接口ping包流量的接收



[FW2]security-zone name trust
[FW2-security-zone-Trust]import interface g2/0
[FW2-security-zone-Trust]security-zone name untrust
[FW2-security-zone-Untrust]import interface g3/0
[FW2-security-zone-Untrust]qu

[FW2]int g2/0
[FW2-GigabitEthernet2/0]manage ping outbound
[FW2-GigabitEthernet2/0]manage ping inbound
[FW2]int g3/0
[FW2-GigabitEthernet3/0]manage ping inbound
[FW2-GigabitEthernet3/0]manage ping outbound

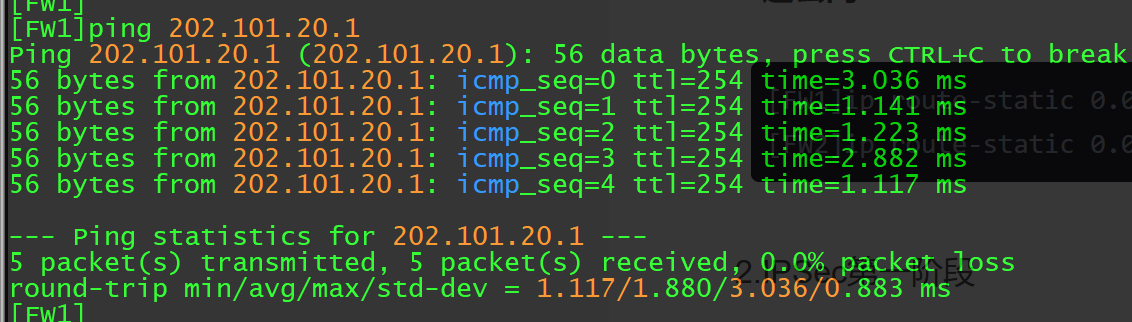

1.通公网

[FW1]ip route-static 0.0.0.0 0.0.0.0 202.101.10.2
[FW2]ip route-static 0.0.0.0 0.0.0.0 202.101.20.2

2.IPSec第一阶段

Step1：创建IKE提议
    [FW1]ike proposal 1  ---创建IKE提议1
 （ [FW1-ike-proposal-1]authentication-method pre-share  ---设置认证方式为预共享密钥
    [FW1-ike-proposal-1]authentication-algorithm md5  ---认证采用md5算法
    [FW1-ike-proposal-1]encryption-algorithm 3des-cbc ---封装采用3des算法
    [FW1-ike-proposal-1]dh group5  ---dh组改为5
    [FW1-ike-proposal-1]sa duration  86400  ---sa存活时间设置为86400
  ）
    PS：当创建完IKE提议时，设备会自动生成默认相关参数，因此上面参数可以根据实际需求进行修改，
查看默认参数信息和创建的IKE提议的信息的命令如下
    [FW1]dis ike proposal
     Priority Authentication Authentication Encryption  Diffie-Hellman Duration
                  method       algorithm    algorithm       group      (seconds)
    ----------------------------------------------------------------------------
     1        PRE-SHARED-KEY     MD5        3DES-CBC    Group 5        86400
     default  PRE-SHARED-KEY     SHA1       DES-CBC     Group 1        86400



Step2：创建IKE钥匙
    [FW1-ike-proposal-1]qu
    [FW1-ike-keychain-FW1]pre-shared-key address 202.101.20.1 key simple h3c
            ---指定该预共享密钥的对端设备为202.101.20.1，密钥值为h3c，采用明文形式


Step3：创建IKE提案
    [FW1-ike-keychain-FW1]qu
    [FW1]ike profile FW1 ---创建IKE提案FW1
    [FW1-ike-profile-FW1]keychain FW1  ---绑定钥匙串FW1
    [FW1-ike-profile-FW1]match remote identity address 202.101.20.1 255.255.255.0 ---绑定对端设备
    [FW1-ike-profile-FW1]proposal 1 ---绑定IKE提议1

3.IPSec第二阶段

[FW1]ipsec transform-set myset ---创建IPSec转换集myset
[FW1-ipsec-transform-set-myset]encapsulation-mode tunnel  ---封装模式采用tunnel模式
[FW1-ipsec-transform-set-myset]esp encryption-algorithm 3des-cbc  ---封装算法采用3des
[FW1-ipsec-transform-set-myset]esp authentication-algorithm md5 ---认证算法采用MD5

4.匹配感兴趣流量

[FW1]access-list advanced 3000
[FW1-acl-ipv4-adv-3000]rule  permit ip source 192.168.10.0 0.0.0.255 destination
 192.168.20.0 0.0.0.255

5.创建IPSec策略关联以上信息并调用

[FW1]ipsec policy FW1 1 isakmp   ---创建一个IPSec策略FW1，序列号为1，采用Isakmp框架进行协商密钥
[FW1-ipsec-policy-isakmp-FW1-1]transform-set myset ---绑定转换集myset
[FW1-ipsec-policy-isakmp-FW1-1]security acl 3000 ---匹配感兴趣流量
[FW1-ipsec-policy-isakmp-FW1-1]remote-address 202.101.20.1 ---绑定对端IP地址
[FW1-ipsec-policy-isakmp-FW1-1]ike-profile FW1 ---绑定IKE策略FW1

[FW1-ipsec-policy-isakmp-FW1-1]int g3/0
[FW1-GigabitEthernet3/0]ipsec apply policy FW1 ---在接口上调用IPSec策略FW1

6.创建安全策略，放行IPSec相关流量

[FW1]security-policy ip
[FW1-security-policy-ip]rule 0 name IPSec_FW1_IN  ---创建安全策略IPSec_FW1_IN
[FW1-security-policy-ip-0-IPSec_FW1_IN]action pass  ---执行操作为通过
[FW1-security-policy-ip-0-IPSec_FW1_IN]source-zone Local --指定源安全域
[FW1-security-policy-ip-0-IPSec_FW1_IN]destination-zone untrust ---指定目的安全域
[FW1-security-policy-ip-0-IPSec_FW1_IN]service ike   ---放行IPSec相关服务流量
[FW1-security-policy-ip-0-IPSec_FW1_IN]service ipsec-ah
[FW1-security-policy-ip-0-IPSec_FW1_IN]service ipsec-esp
[FW1-security-policy-ip-0-IPSec_FW1_IN]service nat-t-ipsec

[FW1-security-policy-ip]rule 1 name IPSec_FW1_Out
[FW1-security-policy-ip-1-IPSec_FW1_Out]action pass
[FW1-security-policy-ip-1-IPSec_FW1_Out]source-zone untrust
[FW1-security-policy-ip-1-IPSec_FW1_Out]destination-zone Local
[FW1-security-policy-ip-1-IPSec_FW1_Out]service ike
[FW1-security-policy-ip-1-IPSec_FW1_Out]service ipsec-ah
[FW1-security-policy-ip-1-IPSec_FW1_Out]service ipsec-esp
[FW1-security-policy-ip-1-IPSec_FW1_Out]service nat-t-ipsec

[FW1-security-policy-ip]rule 2 name t2u  -创建t2u安全策略放行PC1到PC2通信流量（默认放行所有）
[FW1-security-policy-ip-2-t2u]action pass
[FW1-security-policy-ip-2-t2u]source-zone trust
[FW1-security-policy-ip-2-t2u]destination-zone untrust

[FW1-security-policy-ip]rule 3 name u2t -创建u2t安全策略放行PC2到PC1通信流量（默认放行所有）
[FW1-security-policy-ip-3-u2t]action pass
[FW1-security-policy-ip-3-u2t]source-zone untrust
[FW1-security-policy-ip-3-u2t]destination-zone trust

FW2上配置过程

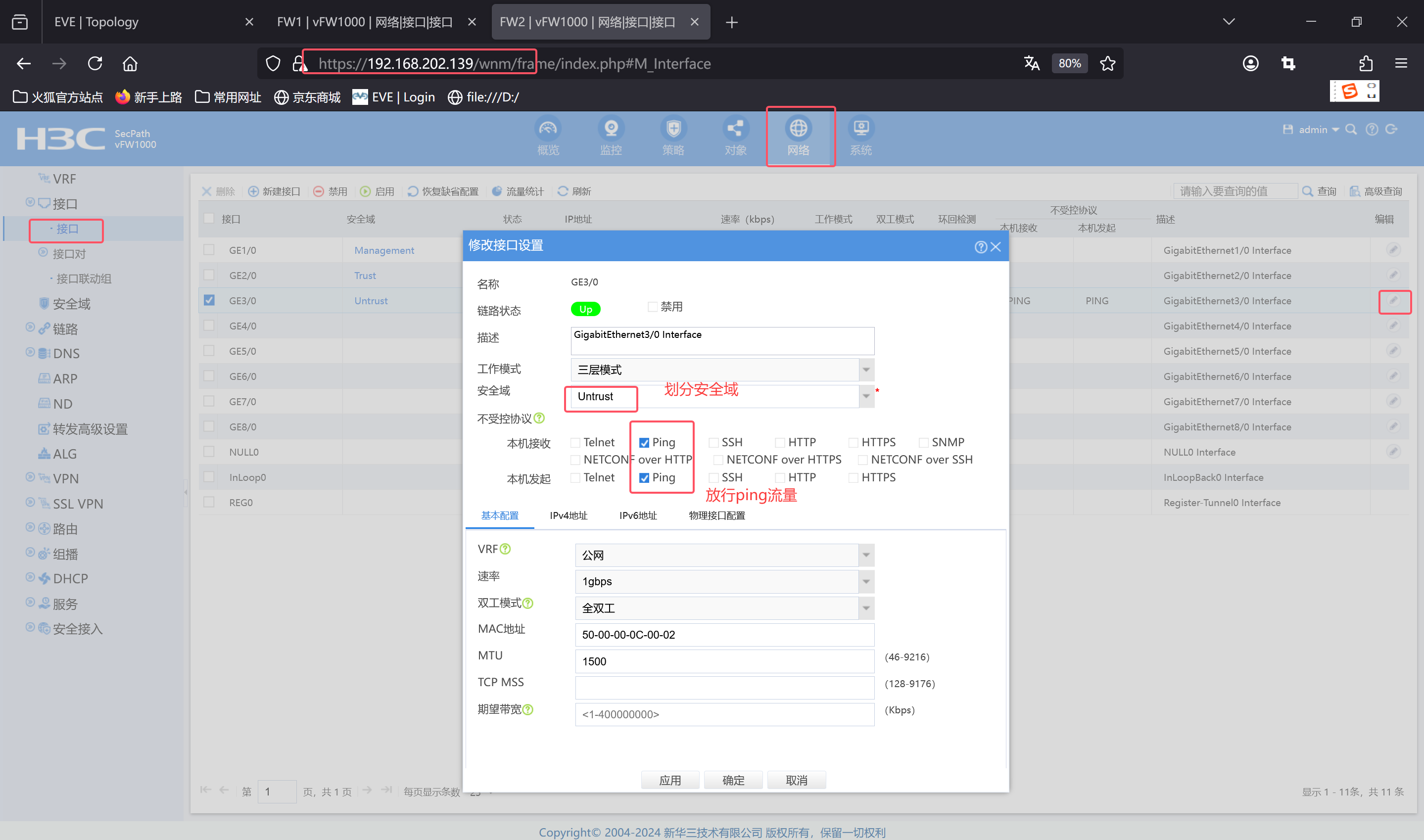

        1.接口安全域的划分和相关流量的放行

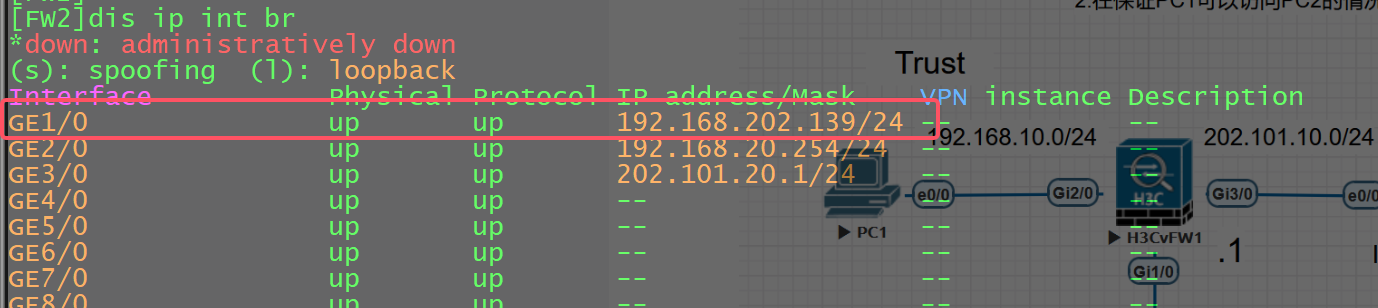

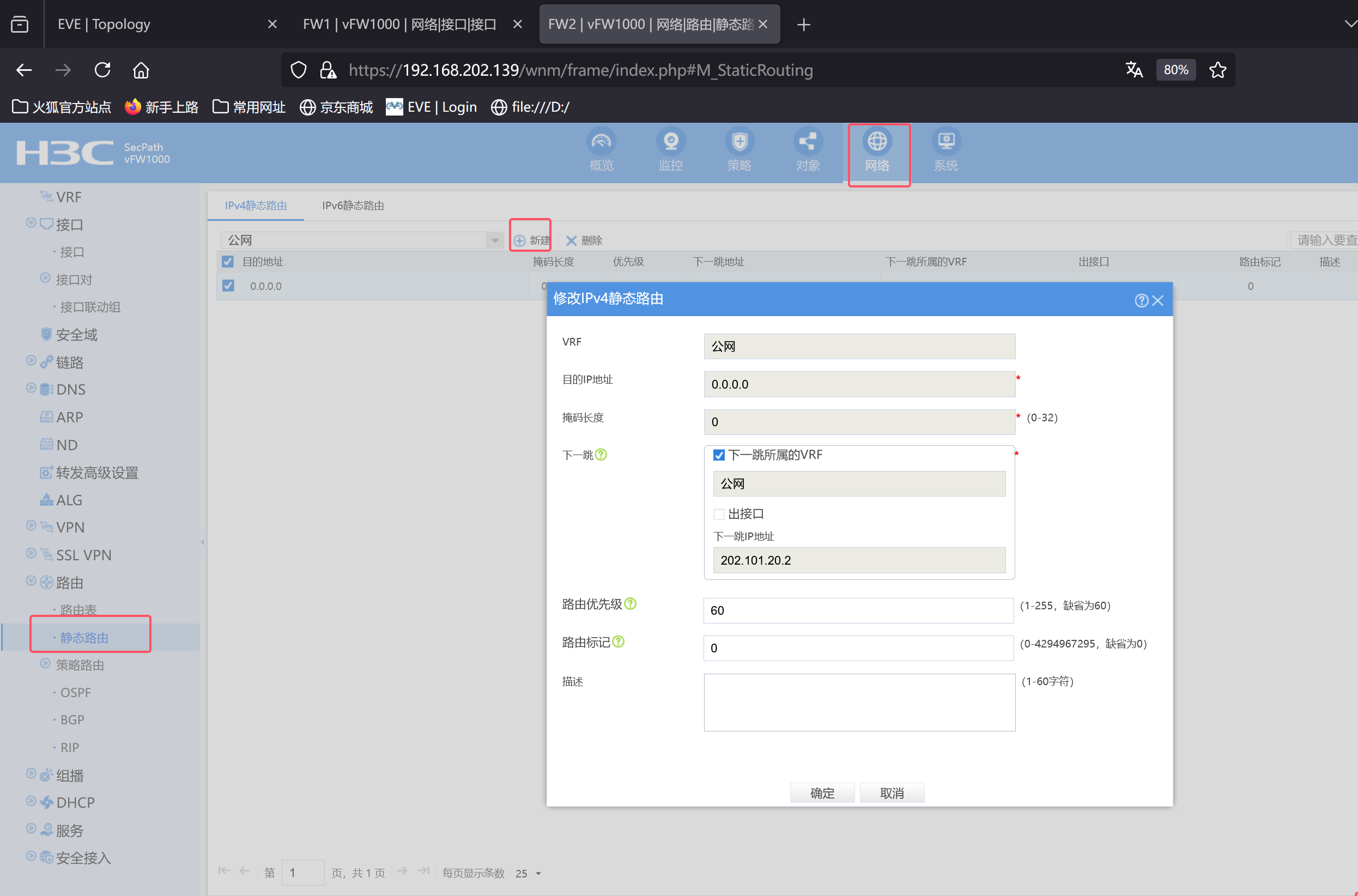

        2.通公网

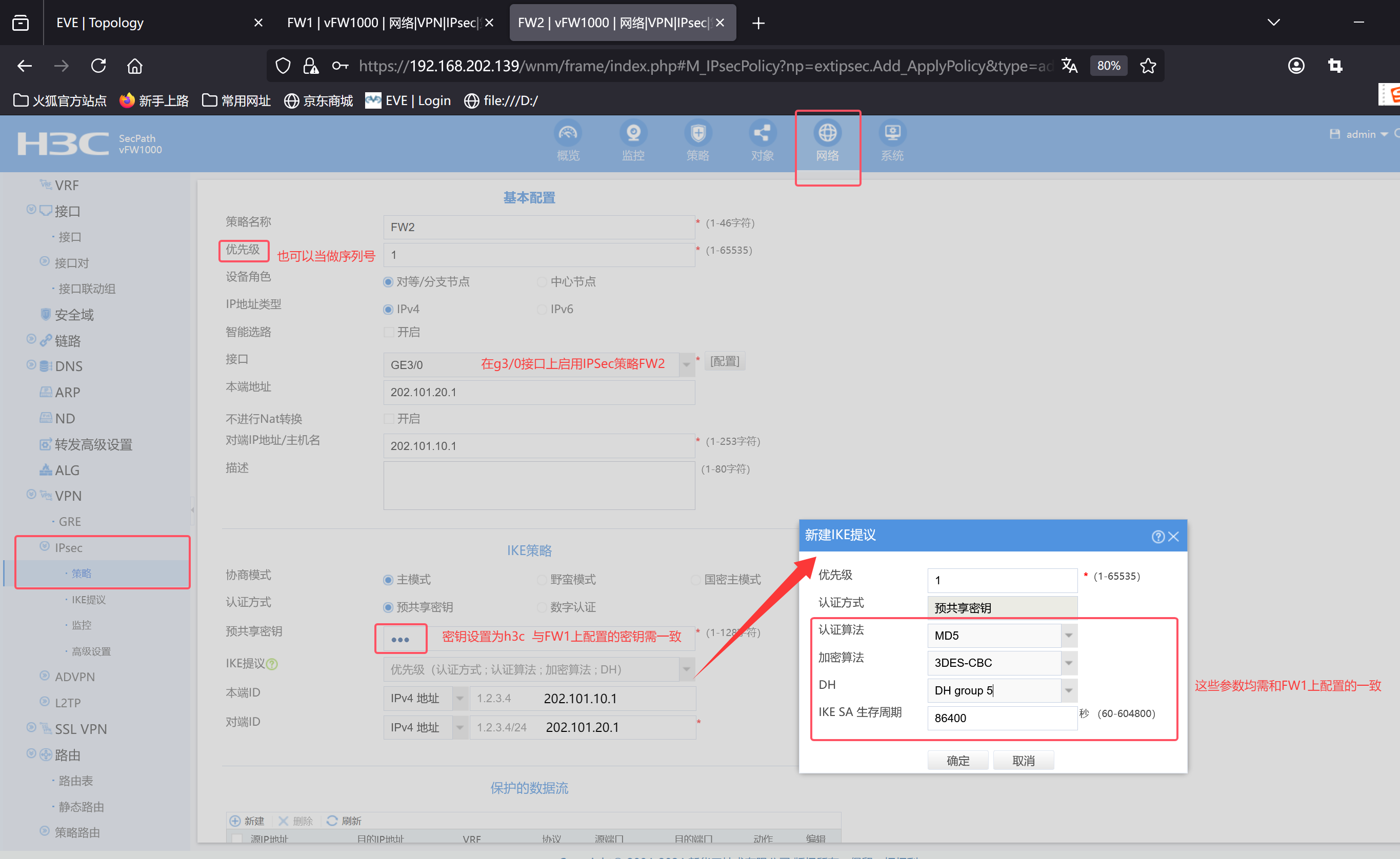

        3.IPSec第一阶段

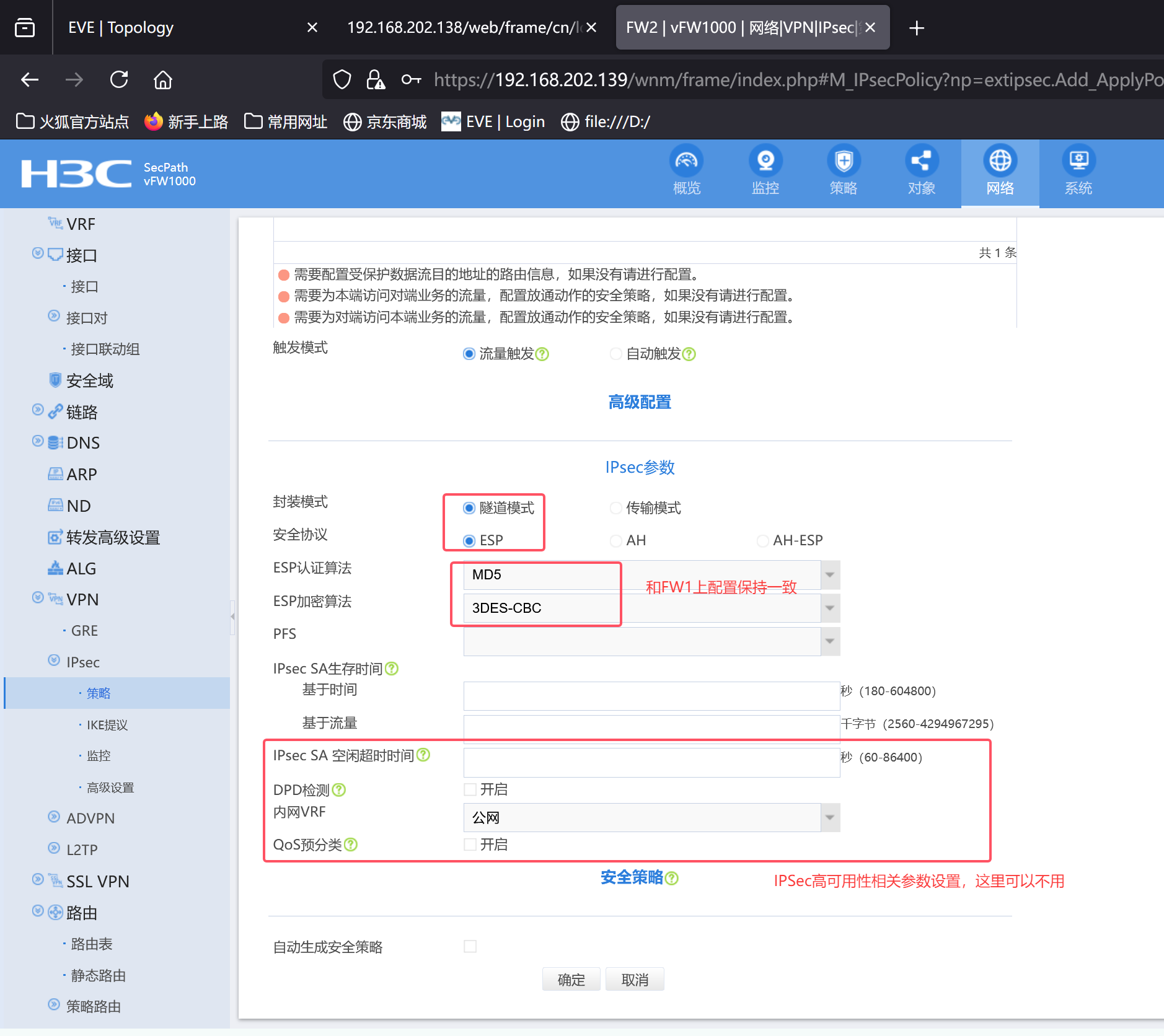

        4.IPSec第二阶段

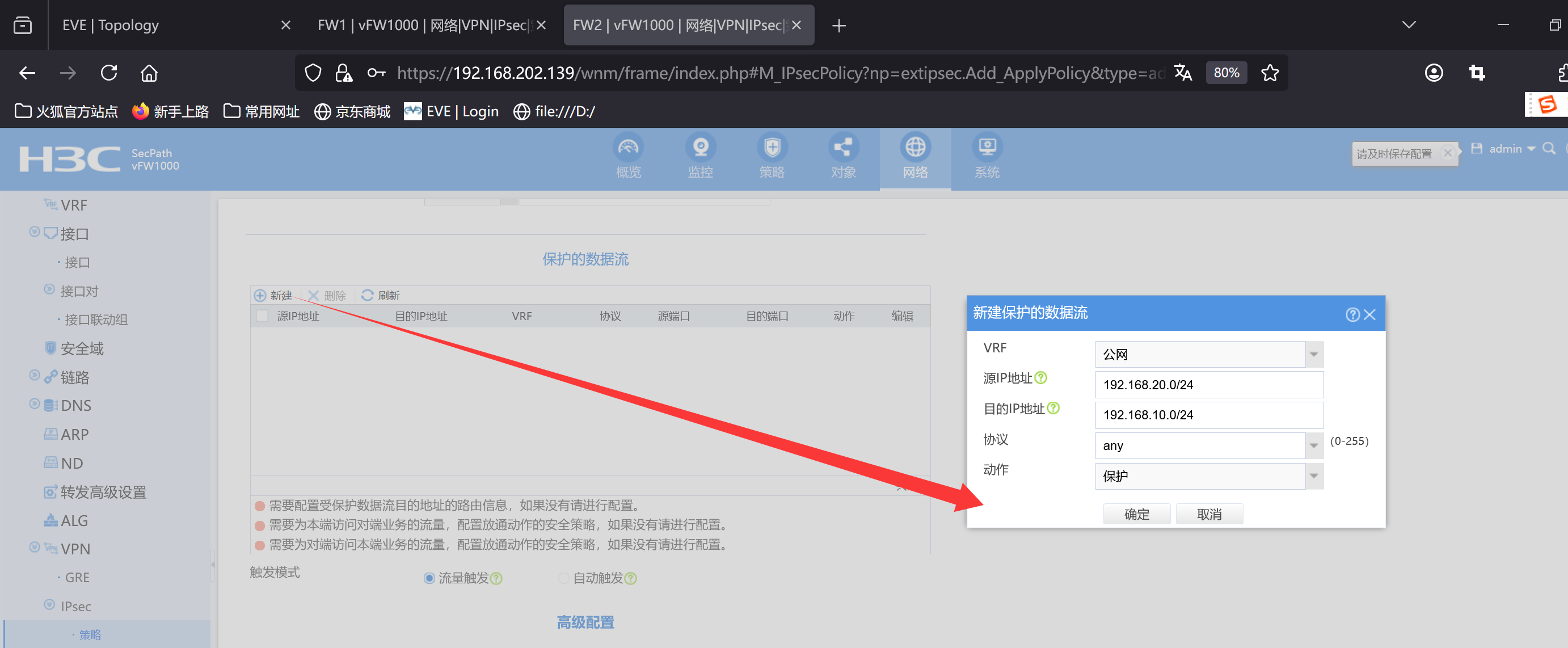

        5.匹配感兴趣流量

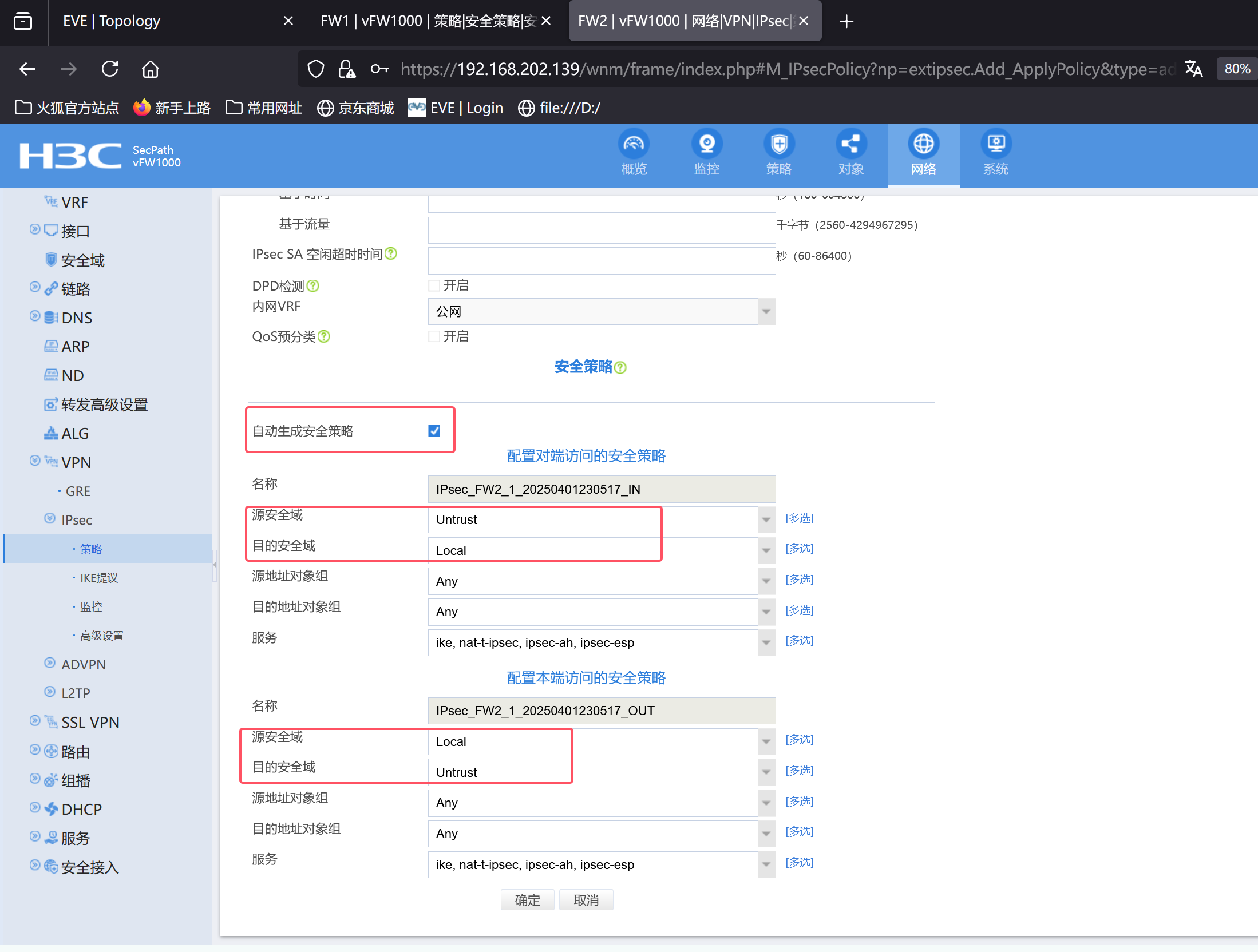

6.配置安全策略放行IPSec相关流量

因为防火墙默认不同区域间流量相互隔绝，因此需要配置安全策略放行相关流量

①首先需要放行IPSec相关服务流量

②通过安全策略放行通信所需IP流量

FW2上的安全策略

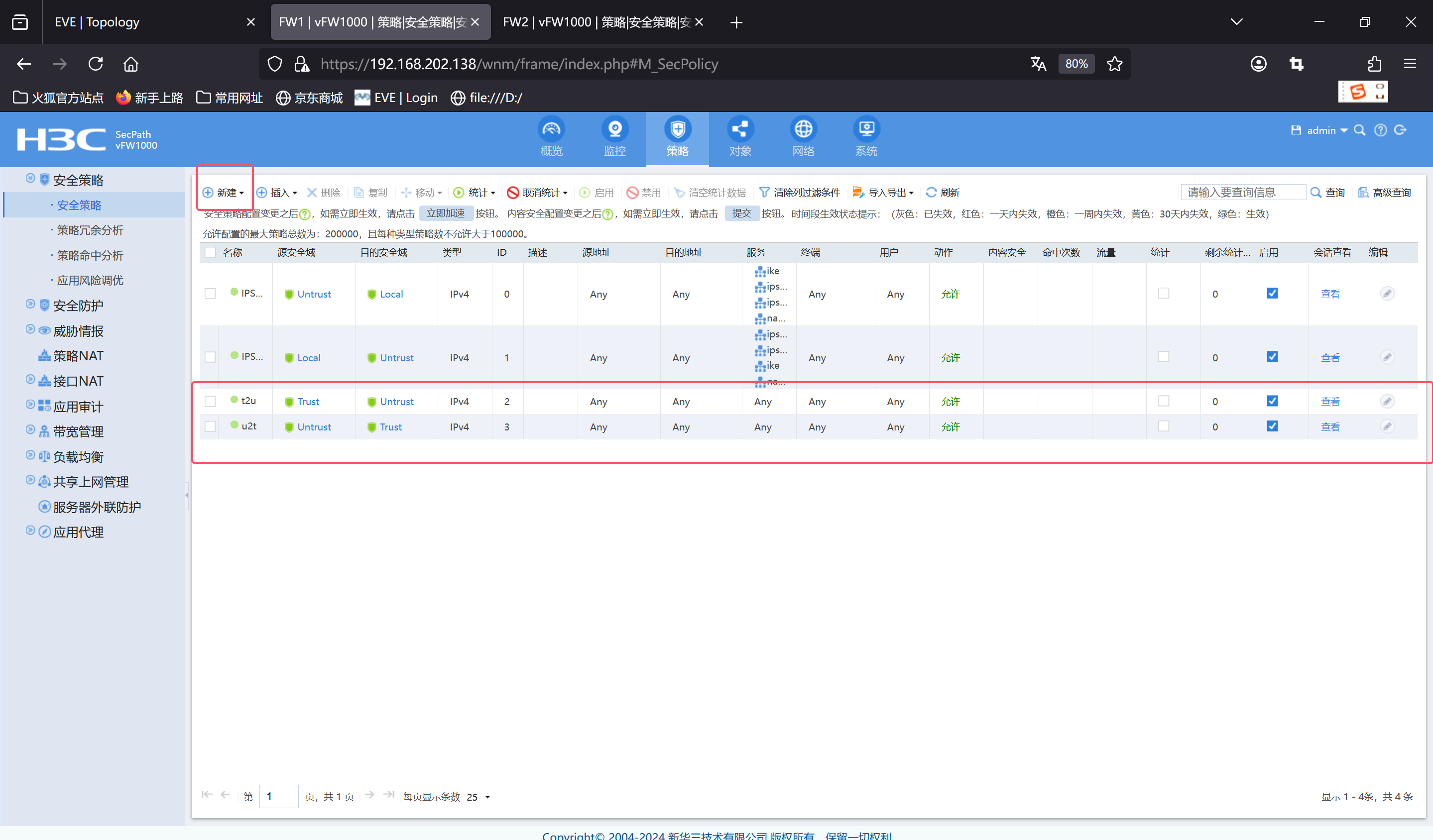

FW1上的安全策略

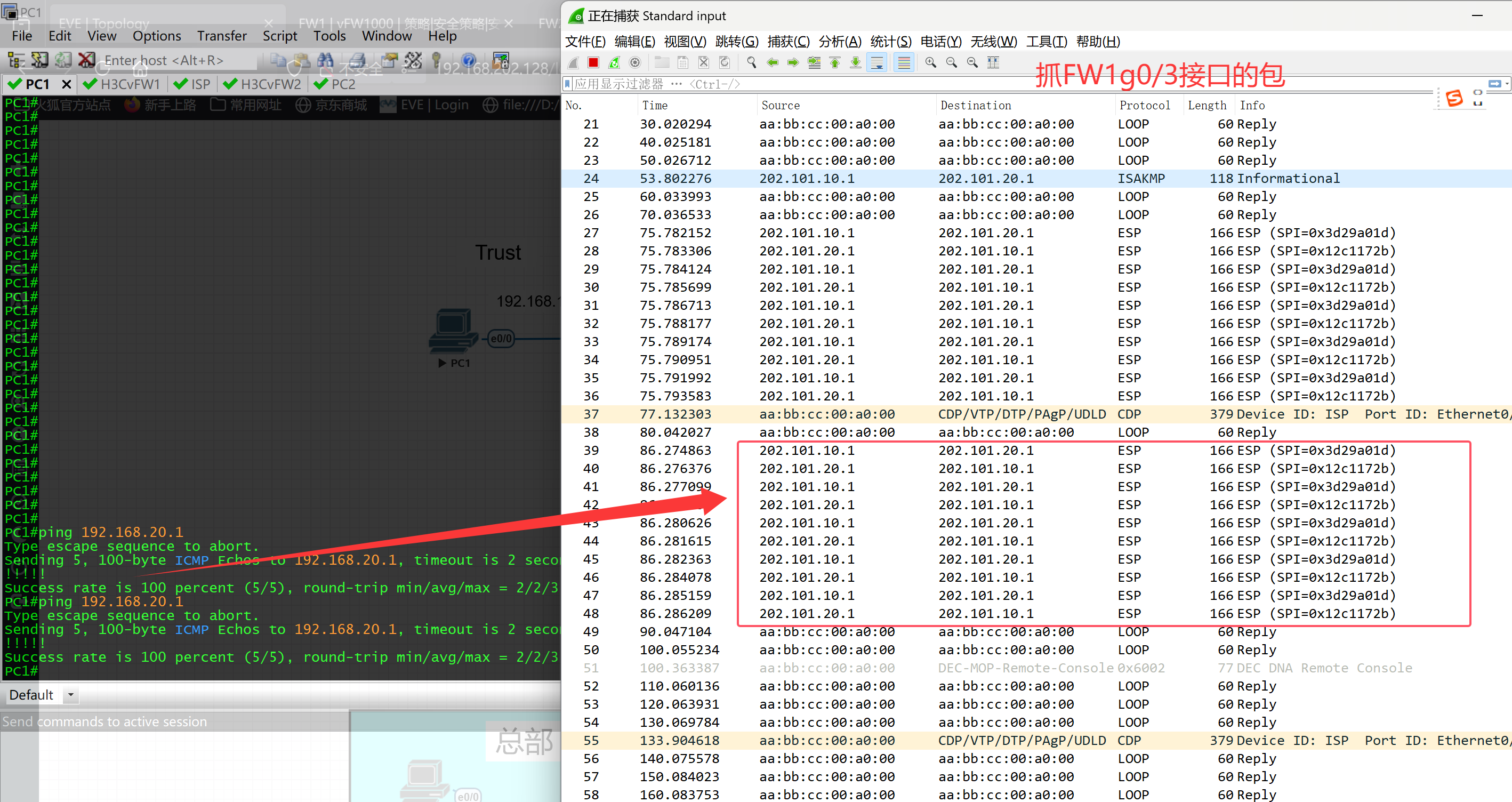

1.2抓包发现成功实现IPSec加密

1.3 实现NAT穿越功能

在PC1可以通过IPSec隧道与PC2进行通信的基础上确保PC1和PC2都可以实现上网功能，其中在FW1上采用CLI命令行配置，FW2上采用网页配置。

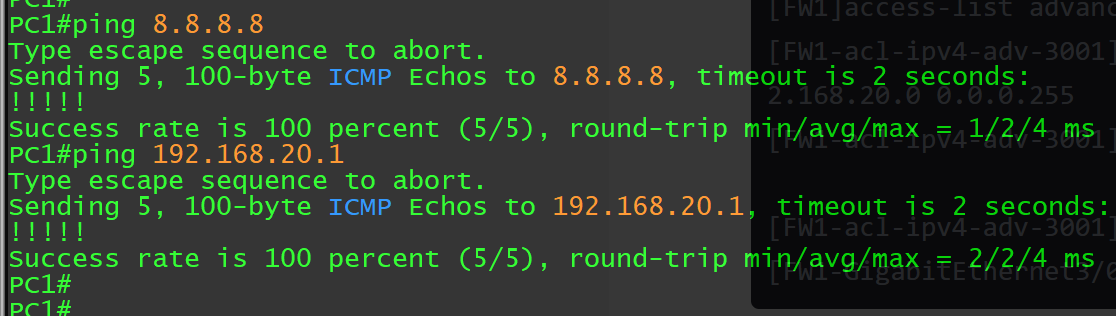

方法一：通过ACL地址排除

因为NAT策略优先级大于IPSec策略优先级，因此为避免PC1通过IPSec策略来访问PC2时数据包的源IP先被NAT策略所转换，可以通过acl排除NAT策略中所包含的IPSec流量，进而实现PC1通过IPSec策略来访问PC2时数据包的源IP不被NAT策略所转换，而不影响其他数据包的传递

[FW1]access-list advanced 3001
[FW1-acl-ipv4-adv-3001]rule deny ip source 192.168.10.0 0.0.0.255 destination 19
2.168.20.0 0.0.0.255
[FW1-acl-ipv4-adv-3001]rule permit ip source any destination any

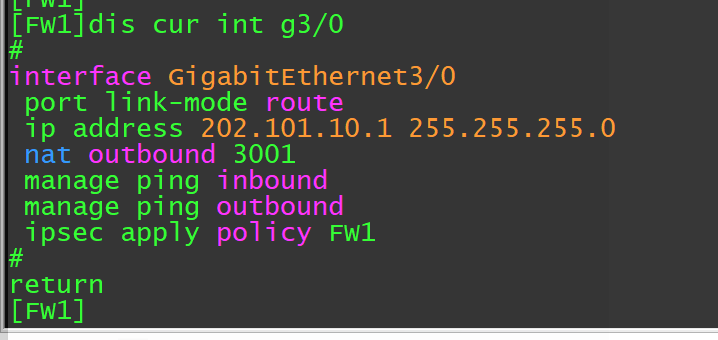

[FW1-acl-ipv4-adv-3001]int g3/0
[FW1-GigabitEthernet3/0]nat outbound 3001

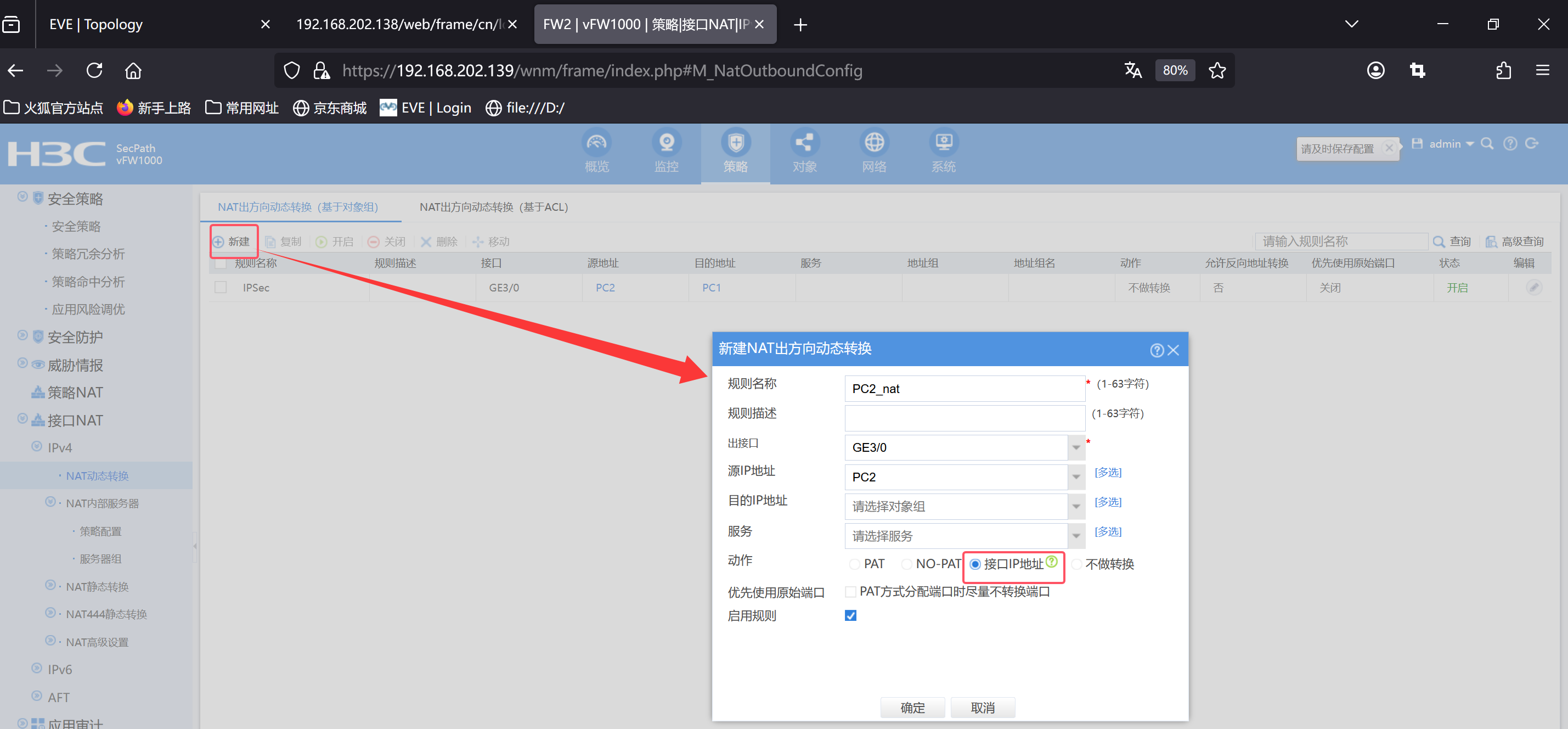

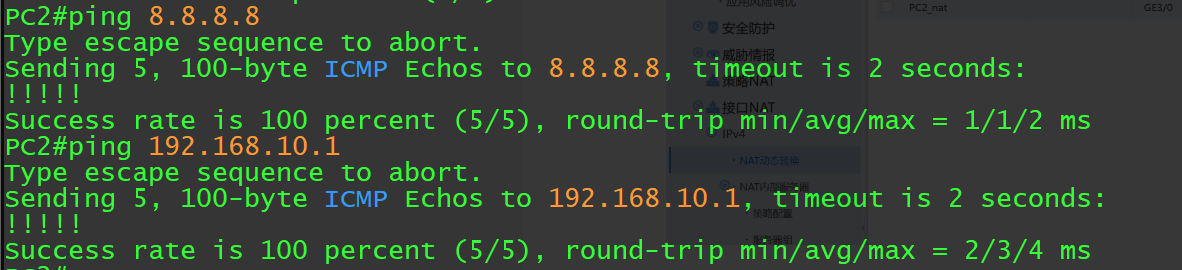

方法二：让NAT地址不转换

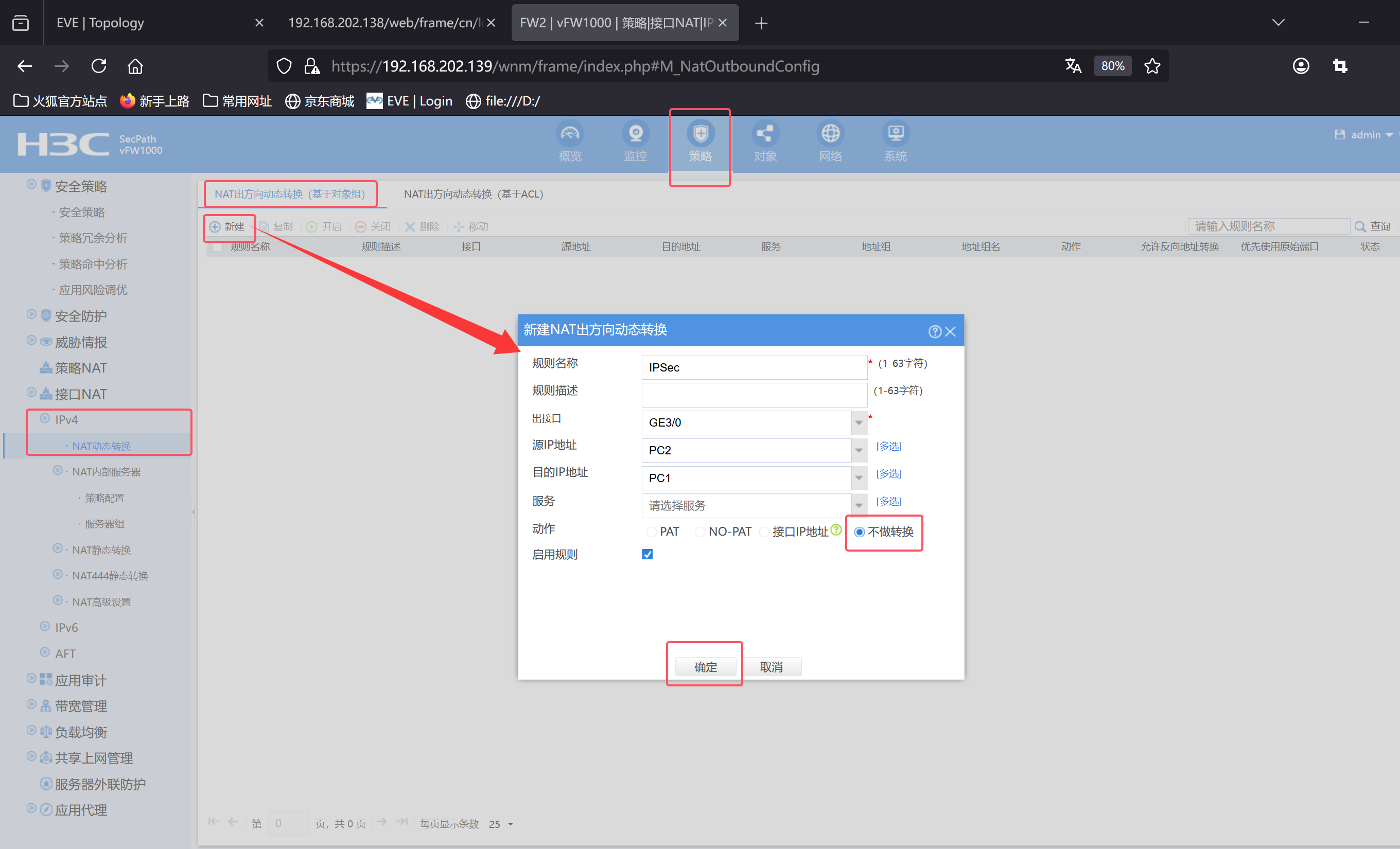

和方法一核心思路是一样的，本质就是地址排除，下面是FW2通过网页进行配置的过程

通过网页配置完后在FW2的CLI命令行上进行相关代码的查看

nat policy
 rule name IPSec
  source-ip PC2
  destination-ip PC1
  outbound-interface GigabitEthernet3/0
  action no-nat
 rule name PC2_nat
  source-ip PC2
  outbound-interface GigabitEthernet3/0
  action easy-ip

1.4配置文档

[FW1]dis cur

 sysname FW1

interface GigabitEthernet2/0
 port link-mode route
 ip address 192.168.10.254 255.255.255.0
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet3/0
 port link-mode route
 ip address 202.101.10.1 255.255.255.0
 nat outbound 3001
 manage ping inbound
 manage ping outbound
 ipsec apply policy FW1

security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet2/0
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet3/0
#
security-zone name Management
 import interface GigabitEthernet1/0
#
zone-pair security source Trust destination Untrust

 ip route-static 0.0.0.0 0 202.101.10.2

#
acl advanced 3000
 rule 0 permit ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255
#
acl advanced 3001
 rule 0 deny ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255
 rule 5 permit ip

#
ipsec transform-set FW1
 esp encryption-algorithm 3des-cbc
 esp authentication-algorithm md5
#
ipsec transform-set myset
 esp encryption-algorithm 3des-cbc
 esp authentication-algorithm md5
#
ipsec policy FW1 1 isakmp
 transform-set FW1
 security acl 3000
 local-address 202.101.10.1
 remote-address 202.101.20.1
 ike-profile FW1
#
ike profile FW1
 keychain FW1
 local-identity address 202.101.10.1
 match remote identity address 202.101.20.0 255.255.255.0
 match local address GigabitEthernet3/0
 proposal 1
#
ike proposal 1
 encryption-algorithm 3des-cbc
 dh group5
 authentication-algorithm md5
#
ike keychain FW1
 match local address GigabitEthernet3/0
 pre-shared-key address 202.101.20.0 255.255.255.0 key simple h3c
#
 ip https enable
#
security-policy ip
 rule 0 name IPSec_FW1_IN
  action pass
  source-zone Untrust
  destination-zone Local
  service ike
  service ipsec-ah
  service ipsec-esp
  service nat-t-ipsec
 rule 1 name IPSec_FW1_Out
  action pass
  source-zone Local
  destination-zone Untrust
  service ipsec-ah
  service ipsec-esp
  service ike
  service nat-t-ipsec
 rule 2 name t2u
  action pass
  source-zone Trust
  destination-zone Untrust
 rule 3 name u2t
  action pass
  source-zone Untrust
  destination-zone Trust
#
return

[FW2]dis cur

 sysname FW2

object-group ip address PC1
 0 network subnet 192.168.10.0 255.255.255.0
#
object-group ip address PC2
 security-zone Trust
 0 network subnet 192.168.20.0 255.255.255.0

#
interface GigabitEthernet2/0
 port link-mode route
 ip address 192.168.20.254 255.255.255.0
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet3/0
 port link-mode route
 ip address 202.101.20.1 255.255.255.0
 manage ping inbound
 manage ping outbound
 ipsec apply policy FW2

security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet2/0
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet3/0
#
security-zone name Management
 import interface GigabitEthernet1/0
#

 ip route-static 0.0.0.0 0 202.101.20.2
#

acl advanced name IPsec_FW2_IPv4_1
 rule 0 permit ip source 192.168.20.1 0 destination 192.168.10.1 0
#

ipsec transform-set FW2_IPv4_1
 esp encryption-algorithm 3des-cbc
 esp authentication-algorithm md5
#
ipsec policy FW2 1 isakmp
 transform-set FW2_IPv4_1
 security acl name IPsec_FW2_IPv4_1
 local-address 202.101.20.1
 remote-address 202.101.10.1
 ike-profile FW2_IPv4_1
#
nat policy
 rule name IPSec
  source-ip PC2
  destination-ip PC1
  outbound-interface GigabitEthernet3/0
  action no-nat
 rule name PC2_nat
  source-ip PC2
  outbound-interface GigabitEthernet3/0
  action easy-ip
#
ike profile FW2_IPv4_1
 keychain FW2_IPv4_1
 match remote identity address 202.101.10.0 255.255.255.0
 match local address GigabitEthernet3/0
#
ike proposal 1
 encryption-algorithm 3des-cbc
 dh group5
 authentication-algorithm md5
#
ike keychain FW2_IPv4_1
 match local address GigabitEthernet3/0
 pre-shared-key address 202.101.10.0 255.255.255.0 key simple h3c
#
 ip https enable
#
security-policy ip
 rule 1 name IPsec_FW2_1_20250401230517_IN
  action pass
  source-zone Untrust
  destination-zone Local
  service ike
  service nat-t-ipsec
  service ipsec-ah
  service ipsec-esp
 rule 0 name IPsec_FW2_1_20250401230517_OUT
  action pass
  source-zone Local
  destination-zone Untrust
  service ike
  service nat-t-ipsec
  service ipsec-ah
  service ipsec-esp
 rule 2 name t2u
  action pass
  source-zone Trust
  destination-zone Untrust
 rule 3 name u2t
  action pass
  source-zone Untrust
  destination-zone Trust
#
return
