1. 项目展示
boost搜索引擎具体讲解视频
2. 项目背景
对于boost库,官方是没有提供搜索功能的,我们这个项目就是来为它添加一个站内搜索的功能。
3. 项目环境与技术栈
• 项目环境: ubuntu22.04、vscode
• 技术栈: C/C++、C++11、STL、Boost、Jsoncpp、cppjieba、cpp-httplib、html5、css、js、jQuery、Ajax

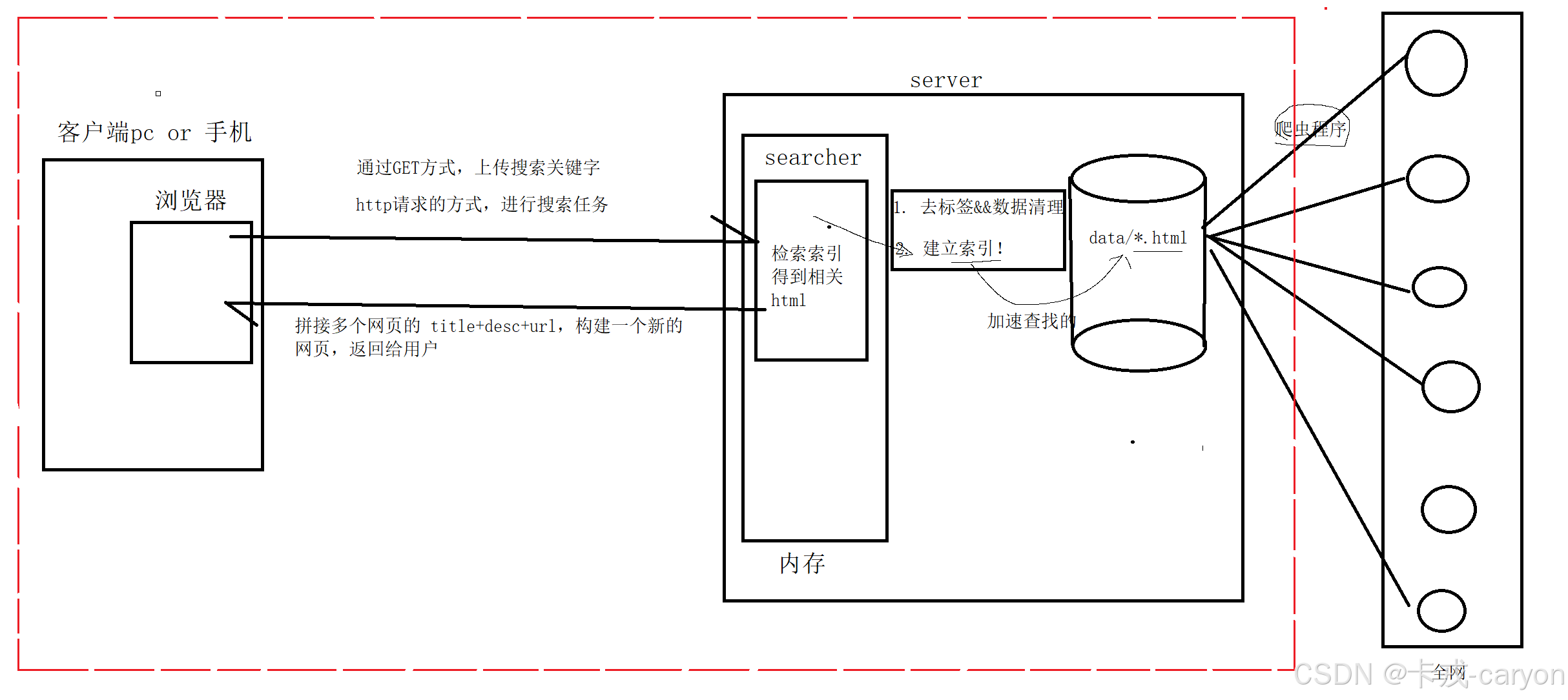

4. 搜索引擎的宏观原理
• 后端: 首先通过爬虫程序将全网中的数据保存到磁盘中,接下来通过去标签和数据清洗得到我们想要的数据格式,接下来为这些数据建立好索引方便搜索引擎检索。
• 前端: 用户通过浏览器通过GET方式上传关键字,通过http请求搜索引擎提供服务,搜索引擎检索相关的数据并动态构建网页返回用户。
5. 数据获取

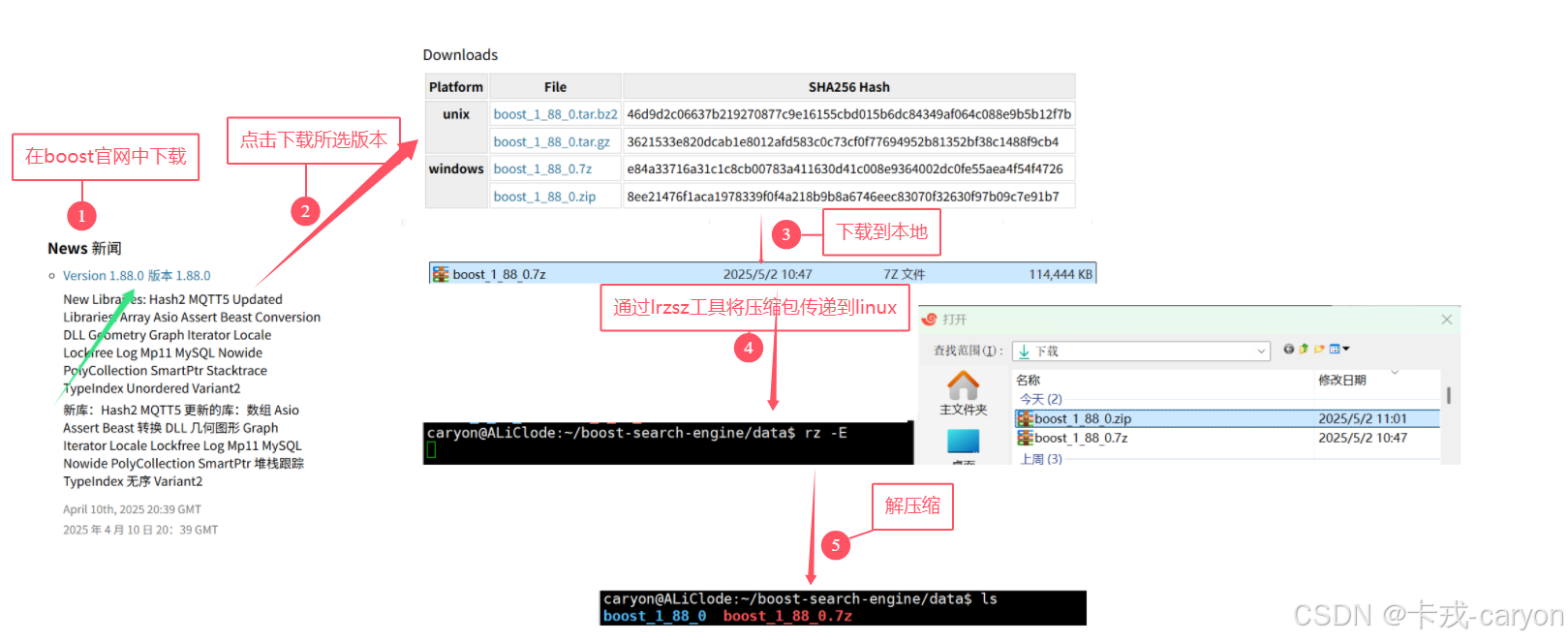

我们这里就不采用爬虫的方式获取boost库中的内容了,因为官方已经提供了下载的途径:
我们实际需要的只是boost_1_88_0/doc/html
这里面的内容,我们将其拷贝到我们的data/raw_input目录中方便后续使用。
6. 去标签与数据清洗

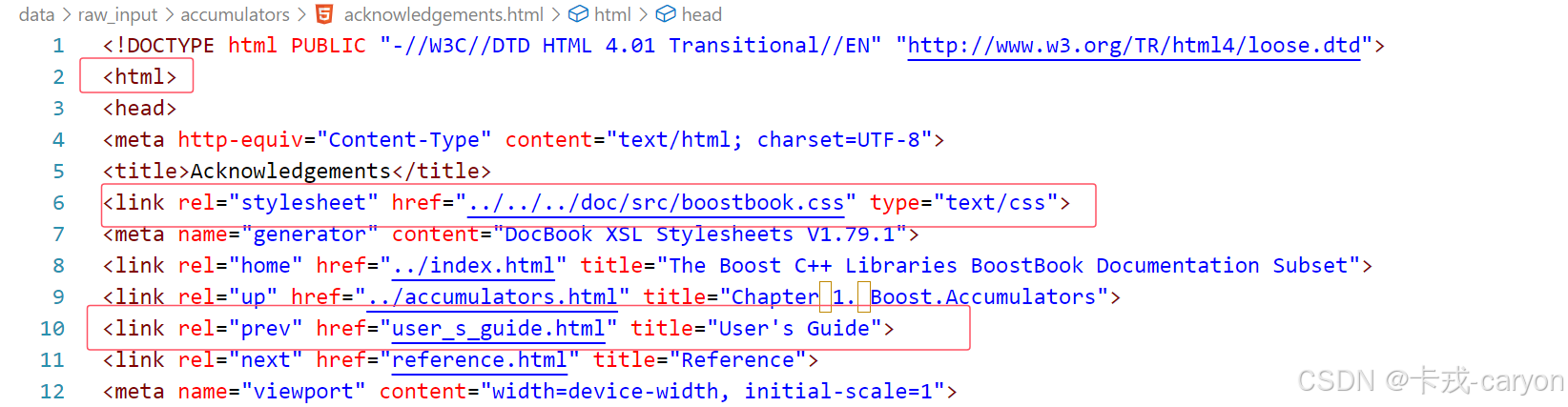

我们浏览data/raw_input其中的html文件发现其中都包含着很多的标签:
而这些标签中的内容对于我们来说是没有价值的,因此我们需要去除这些标签,并把处理好的数据放在data/input中。
6.1 处理策略

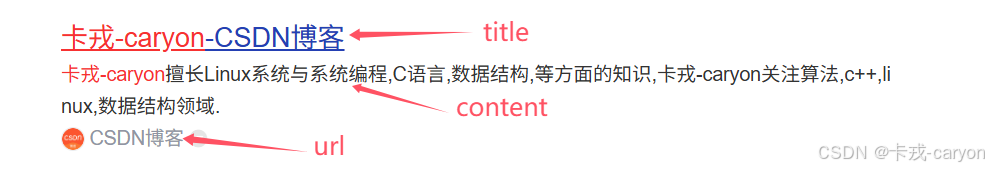

在我们搜索网页时可以看到其显示的内容主要分为三部分:
因此我们在数据清洗时也要体现出这三部分数据:将每个html文件中的内容读取成一行以\n
结尾,每一行中分为三个部分(title、content、url)以\3
分隔。
6.2 基本框架
#include <memory>
#include "Parse.hpp"
using namespace ParseModule;
int main()
{
std::unique_ptr<Parse> parser = std::make_unique<Parse>();
// 1. 枚举所有的.html文件
if(! parser->EnumFileName())
{
LOG(LogLevel::FATAL) << "EnumFileName Failed";
exit(1);
}
// 2. 将所有的文件名对应的文件转换成指定格式的数组
if(!parser->ParseHtml())
{
LOG(LogLevel::FATAL) << "ParseHtml Failed";
exit(2);
}
// 3. 将数组中的内容拼接成json字符串并保存到input_path中
if(!parser->SaveHtml())
{
LOG(LogLevel::FATAL) << "SaveHtml Failed";
exit(3);
}
LOG(LogLevel::DEBUG) << "Parse Succeed!";
return 0;
}
6.3 分步实现
• 我们需要将 data/raw_input/
下的所有 .html
文件的名字获取得到,boost库中为我们提供了相应的方法。因此我们需要引入boost库,使用boost库中的filesystem帮助我们遍历给定路径的文件,来帮我们筛选出.html的文件。
• 获取得到所有的.html
文件之后,需要提取出我们想要的内容(title、content、url),所以要依次遍历所有的文件,提取出这三部分。
• 在获取到我们想要的内容之后,我们需要将这些数据以一定的格式进行保存,这里我们采用的是每个文件的内容放在一行,行内使用'\3'
进行分隔,将其存储到data/input/input.bin
中。
boost 库的下载
sudo apt update
sudo apt install -y libboost-all-dev
具体实现
#pragma once
#include <fstream>
#include <string>
#include <vector>
#include <cstdlib>
#include <boost/filesystem.hpp>
#include "Log.hpp"
namespace ParseModule
{
using namespace LogModule;
const static std::string raw_input_path = "../data/raw_input";
const static std::string input_path = "../data/input/input.bin";
struct DataInfo
{
std::string title; // 标题
std::string content; // 正文
std::string url; // url
};
using DataInfo_t = struct DataInfo;
class Parse
{
public:
Parse()
{
}
// 枚举所有的html文件
bool EnumFileName()
{
boost::filesystem::path root_path(raw_input_path);
// 如果节点不存在就返回 false
if (!boost::filesystem::exists(root_path))
return false;
// 遍历所有的文件
boost::filesystem::recursive_directory_iterator end;
boost::filesystem::recursive_directory_iterator iter(root_path);
for (; iter != end; iter++)
{
// 判断是不是常规文件
if (!boost::filesystem::is_regular_file(*iter))
continue;
// 判断是不是.html文件
if (iter->path().extension() != std::string(".html"))
continue;
// 走到这里一定是一个.html文件
_files_name.push_back(move(iter->path().string()));
}
return true;
}
// 对文件中的内容进行划分
bool ParseHtml()
{
for (auto &file_name : _files_name)
{
// 读取文件内容
std::string message;
if (!ReadFile(file_name, &message))
{
LOG(LogLevel::FATAL) << "ReadFile Failed";
return false;
}
// 构建DataInfo
DataInfo_t datainfo;
if (!BuiltDataInfo(file_name, message, &datainfo))
{
LOG(LogLevel::FATAL) << "BuiltDataInfo Failed";
return false;
}
// 将构建成功的datainfo插入datas
_datas.push_back(datainfo);
}
return true;
}
// 将指定格式的数据写入指定文件
bool SaveHtml()
{
// 按照二进制方式进行写入
std::ofstream out(input_path, std::ios::out | std::ios::binary);
if (!out.is_open())
{
std::cerr << "open " << input_path << " failed!" << std::endl;
return false;
}
const static std::string sep = "\3";
for (auto &data : _datas)
{
std::string outstr;
outstr += data.title + sep;
outstr += data.content + sep;
outstr += data.url + '\n';
out.write(outstr.c_str(), outstr.size());
}
out.close();
return true;
}
~Parse()
{
}
private:
bool ReadFile(const std::string &file_name, std::string *result)
{
std::ifstream in(file_name, std::ios::in);
if (!in.is_open())
{
LOG(LogLevel::ERROR) << "open file " << file_name << " error";
return false;
}
std::string line;
while (std::getline(in, line))
*result += line;
in.close();
return true;
}
bool BuiltDataInfoTitle(std::string &message, std::string *title)
{
size_t begin = message.find("<title>");
if (begin == std::string::npos)
return false;
size_t end = message.find("</title>");
if (end == std::string::npos)
return false;
begin += std::string("<title>").size();
*title = message.substr(begin, end - begin);
return true;
}
bool BuiltDataInfoContent(std::string &message, std::string *content)
{
size_t begin = message.find("<body");
if (begin == std::string::npos)
return false;
size_t end = message.find("</body>");
if (end == std::string::npos)
return false;
begin += std::string("<body>").size();
// 基于一个简易的状态机去标签
enum status
{
LABLE,
CONTENT
};
enum status s = LABLE;
while (begin != end)
{
switch (s)
{
case LABLE:
if (message[begin] == '>')
s = CONTENT;
break;
case CONTENT:
if (message[begin] == '<')
s = LABLE;
else
{
// 我们不想保留原始文件中的\n,因为我们想用\n作为html解析之后文本的分隔符
if (message[begin] == '\n')
message[begin] = ' ';
content->push_back(message[begin]);
}
break;
default:
break;
}
begin++;
}
return true;
}
bool BuiltDataInfoUrl(std::string &file_name, std::string *url)
{
std::string url_head = "https://www.boost.org/doc/libs/1_88_0/doc/html";
std::string url_tail = file_name.substr(raw_input_path.size());
*url = url_head + url_tail;
return true;
}
bool BuiltDataInfo(std::string &filename, std::string &message, DataInfo_t *datainfo)
{
// 构建title
if (!BuiltDataInfoTitle(message, &datainfo->title))
return false;
// 构建content
if (!BuiltDataInfoContent(message, &datainfo->content))
return false;
// 构建url
if(!BuiltDataInfoUrl(filename,&datainfo->url))
return false;
return true;
}
private:
std::vector<std::string> _files_name; // 1. 将raw中的html文件名全部保存到files_name中
std::vector<DataInfo_t> _datas; // 2. 将所有的文件名对应的文件转换成指定格式的数组
};
}
7. 建立索引
7.1 正排索引与倒排索引概述
正排索引: 从文档ID找到文档内容(文档内的关键字)
文档ID | 文档内容 |
---|---|
1 | caryon爱在CSDN写博客 |
2 | CADN上有好多优质博客 |
倒排索引: 根据文档内容对应联系到文档ID
关键字 | 文档ID |
---|---|
caryon | 1 |
CSDN | 1、2 |
写博客 | 1 |
博客 | 1、2 |
优质博客 | 2 |
7.2 基本框架
#pragma once
namespace IndexModule
{
// 正排索引元素
typedef struct ForwardElem
{
std::string title; // title
std::string content; // content
std::string url; // url
int data_id; // id
} ForwardElem;
// 倒排索引元素
typedef struct InvertedElem
{
int data_id; // data_id
std::string key_word; // key_word
long long weight; // weight
} InvertedElem;
// 倒排链表
using InvertedList = std::vector<InvertedElem>;
class Index
{
public:
Index() {}
// 获取正排索引对应的元素
ForwardElem *GetForwardElem(int data_id)
{
}
// 获取倒排索引对应的元素
InvertedList *GetInvertedList(const std::string &word)
{
}
// 构建索引
bool BuiltIndex(const std::string &input_path)
{
// 构建正排索引
// 构建倒排索引
}
~Index() {}
private:
Index* instance;
};
}
7.3 分步实现
正排索引实际上就是对data/input/input.bin中的内容进行读取并按照一定的格式进行创建,它的标号天然就存在了(数组下标)。倒排索引的话就需要将获取的正排索引的元素拆分成若干词(这个工作我们交由jieba
来做),而后将这些词与编号一一对应起来,这里有一点很重要,查阅到的文档内容我们按照什么样的顺序进行展示呢?这里我们采用了一定的相关性进行绑定的。
至于返回正排索引和倒排索引对应的元素只需要查找一下即可。
还有一点就是,我们实际上的索引只需要建立一次就可以了,因此可以设置为单例模式。
jieba库的下载
本次使用的jieba我们从git code获取,我是将它保存到了libs目录下的,需要注意的是要将dsps/limonp拷贝到include下才能正确使用,或者建立软连接也可以。
git clone https://gitee.com/mohatarem/cppjieba.git
具体实现
#pragma once
#include <mutex>
#include <fstream>
#include <vector>
#include <string>
#include <unordered_map>
#include <boost/algorithm/string.hpp>
#include "Log.hpp"
#include "Jieba.hpp"
namespace IndexModule
{
using namespace LogModule;
// 正排索引元素
typedef struct ForwardElem
{
std::string title; // title
std::string content; // content
std::string url; // url
int data_id; // id
} ForwardElem;
// 倒排索引元素
typedef struct InvertedElem
{
int data_id; // data_id
std::string key_word; // key_word
long long weight; // weight
// 这个函数是给search.hpp去重使用的
bool operator==(const InvertedElem& e)
{
return data_id == e.data_id && key_word == e.key_word && weight == e.weight;
}
} InvertedElem;
// 倒排链表
using InvertedList = std::vector<InvertedElem>;
class Index
{
Index() {}
Index(const Index&) = delete;
bool operator=(const Index&) = delete;
static Index* instance;
static std::mutex lock;
public:
static Index* GetInstance()
{
if(instance == nullptr)
{
std::lock_guard<std::mutex> lck (lock);
if(instance == nullptr)
instance = new(Index);
}
return instance;
}
// 获取正排索引对应的元素
ForwardElem *GetForwardElem(int data_id)
{
if (data_id > ForwardIndex.size())
return nullptr;
return &ForwardIndex[data_id];
}
// 获取倒排索引对应的元素
InvertedList *GetInvertedList(const std::string &word)
{
auto it = InvertedIndex.find(word);
if (it == InvertedIndex.end())
return nullptr;
return &InvertedIndex[word];
}
// 构建索引
bool BuiltIndex(const std::string &input_path)
{
std::ifstream in(input_path, std::ios::in | std::ios::binary);
if (!in.is_open())
{
LOG(LogLevel::FATAL) << "sorry, " << input_path << " open error";
return false;
}
std::string line;
int cnt = 0;
while (getline(in, line))
{
// 构建正排索引
ForwardElem *forward_elem = BuiltForwardIndex(line);
if (forward_elem == nullptr)
continue;
// 构建倒排索引
if (!BuiltInvertedIndex(*forward_elem))
continue;
cnt++;
if(cnt % 50 == 0)
LOG(LogLevel::DEBUG) << "已经建立连接:" << cnt ;
}
return true;
}
~Index() {}
private:
ForwardElem *BuiltForwardIndex(const std::string &line)
{
// 1. 解析字符串进行切割
std::vector<std::string> part_elem;
const static std::string sep = "\3";
boost::split(part_elem, line, boost::is_any_of(sep), boost::token_compress_on);
if (part_elem.size() != 3)
return nullptr;
// 2. 将其填充到ForwardElem结构
ForwardElem forward_elem;
forward_elem.title = part_elem[0];
forward_elem.content = part_elem[1];
forward_elem.url = part_elem[2];
forward_elem.data_id = ForwardIndex.size();
// 3. 将构造好的ForwardElem结构插入ForwardIndex
ForwardIndex.push_back(std::move(forward_elem));
return &ForwardIndex.back();
}
bool BuiltInvertedIndex(ForwardElem &forward_elem)
{
// 统计词频,用于weight的构造
struct word_cnt
{
int title_cnt;
int content_cnt;
word_cnt() : title_cnt(0), content_cnt(0) {}
};
// 用来暂存词频的映射表
std::unordered_map<std::string, word_cnt> word_map;
// 对title进行切分并统计
std::vector<std::string> title_key_words;
JiebaUtil::CutString(forward_elem.title, &title_key_words);
for (auto &key_word : title_key_words)
{
// 忽略大小写
boost::to_lower(key_word);
word_map[key_word].title_cnt++;
}
// 对content进行切分并统计
std::vector<std::string> content_key_words;
JiebaUtil::CutString(forward_elem.content, &content_key_words);
for (auto &key_word : content_key_words)
{
boost::to_lower(key_word);
word_map[key_word].content_cnt++;
}
// 将关键字依次插入InvertedIndex
for(auto& key_word:word_map)
{
InvertedElem elem;
elem.data_id = forward_elem.data_id;
elem.key_word = key_word.first;
elem.weight = 10 * key_word.second.title_cnt + key_word.second.content_cnt; // 这里的weight构造采用了硬编码
InvertedIndex[key_word.first].push_back(std::move(elem));
}
return true;
}
private:
std::vector<ForwardElem> ForwardIndex; // 正排索引
std::unordered_map<std::string, InvertedList> InvertedIndex; // 倒排索引
};
Index* Index::instance = nullptr;
std::mutex Index::lock;
}
8. 搜索引擎
8.1 基本框架
#pragma once
namespace SearchModule
{
using namespace IndexModule;
class Search
{
public:
Search()
{
}
// 初始化搜索引擎
void InitSearch(const std::string &bin_path)
{
}
// 对查询做出反馈
std::string Searcher(std::string query) // 这里是故意写成拷贝的
{
// 1. 对 query 进行切分
// 2. 将所有的关键字构成的 InvertedElem 进行保存
// 3. 按weight降序排序并去重
// 4. 将所有的结果按json串的格式返回
}
~Search()
{
}
private:
Index *index;
};
}
8.2 分步实现
搜索引擎是本博客的核心内容了,但是经过前面的处理,这里我们需要做的就只有初始化引擎和对用户的查询做出反馈,这里我们采用json串进行返回是为了方便后续的网络服务。
jsoncpp的安装
sudo apt install -y libjsoncpp-dev
具体实现
#pragma once
#include <string>
#include <algorithm>
#include <boost/algorithm/string.hpp>
#include <jsoncpp/json/json.h>
#include "Index.hpp"
#include "Jieba.hpp"
#include "Log.hpp"
namespace SearchModule
{
using namespace IndexModule;
using namespace LogModule;
class Search
{
public:
Search()
{
}
// 初始化搜索引擎
void InitSearch(const std::string &bin_path)
{
index = Index::GetInstance();
LOG(LogLevel::INFO) << "获取单例成功……";
index->BuiltIndex(bin_path);
LOG(LogLevel::INFO) << "建立索引成功";
}
// 对查询做出反馈
std::string Searcher(std::string query) // 这里是故意写成拷贝的
{
// 忽略大小写
boost::to_lower(query);
// 1. 对 query 进行切分
std::vector<std::string> key_words;
JiebaUtil::CutString(query, &key_words);
// 2. 将所有的关键字构成的 InvertedElem 进行保存
InvertedList invertedlist_all;
for (const auto &key_word : key_words)
{
InvertedList *invertedlist = index->GetInvertedList(key_word);
if (invertedlist == nullptr)
continue;
invertedlist_all.insert(invertedlist_all.end(), invertedlist->begin(), invertedlist->end());
}
// 3. 按weight降序排序并去重
std::sort(invertedlist_all.begin(), invertedlist_all.end(), [](const InvertedElem &e1, const InvertedElem &e2)
{ return e1.weight > e2.weight; });
auto last = std::unique(invertedlist_all.begin(), invertedlist_all.end());
invertedlist_all.erase(last, invertedlist_all.end());
// 4. 将所有的结果按json串的格式返回
Json::Value root;
for (auto &invertedlist : invertedlist_all)
{
ForwardElem *forwardelem = index->GetForwardElem(invertedlist.data_id);
if (forwardelem == nullptr)
{
continue;
}
Json::Value elem;
elem["title"] = forwardelem->title;
// content是文档的去标签的结果,但是不是我们想要的,我们要的是一部分
elem["desc"] = GetDesc(forwardelem->content, invertedlist.key_word);
elem["url"] = forwardelem->url;
root.append(elem);
}
return Json::StyledWriter().write(root);
}
~Search()
{
}
private:
std::string GetDesc(const std::string &content, const std::string &key_word)
{
// 找到word在html_content中的首次出现,然后往前找50字节(如果没有,从begin开始),往后找100字节(如果没有,到end就可以的)
const int prev_step = 50;
const int next_step = 100;
// 1. 找到首次出现
auto iter = std::search(content.begin(), content.end(), key_word.begin(), key_word.end(), [](int x, int y)
{ return (std::tolower(x) == std::tolower(y)); });
if (iter == content.end())
{
return "None1";
}
int pos = std::distance(content.begin(), iter);
// 2. 获取start,end
int start = 0;
int end = content.size() - 1;
// 如果之前有50+字符,就更新开始位置
if (pos > start + prev_step)
start = pos - prev_step;
if (pos < end - next_step)
end = pos + next_step;
// 3. 截取子串,return
if (start >= end)
return "None2";
std::string desc = content.substr(start, end - start);
desc += "...";
return desc;
}
private:
Index *index;
};
}
9. 网络服务
网络服务这里我们采用cpp-httplib
库来实现
cpp-httplib 安装
git clone https://gitee.com/welldonexing/cpp-httplib.git
具体实现
#pragma once
#include <memory>
#include "Search.hpp"
#include "../libs/cpp-httplib/httplib.h"
namespace HttpSeverModule
{
using namespace SearchModule;
const std::string rootpath = "../html";
class HttpSever
{
public:
HttpSever() : _searcher(std::make_unique<Search>())
{
}
void Start(const std::string &bin_path)
{
_searcher->InitSearch(bin_path);
_svr.set_base_dir(rootpath.c_str());
_svr.Get("/s", [&](const httplib::Request &req, httplib::Response &rsp){
if (!req.has_param("word"))
{
rsp.set_content("必须要有搜索关键字!", "text/plain; charset=utf-8");
return;
}
std::string word = req.get_param_value("word");
LOG(LogLevel::INFO) << "用户搜索的: " << word;
std::string json_string = _searcher->Searcher(word);
rsp.set_content(json_string, "application/json");
});
LOG(LogLevel::INFO) << "服务器启动成功...";
_svr.listen("0.0.0.0", 8888);
}
~HttpSever()
{
}
private:
std::unique_ptr<Search> _searcher;
httplib::Server _svr;
};
}
10. 前端界面
这一部分内容只要自己能够实现一个搜索功能即可,谨放上我的代码供大家查看
<!-- index.html -->
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Boost 搜索引擎</title>
<style>
/* 可复用 Google 风格样式 */
body {
display: flex;
justify-content: center;
align-items: center;
flex-direction: column;
height: 100vh;
font-family: Arial, sans-serif;
}
.logo {
font-size: 64px;
font-weight: bold;
color: #4285f4;
margin-bottom: 30px;
}
.search {
display: flex;
max-width: 600px;
width: 100%;
border: 1px solid #ccc;
border-radius: 24px;
padding: 5px 10px;
}
.search input {
flex: 1;
border: none;
outline: none;
font-size: 16px;
}
.search button {
border: none;
background: none;
font-size: 16px;
color: #4285f4;
cursor: pointer;
}
</style>
</head>
<body>
<div class="logo">Boost</div>
<div class="search">
<input type="text" id="searchInput" placeholder="请输入搜索关键字">
<button onclick="jump()">🔍</button>
</div>
<script>
function jump() {
const input = document.getElementById("searchInput").value.trim();
if (input !== "") {
location.href = `search.html?word=${encodeURIComponent(input)}`;
}
}
</script>
</body>
</html>
<!-- search.html -->
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>搜索结果 - Boost</title>
<script src="https://code.jquery.com/jquery-2.1.1.min.js"></script>
<style>
body {
font-family: Arial, sans-serif;
background-color: #f8f9fa;
margin: 0;
padding: 0;
}
.container {
max-width: 720px;
margin: 0 auto;
padding: 20px;
}
.search-bar {
display: flex;
margin: 20px 0;
background: white;
border: 1px solid #ddd;
border-radius: 24px;
padding: 6px 12px;
box-shadow: 0 1px 2px rgba(0, 0, 0, 0.1);
}
.search-bar input {
flex: 1;
border: none;
outline: none;
font-size: 16px;
padding: 8px;
}
.search-bar button {
background-color: #4285f4;
color: white;
border: none;
border-radius: 20px;
padding: 8px 16px;
font-size: 14px;
cursor: pointer;
}
.result {
margin-top: 20px;
padding: 0 30px;
}
.result .item {
margin-bottom: 25px;
padding-bottom: 10px;
border-bottom: 1px solid #eee;
}
.result .item a {
display: block;
font-size: 18px;
font-weight: bold;
color: #1a0dab;
text-decoration: none;
margin-bottom: 5px;
}
.result .item a:hover {
text-decoration: underline;
}
.result .item p {
font-size: 14px;
line-height: 1.6;
color: #4d5156;
margin: 0;
white-space: normal;
/* 允许换行 */
}
</style>
</head>
<body>
<div class="container">
<div class="search-bar">
<input type="text" id="searchInput">
<button onclick="jump()">搜索</button>
</div>
<div class="result"></div>
</div>
<script>
const urlParams = new URLSearchParams(window.location.search);
const query = urlParams.get('word') || '';
document.getElementById("searchInput").value = query;
if (query !== '') {
Search(query);
}
function Search(q) {
$.ajax({
type: "GET",
url: "/s?word=" + encodeURIComponent(q),
success: function (data) {
BuildHtml(data);
}
});
}
function BuildHtml(data) {
const result_label = $(".result");
result_label.empty();
for (let elem of data) {
let a_label = $("<a>", {
text: elem.title,
href: elem.url,
target: "_blank"
});
let p_label = $("<p>", {
text: elem.desc
});
let div_label = $("<div>", {
class: "item"
});
a_label.appendTo(div_label);
p_label.appendTo(div_label); // 不再添加网址
div_label.appendTo(result_label);
}
}
function jump() {
const input = document.getElementById("searchInput").value.trim();
if (input !== "") {
location.href = `search.html?word=${encodeURIComponent(input)}`;
}
}
</script>
</body>
</html>
