1.Containerd简介

Containerd是一个工业标准的容器运行时，重点是它简洁，健壮，便携，在Linux和window上可以作为一个守护进程运行，它可以管理主机系统上容器的完整的生命周期：镜像传输和存储，容器的执行和监控，低级别的存储和网络。 containerd和docker不同，containerd重点是继承在大规模的系统中，例如kubernetes，而不是面向开发者，让开发者使用，更多的是容器运行时的概念，承载容器运行。

1.1 Containerd的由来

   相传在很久很久以前呢，Docker 强势崛起，以 “镜像（image）” 这个大招横扫整个武林，对其他容器技术帮派进行致命的降维打击，使其毫无招架之力，就连 Google 公司这种名门正派也不例外。Google 公司为了不被灭门，被迫拉下脸面（当然，也不太可能当舔狗的哈），希望 Docker 公司能和自己联手推进一个开源的容器运行时作为 Docker 的核心依赖，不然就势不两立。Docker 公司觉得自己的智商被侮辱了，就是不和你 Google 公司一起玩，走着瞧呗，谁怕谁呢！时至今日，很明显，Docker 公司的这一决定断送了自己的大好前程，导致了如今的悲剧。

紧接着，Google 公司联合 Red Hat、IBM 等几位行业大佬忽悠 Docker 公司将 libcontainer 捐给中立的社区 OCI （Open Container Intiative）, 并改名 runc，彻底抹去了 Docker 公司的痕迹了～～～～～

且远不止这些，为了扭转 Docker 公司一家独大的局面，几位大佬又成立了一个基金会 CNCF （Cloud Native Computing Fundation），这名字想必同学们都很熟悉了吧，我就不多介绍了。CNCF 的目标很明确，既然在当前的容器维度干不过 Docker，那一不做二不休，直接上升到大规模容器编排维度，以此来干掉 Docker。Docker 公司也不是吃素的哟，搬出 Swarm 和 Kubernets 进行 battle，最后的结局大家都知道了吧，Swarm 战败。然后 Docker 公司无奈之下，将自己的核心依赖 Containerd 捐献给了 CNCF 基金会，以此来标榜 Docker 是 Paas 平台。很明显这无疑是加速了自己的灭亡。

Google、Red Hat、IBM 等各位大佬们就很懵呀，想当初和你合作搞个中立的核心运行时，你却不乐意，非要自己弄一个，你弄就弄呗，你还捐出来了，这是啥骚操作哟？？大佬们转念一想，你都捐出来了，那我就拿 Containerd 直接用了哟，也倒是省事了。 首先呢，为了标榜 Kubernetes 的中立性，当然要弄一个标准化的容器运行时接口啦，并且只要适配了这个接口的容器运行时，都可以和我一起玩了哟，当然第一个支持这个接口的当然就是 Containerd 啦。至于这个接口名字呢，想必同学们都猜到了吧，没错！，它就叫 CRI （Container Runntime Interface）。

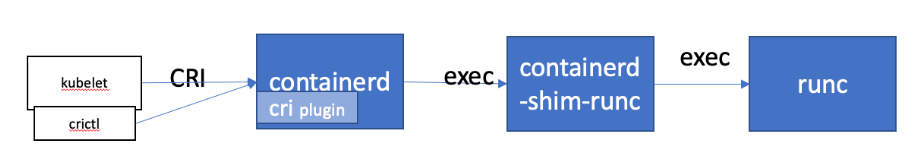

大佬们觉得这样还不够，为了蛊惑 Docker 公司，Kubernetes 暂时委屈自己，专门在自己的组件中集成了个 shim （可以理解为垫片），用来将 CRI 的调用翻译成 Docker 的 API，让 Docker 信以为真的和自己愉快的玩耍，温水煮蛙，熟透了再吃掉～～～～

就这样，Kubernetes 一边假装和 Docker 明修栈道，一边暗度陈仓得不断优化 Containerd 的健壮性以及和 CRI 对接的丝滑性。现在 Containerd 的修炼以及满级了，是时候摊牌了，和 Docker 说拜拜了呢。后面的事情想必大家都知道了吧～～～

Docker 的这个镜像技术成功了，但 Docker 这个公司却失败了。

1.2 Containerd架构

  时至今日， Containerd 已经成为一个工业级的容器运行时了，甚至已经有了 solgen : 超简单！超健壮！超强移植性！当然，为了让 Docker 以为自己不会抢饭碗， Containerd 声称自己的设计的主要目的是为了嵌入到更大的系统中（暗指 Kubernetes），而不是直接由开发人员或者终端用户使用。事实上呢，Containerd 基本啥都干了，开发人员或者终端用可以在宿主机中管理完整的容器生命周期，包括镜像的传输和存储、容器的执行和管理、依赖文件的存储和网络等等。

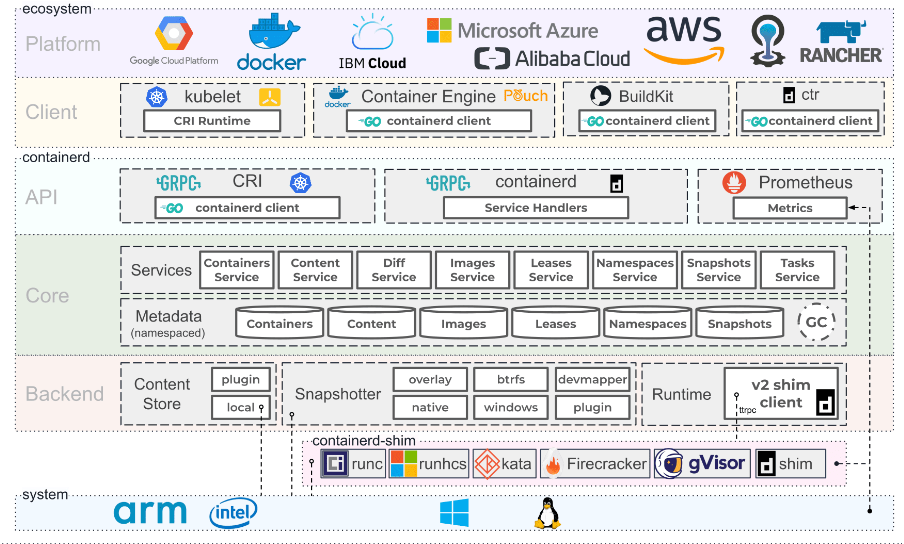

先看 Containerd的架构图：

可以看到 Containerd 仍然采用的是标准的 C/S 架构，服务端通过 GRPC 协议提供稳定的 API，客户端通过调用服务端的 API 进行高级操作。为了解耦，Containerd 将不同的职责划分给不同的组件，每个组件就想当于一个子系统（subsystem）。连接不同的子系统的组件被称作模块。总体上 Containerd 被划分为两大子系统：

💠 Bundle：在 Containerd 中，Bundle 包含了配置、元数据和根文件系统数据，可以理解为容器的文件系统，而 Bundle 子系统 允许用户从镜像中提取和打包 Bundles。

💠 Runtime：Runtime 子系统用来执行 Bundles，比如创建容器。

其中，每一个子系统的行为都由一个或者多个模块协同完成（架构图中的 Core 部分）。每种类型的模块都以插件的形式集成到 Containerd 中，而且插件之间是相互依赖的。比如，上图中的每个长虚线框都表示一种类型的插件，包括 Service Plugin、Metadata Plugin、GC Plugin、Runtime Plugin 等，其中 Service Plugin 又会依赖 Metadata Plugin、GC Plugin 和 Runtime Plugin。每个小方框都表示一个细分的插件，例如 Metadata Plugin 依赖 Containerds Plugin、Content Plugin 等。总之，万物皆是插件，插件即是插件。

这里介绍几个常用插件：

💠 Content Plugin： 提供对镜像中可寻址内容的访问，所有不可变的内容都被存储在这里。

💠 Snapshot Plugin： 用来管理容器镜像的文件系统快照。镜像中的每一个 layer 都会被解压成文件系统快照，类似于 Docker 中的 graphdriver。

💠 Metrics： 暴露各个组件的监控指标。

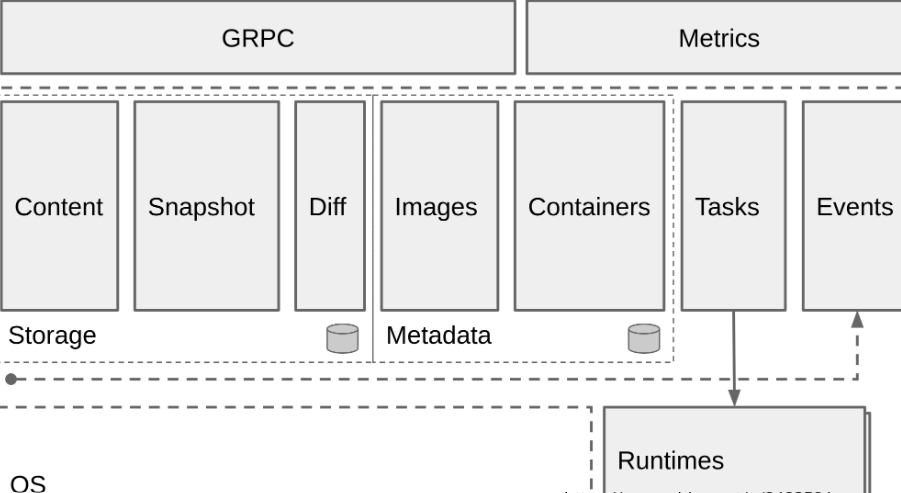

总体来看，Containerd 被分为三大块：Storage、Metadata 和 Runtime，提炼上面的架构图如下：

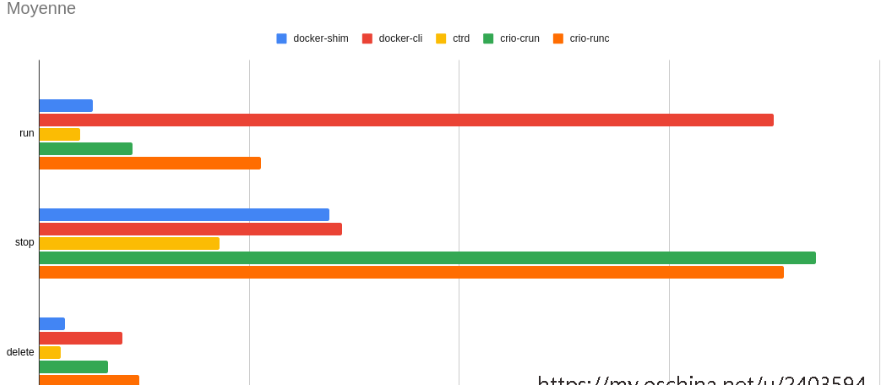

使用 Bucketbench 对 Docker、Crio 和 Containerd 进行性能测试，比较他们的耗时结果如下（包括启动、停止和删除容器）：

可以看出 Containerd 在各方面都表现不俗，总体性能还是要好于 Docker 和 Crio 的。

1.3 Containerd的目标愿景

当 containerd 和 runC 成为标准化容器服务的基石后，上层的应用就可以直接建立在 containerd 和 runC 之上。上图中展示的容器平台都已经支持 containerd 和 runC 的组合了，相信接下来会有更多类似的容器平台出现。 注意: Containerd 被设计成嵌入到一个更大的系统中，而不是直接由开发人员或终端用户使用。所以 containerd 具有宏大的愿景。

2.Containerd 安装

2.1 安装Containerd.io前提

2.1.1 Containerd.io 要求 CentOS 系统的内核版本高于 3.10 ，查看本页面的前提条件来验证你的 CentOS 版本是否支持 Containerd.io 。

通过 uname -r 命令查看你当前的内核版本

[root@k8s-master ~]# uname -r
4.18.0-80.el8.x86_64

2.1.2 使用 root 权限登录 Centos。确保 yum 包更新到最新。

[root@k8s-master ~]# yum update
Repository AppStream is listed more than once in the configuration
Repository BaseOS is listed more than once in the configuration
Repository extras is listed more than once in the configuration
Repository PowerTools is listed more than once in the configuration
Repository centosplus is listed more than once in the configuration
Last metadata expiration check: 0:09:18 ago on Fri 25 Dec 2020 09:04:58 PM CST.
Dependencies resolved.
Nothing to do.
Complete!
[root@k8s-master ~]#

2.1.3 为了解决 podman 冲突的问题 ，可以先执行如下命令：

[root@k8s-master ~]# yum erase podman buildah -y

2.2 两种安装方式

2.1.1 RPM包安装

[root@k8s-master ~]# yum install https://download.docker.com/linux/centos/8/x86_64/stable/Packages/containerd.io-1.4.9-3.1.el8.x86_64.rpm -y

centos7安装
[root@node1 ~]# yum install http://ftp.sjtu.edu.cn/sites/docker-ce/linux/centos/7/x86_64/edge/Packages/containerd.io-1.2.6-3.3.el7.x86_64.rpm

或者直接安装docker-ce源
# step 1: 安装必要的一些系统工具
yum install -y yum-utils device-mapper-persistent-data lvm2
# Step 2: 添加软件源信息
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# Step 3
sed -i 's+download.docker.com+mirrors.aliyun.com/docker-ce+' /etc/yum.repos.d/docker-ce.repo
# Step 4：查询软件包
yum list | grep containerd
containerd.io.x86_64                      1.6.6-3.1.el7                docker-ce-stable
# Step 5：安装软件包
[root@node1 ~]# yum install containerd -y

启动服务，验证可用性
[root@node1 ~]# systemctl enable containerd.service --now
[root@node1 ~]# ctr version
Client:
  Version:  1.6.6
  Revision: 10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
  Go version: go1.17.11

Server:
  Version:  1.6.6
  Revision: 10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
  UUID: ce2e1733-9b0e-4c7c-b8b0-150fbb27f5e8

⚠️此命令可能由于下载超时无法安装，可以先本地下载好安装包，进行离线安装，命令

 yum install containerd.io-1.4.9-3.1.el8.x86_64.rpm -y

2.1.2 二进制安装

Containerd有两种安装包：

  • 第一种是containerd-xxx，这种包用于单机测试没问题，不包runC，需要提前安装。

  • 第二种是cri-containerd-cni-xxx，包含runC和k8s里的所需要的相关文件。k8s集群里需要用到此包，虽然包含runC，但是依赖系统中的seccomp（安全计算模式，是一种限制容器调用系统资源的模式。）

2.1.2.1 下载Containerd安装包

wget https://github.com/containerd/containerd/releases/download/v1.7.24/cri-containerd-cni-1.7.24-linux-amd64.tar.gz

2.1.2.2 安装containerd

1.查看已获取的安装包
[root@localhost ~]# ls
cri-containerd-cni-1.7.24-linux-amd64.tar.gz
2.解压已下载的软件包
tar xf cri-containerd-cni-1.7.24-linux-amd64.tar.gz
3.查看解压后目录
[root@localhost ~]# ls
cri-containerd.DEPRECATED.txt  etc  opt  usr
4.查看etc目录，主要为containerd服务管理配置文件及cni虚拟网卡配置文件
[root@localhost ~]# ls etc
cni  crictl.yaml  systemd
[root@localhost ~]# ls etc/systemd/
system
[root@localhost ~]# ls etc/systemd/system/
containerd.service
5.查看opt目录，主要为gce环境中使用containerd配置文件及cni插件
[root@localhost ~]# ls opt
cni  containerd
[root@localhost ~]# ls opt/containerd/
cluster
[root@localhost ~]# ls opt/containerd/cluster
gce  version
[root@localhost ~]# ls opt/containerd/cluster/gce
cloud-init  cni.template  configure.sh  env
6.查看usr目录，主要为containerd运行时文件，包含runc(比较小，不含静态文件)
[root@localhost ~]# ls usr
local
[root@localhost ~]# ls usr/local/
bin  sbin
[root@localhost ~]# ls usr/local/bin
containerd  containerd-shim  containerd-shim-runc-v1  containerd-shim-runc-v2  containerd-stress  crictl  critest  ctd-decoder  ctr
[root@localhost ~]# ls usr/local/sbin
runc
7.添加containerd.service至服务脚本
[root@node2 ~]# cp /etc/systemd/system/containerd.service /usr/lib/systemd/system/
8.生成配置文件
[root@node2 ~]# mkdir /etc/containerd
[root@node2 ~]# containerd config default > /etc/containerd/config.toml
9. 启动服务
[root@node2 ~]# systemctl enable --now containerd

[root@node2 ~]# ctr version
Client:
  Version:  v1.6.6
  Revision: 10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
  Go version: go1.17.11

Server:
  Version:  v1.6.6
  Revision: 10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
  UUID: dbce7710-68a0-46ed-bb8a-25d286674826

2.1.2.3 runc安装

1.下载runc
#使用wget下载
[root@node2 ~]# wget -c https://github.com/opencontainers/runc/releases/download/v1.1.3/runc.amd64

#复制runc到执行目录下
[root@node2 ~]# cp runc.amd64 /usr/sbin/runc

#增加执行权限
[root@node2 ~]# chmod +x /usr/sbin/runc
#查看下载版本
[root@node2 ~]# runc -v
runc version 1.1.3
commit: v1.1.3-0-g6724737f
spec: 1.0.2-dev
go: go1.17.10
libseccomp: 2.5.4
安装成功！
2.生成默认配置，并修改默认镜像地址
[root@k8s-master ~]# cd /etc/containerd
[root@k8s-master ~]# ls
config.toml
[root@k8s-master ~]# containerd config default | tee config.toml
..........
............
[root@node1 containerd]# containerd config default | tee config.toml
containerd: error while loading shared libraries: libseccomp.so.2: cannot open shared object file: No such file or directory
解决方法：
[root@node1 containerd]# yum install libseccomp


# 重启 containerd
[root@k8s-master ~]# systemctl restart containerd
Failed to restart containerd.service: Access denied
See system logs and 'systemctl status containerd.service' for details.

# 如果出现上面的错误，则执行如下命令
[root@k8s-master ~]# kill -TERM 1

# 然后再次执行重启
[root@k8s-master ~]# systemctl restart containerd

使用 systemdcgroup 驱动程序

结合 runc 使用 systemdcgroup 驱动，在 /etc/containerd/config.toml 中设置

.......
   [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
     ...
     [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
       SystemdCgroup = true # 添加次一行参数
  .....
  [plugins."io.containerd.grpc.v1.cri".registry]
    [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
         # endpoint = ["https://registry-1.docker.io"] # 注释掉此一行
         endpoint = ["https://xxxx.mirror.aliyuncs.com"] # 添加此一行参数,镜像地址可查看阿里云
 .....
 [plugins."io.containerd.internal.v1.opt"]
   path = "/opt/containerd" # 修改此处路径（可选）

如果您应用此更改，请确保再次重新启动 containerd：

systemctl restart containerd
3.运行命令验证

containerd 相比于 docker , 多了 namespace 概念，每个 image 和 container 都会在各自的 namespace 下可见，目前 k8s 会使用 k8s.io 作为命名空间：ctr ns ls 可以查看命名空间

ctr 是 containerd 提供的命令行工具，更多命令说明请执行：ctr -h

[root@k8s-master ~]# ctr -h
NAME:
   ctr -
        __
  _____/ /______
 / ___/ __/ ___/
/ /__/ /_/ /
\___/\__/_/

containerd CLI


USAGE:
   ctr [global options] command [command options] [arguments...]

VERSION:
   1.4.9

DESCRIPTION:

ctr is an unsupported debug and administrative client for interacting
with the containerd daemon. Because it is unsupported, the commands,
options, and operations are not guaranteed to be backward compatible or
stable from release to release of the containerd project.

COMMANDS:
   plugins, plugin            provides information about containerd plugins
   version                    print the client and server versions
   containers, c, container   manage containers
   content                    manage content
   events, event              display containerd events
   images, image, i           manage images
   leases                     manage leases
   namespaces, namespace, ns  manage namespaces
   pprof                      provide golang pprof outputs for containerd
   run                        run a container
   snapshots, snapshot        manage snapshots
   tasks, t, task             manage tasks
   install                    install a new package
   oci                        OCI tools
   shim                       interact with a shim directly
   help, h                    Shows a list of commands or help for one command

GLOBAL OPTIONS:
   --debug                      enable debug output in logs
   --address value, -a value    address for containerd's GRPC server (default: "/run/containerd/containerd.sock") [$CONTAINERD_ADDRESS]
   --timeout value              total timeout for ctr commands (default: 0s)
   --connect-timeout value      timeout for connecting to containerd (default: 0s)
   --namespace value, -n value  namespace to use with commands (default: "default") [$CONTAINERD_NAMESPACE]
   --help, -h                   show help
   --version, -v                print the version
[root@k8s-master ~]#

又成功啦·！

3.Containerd 配置

3.1 生成配置文件

Containerd 的默认配置文件路径为 /etc/containerd/config.toml ，可以通过命令来生成一个默认配置

[root@node ~]# mkdir /etc/containerd
[root@node ~]# containerd config default > /etc/containerd/config.toml

3.2 镜像加速

由于某些原因呢，在国内拉取公共镜像仓库的速度是极其感人的，为了节约时间写代码呢，需要为 Containerd 配置镜像仓库的 mirror。Containerd 的镜像仓库 mirror 与 Docker 相比有两区别：

💠 Containerd ：只支持通过 CRI 拉取镜像的 mirror，即只有通过 critrl 或者 kubernetes 调用时 mirror 才会生效，通过 ctr 拉取是不生效。

💠 Docker ：只支持 Docker Hub 配置 mirror，而 Contaienrd 支持任意的镜像仓库配置 mirror。

# docker hub镜像加速
mkdir -p /etc/containerd/certs.d/docker.io
cat > /etc/containerd/certs.d/docker.io/hosts.toml << EOF
server = "https://docker.io"
[host."https://dockerproxy.com"]
  capabilities = ["pull", "resolve"]

[host."https://docker.m.daocloud.io"]
  capabilities = ["pull", "resolve"]

[host."https://reg-mirror.qiniu.com"]
  capabilities = ["pull", "resolve"]

[host."https://registry.docker-cn.com"]
  capabilities = ["pull", "resolve"]

[host."http://hub-mirror.c.163.com"]
  capabilities = ["pull", "resolve"]

EOF

# registry.k8s.io镜像加速
mkdir -p /etc/containerd/certs.d/registry.k8s.io
tee /etc/containerd/certs.d/registry.k8s.io/hosts.toml << 'EOF'
server = "https://registry.k8s.io"

[host."https://k8s.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# docker.elastic.co镜像加速
mkdir -p /etc/containerd/certs.d/docker.elastic.co
tee /etc/containerd/certs.d/docker.elastic.co/hosts.toml << 'EOF'
server = "https://docker.elastic.co"

[host."https://elastic.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# gcr.io镜像加速
mkdir -p /etc/containerd/certs.d/gcr.io
tee /etc/containerd/certs.d/gcr.io/hosts.toml << 'EOF'
server = "https://gcr.io"

[host."https://gcr.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# ghcr.io镜像加速
mkdir -p /etc/containerd/certs.d/ghcr.io
tee /etc/containerd/certs.d/ghcr.io/hosts.toml << 'EOF'
server = "https://ghcr.io"

[host."https://ghcr.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# k8s.gcr.io镜像加速
mkdir -p /etc/containerd/certs.d/k8s.gcr.io
tee /etc/containerd/certs.d/k8s.gcr.io/hosts.toml << 'EOF'
server = "https://k8s.gcr.io"

[host."https://k8s-gcr.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# mcr.m.daocloud.io镜像加速
mkdir -p /etc/containerd/certs.d/mcr.microsoft.com
tee /etc/containerd/certs.d/mcr.microsoft.com/hosts.toml << 'EOF'
server = "https://mcr.microsoft.com"

[host."https://mcr.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# nvcr.io镜像加速
mkdir -p /etc/containerd/certs.d/nvcr.io
tee /etc/containerd/certs.d/nvcr.io/hosts.toml << 'EOF'
server = "https://nvcr.io"

[host."https://nvcr.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# quay.io镜像加速
mkdir -p /etc/containerd/certs.d/quay.io
tee /etc/containerd/certs.d/quay.io/hosts.toml << 'EOF'
server = "https://quay.io"

[host."https://quay.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# registry.jujucharms.com镜像加速
mkdir -p /etc/containerd/certs.d/registry.jujucharms.com
tee /etc/containerd/certs.d/registry.jujucharms.com/hosts.toml << 'EOF'
server = "https://registry.jujucharms.com"

[host."https://jujucharms.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# rocks.canonical.com镜像加速
mkdir -p /etc/containerd/certs.d/rocks.canonical.com
tee /etc/containerd/certs.d/rocks.canonical.com/hosts.toml << 'EOF'
server = "https://rocks.canonical.com"

[host."https://rocks-canonical.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

注意，住里面除了docker.io仓库，其余仓库的镜像仓库都是使用了daocloud的镜像仓库，daocloud镜像仓库并非支持所有镜像的下载，其支持的镜像列表可以参考：daocloud镜像仓库支持列表

docker.elastic.co/eck/eck-operator
docker.elastic.co/elasticsearch/elasticsearch
docker.elastic.co/kibana/kibana
docker.elastic.co/kibana/kibana-oss
docker.io/alpine
docker.io/alpine/helm
docker.io/amambadev/jenkins
docker.io/amambadev/jenkins-agent-base
docker.io/amambadev/jenkins-agent-go
docker.io/amambadev/jenkins-agent-maven
docker.io/amambadev/jenkins-agent-nodejs
docker.io/amambadev/jenkins-agent-python
docker.io/amazon/aws-alb-ingress-controller
docker.io/amazon/aws-ebs-csi-driver
docker.io/apache/skywalking-java-agent
docker.io/apache/skywalking-oap-server
docker.io/apache/skywalking-ui
docker.io/apitable/backend-server
docker.io/apitable/init-appdata
docker.io/apitable/init-db
docker.io/apitable/openresty
docker.io/apitable/room-server
docker.io/apitable/web-server
docker.io/aquasec/kube-bench
docker.io/aquasec/kube-hunter
docker.io/aquasec/trivy
docker.io/arey/mysql-client
docker.io/bitnami/bitnami-shell
docker.io/bitnami/contour
docker.io/bitnami/elasticsearch
docker.io/bitnami/elasticsearch-curator
docker.io/bitnami/elasticsearch-exporter
docker.io/bitnami/envoy
docker.io/bitnami/grafana
docker.io/bitnami/grafana-operator
docker.io/bitnami/kafka
docker.io/bitnami/kubeapps-apis
docker.io/bitnami/kubeapps-apprepository-controller
docker.io/bitnami/kubeapps-dashboard
docker.io/bitnami/kubeapps-kubeops
docker.io/bitnami/kubectl
docker.io/bitnami/kubernetes-event-exporter
docker.io/bitnami/mariadb
docker.io/bitnami/minideb
docker.io/bitnami/nginx
docker.io/bitnami/postgresql
docker.io/bitnami/wordpress
docker.io/bitpoke/mysql-operator
docker.io/bitpoke/mysql-operator-orchestrator
docker.io/bitpoke/mysql-operator-sidecar-5.7
docker.io/bitpoke/mysql-operator-sidecar-8.0
docker.io/busybox
docker.io/byrnedo/alpine-curl
docker.io/caddy
docker.io/calico/apiserver
docker.io/calico/cni
docker.io/calico/csi
docker.io/calico/kube-controllers
docker.io/calico/node
docker.io/calico/node-driver-registrar
docker.io/calico/pod2daemon-flexvol
docker.io/calico/typha
docker.io/cdkbot/hostpath-provisioner-amd64
docker.io/cdkbot/registry-amd64
docker.io/centos
docker.io/centos/tools
docker.io/cfmanteiga/alpine-bash-curl-jq
docker.io/cfssl/cfssl
docker.io/cilium/json-mock
docker.io/clickhouse/clickhouse-server
docker.io/clickhouse/integration-helper
docker.io/cloudnativelabs/kube-router
docker.io/coredns/coredns
docker.io/csiplugin/snapshot-controller
docker.io/curlimages/curl
docker.io/datawire/ambassador
docker.io/datawire/ambassador-operator
docker.io/debian
docker.io/directxman12/k8s-prometheus-adapter
docker.io/docker
docker.io/dpage/pgadmin4
docker.io/elastic/filebeat
docker.io/envoyproxy/envoy
docker.io/envoyproxy/envoy-distroless
docker.io/envoyproxy/nighthawk-dev
docker.io/f5networks/f5-ipam-controller
docker.io/f5networks/k8s-bigip-ctlr
docker.io/fabulousjohn/kafka-manager
docker.io/falcosecurity/event-generator
docker.io/falcosecurity/falco-driver-loader
docker.io/falcosecurity/falco-exporter
docker.io/falcosecurity/falco-no-driver
docker.io/falcosecurity/falcosidekick
docker.io/falcosecurity/falcosidekick-ui
docker.io/fellah/gitbook
docker.io/flannelcni/flannel-cni-plugin
docker.io/flant/shell-operator
docker.io/fluent/fluent-bit
docker.io/fluent/fluentd
docker.io/fortio/fortio
docker.io/foxdalas/kafka-manager
docker.io/frrouting/frr
docker.io/goharbor/chartmuseum-photon
docker.io/goharbor/harbor-core
docker.io/goharbor/harbor-db
docker.io/goharbor/harbor-exporter
docker.io/goharbor/harbor-jobservice
docker.io/goharbor/harbor-operator
docker.io/goharbor/harbor-portal
docker.io/goharbor/harbor-registryctl
docker.io/goharbor/nginx-photon
docker.io/goharbor/notary-server-photon
docker.io/goharbor/notary-signer-photon
docker.io/goharbor/redis-photon
docker.io/goharbor/registry-photon
docker.io/goharbor/trivy-adapter-photon
docker.io/golang
docker.io/grafana/grafana
docker.io/grafana/tempo
docker.io/halverneus/static-file-server
docker.io/haproxy
docker.io/honkit/honkit
docker.io/integratedcloudnative/ovn4nfv-k8s-plugin
docker.io/istio/citadel
docker.io/istio/examples-bookinfo-details-v1
docker.io/istio/examples-bookinfo-productpage-v1
docker.io/istio/examples-bookinfo-ratings-v1
docker.io/istio/examples-bookinfo-reviews-v1
docker.io/istio/examples-bookinfo-reviews-v2
docker.io/istio/examples-bookinfo-reviews-v3
docker.io/istio/examples-helloworld-v1
docker.io/istio/examples-helloworld-v2
docker.io/istio/galley
docker.io/istio/install-cni
docker.io/istio/kubectl
docker.io/istio/mixer
docker.io/istio/operator
docker.io/istio/pilot
docker.io/istio/proxyv2
docker.io/istio/sidecar_injector
docker.io/jaegertracing/all-in-one
docker.io/jaegertracing/jaeger-agent
docker.io/jaegertracing/jaeger-collector
docker.io/jaegertracing/jaeger-es-index-cleaner
docker.io/jaegertracing/jaeger-es-rollover
docker.io/jaegertracing/jaeger-operator
docker.io/jaegertracing/jaeger-query
docker.io/jaegertracing/spark-dependencies
docker.io/java
docker.io/jboss/keycloak
docker.io/jenkins/jnlp-slave
docker.io/jertel/elastalert2
docker.io/jimmidyson/configmap-reload
docker.io/joosthofman/wget
docker.io/joseluisq/static-web-server
docker.io/jujusolutions/juju-db
docker.io/jujusolutions/jujud-operator
docker.io/k8scloudprovider/cinder-csi-plugin
docker.io/karmada/karmada-agent
docker.io/karmada/karmada-aggregated-apiserver
docker.io/karmada/karmada-controller-manager
docker.io/karmada/karmada-descheduler
docker.io/karmada/karmada-scheduler
docker.io/karmada/karmada-scheduler-estimator
docker.io/karmada/karmada-search
docker.io/karmada/karmada-webhook
docker.io/kedacore/keda
docker.io/kedacore/keda-metrics-apiserver
docker.io/kennethreitz/httpbin
docker.io/keyval/otel-go-agent
docker.io/kindest/base
docker.io/kindest/haproxy
docker.io/kindest/node
docker.io/kiwigrid/k8s-sidecar
docker.io/kubeedge/cloudcore
docker.io/kubeovn/kube-ovn
docker.io/kuberhealthy/dns-resolution-check
docker.io/kuberhealthy/kuberhealthy
docker.io/kubernetesui/dashboard
docker.io/kubernetesui/dashboard-amd64
docker.io/kubernetesui/metrics-scraper
docker.io/library/alpine
docker.io/library/busybox
docker.io/library/caddy
docker.io/library/centos
docker.io/library/debian
docker.io/library/docker
docker.io/library/golang
docker.io/library/haproxy
docker.io/library/java
docker.io/library/mariadb
docker.io/library/mongo
docker.io/library/mysql
docker.io/library/nats-streaming
docker.io/library/nextcloud
docker.io/library/nginx
docker.io/library/node
docker.io/library/openjdk
docker.io/library/percona
docker.io/library/perl
docker.io/library/phpmyadmin
docker.io/library/postgres
docker.io/library/python
docker.io/library/rabbitmq
docker.io/library/redis
docker.io/library/registry
docker.io/library/traefik
docker.io/library/ubuntu
docker.io/library/wordpress
docker.io/library/zookeeper
docker.io/longhornio/backing-image-manager
docker.io/longhornio/csi-attacher
docker.io/longhornio/csi-node-driver-registrar
docker.io/longhornio/csi-provisioner
docker.io/longhornio/csi-resizer
docker.io/longhornio/csi-snapshotter
docker.io/longhornio/longhorn-engine
docker.io/longhornio/longhorn-instance-manager
docker.io/longhornio/longhorn-manager
docker.io/longhornio/longhorn-share-manager
docker.io/longhornio/longhorn-ui
docker.io/mariadb
docker.io/merbridge/merbridge
docker.io/metallb/controller
docker.io/metallb/speaker
docker.io/minio/console
docker.io/minio/kes
docker.io/minio/logsearchapi
docker.io/minio/mc
docker.io/minio/minio
docker.io/minio/operator
docker.io/mirantis/k8s-netchecker-agent
docker.io/mirantis/k8s-netchecker-server
docker.io/mirrorgooglecontainers/defaultbackend-amd64
docker.io/mirrorgooglecontainers/hpa-example
docker.io/moby/buildkit
docker.io/mohsinonxrm/mongodb-agent
docker.io/mohsinonxrm/mongodb-kubernetes-operator
docker.io/mohsinonxrm/mongodb-kubernetes-operator-version-upgrade-post-start-hook
docker.io/mohsinonxrm/mongodb-kubernetes-readiness
docker.io/mongo
docker.io/multiarch/qemu-user-static
docker.io/mysql
docker.io/n8nio/n8n
docker.io/nacos/nacos-server
docker.io/nats-streaming
docker.io/neuvector/controller
docker.io/neuvector/enforcer
docker.io/neuvector/manager
docker.io/neuvector/scanner
docker.io/neuvector/updater
docker.io/nextcloud
docker.io/nfvpe/multus
docker.io/nginx
docker.io/nginxdemos/hello
docker.io/node
docker.io/oamdev/cluster-gateway
docker.io/oamdev/kube-webhook-certgen
docker.io/oamdev/terraform-controller
docker.io/oamdev/vela-apiserver
docker.io/oamdev/vela-core
docker.io/oamdev/vela-rollout
docker.io/oamdev/velaux
docker.io/oliver006/redis_exporter
docker.io/openebs/admission-server
docker.io/openebs/linux-utils
docker.io/openebs/m-apiserver
docker.io/openebs/node-disk-manager
docker.io/openebs/node-disk-operator
docker.io/openebs/openebs-k8s-provisioner
docker.io/openebs/provisioner-localpv
docker.io/openebs/snapshot-controller
docker.io/openebs/snapshot-provisioner
docker.io/openjdk
docker.io/openpolicyagent/gatekeeper
docker.io/openstorage/stork
docker.io/openzipkin/zipkin
docker.io/osixia/openldap
docker.io/otel/demo
docker.io/otel/opentelemetry-collector
docker.io/otel/opentelemetry-collector-contrib
docker.io/percona
docker.io/percona/mongodb_exporter
docker.io/perl
docker.io/phpmyadmin
docker.io/phpmyadmin/phpmyadmin
docker.io/pingcap/coredns
docker.io/portainer/portainer-ce
docker.io/postgres
docker.io/prom/alertmanager
docker.io/prom/mysqld-exporter
docker.io/prom/node-exporter
docker.io/prom/prometheus
docker.io/prometheuscommunity/postgres-exporter
docker.io/python
docker.io/rabbitmq
docker.io/rabbitmqoperator/cluster-operator
docker.io/rancher/helm-controller
docker.io/rancher/k3d-tools
docker.io/rancher/k3s
docker.io/rancher/kubectl
docker.io/rancher/local-path-provisioner
docker.io/rclone/rclone
docker.io/redis
docker.io/redislabs/redisearch
docker.io/registry
docker.io/sonobuoy/cluster-inventory
docker.io/sonobuoy/kube-bench
docker.io/sonobuoy/sonobuoy
docker.io/sonobuoy/systemd-logs
docker.io/squidfunk/mkdocs-material
docker.io/swaggerapi/swagger-codegen-cli
docker.io/tgagor/centos-stream
docker.io/thanosio/thanos
docker.io/timberio/vector
docker.io/traefik
docker.io/ubuntu
docker.io/velero/velero
docker.io/victoriametrics/operator
docker.io/victoriametrics/victoria-logs
docker.io/victoriametrics/victoria-metrics
docker.io/victoriametrics/vmagent
docker.io/victoriametrics/vmalert
docker.io/victoriametrics/vminsert
docker.io/victoriametrics/vmselect
docker.io/victoriametrics/vmstorage
docker.io/weaveworks/scope
docker.io/weaveworks/weave-kube
docker.io/weaveworks/weave-npc
docker.io/wordpress
docker.io/xueshanf/install-socat
docker.io/zenko/kafka-manager
docker.io/zookeeper
gcr.io/cadvisor/cadvisor
gcr.io/distroless/base
gcr.io/distroless/static
gcr.io/distroless/static-debian11
gcr.io/google-containers/pause
gcr.io/google.com/cloudsdktool/cloud-sdk
gcr.io/google_containers/hyperkube
gcr.io/heptio-images/ks-guestbook-demo
gcr.io/istio-release/app_sidecar_base_centos_7
gcr.io/istio-release/app_sidecar_base_centos_8
gcr.io/istio-release/base
gcr.io/istio-release/distroless
gcr.io/istio-release/iptables
gcr.io/istio-testing/app
gcr.io/istio-testing/build-tools
gcr.io/istio-testing/buildkit
gcr.io/istio-testing/dotdotpwn
gcr.io/istio-testing/ext-authz
gcr.io/istio-testing/fake-gce-metadata
gcr.io/istio-testing/fake-stackdriver
gcr.io/istio-testing/fuzz_tomcat
gcr.io/istio-testing/jwttool
gcr.io/istio-testing/kind-node
gcr.io/istio-testing/kindest/node
gcr.io/istio-testing/mynewproxy
gcr.io/istio-testing/myproxy
gcr.io/istio-testing/operator
gcr.io/istio-testing/pilot
gcr.io/istio-testing/proxyv2
gcr.io/k8s-staging-etcd/etcd
gcr.io/k8s-staging-gateway-api/admission-server
gcr.io/k8s-staging-kube-state-metrics/kube-state-metrics
gcr.io/k8s-staging-nfd/node-feature-discovery
gcr.io/k8s-staging-test-infra/krte
gcr.io/kaniko-project/executor
gcr.io/knative-releases/knative.dev/client/cmd/kn
gcr.io/knative-releases/knative.dev/eventing/cmd/apiserver_receive_adapter
gcr.io/knative-releases/knative.dev/eventing/cmd/controller
gcr.io/knative-releases/knative.dev/eventing/cmd/in_memory/channel_controller
gcr.io/knative-releases/knative.dev/eventing/cmd/in_memory/channel_dispatcher
gcr.io/knative-releases/knative.dev/eventing/cmd/mtbroker/filter
gcr.io/knative-releases/knative.dev/eventing/cmd/mtbroker/ingress
gcr.io/knative-releases/knative.dev/eventing/cmd/mtchannel_broker
gcr.io/knative-releases/knative.dev/eventing/cmd/mtping
gcr.io/knative-releases/knative.dev/eventing/cmd/webhook
gcr.io/knative-releases/knative.dev/net-istio/cmd/controller
gcr.io/knative-releases/knative.dev/net-istio/cmd/webhook
gcr.io/knative-releases/knative.dev/net-kourier/cmd/kourier
gcr.io/knative-releases/knative.dev/serving/cmd/activator
gcr.io/knative-releases/knative.dev/serving/cmd/autoscaler
gcr.io/knative-releases/knative.dev/serving/cmd/controller
gcr.io/knative-releases/knative.dev/serving/cmd/default-domain
gcr.io/knative-releases/knative.dev/serving/cmd/domain-mapping
gcr.io/knative-releases/knative.dev/serving/cmd/domain-mapping-webhook
gcr.io/knative-releases/knative.dev/serving/cmd/queue
gcr.io/knative-releases/knative.dev/serving/cmd/webhook
gcr.io/kuar-demo/kuard-amd64
gcr.io/kubebuilder/kube-rbac-proxy
gcr.io/kubecost1/cost-model
gcr.io/kubecost1/frontend
gcr.io/tekton-releases/github.com/tektoncd/dashboard/cmd/dashboard
gcr.io/tekton-releases/github.com/tektoncd/operator/cmd/kubernetes/operator
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/controller
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/entrypoint
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/git-init
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/imagedigestexporter
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/webhook
gcr.io/tekton-releases/github.com/tektoncd/results/cmd/api
gcr.io/tekton-releases/github.com/tektoncd/results/cmd/watcher
gcr.io/tekton-releases/github.com/tektoncd/triggers/cmd/controllers
gcr.io/tekton-releases/github.com/tektoncd/triggers/cmd/webhook
ghcr.io/aquasecurity/trivy
ghcr.io/aquasecurity/trivy-db
ghcr.io/aquasecurity/trivy-java-db
ghcr.io/chaos-mesh/chaos-daemon
ghcr.io/chaos-mesh/chaos-dashboard
ghcr.io/chaos-mesh/chaos-dlv
ghcr.io/chaos-mesh/chaos-kernel
ghcr.io/chaos-mesh/chaos-mesh
ghcr.io/clusterpedia-io/clusterpedia/apiserver
ghcr.io/clusterpedia-io/clusterpedia/clustersynchro-manager
ghcr.io/daocloud/ckube
ghcr.io/daocloud/dao-2048
ghcr.io/dependabot/dependabot-core
ghcr.io/dependabot/dependabot-core-development
ghcr.io/dexidp/dex
ghcr.io/dtzar/helm-kubectl
ghcr.io/ferryproxy/ferry/ferry-controller
ghcr.io/ferryproxy/ferry/ferry-tunnel
ghcr.io/fluxcd/helm-controller
ghcr.io/fluxcd/kustomize-controller
ghcr.io/fluxcd/notification-controller
ghcr.io/fluxcd/source-controller
ghcr.io/helm/chartmuseum
ghcr.io/hwameistor/admission
ghcr.io/hwameistor/apiserver
ghcr.io/hwameistor/drbd-reactor
ghcr.io/hwameistor/drbd9-bionic
ghcr.io/hwameistor/drbd9-focal
ghcr.io/hwameistor/drbd9-jammy
ghcr.io/hwameistor/drbd9-rhel7
ghcr.io/hwameistor/drbd9-rhel8
ghcr.io/hwameistor/drbd9-shipper
ghcr.io/hwameistor/evictor
ghcr.io/hwameistor/hwameistor-ui
ghcr.io/hwameistor/local-disk-manager
ghcr.io/hwameistor/local-storage
ghcr.io/hwameistor/operator
ghcr.io/hwameistor/scheduler
ghcr.io/hwameistor/self-signed
ghcr.io/k8snetworkplumbingwg/multus-cni
ghcr.io/k8snetworkplumbingwg/network-resources-injector
ghcr.io/k8snetworkplumbingwg/sriov-cni
ghcr.io/k8snetworkplumbingwg/sriov-network-device-plugin
ghcr.io/k8snetworkplumbingwg/sriov-network-operator
ghcr.io/k8snetworkplumbingwg/sriov-network-operator-config-daemon
ghcr.io/k8snetworkplumbingwg/sriov-network-operator-webhook
ghcr.io/klts-io/kubernetes-lts/coredns
ghcr.io/klts-io/kubernetes-lts/etcd
ghcr.io/klts-io/kubernetes-lts/kube-apiserver
ghcr.io/klts-io/kubernetes-lts/kube-controller-manager
ghcr.io/klts-io/kubernetes-lts/kube-proxy
ghcr.io/klts-io/kubernetes-lts/kube-scheduler
ghcr.io/klts-io/kubernetes-lts/pause
ghcr.io/ksmartdata/logical-backup
ghcr.io/kube-vip/kube-vip
ghcr.io/kubean-io/kubean-operator
ghcr.io/kubean-io/kubespray
ghcr.io/kubean-io/spray-job
ghcr.io/megacloudcontainer/kube-hunter
ghcr.io/megacloudcontainer/kubeaudit
ghcr.io/open-telemetry/demo
ghcr.io/open-telemetry/opentelemetry-go-instrumentation/autoinstrumentation-go
ghcr.io/open-telemetry/opentelemetry-operator/autoinstrumentation-dotnet
ghcr.io/open-telemetry/opentelemetry-operator/autoinstrumentation-java
ghcr.io/open-telemetry/opentelemetry-operator/autoinstrumentation-nodejs
ghcr.io/open-telemetry/opentelemetry-operator/autoinstrumentation-python
ghcr.io/open-telemetry/opentelemetry-operator/opentelemetry-operator
ghcr.io/openfaas/basic-auth
ghcr.io/openfaas/faas-netes
ghcr.io/openfaas/gateway
ghcr.io/openfaas/queue-worker
ghcr.io/openinsight-proj/demo
ghcr.io/openinsight-proj/elastic-alert
ghcr.io/openinsight-proj/openinsight
ghcr.io/openinsight-proj/opentelemetry-demo-helm-chart/adservice
ghcr.io/openinsight-proj/opentelemetry-demo-helm-chart/sentinel
ghcr.io/ovn-org/ovn-kubernetes/ovn-kube-f
ghcr.io/ovn-org/ovn-kubernetes/ovn-kube-u
ghcr.io/projectcontour/contour
ghcr.io/pterodactyl/yolks
ghcr.io/scholzj/zoo-entrance
ghcr.io/spidernet-io/cni-plugins/meta-plugins
ghcr.io/spidernet-io/egressgateway-agent
ghcr.io/spidernet-io/egressgateway-controller
ghcr.io/spidernet-io/spiderdoctor-agent
ghcr.io/spidernet-io/spiderdoctor-controller
ghcr.io/spidernet-io/spiderpool/spiderpool-agent
ghcr.io/spidernet-io/spiderpool/spiderpool-base
ghcr.io/spidernet-io/spiderpool/spiderpool-controller
ghcr.io/sumologic/tailing-sidecar
ghcr.io/sumologic/tailing-sidecar-operator
quay.io/argoproj/argo-events
quay.io/argoproj/argo-rollouts
quay.io/argoproj/argocd
quay.io/argoproj/argocd-applicationset
quay.io/argoproj/argocli
quay.io/argoproj/argoexec
quay.io/argoproj/kubectl-argo-rollouts
quay.io/argoproj/workflow-controller
quay.io/argoprojlabs/argocd-image-updater
quay.io/brancz/kube-rbac-proxy
quay.io/calico/apiserver
quay.io/calico/cni
quay.io/calico/ctl
quay.io/calico/kube-controllers
quay.io/calico/node
quay.io/calico/pod2daemon-flexvol
quay.io/calico/typha
quay.io/cilium/certgen
quay.io/cilium/cilium
quay.io/cilium/cilium-etcd-operator
quay.io/cilium/cilium-init
quay.io/cilium/clustermesh-apiserver
quay.io/cilium/hubble-relay
quay.io/cilium/hubble-ui
quay.io/cilium/hubble-ui-backend
quay.io/cilium/json-mock
quay.io/cilium/operator
quay.io/cilium/operator-alibabacloud
quay.io/cilium/operator-generic
quay.io/cilium/startup-script
quay.io/containers/skopeo
quay.io/coreos/etcd
quay.io/coreos/flannel
quay.io/datawire/ambassador-operator
quay.io/external_storage/cephfs-provisioner
quay.io/external_storage/local-volume-provisioner
quay.io/external_storage/nfs-client-provisioner
quay.io/external_storage/rbd-provisioner
quay.io/fluentd_elasticsearch/elasticsearch
quay.io/fluentd_elasticsearch/fluentd
quay.io/goswagger/swagger
quay.io/grafana-operator/grafana_plugins_init
quay.io/iovisor/bcc
quay.io/jaegertracing/jaeger-operator
quay.io/jetstack/cert-manager-cainjector
quay.io/jetstack/cert-manager-controller
quay.io/jetstack/cert-manager-ctl
quay.io/jetstack/cert-manager-webhook
quay.io/k8scsi/csi-attacher
quay.io/k8scsi/csi-node-driver-registrar
quay.io/k8scsi/csi-provisioner
quay.io/k8scsi/csi-resizer
quay.io/k8scsi/csi-snapshotter
quay.io/k8scsi/livenessprobe
quay.io/k8scsi/snapshot-controller
quay.io/keycloak/keycloak
quay.io/kiali/kiali
quay.io/kiwigrid/k8s-sidecar
quay.io/kubespray/kubespray
quay.io/kubevirt/cdi-apiserver
quay.io/kubevirt/cdi-cloner
quay.io/kubevirt/cdi-controller
quay.io/kubevirt/cdi-importer
quay.io/kubevirt/cdi-operator
quay.io/kubevirt/cdi-uploadproxy
quay.io/kubevirt/cdi-uploadserver
quay.io/kubevirt/virt-api
quay.io/kubevirt/virt-controller
quay.io/kubevirt/virt-exportserver
quay.io/kubevirt/virt-handler
quay.io/kubevirt/virt-launcher
quay.io/kubevirt/virt-operator
quay.io/l23network/k8s-netchecker-agent
quay.io/l23network/k8s-netchecker-server
quay.io/metallb/controller
quay.io/metallb/speaker
quay.io/minio/minio
quay.io/mongodb/mongodb-agent
quay.io/mongodb/mongodb-kubernetes-operator
quay.io/mongodb/mongodb-kubernetes-operator-version-upgrade-post-start-hook
quay.io/mongodb/mongodb-kubernetes-readinessprobe
quay.io/nmstate/kubernetes-nmstate-handler
quay.io/nmstate/kubernetes-nmstate-operator
quay.io/operator-framework/olm
quay.io/opstree/redis
quay.io/opstree/redis-exporter
quay.io/opstree/redis-operator
quay.io/piraeusdatastore/drbd-reactor
quay.io/piraeusdatastore/drbd9-centos7
quay.io/piraeusdatastore/piraeus-client
quay.io/piraeusdatastore/piraeus-csi
quay.io/piraeusdatastore/piraeus-ha-controller
quay.io/piraeusdatastore/piraeus-operator
quay.io/prometheus-operator/prometheus-config-reloader
quay.io/prometheus-operator/prometheus-operator
quay.io/prometheus/alertmanager
quay.io/prometheus/blackbox-exporter
quay.io/prometheus/node-exporter
quay.io/prometheus/prometheus
quay.io/prometheuscommunity/elasticsearch-exporter
quay.io/spotahome/redis-operator
quay.io/strimzi/jmxtrans
quay.io/strimzi/kafka
quay.io/strimzi/kafka-bridge
quay.io/strimzi/kaniko-executor
quay.io/strimzi/maven-builder
quay.io/strimzi/operator
quay.io/submariner/submariner
quay.io/submariner/submariner-gateway
quay.io/submariner/submariner-globalnet
quay.io/submariner/submariner-networkplugin-syncer
quay.io/submariner/submariner-operator
quay.io/submariner/submariner-operator-index
quay.io/submariner/submariner-route-agent
quay.io/tigera/operator
registry.k8s.io/addon-resizer
registry.k8s.io/build-image/debian-iptables
registry.k8s.io/build-image/go-runner
registry.k8s.io/build-image/kube-cross
registry.k8s.io/cluster-api/cluster-api-controller
registry.k8s.io/cluster-api/kubeadm-bootstrap-controller
registry.k8s.io/cluster-api/kubeadm-control-plane-controller
registry.k8s.io/conformance
registry.k8s.io/coredns
registry.k8s.io/coredns/coredns
registry.k8s.io/cpa/cluster-proportional-autoscaler
registry.k8s.io/cpa/cluster-proportional-autoscaler-amd64
registry.k8s.io/cpa/cluster-proportional-autoscaler-arm64
registry.k8s.io/debian-base
registry.k8s.io/dns/k8s-dns-node-cache
registry.k8s.io/etcd
registry.k8s.io/etcd/etcd
registry.k8s.io/ingress-nginx/controller
registry.k8s.io/ingress-nginx/e2e-test-runner
registry.k8s.io/ingress-nginx/kube-webhook-certgen
registry.k8s.io/kube-apiserver
registry.k8s.io/kube-apiserver-amd64
registry.k8s.io/kube-controller-manager
registry.k8s.io/kube-controller-manager-amd64
registry.k8s.io/kube-proxy
registry.k8s.io/kube-proxy-amd64
registry.k8s.io/kube-registry-proxy
registry.k8s.io/kube-scheduler
registry.k8s.io/kube-scheduler-amd64
registry.k8s.io/kube-state-metrics/kube-state-metrics
registry.k8s.io/kueue/kueue
registry.k8s.io/kwok/cluster
registry.k8s.io/kwok/kwok
registry.k8s.io/metrics-server
registry.k8s.io/metrics-server-amd64
registry.k8s.io/metrics-server/metrics-server
registry.k8s.io/metrics-server/metrics-server-amd64
registry.k8s.io/nfd/node-feature-discovery
registry.k8s.io/node-problem-detector/node-problem-detector
registry.k8s.io/node-test
registry.k8s.io/node-test-amd64
registry.k8s.io/pause
registry.k8s.io/prometheus-adapter/prometheus-adapter
registry.k8s.io/sig-storage/csi-attacher
registry.k8s.io/sig-storage/csi-node-driver-registrar
registry.k8s.io/sig-storage/csi-provisioner
registry.k8s.io/sig-storage/csi-resizer
registry.k8s.io/sig-storage/csi-snapshotter
registry.k8s.io/sig-storage/livenessprobe
registry.k8s.io/sig-storage/local-volume-provisioner
registry.k8s.io/sig-storage/nfs-subdir-external-provisioner
registry.k8s.io/sig-storage/snapshot-controller
registry.opensource.zalan.do/acid/logical-backup
registry.opensource.zalan.do/acid/pgbouncer
registry.opensource.zalan.do/acid/postgres-operator
registry.opensource.zalan.do/acid/spilo-14
registry.opensource.zalan.do/acid/spilo-15

镜像仓库加速验证

1.镜像仓库配置如下

root@containerd:~# tree /etc/containerd/certs.d/
/etc/containerd/certs.d/
├── 192.168.11.20
│   └── hosts.toml
├── docker.io
│   └── hosts.toml
├── gcr.io
│   └── hosts.toml
├── k8s.gcr.io
│   └── hosts.toml
└── registry.k8s.io
    └── hosts.toml

5 directories, 5 files
root@containerd:~#
root@containerd:~#
root@containerd:~# nerdctl images
REPOSITORY    TAG    IMAGE ID    CREATED    PLATFORM    SIZE    BLOB SIZE
root@containerd:~#
root@containerd:~#

2. registry.k8s.io镜像仓库验证

root@containerd:~# nerdctl --debug=true image pull k8s.gcr.io/kube-apiserver:v1.17.3
DEBU[0000] verifying process skipped
DEBU[0000] Found hosts dir "/etc/containerd/certs.d"
DEBU[0000] Ignoring hosts dir "/etc/docker/certs.d"      error="stat /etc/docker/certs.d: no such file or directory"
DEBU[0000] The image will be unpacked for platform {"amd64" "linux" "" [] ""}, snapshotter "overlayfs".
DEBU[0000] fetching                                      image="k8s.gcr.io/kube-apiserver:v1.17.3"
DEBU[0000] loading host directory                        dir=/etc/containerd/certs.d/k8s.gcr.io
DEBU[0000] resolving                                     host=k8s-gcr.m.daocloud.io
DEBU[0000] do request                                    host=k8s-gcr.m.daocloud.io request.header.accept="application/vnd.docker.distribution.manifest.v2+json, application/vnd.docker.distribution.manifest.list.v2+json, application/vnd.oci.image.manifest.v1+json, application/vnd.oci.image.index.v1+json, */*" request.header.user-agent=containerd/1.7.1+unknown request.method=HEAD url="https://k8s-gcr.m.daocloud.io/v2/kube-apiserver/manifests/v1.17.3?ns=k8s.gcr.io"
k8s.gcr.io/kube-apiserver:v1.17.3: resolving      |--------------------------------------|
elapsed: 1.6 s                     total:   0.0 B (0.0 B/s)
DEBU[0001] fetch response received                       host=k8s-gcr.m.daocloud.io response.header.cache-status=MISS response.header.connection=keep-alive response.header.content-length=1665 response.header.content-type=application/vnd.docker.distribution.manifest.list.v2+json response.header.date="Fri, 28 Jul 2023 02:34:13 GMT" response.header.docker-content-digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" response.header.docker-distribution-api-version=registry/2.0 response.header.etag="\"sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900\"" response.header.server=nginx response.header.x-content-type-options=nosniff response.status="200 OK" url="https://k8s-gcr.m.daocloud.io/v2/kube-apiserver/manifests/v1.17.3?ns=k8s.gcr.io"
DEBU[0001] resolved                                      desc.digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" host=k8s-gcr.m.daocloud.io
DEBU[0001] loading host directory                        dir=/etc/containerd/certs.d/k8s.gcr.io
DEBU[0001] fetch                                         digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" mediatype=application/vnd.docker.distribution.manifest.list.v2+json size=1665
DEBU[0001] do request                                    digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" mediatype=application/vnd.docker.distribution.manifest.list.v2+json request.header.acck8s.gcr.io/kube-apiserver:v1.17.3:                                             resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900: downloading    |--------------------------------------|    0.0 B/1.6 KiB
elapsed: 2.0 s                                                                 total:   0.0 B (0.0 B/s)
DEBU[0002] fetch response received                       digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" mediatype=application/vnd.docker.distribution.manifest.list.v2+json response.header.cache-status=MISS response.header.connection=keep-alive response.header.content-length=1665 response.header.content-type=application/vnd.docker.distribution.manifest.list.v2+json response.header.date="Fri, 28 Jul 2023 02:34:14 GMT" response.header.docker-content-digest="sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900" response.header.docker-distribution-api-version=registry/2.0 response.header.etag="\"sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900\"" response.header.server=nginx response.header.x-content-type-options=nosniff response.status="200 OK" size=1665 url="https://k8s-gcr.m.daocloud.io/v2/kube-apiserver/manifests/sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900?ns=k8s.gcr.io"
DEBU[0002] fetch                                         digest="sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62" mediatype=application/vnd.docker.distribution.manifest.v2+json size=741
k8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: downloading    |--------------------------------------|    0.0 B/741.0 B
elapsed: 2.6 s                                                                    total:  1.6 Ki (639.0 B/s)
DEBU[0002] fetch response received                       digest="sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62" mediatype=application/vnd.docker.distribution.manifest.v2+json response.header.cache-status=MISS response.header.connection=keep-alive response.header.content-length=741 response.header.content-type=application/vnd.docker.distribution.manifest.v2+json response.header.date="Fri, 28 Jul 2023 02:34:14 GMT" respok8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: downloading    |--------------------------------------|    0.0 B/741.0 B
k8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b:   downloading    |--------------------------------------|    0.0 B/1.7 KiB
elapsed: 3.2 s                                                                    total:  2.3 Ki (751.0 B/s)
DEBU[0003] fetch response received                       digest="sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b" mediatype=application/vnd.docker.container.image.v1+json response.header.cache-status=MISS response.header.connection=keep-alive response.header.content-length=1767 response.header.content-type=text/html response.header.date="Fri, 28 Jul 2023 02:34:15 GMT" response.header.docker-content-digest="sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b" response.header.docker-distribution-api-version=registry/2.0 response.header.etag="sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b" response.header.server=nginx response.header.x-content-type-options=nosniff response.status="200 OK" size=1767 url="https://k8s-gcr.m.daocloud.io/v2/kube-apiserver/blobs/sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b?ns=k8s.gcr.io"
DEBU[0003] fetch                                         digest="sha256:694976bfeffdb162655017f2c99283712340bd8c23e50c78e3e8d8aa002e9c95" mediatype=application/vnd.docker.image.rootfs.diff.tar.gzip size=29540037
DEBU[0003] fetch                                         digest="sha256:597de8ba0c30cdd0b372023aa2ea3ca9b3affbcba5ac8db922f57d6cb67db7c8" mediatype=application/vnd.docker.image.rootfs.diff.tar.gzip size=21089561
DEBU[0003] do request                                    digest="sha256:597de8ba0c30cdd0b372023aa2ea3ca9b3affbcba5ac8db922f57d6cb67db7c8" mediatype=application/vnd.docker.image.rootfs.diff.tar.gzip request.header.accept="appk8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:694976bfeffdb162655017f2c99283712340bd8c23e50c78e3e8d8aa002e9c95:    downloading    |--------------------------------------|    0.0 B/28.2 MiB
k8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:694976bfeffdb162655017f2c99283712340bd8c23e50c78e3e8d8aa002e9c95:    downloading    |--------------------------------------|    0.0 B/28.2 MiB
k8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
k8s.gcr.io/kube-apiserver:v1.17.3:                                                resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:33400ea29255bd20714b6b8092b22ebb045ae134030d6bf476bddfed9d33e900:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:4ee4113bcce32ae436b15364b09a2439dee15f6a19bbcf43a470d3dc879b0c62: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:90d27391b7808cde8d9a81cfa43b1e81de5c4912b4b52a7dccb19eb4fe3c236b:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:694976bfeffdb162655017f2c99283712340bd8c23e50c78e3e8d8aa002e9c95:    done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:597de8ba0c30cdd0b372023aa2ea3ca9b3affbcba5ac8db922f57d6cb67db7c8:    done           |++++++++++++++++++++++++++++++++++++++|
elapsed: 133.0s                                                                   total:  48.3 M (371.8 KiB/s)
root@containerd:~# nerdctl images
REPOSITORY                                     TAG        IMAGE ID        CREATED               PLATFORM       SIZE         BLOB SIZE
k8s.gcr.io/kube-apiserver                      v1.17.3    33400ea29255    About a minute ago    linux/amd64    167.3 MiB    48.3 MiB
registry.k8s.io/sig-storage/csi-provisioner    v3.5.0     d078dc174323    6 minutes ago         linux/amd64    66.1 MiB     27.0 MiB

3. k8s.gcr.io镜像仓库验证

root@containerd:~# nerdctl --debug=true image pull docker.io/library/ubuntu:20.04
DEBU[0000] verifying process skipped
DEBU[0000] Found hosts dir "/etc/containerd/certs.d"
DEBU[0000] Ignoring hosts dir "/etc/docker/certs.d"      error="stat /etc/docker/certs.d: no such file or directory"
DEBU[0000] The image will be unpacked for platform {"amd64" "linux" "" [] ""}, snapshotter "overlayfs".
DEBU[0000] fetching                                      image="docker.io/library/ubuntu:20.04"
DEBU[0000] loading host directory                        dir=/etc/containerd/certs.d/docker.io
DEBU[0000] resolving                                     host=hub-mirror.c.163.com
DEBU[0000] do request                                    host=hub-mirror.c.163.com request.header.accept="application/vnd.docker.distribution.manifest.v2+json, application/vnd.docker.distribution.manifest.list.v2+json, application/vnd.oci.image.manifest.v1+json, application/vnd.oci.image.index.v1+json, */*" request.header.user-agent=containerd/1.7.1+unknown request.method=HEAD url="https://hub-mirror.c.163.com/v2/library/ubuntu/manifests/20.04?ns=docker.io"
docker.io/library/ubuntu:20.04: resolving      |--------------------------------------|
elapsed: 1.2 s                  total:   0.0 B (0.0 B/s)
DEBU[0001] fetch response received                       host=hub-mirror.c.163.com response.header.connection=keep-alive response.header.content-length=1201 response.header.content-type=application/vnd.docker.distribution.manifest.list.v2+json response.header.date="Fri, 28 Jul 2023 02:42:20 GMT" response.header.docker-content-digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" response.header.docker-distribution-api-version=registry/2.0 response.header.etag="\"sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f\"" response.header.server=nginx/1.10.1 response.status="200 OK" url="https://hub-mirror.c.163.com/v2/library/ubuntu/manifests/20.04?ns=docker.io"
DEBU[0001] resolved                                      desc.digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" host=hub-mirror.c.163.com
DEBU[0001] loading host directory                        dir=/etc/containerd/certs.d/docker.io
DEBU[0001] fetch                                         digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" mediatype=application/vnd.docker.distribution.manifest.list.v2+json size=1201
DEBU[0001] fetch                                         digest="sha256:8eb87f3d6c9f2feee114ff0eff93ea9dfd20b294df0a0353bd6a4abf403336fe" mediatype=application/vnd.docker.distribution.manifest.v2+json size=529
docker.io/library/ubuntu:20.04:                                                   resolved       |++++++++++++++++++++++++++++++++++++++|
docker.io/library/ubuntu:20.04:                                                   resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:8eb87f3d6c9f2feee114ff0eff93ea9dfd20b294df0a0353bd6a4abf403336fe: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:d5447fc01ae62c20beffbfa50bc51b2797f9d7ebae031b8c2245b5be8ff1c75b:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:846c0b181fff0c667d9444f8378e8fcfa13116da8d308bf21673f7e4bea8d580:    done           |++++++++++++++++++++++++++++++++++++++|
elapsed: 2.6 s                                                                    total:  27.3 M (10.5 MiB/s)
root@containerd:~#
root@containerd:~#
root@containerd:~# nerdctl images
REPOSITORY                                     TAG        IMAGE ID        CREATED           PLATFORM       SIZE         BLOB SIZE
ubuntu                                         20.04      b872b0383a21    40 seconds ago    linux/amd64    75.8 MiB     27.3 MiB
k8s.gcr.io/kube-apiserver                      v1.17.3    33400ea29255    9 minutes ago     linux/amd64    167.3 MiB    48.3 MiB
registry.k8s.io/sig-storage/csi-provisioner    v3.5.0     d078dc174323    14 minutes ago    linux/amd64    66.1 MiB     27.0 MiB
root@containerd:~#

 4. docker.io镜像仓库验证

root@containerd:~# nerdctl --debug=true image pull docker.io/library/ubuntu:20.04
DEBU[0000] verifying process skipped
DEBU[0000] Found hosts dir "/etc/containerd/certs.d"
DEBU[0000] Ignoring hosts dir "/etc/docker/certs.d"      error="stat /etc/docker/certs.d: no such file or directory"
DEBU[0000] The image will be unpacked for platform {"amd64" "linux" "" [] ""}, snapshotter "overlayfs".
DEBU[0000] fetching                                      image="docker.io/library/ubuntu:20.04"
DEBU[0000] loading host directory                        dir=/etc/containerd/certs.d/docker.io
DEBU[0000] resolving                                     host=hub-mirror.c.163.com
DEBU[0000] do request                                    host=hub-mirror.c.163.com request.header.accept="application/vnd.docker.distribution.manifest.v2+json, application/vnd.docker.distribution.manifest.list.v2+json, application/vnd.oci.image.manifest.v1+json, application/vnd.oci.image.index.v1+json, */*" request.header.user-agent=containerd/1.7.1+unknown request.method=HEAD url="https://hub-mirror.c.163.com/v2/library/ubuntu/manifests/20.04?ns=docker.io"
docker.io/library/ubuntu:20.04: resolving      |--------------------------------------|
elapsed: 1.2 s                  total:   0.0 B (0.0 B/s)
DEBU[0001] fetch response received                       host=hub-mirror.c.163.com response.header.connection=keep-alive response.header.content-length=1201 response.header.content-type=application/vnd.docker.distribution.manifest.list.v2+json response.header.date="Fri, 28 Jul 2023 02:42:20 GMT" response.header.docker-content-digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" response.header.docker-distribution-api-version=registry/2.0 response.header.etag="\"sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f\"" response.header.server=nginx/1.10.1 response.status="200 OK" url="https://hub-mirror.c.163.com/v2/library/ubuntu/manifests/20.04?ns=docker.io"
DEBU[0001] resolved                                      desc.digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" host=hub-mirror.c.163.com
DEBU[0001] loading host directory                        dir=/etc/containerd/certs.d/docker.io
DEBU[0001] fetch                                         digest="sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f" mediatype=application/vnd.docker.distribution.manifest.list.v2+json size=1201
DEBU[0001] fetch                                         digest="sha256:8eb87f3d6c9f2feee114ff0eff93ea9dfd20b294df0a0353bd6a4abf403336fe" mediatype=application/vnd.docker.distribution.manifest.v2+json size=529
docker.io/library/ubuntu:20.04:                                                   resolved       |++++++++++++++++++++++++++++++++++++++|
docker.io/library/ubuntu:20.04:                                                   resolved       |++++++++++++++++++++++++++++++++++++++|
index-sha256:b872b0383a2149196c67d16279f051c3e36f2acb32d7eb04ef364c8863c6264f:    done           |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:8eb87f3d6c9f2feee114ff0eff93ea9dfd20b294df0a0353bd6a4abf403336fe: done           |++++++++++++++++++++++++++++++++++++++|
config-sha256:d5447fc01ae62c20beffbfa50bc51b2797f9d7ebae031b8c2245b5be8ff1c75b:   done           |++++++++++++++++++++++++++++++++++++++|
layer-sha256:846c0b181fff0c667d9444f8378e8fcfa13116da8d308bf21673f7e4bea8d580:    done           |++++++++++++++++++++++++++++++++++++++|
elapsed: 2.6 s                                                                    total:  27.3 M (10.5 MiB/s)
root@containerd:~#
root@containerd:~#
root@containerd:~# nerdctl images
REPOSITORY                                     TAG        IMAGE ID        CREATED           PLATFORM       SIZE         BLOB SIZE
ubuntu                                         20.04      b872b0383a21    40 seconds ago    linux/amd64    75.8 MiB     27.3 MiB
k8s.gcr.io/kube-apiserver                      v1.17.3    33400ea29255    9 minutes ago     linux/amd64    167.3 MiB    48.3 MiB
registry.k8s.io/sig-storage/csi-provisioner    v3.5.0     d078dc174323    14 minutes ago    linux/amd64    66.1 MiB     27.0 MiB
root@containerd:~#

参考daocloud镜像仓库：

https://github.com/containerd/containerd/blob/main/docs/hosts.md

https://github.com/containerd/containerd/blob/main/docs/cri/registry.md

4.Containerd之Ctr使用

4.1 镜像

  • pull 镜像（拉取镜像）：

拉取镜像可以使用 ctr image pull 来完成，比如拉取 Docker Hub 官方镜像 nginx:alpine，需要注意的是镜像地址需要加上 docker.io

ctr image pull docker.io/library/nginx:alpine

说明:
ctr命令pull镜像时，不能直接把镜像名字写成"nginx:alpine"

也可以使用 --platform 选项指定对应平台的镜像。当然对应的也有推送镜像的命令 ctr image push，如果是私有镜像则在推送的时候可以通过 --user 来自定义仓库的用户名和密码。

4.2 列出本地镜像

~ ctr image ls
~ ctr image list

使用 -q（--quiet） 选项可以只打印镜像名称。

4.3 检测本地镜像

 ctr image check

主要查看其中的 STATUS，complete 表示镜像是完整可用的状态。

4.4 重新打标签

同样的我们也可以重新给指定的镜像打一个 Tag：

➜  ~ ctr image tag docker.io/library/nginx:alpine harbor.k8s.local/course/nginx:alpine
harbor.k8s.local/course/nginx:alpine
➜  ~ ctr image ls -q
docker.io/library/nginx:alpine
harbor.k8s.local/course/nginx:alpine

4.5 删除镜像

不需要使用的镜像也可以使用 ctr image rm 进行删除：

➜  ~ ctr image rm harbor.k8s.local/course/nginx:alpine
harbor.k8s.local/course/nginx:alpine
➜  ~ ctr image ls -q
docker.io/library/nginx:alpine

加上 --sync 选项可以同步删除镜像和所有相关的资源。

4.6 将镜像挂载到主机目录

➜  ~ ctr image mount docker.io/library/nginx:alpine /mnt
sha256:c3554b2d61e3c1cffcaba4b4fa7651c644a3354efaafa2f22cb53542f6c600dc
/mnt
➜  ~ tree -L 1 /mnt
/mnt
├── bin
├── dev
├── docker-entrypoint.d
├── docker-entrypoint.sh
├── etc
├── home
├── lib
├── media
├── mnt
├── opt
├── proc
├── root
├── run
├── sbin
├── srv
├── sys
├── tmp
├── usr
└── var

18 directories, 1 file

4.7 将镜像从主机目录上卸载

➜  ~ ctr image unmount /mnt
/mnt

4.8 将镜像导出为压缩包

➜  ~ ctr image export nginx.tar.gz docker.io/library/nginx:alpine

4.9 从压缩包导入镜像

➜  ~ ctr image import nginx.tar.gz

# ctr镜像导入报错ctr: content digest sha256:xxxxxx not found
现象：
直接导入j镜像可能会出现类似于 ctr: content digest sha256:xxxxxx not found
解决办法：
拉取镜像、导出镜像时，都加上--all-platforms 时，最后在用ctr i import nginx.tar.gz

4.2 容器操作

容器相关操作可以通过 ctr container 获取。

创建容器

➜  ~ ctr container create docker.io/library/nginx:alpine nginx

列出容器

➜  ~ ctr container ls
CONTAINER    IMAGE                             RUNTIME
nginx        docker.io/library/nginx:alpine    io.containerd.runc.v2

同样可以加上 -q 选项精简列表内容：

➜  ~ ctr container ls -q
nginx

查看容器详细配置

类似于 docker inspect 功能。

➜  ~ ctr container info nginx
{
    "ID": "nginx",
    "Labels": {
        "io.containerd.image.config.stop-signal": "SIGQUIT"
    },
    "Image": "docker.io/library/nginx:alpine",
    "Runtime": {
        "Name": "io.containerd.runc.v2",
        "Options": {
            "type_url": "containerd.runc.v1.Options"
        }
    },
    "SnapshotKey": "nginx",
    "Snapshotter": "overlayfs",
    "CreatedAt": "2021-08-12T08:23:13.792871558Z",
    "UpdatedAt": "2021-08-12T08:23:13.792871558Z",
    "Extensions": null,
    "Spec": {
......

删除容器

➜  ~ ctr container rm nginx
➜  ~ ctr container ls
CONTAINER    IMAGE    RUNTIME

4.3 任务

上面我们通过 container create 命令创建的容器，并没有处于运行状态，只是一个静态的容器。一个 container 对象只是包含了运行一个容器所需的资源及相关配置数据，表示 namespaces、rootfs 和容器的配置都已经初始化成功了，只是用户进程还没有启动。

一个容器真正运行起来是由 Task 任务实现的，Task 可以为容器设置网卡，还可以配置工具来对容器进行监控等。

Task 相关操作可以通过 ctr task 获取，如下我们通过 Task 来启动容器：

➜  ~ ctr task start -d nginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/

启动容器后可以通过 task ls 查看正在运行的容器：

➜  ~ ctr task ls
TASK     PID     STATUS
nginx    3630    RUNNING

同样也可以使用 exec 命令进入容器进行操作

➜  ~ ctr task exec --exec-id 0 -t nginx sh
/ #

不过这里需要注意必须要指定 --exec-id 参数，这个 id 可以随便写，只要唯一就行。

暂停容器，和 docker pause 类似的功能：

➜  ~ ctr task pause nginx

暂停后容器状态变成了 PAUSED ：

➜  ~ ctr task ls
TASK     PID     STATUS
nginx    3630    PAUSED

同样也可以使用 resume 命令来恢复容器：

➜  ~ ctr task resume nginx
➜  ~ ctr task ls
TASK     PID     STATUS
nginx    3630    RUNNING

不过需要注意 ctr 没有 stop 容器的功能，只能暂停或者杀死容器。杀死容器可以使用 task kill 命令:

➜  ~ ctr task kill nginx
➜  ~ ctr task ls
TASK     PID     STATUS
nginx    3630    STOPPED

杀掉容器后可以看到容器的状态变成了 STOPPED 。同样也可以通过 task rm 命令删除 Task：

➜  ~ ctr task rm nginx
➜  ~ ctr task ls
TASK    PID    STATUS

除此之外我们还可以获取容器的 cgroup 相关信息，可以使用 task metrics 命令用来获取容器的内存、CPU 和 PID 的限额与使用量。

# 重新启动容器
➜  ~ ctr task metrics nginx
ID       TIMESTAMP
nginx    2021-08-12 08:50:46.952769941 +0000 UTC

METRIC                   VALUE
memory.usage_in_bytes    8855552
memory.limit_in_bytes    9223372036854771712
memory.stat.cache        0
cpuacct.usage            22467106
cpuacct.usage_percpu     [2962708 860891 1163413 1915748 1058868 2888139 6159277 5458062]
pids.current             9
pids.limit               0

还可以使用 task ps 命令查看容器中所有进程在宿主机中的 PID：


➜  ~ ctr task ps nginx
PID     INFO
3984    -
4029    -
4030    -
4031    -
4032    -
4033    -
4034    -
4035    -
4036    -
➜  ~ ctr task ls
TASK     PID     STATUS
nginx    3984    RUNNING
```

其中第一个 PID 3984 就是我们容器中的1号进程

4.4 命名空间

另外 Containerd 中也支持命名空间的概念，比如查看命名空间：

➜  ~ ctr ns ls
NAME    LABELS
default

如果不指定，ctr 默认使用的是 default 空间。同样也可以使用 ns create 命令创建一个命名空间：

➜  ~ ctr ns create test
➜  ~ ctr ns ls
NAME    LABELS
default
test

使用 remove 或者 rm 可以删除 namespace：

➜  ~ ctr ns rm test
test
➜  ~ ctr ns ls
NAME    LABELS
default

有了命名空间后就可以在操作资源的时候指定 namespace，比如查看 test 命名空间的镜像，可以在操作命令后面加上 -n test 选项：

➜  ~ ctr -n test image ls
REF TYPE DIGEST SIZE PLATFORMS LABELS

我们知道 Docker 其实也是默认调用的 containerd，事实上 Docker 使用的 containerd 下面的命名空间默认是 moby，而不是 default，所以假如我们有用 docker 启动容器，那么我们也可以通过 ctr -n moby 来定位下面的容器：

➜  ~ ctr -n moby container ls

同样 Kubernetes 下使用的 containerd 默认命名空间是 k8s.io，所以我们可以使用 ctr -n k8s.io 来查看 Kubernetes 下面创建的容器。

5. crictl

crictl 是 kubernetes cri-tools 的一部分，是专门为 kubernetes 使用 containerd 而专门制作的，提供了 Pod、容器和镜像等资源的管理命令。

需要注意的是：使用其他非 kubernetes 创建的容器、镜像，crictl 是无法看到和调试的，比如说 ctr run 在未指定 namespace 情况下运行起来的容器就无法使用 crictl 看到。当然 ctr 可以使用 -n k8s.io 指定操作的 namespace 为 k8s.io，从而可以看到/操作 kubernetes 集群中容器、镜像等资源。可以理解为：crictl 操作的时候指定了 containerd 的 namespace 为 k8s.io。

安装crictl

# wget https://github.com/kubernetes-sigs/cri-tools/releases/download/v1.24.2/crictl-v1.24.2-linux-amd64.tar.gz
# tar xf crictl-v1.24.2-linux-amd64.tar.gz -C /usr/local/bin/

创建crictl的配置文件

# cat > /etc/crictl.yaml <<EOF
runtime-endpoint: unix:///var/run/containerd/containerd.sock
image-endpoint: unix:///var/run/containerd/containerd.sock
timeout: 10
debug: false
pull-image-on-create: false
EOF

使用crictl

[root@node2 ~]# crictl pull busybox
Image is up to date for sha256:9d5226e6ce3fb6aee2822206a5ef85f38c303d2b37bfc894b419fca2c0501269
[root@node2 ~]# crictl images
IMAGE                       TAG                 IMAGE ID            SIZE
docker.io/library/busybox   latest              9d5226e6ce3fb       777kB

6.nerdctl

ctr 功能简单，而且对已经习惯使用 docker cli 的人来说，ctr 并不友好（比如无法像 docker cli 那样）。这个时候，nerdctl 就可以替代 ctr 了。**nerdctl 是一个与 docker cli 风格兼容的 containerd 的 cli 工具**，并且已经被作为子项目加入了 containerd 项目中。从 nerdctl 0.8 开始，nerdctl 直接兼容了 docker compose 的语法(不包含 swarm)， 这很大程度上提高了直接将 containerd 作为本地开发、测试和单机容器部署使用的体验。

需要注意的是：**安装 nerdctl 之后，要想可以使用 nerdctl 还需要安装 CNI 相关工具和插件**。containerd 不包含网络功能的实现，想要实现端口映射这样的容器网络能力，需要额外安装 CNI 相关工具和插件。

另外 **nerdctl 也可以使用** `-n` **指定使用的 namespace**。

  • 安装nerdctl

下载nerdctl
wget https://github.com/containerd/nerdctl/releases/download/v0.22.0/nerdctl-0.22.0-linux-amd64.tar.gz

解压软件包到相应目录
tar xf nerdctl-0.22.0-linux-amd64.tar.gz -C /usr/local/
cp /usr/local/nerdctl /usr/local/bin/nerdctl

  • 验证nerdctl

[root@node2 ~]# nerdctl version
WARN[0000] unable to determine buildctl version: exec: "buildctl": executable file not found in $PATH
Client:
 Version:	v0.22.0
 OS/Arch:	linux/amd64
 Git commit:	8e278e2aa61a89d4e50d1a534217f264bd1a5ddf
 builctl:
  Version:

Server:
 containerd:
  Version:	v1.6.10
  GitCommit:	770bd0108c32f3fb5c73ae1264f7e503fe7b2661
 runc:
  Version:	1.1.4
  GitCommit:	v1.1.4-0-g5fd4c4d1

  • 安装buildkit(可选，用于nerdctl build )  ，使用`nerdctl build`进行Dockerfile的镜像构建时，报缺少buildkit，所以需要进行安装

# mkdir buildkit
# cd buildkit/
# wget https://github.com/moby/buildkit/releases/download/v0.8.3/buildkit-v0.8.3.linux-amd64.tar.gz
# tar xf buildkit-v0.8.3.linux-amd64.tar.gz -C /usr/local

  • 编写buildkitd的启动文件

    [root@node2 ~]# cat /etc/systemd/system/buildkit.service
[Unit]
Description=BuildKit
Documentation=https://github.com/moby/buildkit

[Service]
ExecStart=/usr/local/bin/buildkitd --oci-worker=false --containerd-worker=true

[Install]
WantedBy=multi-user.target

  • 启动buildkitd服务端程序

[root@node2 ~]# systemctl daemon-reload
[root@node2 ~]# systemctl enable buildkit --now
Created symlink from /etc/systemd/system/multi-user.target.wants/buildkit.service to /etc/systemd/system/buildkit.service.

容器运行时：containerd
k8s 生态
09-22 1417
本篇是第八部分“生态篇”的第二篇。在这个部分，我会为你介绍 Docker 生态中的相关项目，以及如何参与到 Docker 项目中，最后会聊聊 Docker 未来的走向，上篇，我为你介绍下 Docker 与 Kubernetes 相关的内容。本篇，我们来聊聊容器运行时 containerd。 背景 在之前的《Docker 核心架构及拆解（上）》中，我曾为你介绍了一些 containerd 与...
云原生之路 | 1.快速了解容器（Container）及容器编排技术
WeiyiGeek 唯一极客IT知识分享
09-18 1393
2022年，原本是准备和同事一起完成出一本Kubernetes在企业落地实践的书的，但是由于老婆怀孕以及后来娃娃的出生需要照顾，从而错过了发版时间（工期赶不赢），后来一想是有点后悔，浪费了这一次宝贵机会，但是也无可奈何，出书对主题大纲、书籍目录、代码贴图、文章内容以及来源等格式都有严格的限制，所以说就是想赶上时间也是没办法的，不过在之前我已经完成了六章，如今生活一切都步入了正规，作者不详所以写和总结的文章吃灰，遂一一分享出来给大家一起学习，并且后续作者也会继续更新云原生在企业落地实践等相关文章，在。
Containerd【轻量级容器管理工具】
热门推荐
追求幸福，探索未知的博客
09-03 1万+
containerd可用作 Linux 和 Windows 的守护进程。它管理其主机系统的完整容器生命周期，从图像传输和存储到容器执行和监督，再到低级存储到网络附件等等。
containerd
unito的博客
09-09 1545
Docker和containerd是现代容器技术中的两个重要组件，它们之间有着紧密的关系，但也存在一些关键的区别。
轻量容器管理工具 Containerd
qq_36814335的博客
04-04 2610
文章目录轻量容器管理工具 Containerd一、Containerd介绍1.0 前言1.1 Containerd前世今生1.2 Containerd架构1.2.1 架构图1.2.2 常用插件1.2.3 架构缩略图1.2.4 与其它容器运行时工具性能对比二、Containerd安装2.1 YUM方式安装2.1.1 获取YUM源2.1.2 使用yum命令安装2.1.3 验证安装及启动服务2.1.4 验证可用性2.2 二进制方式安装2.2.1 下载安装Containerd2.2.2 下载安装runc2.2.3
【云原生进阶之容器】第五章容器运行时5.3.1--runC简介与使用
junbaozi的专栏
04-01 882
随着容器技术发展的愈发火热，Linux基金会于2015年6月成立OCI（Open Container Initiative）组织，旨在围绕容器格式和运行时制定一个开放的工业化标准。该组织一成立便得到了包括谷歌、微软、亚马逊、华为等一系列云计算厂商的支持。而runC就是Docker贡献出来的，按照该开放容器格式标准（OCF, Open Container Format）制定的一种具体实现。
容器编排工具 Nomad：与 Kubernetes 的对比与应用场景
最新发布
数字魔方操控师的博客
05-06 640
Kubernetes 起源于谷歌内部的 Borg 系统，是一个开源的容器编排平台，由云原生计算基金会（CNCF）维护。它提供了一个统一的 API 接口，可实现应用在多个服务器和平台上的自动化部署、扩展和管理。Kubernetes 的架构采用主从模式，其中主节点（Master Node）负责管理整个集群，包括 API 服务器、调度器、控制器管理器和 etcd 键值存储等组件；工作节点（Worker Node）则负责运行应用的容器实例，即 Pod。
containerd和dockers
01-03
而 containerd 则是一个工业级标准的容器运行时，专注于安全可靠地执行容器。 #### 架构区别 Docker 的架构更为复杂，包含了更多的组件和服务来支持其丰富的功能集。相比之下，containerd 设计得更加轻量级和模块化...
安全容器在边缘计算场景下的实践
数据库技术
12-12 409
导读：随着云计算边界不断向边缘侧延展，传统 RunC 容器已无法满足用户对不可信、异构工作负载的运行安全诉求，边缘 Serverless、边缘服务网格等更是对容器安全隔离提出了严苛的要求。本文将介绍边缘计算场景如何构建安全运行时技术基座，以及安全容器在架构、网络、监控、日志、存储、以及 K8s API 兼容等方面的遇到的困难挑战和最佳实践。 正文： 本文主要分为四个部分，首先前两个部分会分别...
什么是CONTAINERD？
weixin_30376083的博客
12-12 246
之前我们已经围绕containerd的不同功能，设计方式，以及解决的一些问题进行了几次讨论。Containerd由Docker，Kubernetes CRI和其他几个项目使用，不过这个帖子是写给可能并不知道containerd在这些平台中具体做什么的人。将来我想围绕containerd的功能集和设计上多写一些东西，但现在我们将从基础开始说起。 我认为容器系统有时有点让人难以理解，尤其是我们使用...
1.轻量级容器管理工具 Containerd
weixin_46147842的博客
02-18 1134
Containerd安装； Containerd容器镜像管理； Containerd容器管理； Containerd使用私有容器镜像仓库 Harbor； Containerd NameSpace管理； Containerd Network管理； Containerd 容器数据持久化存储； 与其他Containerd容器共享命名空间； Docker集成Containerd实现容器管理；
Containerd 介绍
w2304948626的博客
08-15 1247
早之前的 Docker Engine 中就有了 containerd，只不过现在是将 containerd 从 Docker Engine 里分离出来，作为一个独立的开源项目，目标是提供一个更加开放、稳定的容器运行基础设施。分离出来的 containerd 将具有更多的功能，涵盖整个容器运行时管理的所有需求，提供更强大的支持。如果只是希望容器暂停工作一段时间，比如要对容器的文件系统做个快照，host需要使用CPU，处于暂停的容器不占用CPU资源。containerd 是一个工业级标准的容器运行时，它强调。
Containerd介绍
keyan的岁月阁
12-10 1434
containerd Containerd官方网站 containerd是一种容器虚拟化技术，从docker中剥离出来，形成开放容器接口（OCI）标准的一部分。containerd是真正管控容器的一个进程，执行容器的时候用的是runc。 docker对容器的管理和操作基本都是通过containerd完成的。Containerd是一个工业级标准的容器运行时，它强调简单性、健壮性和可移植性。Containerd可以在宿主机中管理完整的容器生命周期：容器镜像的传输和存储、容器的执行和管理、容器的网络管理等。 k8
containerd 介绍
weixin_44572215的博客
03-06 4070
带你粗略了解一下containerd
Containerd 简介
weixin_33860147的博客
05-21 7574
我们可以把 docker 抽象为下图所示的结构(此图来自互联网)： 从图中可以看出，docker 对容器的管理和操作基本都是通过 containerd 完成的。 那么，containerd 是什么呢？Containerd 是一个工业级标准的容器运行时，它强调简单性、健壮性和可移植性。Containerd 可以在宿主机中管理完整的容器生命周期：容器镜像的传输和存储、容器的执行和管理、存储和网络等。...
containerd介绍1
码农崛起
01-29 2536
相信大家在2020年岁末都被Kubernetes即将抛弃Docker的消息刷屏了。事实上作为接替Docker运行时的Containerd在早在Kubernetes1.7时就能直接与Kubelet集成使用，只是大部分时候我们因熟悉Docker，在部署集群时采用了默认的dockershim。不过社区也说了，在1.20之后的版本的kubelet会放弃对dockershim部分的支持。 1)docker 由 docker-client ,dockerd,containerd,docker-shim,ru.
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
