What is MST (Multi-Stream Transport)?

    As work becomes more intelligent and automated, dual/multi-screen setups are standard in workplaces, especially for multitasking pros like programmers and designers. A single monitor can't efficiently manage their cluttered work, so multi-screen operations are crucial. MST (Multi-Stream Transport) is key here. Let's explore MST and its product, the HDC202-P23.

​

I.Definition of MST:

    Multi-Stream Transmission (MST) refers to a technology that enables the simultaneous transmission of data using multiple data streams (which can be physical links, logical channels, frequency bands, time resources, etc.).

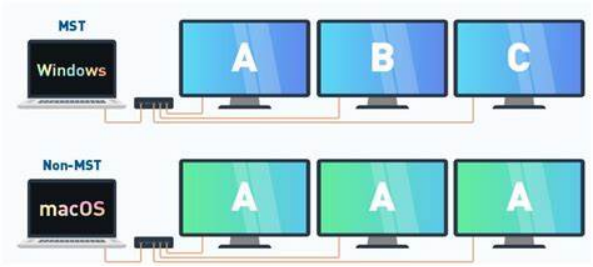

    MST divides a single video signal into multiple streams and displays them independently across multiple monitors. As a result, users can connect their laptops or desktop computers to multiple monitors through a single DisplayPort (DP) port

II. The Significance of Multi-Stream Transmission

  For most users, Multi-Stream Transmission (MST) is a vital yet unseen technology. It optimizes data transmission, boosting network experience, device performance, and app efficiency in daily life.

Key benefits include:

Simplified Connectivity: Links multiple monitors via one DisplayPort cable, reducing clutter and easing management.

Enhanced Efficiency: Multi-screen setups allow handling multiple apps/docs independently, improving productivity and multitasking.

Optimized Space & Cost: Supports monitor extension/mirroring, offering wider vision and screen space. It minimizes cabling, cuts costs, and maximizes GPU performance.

Boosted Multitasking: Splits a video signal into multiple streams for independent display on monitors, creating a larger workspace and enabling seamless multi-display collaboration.

III.How MST Works

The Multi Stream Transport (MST) technology is a method for connecting multiple external displays to a single system, which is a unique feature of DisplayPort.

MST primarily operates in two modes: Daisy Chaining or connection via third-party devices (such as MST Hubs or KVM switches). In Daisy Chaining mode, the DP in port of a monitor is connected to the computer, and then another DP cable is used to link the DP out port of that monitor to the DP in port of an extended monitor, enabling device daisy-chaining. Alternatively, by utilizing an MST Hub or a KVM switch that supports MST functionality, multi-screen expansion operations can also be easily achieved.

In short, MST's necessity lies in meeting modern communication and computing demands, being an inevitable tech choice and key to a faster, more stable, and smarter network experience. Now, let's examine the HDC202-P23 to deepen our understanding.

IV.HDC202-P23

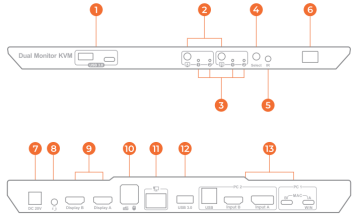

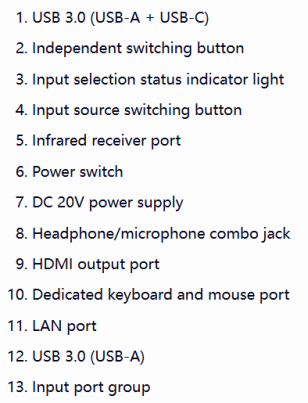

1.Port Descriptions

2.Product Features

4K 60Hz; USB 3.0

HDMI 2.0 with HDCP 2.2

Two Display Modes: Dual-Screen Mode and Mixed-Screen Mode

Supports EDID Emulator

Keyboard and Mouse Pass-Through Mode

Integrated Microphone and L/R Audio Output Interfaces

PC1 Input A Supports Laptop Charging (60W)

Supports USB Networking (Gigabit, with Enable/Disable Function)

PC1 Input A Supports MST

3.Product Functions and Advantages

The HDC202-P23 integrates MST, KVM switching, docking, and EDID emulation to simplify device connectivity and boost multitasking. It enables efficient multi-device collaboration via a single cable across office, design, or home entertainment use, delivering a streamlined and productive experience.

High Integration & Functionality: The HDC202-P23 integrates MST, dual-screen output, KVM, and docking. A single USB-C cable connects multiple devices, simplifying setup and enhancing user experience.

Strong Compatibility: Compatible with most HDMI/DP monitors, it's versatile for multi-screen office, e-sports, or graphic design, meeting diverse user needs.

Boosted Efficiency: Ideal for multi-screen users, it improves work efficiency by enabling simultaneous task handling across screens and supports one-click PC switching.

Stable & Advanced: Leveraging advanced MST, it ensures stable video signal transmission. EDID emulation prevents issues like black screens during device switching.

It perfectly embodies MST's advantages!Only through actual use can one truly appreciate its convenience.
