华为模拟器静态路由配置

汨罗622

于 2024-09-10 11:01:22 发布

阅读量982

点赞数 10

文章标签：华为网络运维

本文链接：https://blog.csdn.net/2302_80165790/article/details/142092746

版权

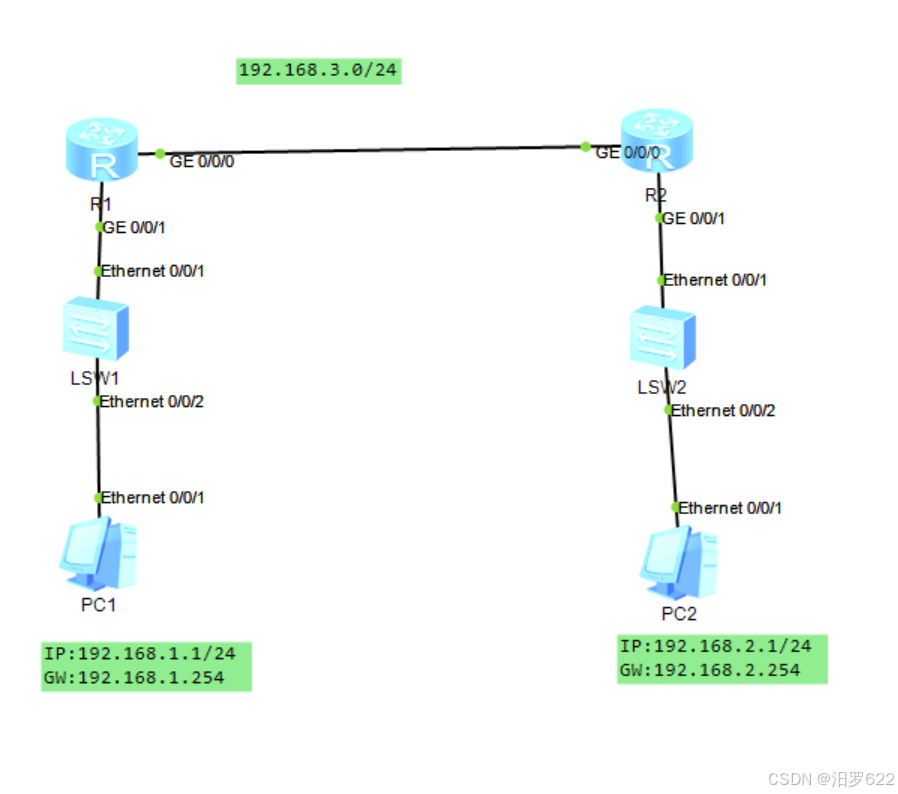

网络拓扑图

R1:

<Huawei>system-view
[Huawei]sysname R1
[R1]int g 0/0/1
[R1-GigabitEthernet0/0/1]ip ad 192.168.1.254 24
[R1-GigabitEthernet0/0/1]int g 0/0/0
[R1-GigabitEthernet0/0/0]ip ad 192.168.3.1 24

R2:

<Huawei>system-view
[Huawei]sysname R2
[R2]int g 0/0/0
[R2-GigabitEthernet0/0/0]ip ad 192.168.3.2 255.255.255.0
[R2-GigabitEthernet0/0/0]int g 0/0/1
[R2-GigabitEthernet0/0/1]ip ad 192.168.2.254 255.255.255.0

配置静态路由

R1:

[R1]ip route-static 192.168.2.0 24 192.168.3.2

R2:

[R2]ip route-static 192.168.1.0 24 192.168.3.1

查看路由表

R1:

[R1]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 11       Routes : 11

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
    192.168.1.0/24  Direct  0    0           D   192.168.1.254   GigabitEthernet
0/0/1
  192.168.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
  192.168.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    192.168.2.0/24  Static  60   0          RD   192.168.3.2     GigabitEthernet
0/0/0
    192.168.3.0/24  Direct  0    0           D   192.168.3.1     GigabitEthernet
0/0/0
    192.168.3.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
  192.168.3.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

R2:shi

[R2]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 11       Routes : 11

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
    192.168.1.0/24  Static  60   0          RD   192.168.3.1     GigabitEthernet
0/0/0
    192.168.2.0/24  Direct  0    0           D   192.168.2.254   GigabitEthernet
0/0/1
  192.168.2.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
  192.168.2.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    192.168.3.0/24  Direct  0    0           D   192.168.3.2     GigabitEthernet
0/0/0
    192.168.3.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
  192.168.3.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

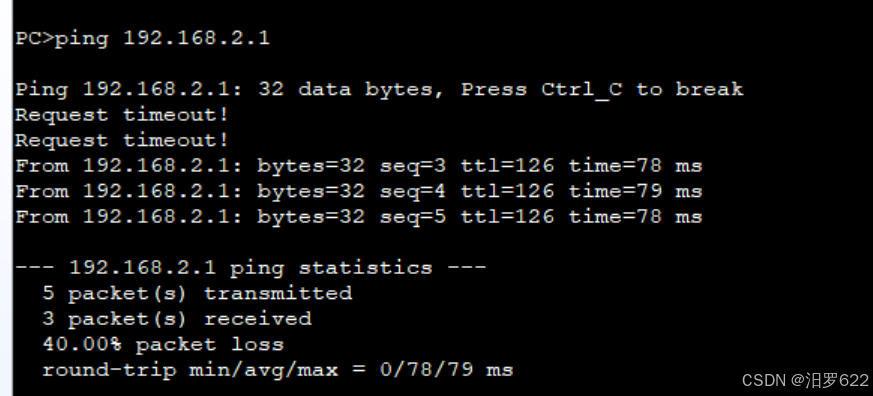

实验效果:通过配置静态路由实现全网段互通
