linux 设备树-of_address_to_resource

实例分析-reg 属性解析(基于ranges属性)

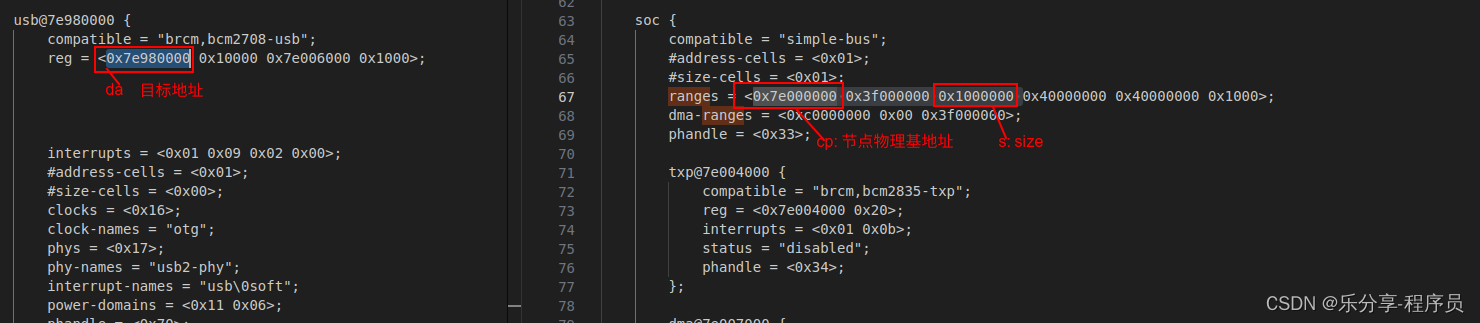

实例1

/{
	#address-cells = <0x01>;
	#size-cells = <0x01>;
	soc {
		compatible = "simple-bus";
		#address-cells = <0x01>;
		#size-cells = <0x01>;
		ranges = <0x7e000000 0x3f000000 0x1000000 0x40000000 0x40000000 0x1000>;
		dma@7e007000 {
			compatible = "brcm,bcm2835-dma";
			reg = <0x7e007000 0xf00>;
			......
		};
	}
	......
}

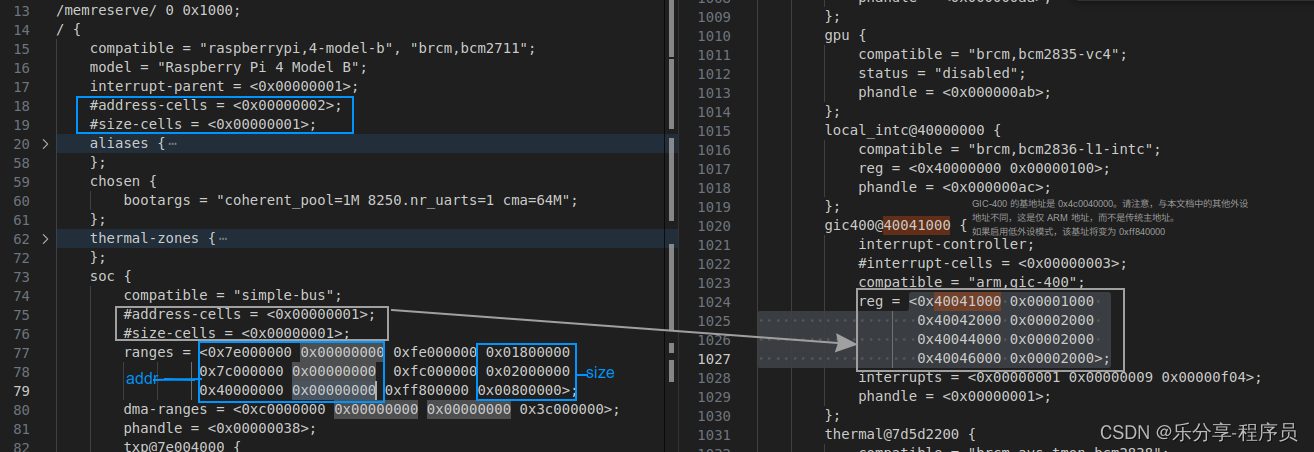

 实例2



struct resource {

        resource_size_t start; // 0x3f007000

        resource_size_t end; // 0x3f007eff

        const char *name;     // dma@7e007000 (reg-names 或者device_node->full_name)

        unsigned long flags;   //   0x200 IORESOURCE_MEM

        unsigned long desc;

        struct resource *parent, *sibling, *child;

};

1. of_address_to_resource 整体分析


of_address_to_resource(np, num_reg, &temp_res)
分析:获取节点的reg 属性,生成struct resource
	 最终填充到platfor_device 结构体的pdev->num_resources和 pdev->resource

核心的三步操作:

1. addrp = of_get_address(dev, index, &size, &flags);
 分析: 获取reg 属性的 第index组的信息(addrp:基地址  size: 大小  flags:默认)

2. of_property_read_string_index(dev, "reg-names",index, &name);
 分析: 从reg-names 属性中获取index组的名称


3. return __of_address_to_resource(dev, addrp, size, flags, name, r);
 分析: 进行地址转换(基于父节点的ranges属性),并存储到struct resource *r 结构体中

 第一步: of_get_address

const __be32 *of_get_address(struct device_node *dev, int index, u64 *size,
		    unsigned int *flags)
{
	const __be32 *prop;
	unsigned int psize;
	struct device_node *parent;
	struct of_bus *bus;
	int onesize, i, na, ns;

	/* Get parent & match bus type */
	parent = of_get_parent(dev);
	if (parent == NULL)
		return NULL;
	bus = of_match_bus(parent);
    // 获取 of_bus 结构体:static struct of_bus of_busses[]
    // 匹配方式:np->type 或者 np->name

    bus->count_cells(dev, &na, &ns);
    // 提取父节点或更高层节点的#address-cells和 #size-cells

    of_node_put(parent);
	if (!OF_CHECK_ADDR_COUNT(na))
		return NULL;

	/* Get "reg" or "assigned-addresses" property */
	prop = of_get_property(dev, bus->addresses, &psize); //prop 是基地址,
                                                         //psize 是字节流的长度,
	if (prop == NULL)
		return NULL;
	psize /= 4;                                          // psize/4 是cell 的长度

	onesize = na + ns;                                   //一组 (addr size) 的长度
	for (i = 0; psize >= onesize; psize -= onesize, prop += onesize, i++)
		if (i == index) {
			if (size)
				*size = of_read_number(prop + na, ns);
			if (flags)
				*flags = bus->get_flags(prop);
			return prop;
		}
	return NULL;
}

第二步:of_property_read_string_index()

        略

 第三步:__of_address_to_resource()

        __of_address_to_resource(dev, addrp, size, flags, name, r);



static int __of_address_to_resource(struct device_node *dev,
		const __be32 *addrp, u64 size, unsigned int flags,
		const char *name, struct resource *r)
{
	u64 taddr;

	if (flags & IORESOURCE_MEM)
		taddr = of_translate_address(dev, addrp);      //进行地址转换,获取转换后的地址
	else if (flags & IORESOURCE_IO)
		taddr = of_translate_ioport(dev, addrp, size);
	else
		return -EINVAL;

	if (taddr == OF_BAD_ADDR)
		return -EINVAL;
	memset(r, 0, sizeof(struct resource));

	r->start = taddr;					//填充到struct resource 结构体中
	r->end = taddr + size - 1;
	r->flags = flags;
	r->name = name ? name : dev->full_name;

	return 0;
}

u64 of_translate_address(struct device_node *dev, const __be32 *in_addr)
{
	struct device_node *host;
	u64 ret;

	ret = __of_translate_address(dev, in_addr, "ranges", &host);  根据父节点的ranges 进行多次转换(比如父节点的父节点)
 	if (host) {
		of_node_put(host);
		return OF_BAD_ADDR;
	}

	return ret;
}

static u64 __of_translate_address(struct device_node *dev,
				  const __be32 *in_addr, const char *rprop,
				  struct device_node **host)
{
	struct device_node *parent = NULL;
	struct of_bus *bus, *pbus;
	__be32 addr[OF_MAX_ADDR_CELLS];
	int na, ns, pna, pns;
	u64 result = OF_BAD_ADDR;

	pr_debug("** translation for device %pOF **\n", dev);

	/* Increase refcount at current level */
	of_node_get(dev);

	*host = NULL;
	/* Get parent & match bus type */
	parent = of_get_parent(dev);
	if (parent == NULL)
		goto bail;
	bus = of_match_bus(parent);

	/* Count address cells & copy address locally */
	bus->count_cells(dev, &na, &ns);
	if (!OF_CHECK_COUNTS(na, ns)) {
		pr_debug("Bad cell count for %pOF\n", dev);
		goto bail;
	}
	memcpy(addr, in_addr, na * 4);

	pr_debug("bus is %s (na=%d, ns=%d) on %pOF\n",
	    bus->name, na, ns, parent);
	of_dump_addr("translating address:", addr, na);

	/* Translate */
	for (;;) {
		struct logic_pio_hwaddr *iorange;

		/* Switch to parent bus */
		of_node_put(dev);
		dev = parent;
		parent = of_get_parent(dev);

		/* If root, we have finished */
		if (parent == NULL) {
			pr_debug("reached root node\n");
			result = of_read_number(addr, na); //最终,根据addr这个地址 生成整数,然后返回整数
			break;
		}

		/*
		 * For indirectIO device which has no ranges property, get
		 * the address from reg directly.
		 */
		iorange = find_io_range_by_fwnode(&dev->fwnode);
		if (iorange && (iorange->flags != LOGIC_PIO_CPU_MMIO)) {
			result = of_read_number(addr + 1, na - 1);
			pr_debug("indirectIO matched(%pOF) 0x%llx\n",
				 dev, result);
			*host = of_node_get(dev);
			break;
		}

		/* Get new parent bus and counts */
		pbus = of_match_bus(parent);
		pbus->count_cells(dev, &pna, &pns);
		if (!OF_CHECK_COUNTS(pna, pns)) {
			pr_err("Bad cell count for %pOF\n", dev);
			break;
		}

		pr_debug("parent bus is %s (na=%d, ns=%d) on %pOF\n",
		    pbus->name, pna, pns, parent);

		/* Apply bus translation */
		if (of_translate_one(dev, bus, pbus, addr, na, ns, pna, rprop))
			break;

		/* Complete the move up one level */
		na = pna;
		ns = pns;
		bus = pbus;

		of_dump_addr("one level translation:", addr, na);
	}
 bail:
	of_node_put(parent);
	of_node_put(dev);

	return result;
}
static int of_translate_one(struct device_node *parent, struct of_bus *bus,
			    struct of_bus *pbus, __be32 *addr,
			    int na, int ns, int pna, const char *rprop)
{
	const __be32 *ranges;
	unsigned int rlen;
	int rone;
	u64 offset = OF_BAD_ADDR;

	/*
	 * Normally, an absence of a "ranges" property means we are
	 * crossing a non-translatable boundary, and thus the addresses
	 * below the current cannot be converted to CPU physical ones.
	 * Unfortunately, while this is very clear in the spec, it's not
	 * what Apple understood, and they do have things like /uni-n or
	 * /ht nodes with no "ranges" property and a lot of perfectly
	 * useable mapped devices below them. Thus we treat the absence of
	 * "ranges" as equivalent to an empty "ranges" property which means
	 * a 1:1 translation at that level. It's up to the caller not to try
	 * to translate addresses that aren't supposed to be translated in
	 * the first place. --BenH.
	 *
	 * As far as we know, this damage only exists on Apple machines, so
	 * This code is only enabled on powerpc. --gcl
	 */
	ranges = of_get_property(parent, rprop, &rlen);
	if (ranges == NULL && !of_empty_ranges_quirk(parent)) {
		pr_debug("no ranges; cannot translate\n");
		return 1;
	}
	if (ranges == NULL || rlen == 0) {
		offset = of_read_number(addr, na);
		memset(addr, 0, pna * 4);
		pr_debug("empty ranges; 1:1 translation\n");
		goto finish;
	}

	pr_debug("walking ranges...\n");

	/* Now walk through the ranges */
    // ranges 中存在多组转换, 选择正确的转换(ranges 地址为正确的一组的基地址)
    //offset = da- cp
	rlen /= 4;
	rone = na + pna + ns;
	for (; rlen >= rone; rlen -= rone, ranges += rone) {
		offset = bus->map(addr, ranges, na, ns, pna);
		if (offset != OF_BAD_ADDR)
			break;
	}
	if (offset == OF_BAD_ADDR) {
		pr_debug("not found !\n");
		return 1;
	}
	memcpy(addr, ranges + na, 4 * pna);  //addr= 转换后的基地址

 finish:
	of_dump_addr("parent translation for:", addr, pna);
	pr_debug("with offset: %llx\n", (unsigned long long)offset);

	/* Translate it into parent bus space */
	return pbus->translate(addr, offset, pna); //  addr = addr + offset
}

bus->map(addr, ranges, na, ns, pna);

调用 of_bus_default_map

获取偏移(用于转换后的偏移)

static u64 of_bus_default_map(__be32 *addr, const __be32 *range,
		int na, int ns, int pna)
{
	u64 cp, s, da;

	cp = of_read_number(range, na); 获取ranges 中的基地址(未转换的)
	s  = of_read_number(range + na + pna, ns); 获取ranges 中基地址的大小
	da = of_read_number(addr, na);//获取reg 中的基地址(未转换的)

	pr_debug("default map, cp=%llx, s=%llx, da=%llx\n",
		 (unsigned long long)cp, (unsigned long long)s,
		 (unsigned long long)da);

	if (da < cp || da >= (cp + s))  //有效: 必须大于 cp, 且小于 cp +s
		return OF_BAD_ADDR;
	return da - cp;   // 计算偏移(未转换前的)
}



 pbus->translate(addr, offset, pna);

        调用of_bus_default_translate

static int of_bus_default_translate(__be32 *addr, u64 offset, int na)
{
	u64 a = of_read_number(addr, na);
	memset(addr, 0, na * 4);
	a += offset;
	if (na > 1)
		addr[na - 2] = cpu_to_be32(a >> 32);
	addr[na - 1] = cpu_to_be32(a & 0xffffffffu);

	return 0;
}
