3. WIZnet以太网芯片

WIZnet 主流硬件协议栈以太网芯片参数对比

Model	Embedded Core	Host I/F	TX/RX Buffer	HW Socket	Network Performance
W5100S	TCP/IPv4， MAC & PHY	8bit BUS, SPI	16KB	4	Max 25Mbps
W6100	TCP/IPv4/IPv6, MAC & PHY	8bit BUS, Fast SPI	32KB	8	Max 25Mbps
W5500	TCP/IPv4, MAC & PHY	Fast SPI	32KB	8	Max 15Mbps

W5100S/W6100 支持 8bit数据总线接口，网络传输速度会优于W5500。
W6100 支持IPV6，与W5100S 硬件兼容，若已使用W5100S的用户需要支持IPv6，可以Pin to Pin兼容。
W5500 拥有比 W5100S更多的 Socket数量以及发送与接收缓存

相较于软件协议栈，WIZnet的硬件协议栈以太网芯片有以下优点：

硬件TCP/IP协议栈：WIZnet的硬件协议栈芯片提供了一种硬件实现的TCP/IP协议栈，这种硬件实现的协议栈比软件实现的协议栈具有更好的性能和稳定性。
不需要额外的嵌入式系统软件栈和内存资源：由于所有的以太网传输和接收操作都由独立的以太网控制器处理，因此不需要额外的嵌入式系统软件栈和内存资源。
抵抗网络环境变化和DDoS攻击：与易受网络环境变化和DDoS攻击影响的软件TCP/IP协议栈相比，硬件协议栈芯片能够提供更稳定的以太网性能。
适用于低规格的嵌入式系统：即使在低规格的嵌入式系统中，使用WIZnet的硬件协议栈芯片也可以比使用软件TCP/IP协议栈的高规格系统显示出更高效的互联网应用操作性能。

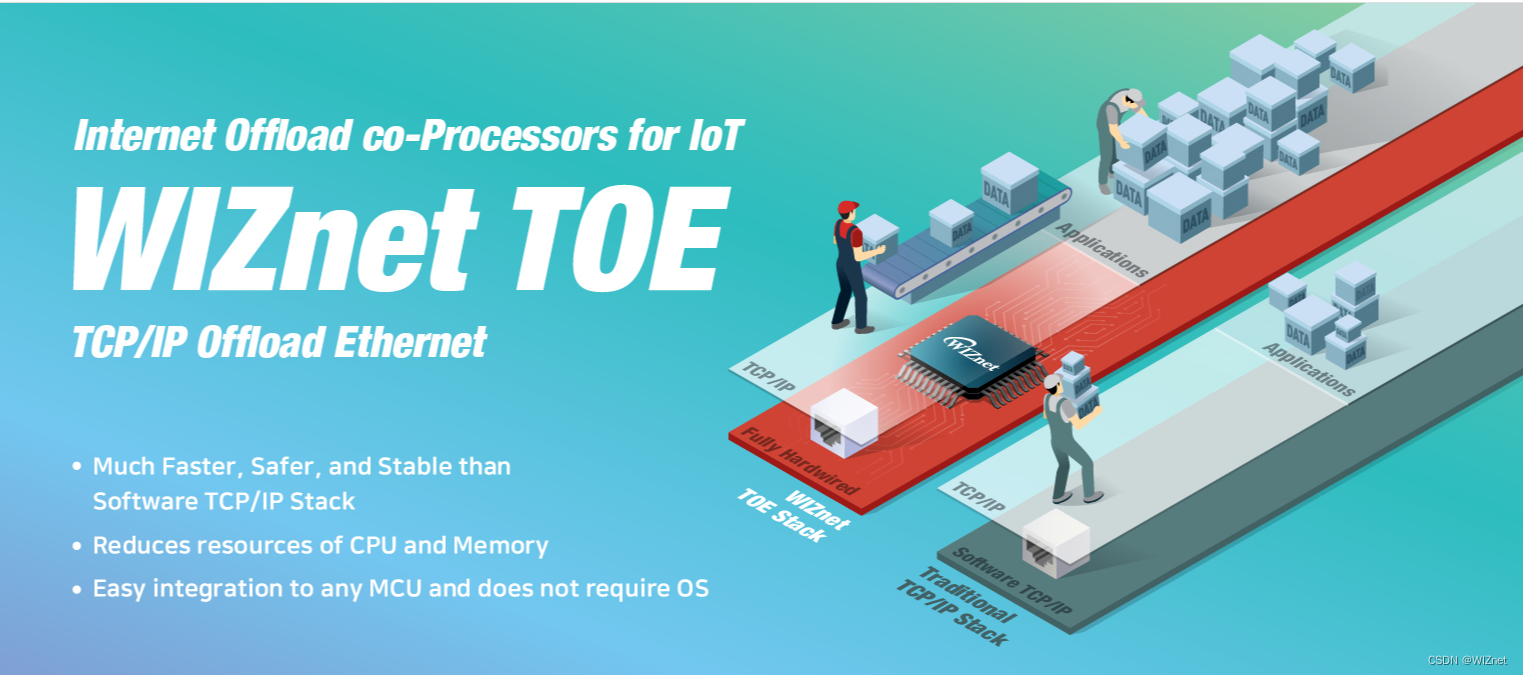

在这里插入图片描述

4. MQTT 通信示例讲解以及使用

4.1 程序流程图

在这里插入图片描述

4.2 测试准备

软件：

Thonny
MQTTX

硬件：

W5100S IO模块 + RP2040 树莓派Pico开发板或者 WIZnet W5100S-EVB-Pico开发板
Micro USB 接口的数据线
网线

4.3 连接方式

通过数据线连接PC的USB口
当使用W5100S/W5500 IO模块连接RP2040时
- RP2040 GPIO 16 <----> W5100S/W5500 MISO
- RP2040 GPIO 17 <----> W5100S/W5500 CS
- RP2040 GPIO 18 <----> W5100S/W5500 SCK
- RP2040 GPIO 19 <----> W5100S/W5500 MOSI
- RP2040 GPIO 20 <----> W5100S/W5500 RST
通过网线直接连接PC网口（或：PC和设备都通过网线连接交换机或路由器LAN口）

4.4 相关代码

我们直接打开mqtt.py文件。

第一步：可以看到在w5x00_init()函数中，进行了SPI的初始化。以及将spi相关引脚和复位引脚注册到库中，后续则是激活网络，并使用DHCP配置网络地址信息，当DHCP失败时，则配置静态网络地址信息。当未配置成功时，会打印出网络地址相关寄存器的信息，可以帮助我们更好的排查问题。

第二步：尝试连接MQTT服务器，如果连接失败则进入复位程序。

第三步：订阅主题，绑定消息回调函数，并开启定时器定时进行保活。

第四步：等待接收消息，如果接收到了消息则进行回环处理。

此外，还需将umqttsimple.py库保存到开发板中，否则会导致运行出错。

#mqtt.py file
from umqttsimple import MQTTClient
from usocket import socket
from machine import Pin,SPI,Timer
import network
import time
import json

#mqtt config
mqtt_params = {}
mqtt_params['url'] = 'test.mosquitto.org'
mqtt_params['port'] = 1883
mqtt_params['clientid'] = 'W5100S'
mqtt_params['pubtopic'] = '/W5100S/pub'
mqtt_params['subtopic'] = '/W5100S/sub'
mqtt_params['pubqos'] = 0
mqtt_params['subqos'] = 0

timer_1s_count =  0
tim = Timer()
client = None

"""
W5x00 chip initialization.

param: None
returns: None

"""
def w5x00\_init():
    spi=SPI(0,2\_000\_000, mosi=Pin(19),miso=Pin(16),sck=Pin(18))
    nic = network.WIZNET5K(spi,Pin(17),Pin(20)) #spi,cs,reset pin
    nic.active(True)

    try:
        #DHCP
        print("\r\nConfiguring DHCP")
        nic.ifconfig('dhcp')
    except:
        #None DHCP
        print("\r\nDHCP fails, use static configuration")
        nic.ifconfig(('192.168.1.20','255.255.255.0','192.168.1.1','8.8.8.8'))#Set static network address information

    #Print network address information
    print("IP :",nic.ifconfig()[0])
    print("Subnet Mask:",nic.ifconfig()[1])
    print("Gateway :",nic.ifconfig()[2])
    print("DNS :",nic.ifconfig()[3],"\r\n")

    #If there is no network connection, the register address information is printed
    while not nic.isconnected():
        time.sleep(1)
        print(nic.regs())

"""
Subscribe to the topic message callback function. This function is entered when a message is received from a subscribed topic.

param1: The topic on which the callback is triggered
param2: Message content
returns: None

"""
def sub\_cb(topic, msg):
    topic = topic.decode('utf-8')
    msg = msg.decode('utf-8')
    if topic == mqtt_params['subtopic']:
        global client
        print("\r\ntopic:",topic,"\r\nrecv:", msg)
        client.publish(mqtt_params['pubtopic'],msg,qos = mqtt_params['pubqos'])
        print('\r\ntopic:',mqtt_params['pubtopic'],'\r\nsend:',msg)

"""
Connect to the MQTT server.

param: None
returns: None

"""
def mqtt\_connect():
    client = MQTTClient(mqtt_params['clientid'], mqtt_params['url'], mqtt_params['port'],keepalive=60)

    client.connect()
    print('Connected to %s MQTT Broker'%(mqtt_params['url']))
    return client

"""
Connection error handler.

param: None
returns: None

"""
def reconnect():
    print('Failed to connected to Broker. Reconnecting...')
    time.sleep(5)
    machine.reset()

"""
1-second timer callback function.

param1: class timer
returns: None

"""
def tick(timer):
    global timer_1s_count
    global client
    timer_1s_count += 1
    if timer_1s_count >= 30:
           timer_1s_count = 0
           client.ping()

"""
Subscribe to Topics.

param: client object
returns: None

"""
def subscribe(client):
    client.set_callback(sub_cb)
    client.subscribe(mqtt_params['subtopic'],mqtt_params['subqos'])
    print('subscribed to %s'%mqtt_params['subtopic'])


def main():
    global client
    print("WIZnet chip MQTT example")
    w5x00_init()

    try:
        client = mqtt_connect()
    except OSError as e:
        reconnect()

    subscribe(client)

    tim.init(freq=1, callback=tick)

    while True:
        client.wait_msg()


    client.disconnect()

if __name__ == "\_\_main\_\_":
    main()

#umqttsimple.py file
import usocket as socket
import ustruct as struct
from ubinascii import hexlify


class MQTTException(Exception):
    pass


class MQTTClient:
    def \_\_init\_\_(
        self,
        client_id,
        server,
        port=0,
        user=None,
        password=None,
        keepalive=0,
        ssl=False,
        ssl_params={},
    ):
        if port == 0:
            port = 8883 if ssl else 1883
        self.client_id = client_id
        self.sock = None
        self.server = server
        self.port = port
        self.ssl = ssl
        self.ssl_params = ssl_params
        self.pid = 0
        self.cb = None
        self.user = user
        self.pswd = password
        self.keepalive = keepalive
        self.lw_topic = None
        self.lw_msg = None
        self.lw_qos = 0
        self.lw_retain = False

    def \_send\_str(self, s):
        self.sock.write(struct.pack("!H", len(s)))
        self.sock.write(s)

    def \_recv\_len(self):
        n = 0
        sh = 0
        while 1:
            b = self.sock.read(1)[0]
            n |= (b & 0x7F) << sh
            if not b & 0x80:
                return n
            sh += 7

    def set\_callback(self, f):
        self.cb = f

    def set\_last\_will(self, topic, msg, retain=False, qos=0):
        assert 0 <= qos <= 2
        assert topic
        self.lw_topic = topic
        self.lw_msg = msg
        self.lw_qos = qos
        self.lw_retain = retain

    def connect(self, clean_session=True):
        self.sock = socket.socket()
        addr = socket.getaddrinfo(self.server, self.port)[0][-1]
        self.sock.connect(addr)
        if self.ssl:
            import ussl

            self.sock = ussl.wrap_socket(self.sock, \*\*self.ssl_params)
        premsg = bytearray(b"\x10\0\0\0\0\0")
        msg = bytearray(b"\x04MQTT\x04\x02\0\0")

        sz = 10 + 2 + len(self.client_id)
        msg[6] = clean_session << 1
        if self.user is not None:
            sz += 2 + len(self.user) + 2 + len(self.pswd)
            msg[6] |= 0xC0
        if self.keepalive:
            assert self.keepalive < 65536
            msg[7] |= self.keepalive >> 8
            msg[8] |= self.keepalive & 0x00FF
        if self.lw_topic:
            sz += 2 + len(self.lw_topic) + 2 + len(self.lw_msg)
            msg[6] |= 0x4 | (self.lw_qos & 0x1) << 3 | (self.lw_qos & 0x2) << 3
            msg[6] |= self.lw_retain << 5

        i = 1
        while sz > 0x7F:
            premsg[i] = (sz & 0x7F) | 0x80
            sz >>= 7
            i += 1
        premsg[i] = sz

        self.sock.write(premsg, i + 2)
        self.sock.write(msg)
        # print(hex(len(msg)), hexlify(msg, ":"))
        self._send_str(self.client_id)
        if self.lw_topic:
            self._send_str(self.lw_topic)
            self._send_str(self.lw_msg)
        if self.user is not None:
            self._send_str(self.user)
            self._send_str(self.pswd)
        resp = self.sock.read(4)
        assert resp[0] == 0x20 and resp[1] == 0x02
        if resp[3] != 0:
            raise MQTTException(resp[3])
        return resp[2] & 1

    def disconnect(self):
        self.sock.write(b"\xe0\0")
        self.sock.close()

    def ping(self):
        self.sock.write(b"\xc0\0")

    def publish(self, topic, msg, retain=False, qos=0):
        pkt = bytearray(b"\x30\0\0\0")
        pkt[0] |= qos << 1 | retain
        sz = 2 + len(topic) + len(msg)
        if qos > 0:
            sz += 2
        assert sz < 2097152
        i = 1
        while sz > 0x7F:
            pkt[i] = (sz & 0x7F) | 0x80
            sz >>= 7
            i += 1
        pkt[i] = sz
        # print(hex(len(pkt)), hexlify(pkt, ":"))
        self.sock.write(pkt, i + 1)
        self._send_str(topic)
        if qos > 0:
            self.pid += 1
            pid = self.pid
            struct.pack_into("!H", pkt, 0, pid)
            self.sock.write(pkt, 2)
        self.sock.write(msg)
        if qos == 1:
            while 1:
                op = self.wait_msg()
                if op == 0x40:
                    sz = self.sock.read(1)
                    assert sz == b"\x02"
                    rcv_pid = self.sock.read(2)
                    rcv_pid = rcv_pid[0] << 8 | rcv_pid[1]
                    if pid == rcv_pid:
                        return
        elif qos == 2:
            assert 0

    def subscribe(self, topic, qos=0):
        assert self.cb is not None, "Subscribe callback is not set"
        pkt = bytearray(b"\x82\0\0\0")
        self.pid += 1
        struct.pack_into("!BH", pkt, 1, 2 + 2 + len(topic) + 1, self.pid)
        # print(hex(len(pkt)), hexlify(pkt, ":"))
        self.sock.write(pkt)
        self._send_str(topic)
