nginx核心功能

[root@localhost ~]# yum -y install httpd-tools
[root@localhost ~]# htpasswd -c /usr/local/nginx/passwd.db test
[root@localhost ~]# cat /usr/local/nginx/passwd.db

修改密码文件权限为400,将所有者改为nginx,设置Nginx的运行用户能够读取

[root@localhost ~]# chmod 400 /usr/local/nginx/passwd.db
[root@localhost ~]# chown nginx /usr/local/nginx/passwd.db
[root@localhost ~]# ll -d /usr/local/nginx/passwd.db

修改主配置文件nginx.conf,添加相应认证配置项

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

server {
listen 80;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location/{
root html;
index index.html index.htm;
auth_basic "secret";
auth_basic_user_file /usr/local/nginx/passwd.db;
}

检测语法、重启服务

[root@localhost ~]# nginx -t
[root@localhost ~]# systemctl restart nginx

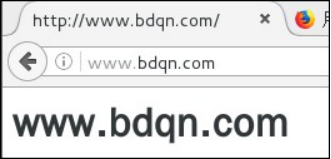

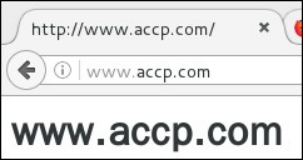

用浏览器访问网址,检验控制效果

基于客户端的访问控制

基于客户端的访问控制简介

基于客户端的访问控制是通过客户端IP地址,决定是否允许双页面访问。Nginx基于客户端的访问控制要比Apache简单,规则如下:

deny IP/IP段:拒绝某个IP段的客户端访问。
allow IP/IP段:允许某个IP段的客户端访问。
规则从上往下执行,如匹配则停止,不再往下匹配。

基于客户端的访问控制步骤

修改主配置文件nginx.conf,添加相应配置项

location / {
root
html;
index
index.html index.htm;
# auth_basic "secret";
# auth_basic_user_file /usr/local/nginx/passwd.db;
deny 192.168.10.3;
allow all;

}

nginx虚拟主机

利用虚拟主机,不用为每个要运行的网站提供一台单独的Nginx服务器或单独运行一组Nginx进程,虚拟主机提供了在同一台服务器,同一组Ngirx进程上运行多个网站的功能。跟Apache一样,Nginx也可以配置多种类型的虚拟主机,分别是基于IP的虚拟主机、基于域名的虚拟主机、基于端口的虚拟主机。

基于域名的虚拟主机

设置客户端域名解析

修改hosts文件,加入www.benet.com和ww.accp.com这两个域名
192.168.10.101 WWW.benet.com
192.168.10.101 www.accp.com

准备各个网站的目录和测试首页

[root@localhost ~]# mkdir-p/var/www/html/benet/
[root@localhost ~]# mkdir -p/var/www/html/accp/
[root@localhost ~]# echo "www.benet.com">>/var/www/httml/benet/index.html
[root@localhost ~]# echo "www.accp.com">>/var/www/htnhl/accp/index.html

修改配置文件

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

server {
listen 80;
server_name www.benet.com;
access_log logs/www.benet.com.access.log;
charset utf-8;
location / {
root /var/www/html/benet;
index index.html index.htm;
error_page 500 502 503 504 /50x.html;
location = 50x.html {
root html;

}

}

server{
listen 80;
server_name www.accp.com;
access_log logs/www.accp.com.access.log;
charset utf-8;
location / {
root /var/www/html/accp;

index _
index.html index.htm;
error_page 500 502 503 504 /50x.html;
location = 50x.html {
root html;

}

}

[root@localhost ~]# nginx -t
[root@localhost ~]# systemctl restart nginx

基于IP的虚拟主机

为服务器设置多个IP地址

[root@localhost ~]# cd /etc/sysconfig/network-scripts
[root@localhost network-scripts]# cp ifcfg-ens33 :ifcfg-ens 33 :0
[root@localhost network-scripts]# cp ifcfg-ens33 :ifcfg-ens 33 :1
[root@localhost network-scripts]# vim ifcfg-ens33:0

IPADDR=192.168.10.151
NETMASK=255.255.255.0
GATEWAY=192.168.10.254
DNS1=223.6.6.6
NAME=ens33:0
DEVICE=ens33:0

[root@localhost network-scripts]# vim ifcfg-ens33:1

IPADDR=192.168.10.152
NETMASK=255.255.255.0
GATEWAY=192.168.10.254
DNS1=223.6.6.6
NAME=ens33:1
DEVICE=ens33:1

[root@localhost network-scripts]# nmcli c reload
[root@localhost network-scripts]# nmcli c up ens333
[root@localhost network-scripts]# ip add

修改Nginx的配置文件,使基于IP的虚拟主机生效

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

server {
listen 192.168.10.151:80;

server_name www.benet.com;

}
server{
listen
192.168.10.152:80;
server_name www.accp.com;

}

[root@localhost ~]# systemctl restart nginx

基于端口的虚拟主机

选择系统中不使用的端口,多个端口映射到同一IP地址

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

server{
listen
192.168.10.101:8080;
www.benet.com;
server_name

}

server{
listen
192.168.10.101:8888;
server_name www.accp.com;

}

[root@localhost ~]# systemctl restart nginx

检测端口是否运行正常

[root@localhost ~]# netstat -anpt | grep nginx

LNMP架构部署及应用

编译安装MySQL服务

[root@www ~]# yum install -y autoconf

[root@localhost ~]# yum -y install ncurses-devel gcc-c++ perl-Module-Install cmake
[root@localhost ~]# tar -zxvf mysql-5.6.36.tar.gz
[root@localhost ~]# cd mysql-5.6.36/
[root@localhost mysql-5.6.36]# cmake \

[root@localhost mysql-5.6.36]# make & make install

复制配置文件到/etc下,并把MySQL添加到服务

[root@localhost mysql-5.6.36]# cp support-files/my-default.cnf /etc/my.cnf
[root@localhost mysql-5.6.36]# cp support-files/mysql.serve/etc/init.d/mysqld
[root@localhost mysql-5.6.36]# chmod +x letc/rc.d/init.d/mysqld
[root@localhost mysql-5.6.36]# chkconfig --add mysqld
[root@localhost mysql-5.6.36]# chkconfig mysqld on

[root@localhost mysql-5.6.36]# echo "PATH=$PATH:/usr/local/mysql/bin">> /etc/profile
[root@localhost mysql-5.6.36]# . /etc/profile

初始化数据库

[root@localhost ~]# groupadd mysql
[root@localhost ~]# useradd -M -s /sbin/nologin mysql -g mysql
[root@localhost ~]# chown -R mysql.mysql /usr/local/mysql
[root@localhost ~]# /usr/local/mysql/scripts/mysql_install_db --basedir=/usr/local/mysql
--datadir=/usr/local/mysql/data --user=mysql

启动mysql,并设置密码

[root@localhost ~]# systemctl start mysqld
[root@localhost ~]# mysqladmin-u root password '123.com'

安装PHP解析环境

[root@localhost ~]# yum -y install gd libxml2-devel libjpeg-devel libpng-deve

[root@localhost ~]#tar -zxvf php-5.38.tar.gz

安装后调整

[root@localhost php-5.38]# cp php.ini-development/usr/loca/php5/php.in
[root@localhost php-5.38]# In -s /usr/local/php5/bin/* /usr/local/bin/
[root@localhost php-5.38]# In -s /usr/local/php5/sbin/* /usr/local/sbin/

安装ZendGuardLoader

[root@localhost ~]# tar -zxvf zend-loader-php5.5-linux-x86_64_update1.tar.gz
[root@localhost ~]# cd zend-loader-php5.5-linux-x86_64/
[root@localhost zend-loader-php5.5-linux-x86_64]# cp ZendGuardLoader.so /usr/local/php5/lib/php/
[root@localhost zend-loader-php5.5-linux-x86_64]# vim /usr/local/php5/php.ini

zend_extension=/ust/local/php5/lib/php/ZendGuardLoader.so
zend_loader.enable=1

配置Nginx支持PHP环境

启用php-fpm进程

[root@localhost ~]# cd /usr/local/php5/etc/
[root@localhost etc]# cp php-fpm.conf.default php-fpm.conof
[root@localhost etc]# useradd -M -s /sbin/nologin php
[root@localhost etc]# vim php-fpm.conf

pid = run/php-fpm.pid
user = php
group = php
pm.max_children = 50
pm.start_servers = 20
pm.min_spare_servers = 5
pm.max_spare_servers = 35

[root@localhost etc]# /usr/local/sbin/php-fpm
[root@localhost etc]# netstat -anpt | grep php-fpm
[root@localhost ~]# vim /lib/systemd/system/php-fpm.service

[Unit]
Description=The PHP FastCGI Process Manager
After=network.target

[Service]
Type=simple
PIDFile=/usr/local/php5/php-fpm.pid
ExecStart=/usr/local/php5/sbin/php-fpm --nodaemonize --fpm-config /usr/local/php5/etc/php-fpm.conf
ExecReload=/bin/kill -USR2 $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target

[root@localhost ~]# systemctl daemon-reload
[root@localhost ~]# systemctl start php-fpm

配置Nginx支持PHP解析

[root@localhost ~]# vim /usr/local/nginx/conf/nginx.conf

Server{
listen 80;
server_name www.bt.com;
location/{
root /var/www/html;
index index.html index.htm index.php;

}

location ~\.php${
root /var/www/html;
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
include fastcgi.conf;

}

}

PHP页面访问测试

[root@localhost ~]# mkdir-p/var/www/html/
[root@localhost ~]# vim /var/www/html/test1.php

<?php

phpinfo();

?>

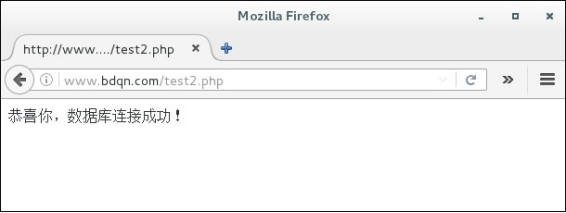

[root@localhost ~]# vim /var/www/html/test2.php

<?php

$link=mysqli_connect('localhost','root','pwd123');

if($link)

echo "恭喜你，数据库连接成功！";

mysqli_close($link);

?>

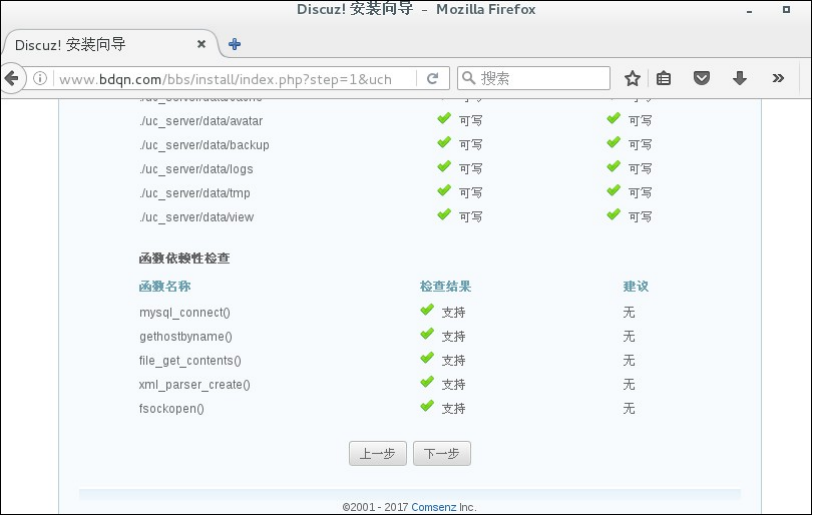

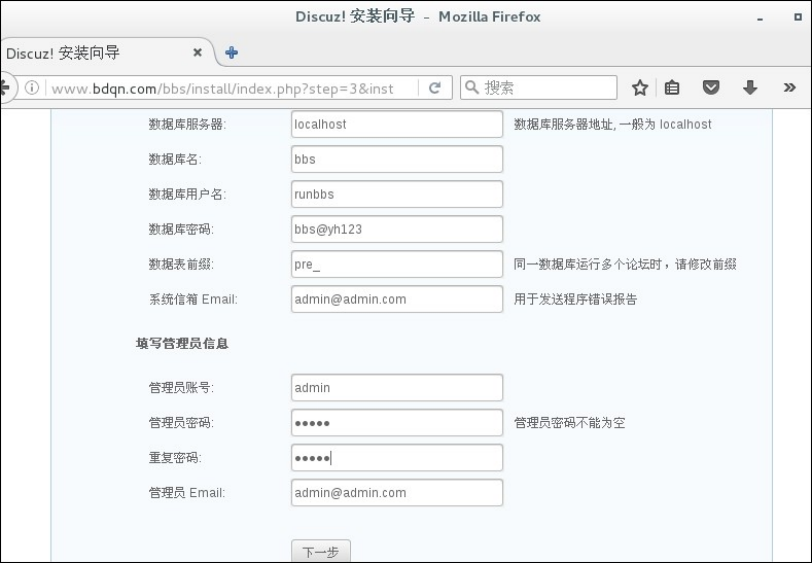

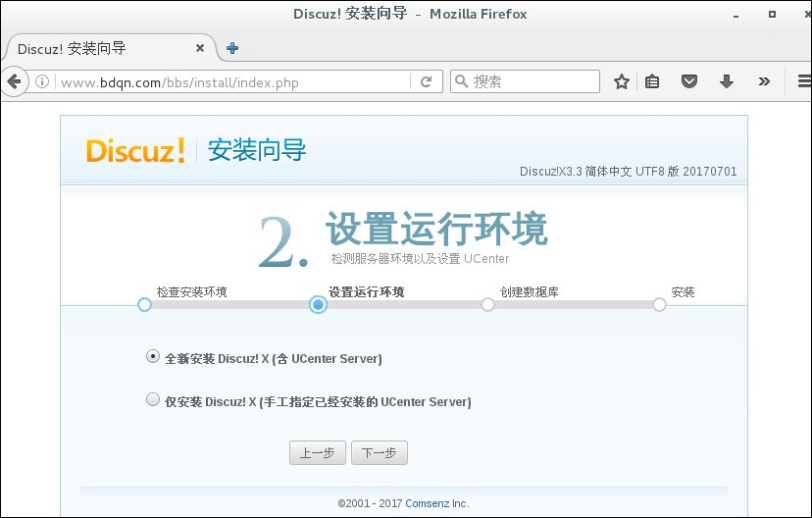

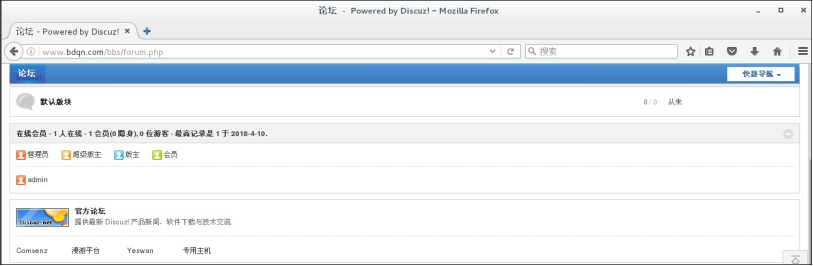

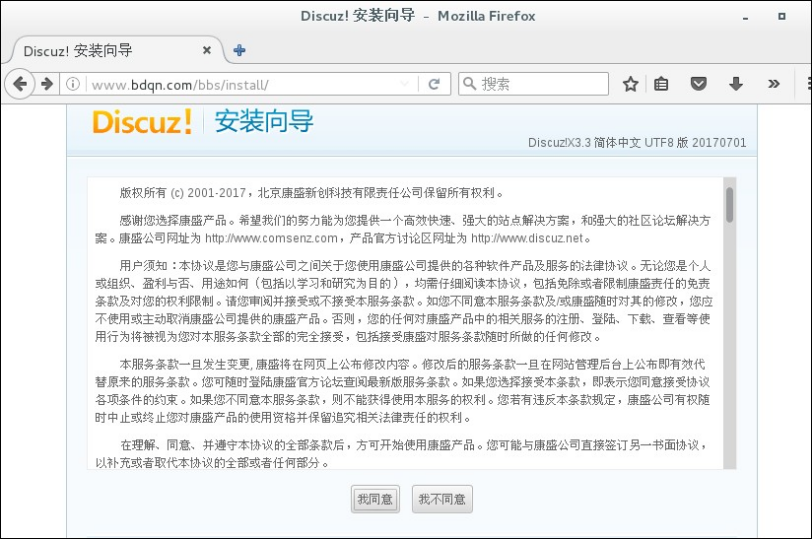

在LNMP平台中部署Web应用

下载并部署程序代码

[root@localhost ~]# yum -y install unzip

[root@localhost ~]# unzip Discuz_X3.3_SC_UTF8.zip

[root@localhost ~]# mv upload/ /var/www/bdqn/bbs

[root@localhost ~]# chown -R php:php /var/www/bdqn/bbs

创建数据库

[root@localhost ~]# mysql -u root -p

Enter password:

mysql> create database bbs;

mysql> grant all on bbs.* to runbbs@localhost identified by 'bbs@yh123';
